Summit Appliance 24 inch Wide Built-In Kegerator For Use Under ADA Compliant Counters With Dual Tap Kit For Two 1/6 Kegs
Summit Appliance 24 inch Wide Built-In Kegerator For Use Under ADA Compliant Counters With Dual Tap Kit For Two 1/6 Kegs
Couldn't load pickup availability

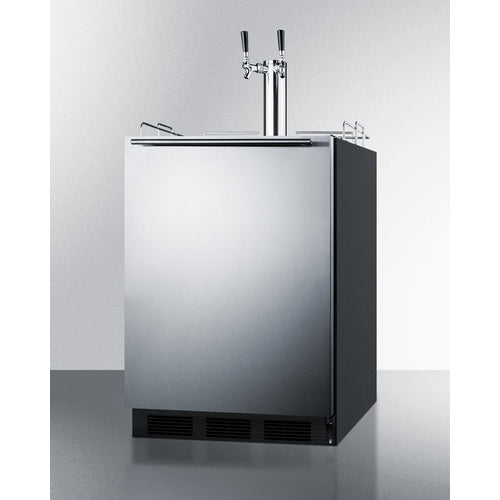

Summit's ADA-compliant 24" wide built-in kegerator combines accessibility with premium functionality. This 32" high European-made unit fits seamlessly under lower counters with its front-breathing design, while maintaining versatility for freestanding use in its black finished cabinet. Features include a reversible 304 grade stainless steel door, horizontal handle, protective guard rail, and removable stainless steel drip tray.
The comprehensive dual tap system comes complete with Sankey American hardware, draft tower, regulator, and 5 lb. CO2 tank—everything necessary for dispensing from two 1/6 kegs in commercial or residential settings.

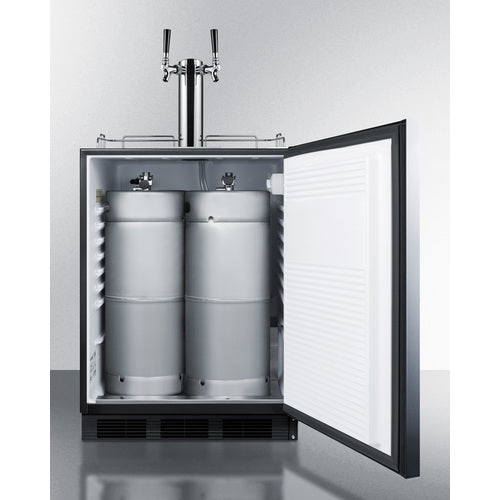

The SBC58BLBIADA interior accommodates two 1/6 (sixtel) kegs, though it cannot fit a standard half barrel. Maintenance is simplified with automatic defrost and a seamless interior design for effortless cleaning. The stainless steel floor provides exceptional durability during keg loading operations.
Temperature management is intuitive via a dial thermostat, while an interior light with on/off rocker switch enhances visibility. Space efficiency is maximized with an internal CO2 tank bracket, eliminating the need for external tank storage. This kegerator meets rigorous commercial standards with ETL-S listing to NSF-7 certification. For alternative configurations, explore our complete line of ADA compliant options, including panel-ready and glass door variants.
FEATURES
Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings

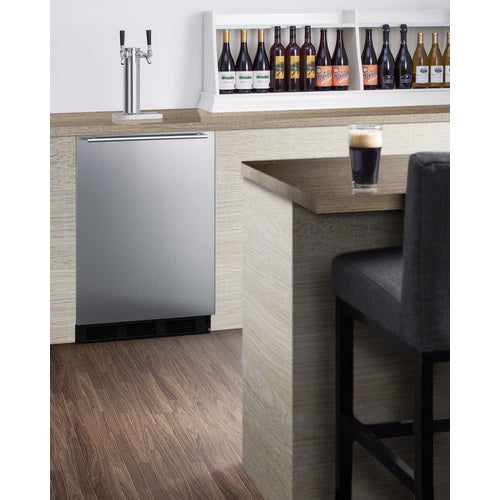

Front-breathing design allows fully recessed installation under counters
Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, and connection hardware

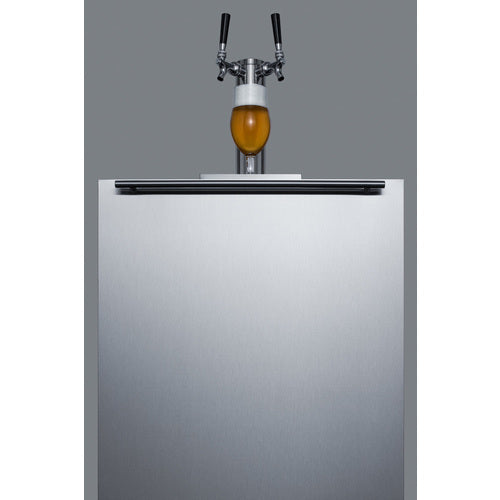

Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs
304 grade stainless steel for a professional look with lasting durability
Thin handle with common 14mm diameter in brushed stainless steel mounted horizontally
Interior dial thermostat ensures easy temperature management
No-frost operation for minimum user maintenance
User-reversible door swing allows you to easily adjust to better accommodate your setting
Removable two-piece drip tray included for added convenience
Durable railing makes it easier to neaten service
Turn the light on when you need it and off when you're done with a convenient rocker switch
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
Interior includes steel cover to protect the floor when loading kegs

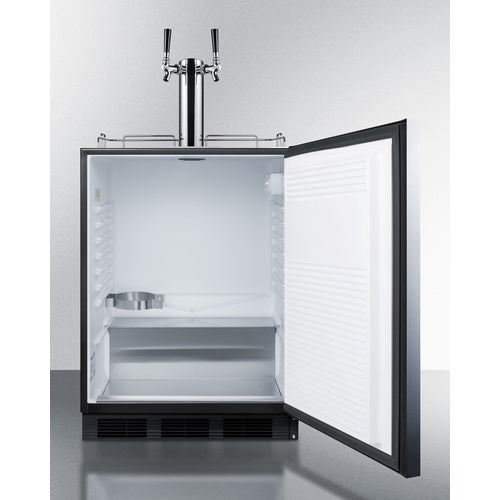

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Cold wall design with hidden evaporator and seamless interior
Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Handle | 24.25" (62 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.2 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 110.0 lbs. (50 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101069616 |
|
Kegerator
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Tap Kit | Yes |
| Height with Tap | 47.5" (121 cm) |
| Number of Taps | 2 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Fan Type | Exterior |
| Refrigerant | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Inter Height | 25.75" (65 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 17.75" (45 cm) |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
| Temperature Range | 34º to 43ºF |
AVAILABLE UPGRADES
| Exterior | |
| LHD - Left hand door swing | DT - Digital thermostat |
| SSK - Stainless steel kickplate |
| Door | |
| CDG-Emerald green door | CDY-Saffron gold door wrap |
| CDB-Cobalt blue door wrap | CDP-Lavender purple door wrap |
| Lock | |
| L-SideLock |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
SBC58BLBIADA.pdf |
| TECHNICAL DRAWING (.dwg) | SBC58BBIADA_BEER_DISP.__A-C_2010_.dwg |
| REVIT MODEL | Qf_Summit_SBC58BLBIADA_24_inches_Wide_Built_In_Kegerator__ADA_Compliant.rfa |
| USE & CARE |
