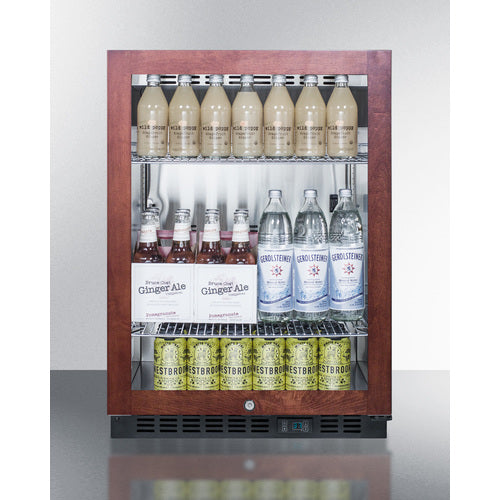

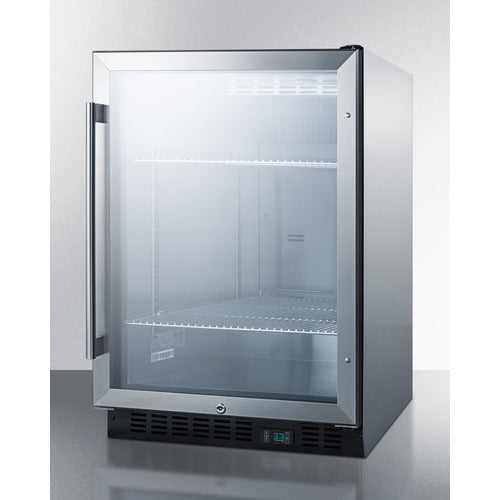

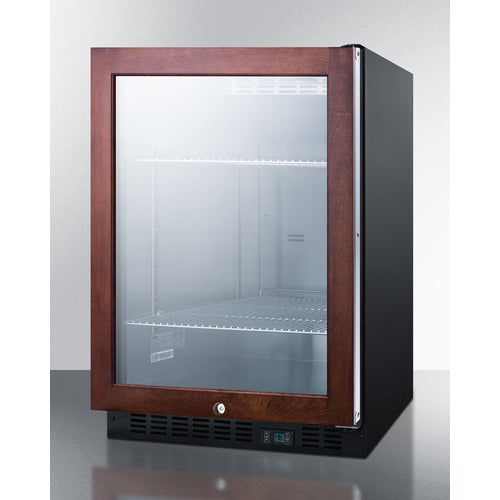

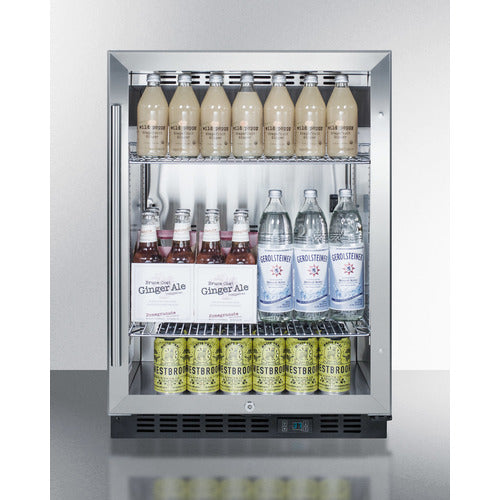

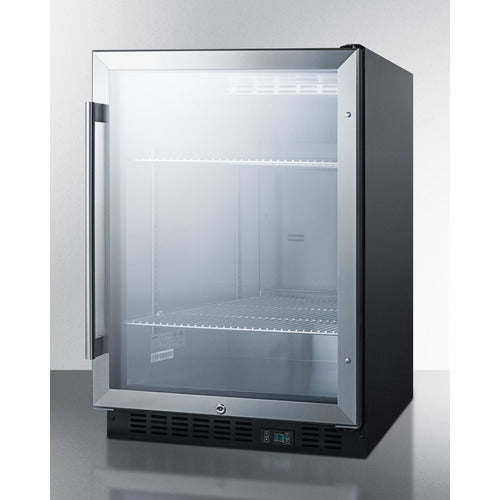

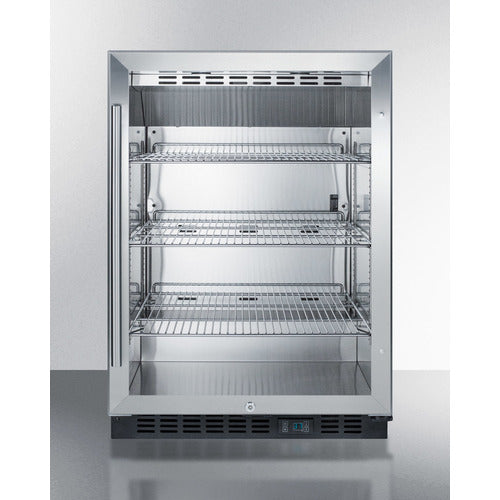

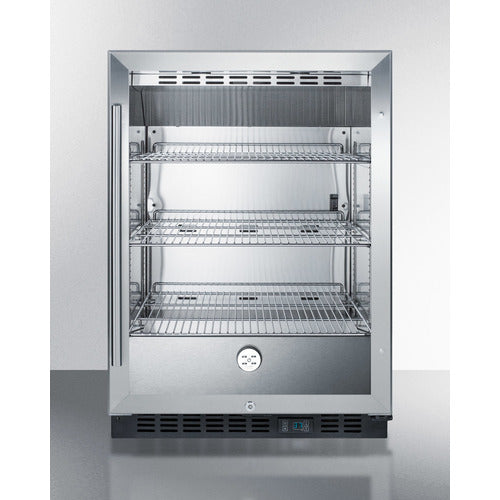

The SCR610BL, SCR610BLCSS, and SCR610BLPNR feature automatic defrost with an internal fan for consistent temperature distribution. The durable stainless steel interior is illuminated by recessed LED lighting and includes three chrome shelves that can be adjusted for various item sizes. Additional protection is provided by high temperature and open door alarms.
The SCR610BL, SCR610BLCSS, and SCR610BLPNR models are all ETL-S listed to NSF-7 standards and ENERGY STAR certified for commercial use as a refrigerator.
FEATURES
ETL-S is listed to NSF-7 Standards for use in commercial establishments
Make the best use of space by installing this unit under the counter and flush with other cabinetry
Meets ENERGY STAR standards as a commercial refrigerator
Stainless steel trimmed glass door offers a full display of stored items
Walls are constructed from stainless steel for added strength and easy cleanup
Keyed lock for a secure interior
Intuitive digital controls ensure easy temperature management
User-reversible door swing allows for more flexibility in placing the unit
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
The stainless steel handle completes the professional look
Efficient and attractive lighting illuminates stored products
An audible alarm will sound if the door is left ajar for over a minute
Alarm sounds if the interior temperature rises out of the suggested range
Reduced user maintenance with automatic defrost
The optional setting lets you disable the lighting and alarm for up to 48 hours
The unit will retain its last settings when power is restored in the event of power loss
The internal fan ensures the interior is evenly cooled from top to bottom
Space-saving design with easier cleanability
Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.0" (86 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Capacity | 5.0 cu. ft. (142 L) |
| Defrost Type | Automatic |

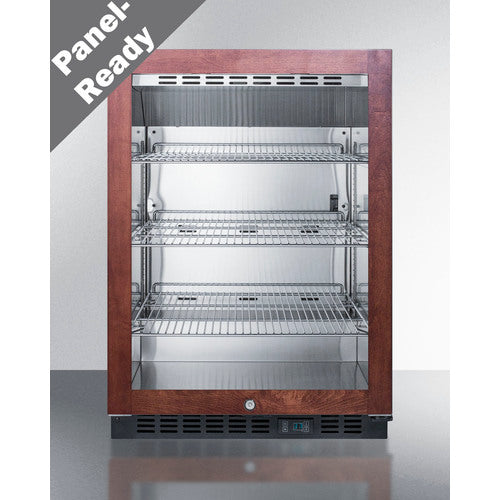

| Door | Glass/Panel-Ready Frame |
| Cabinet | Black/Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 0.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101022673 761101032078 761101065526 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Temperature Range | 36°F to 43°F |
| Sound Level | 37.4 dB |
|
Dimensions
|
|
| Interior Height | 25.0" (64 cm) |
| Interior Width | 19.38" (49 cm) |
| Interior Depth | 17.38" (44 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.38" (49 cm) |
| Compressor Step Depth | 4.63" (12 cm) |
AVAILABLE UPGRADES
| Exterior |
| SSK - Stainless steel kickplate | HG - Hospital-grade cord |
| Latch - Factory-installed door latch requires manual release to open unit | LHD - Left-hand door swing |
| Alarm/Thermometer - Factory-installed alarm with external temperature readout | PH - Probe Hole |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) |
| Interior |

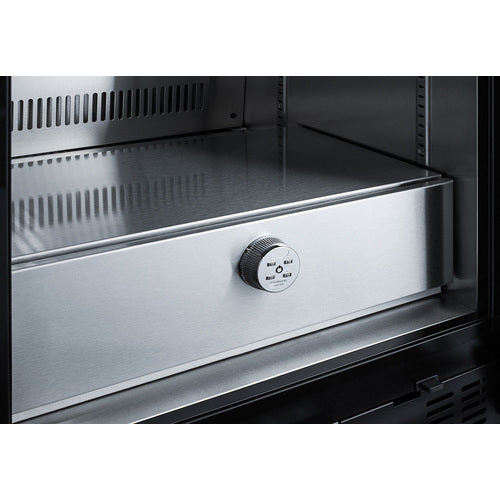

| LockBoxSS - Interior locking compartment | LockBoxW - Interior locking compartment with window |
| Door |
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
| Handle |
| TBC Copper Towel Bar Handle | CP Full-Length Copper Pipe Handle |
