Summit Appliance 24 inch Wide ADA Compliant Built-In Commercial Dual Tap Wine Kegerator

Summit Appliance 24 inch Wide ADA Compliant Built-In Commercial Dual Tap Wine Kegerator

Application
Tap System
Color
Regular price $3,110.00 USD
Regular price Sale price $3,110.00 USD
Sale Sold out
Shipping calculated at checkout.

Summit Commercial's ADA compliant wine dispenser combines accessibility with sophistication. At 32 inches high, the SBC58BLBIADAWKDTWIN fits perfectly under lower ADA counters while offering installation flexibility with its front-breathing design and finished black cabinet.

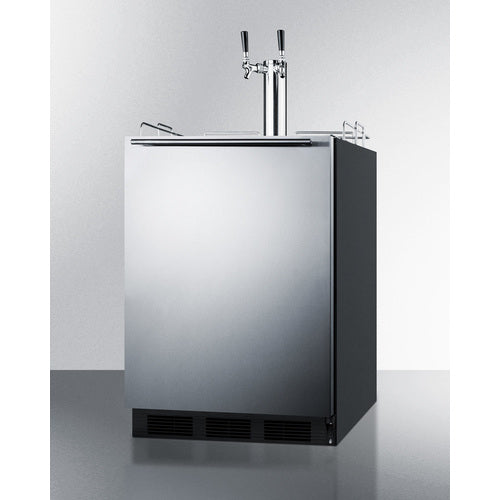

The unit features a reversible 304 grade stainless steel door with a horizontal handle for contemporary aesthetics. Complete with a guard rail, removable stainless steel drip tray, and a comprehensive Sankey American dual tap kit including draft tower, 5 lb. nitrogen/CO2 tank, regulator, and all necessary components for serving white wine on tap.

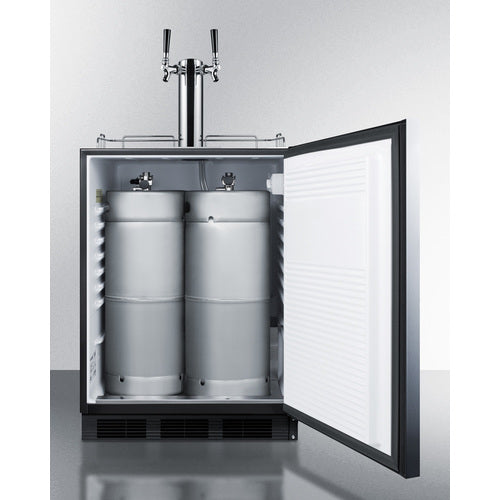

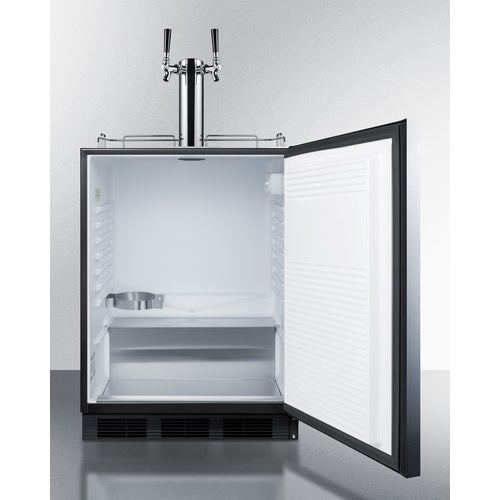

The SBC58BLBIADAWKDTWIN interior accommodates two 1/6 (sixtel) kegs, though it cannot fit a standard half barrel. Maintenance is streamlined with automatic defrost and a seamless interior design, while the stainless steel floor enhances durability during keg loading. Featuring an interior light with on/off rocker switch and intuitive dial thermostat for precise temperature control.

The interior tank bracket maximizes space efficiency by reducing exterior depth requirements. ETL-S listed to NSF-7 commercial standards, this model is part of a comprehensive line that includes panel-ready and glass door options, as well as coffee and beer dispensing alternatives for ADA compliant environments.

FEATURES

ADA compliant height

Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters

Commercially approved

ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings

Built-in capable

Front-breathing design allows fully recessed installation under counters

Complete dual tap kit

Ships with a complete twin tap wine tap kit that includes a dispenser tower, regulator, and all the connection equipment you need to serve from a 1/6 wine keg or disposable wine keg

Stainless steel wrapped door

304 grade stainless steel for a professional look with lasting durability

Professional handle

Thin handle with common 14mm diameter in brushed stainless steel mounted horizontally

Adjustable thermostat

Interior dial thermostat ensures easy temperature management

Automatic defrost

No-frost operation for minimum user maintenance

Reversible door

User-reversible door swing allows you to easily adjust to better accommodate your setting

Stainless steel drip tray

Removable two-piece drip tray included for added convenience

Stainless steel guard rail

Durable railing makes it easier to neaten service

Interior light

Turn the light on when you need it and off when you're done with a convenient rocker switch

Nitrogen/CO2 tank included

Canister is best suited for a 75% nitrogen/25% CO2 mixture

Interior CO2 holder

Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SPECIFICATIONS

Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101069746
Kegerator
Door Swing RHD
Reversible Yes
Tap Kit Yes
Height with Tap 47.5" (121 cm)
Number of Taps 2
Thermostat Type Dial
Interior Light Yes
Fan Type Exterior
Refrigerant R600a
Refrigerant Amount 0.64 oz.
High Side PSI 180.0
Low Side PSI 80.0
Inter Height 25.75" (65 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range 34º to 43ºF

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing DT - Digital thermostat
SSK - Stainless steel kickplate
Door
CDG-Emerald green door     CDY-Saffron gold door wrap
CDB-Cobalt blue door wrap CDP-Lavender purple door wrap
Lock
L-SideLock

DOWNLOADS

BROCHURE w/ DRAWINGS
SBC58BLBIADAWKDTWIN.pdf
TECHNICAL DRAWING (.dwg) SBC58BBIADA_BEER_DISP.__A-C_2010_.dwg
USE & CARE SBC58BL_SBC56G_ADA_Kegerators_User_Manual.pdf
USE & CARE SBC_Wine_Dispensing_Tap_Kit.pdf
