Summit Appliance 24 inch Wide ADA Compliant Built-In Commercial Dual Tap Wine Kegerator
Summit Appliance 24 inch Wide ADA Compliant Built-In Commercial Dual Tap Wine Kegerator
Couldn't load pickup availability
Summit Commercial's ADA compliant wine dispenser combines functionality with accessibility. At 32 inches high, the SBC58BLBIADAIFWKDTWIN fits perfectly under lower ADA counters while its front-breathing design allows for built-in or freestanding installation. The integrated stainless steel door frame accommodates overlay panels for seamless integration with existing cabinetry.
This European-made dual tap kegerator comes fully equipped with a Sankey American tap system, including draft tower, 5 lb. nitrogen/CO2 tank, regulator, and all necessary components for serving white wine on tap. Features include a protective guard rail and removable stainless steel drip tray for professional service.

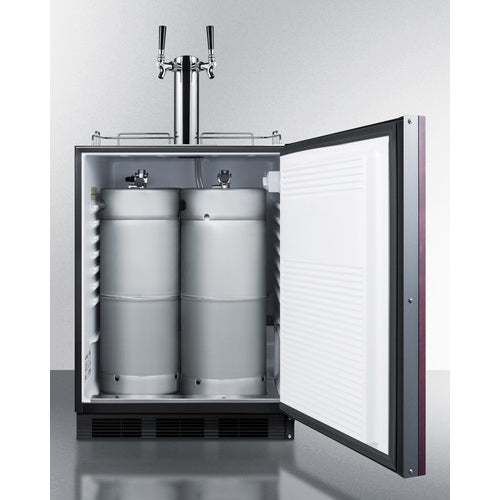

The SBC58BLBIADAIFWKDTWIN features an interior specifically engineered to accommodate two 1/6 (sixtel) kegs, though it cannot fit a standard half barrel. Maintenance is streamlined with automatic defrost functionality and a seamless interior design that facilitates thorough cleaning.
The stainless steel floor provides enhanced durability during keg loading operations. User-friendly features include an interior light with convenient on/off rocker switch and intuitive dial thermostat for precise temperature control. An interior bracket allows for tank placement inside the unit, optimizing exterior space requirements. This model meets rigorous commercial standards with ETL-S listing to NSF-7 specifications. The product line extends to other ADA compliant options including panel-ready or glass door models, as well as coffee and beer dispensing variants.
FEATURES
Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Ships with a complete twin tap wine tap kit that includes a dispenser tower, regulator, and all the connection equipment you need to serve from a 1/6 wine keg or disposable wine keg

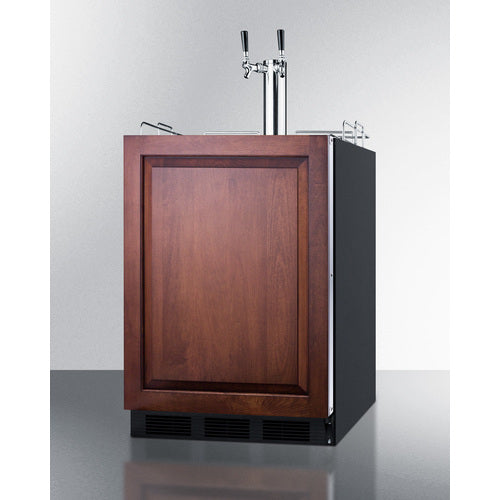

Customize the front by mounting an overlay panel over the door; seamless look can blend into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
Interior dial thermostat ensures easy temperature management
No-frost operation for minimum user maintenance
Unit ships with a right hand door swing. For a left hand version, add option LHD upon order
Removable two-piece drip tray included for added convenience
Durable railing makes it easier to neaten service
Turn the light on when you need it and off when you're done with a convenient rocker switch
Canister is best suited for a 75% nitrogen/25% CO2 mixture
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
Interior includes steel cover to protect the floor when loading kegs
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Cold wall design with hidden evaporator and seamless interior
Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.75" (58 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.2 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 110.0 lbs. (50 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101069692 |
|
Kegerator
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Tap Kit | Yes |
| Height with Tap | 47.5" (121 cm) |
| Number of Taps | 2 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Fan Type | Exterior |
| Refrigerant | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Inter Height | 25.75" (65 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 17.75" (45 cm) |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
| Temperature Range | 34º to 43ºF |
AVAILABLE UPGRADES
| Exterior | |
| LHD - Left hand door swing | DT - Digital thermostat |
| SSK - Stainless steel kickplate |
| Door | |
| CDG-Emerald green door | CDY-Saffron gold door wrap |
| CDB-Cobalt blue door wrap | CDP-Lavender purple door wrap |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
SBC58BLBIADAIFWKDTWIN.pdf |
| USE & CARE | IF_Instructions_-_General.pdf |
| USE & CARE | SBC58BL_SBC56G_ADA_Kegerators_User_Manual.pdf |
