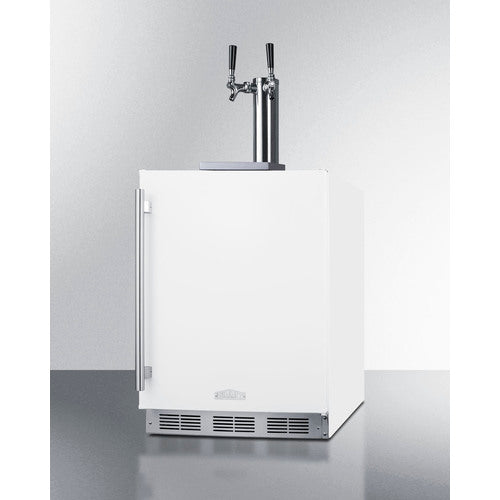

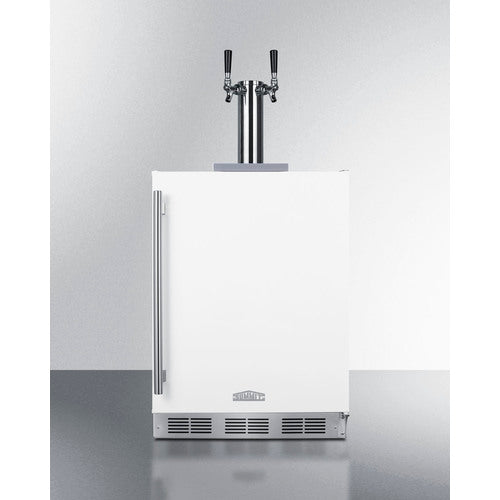

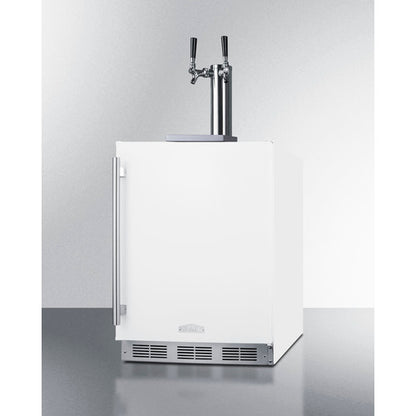

Summit Appliance 24 inch Wide ADA Compliant Built-In Commercial Dual Tap Wine Dispenser In White

Summit Appliance 24 inch Wide ADA Compliant Built-In Commercial Dual Tap Wine Dispenser In White

Tap System
Color
Regular price $2,885.00 USD
Regular price Sale price $2,885.00 USD
Sale Sold out
Shipping calculated at checkout.

Summit Commercial introduces a specialized line of European-made wine dispensers for ADA compliant environments. The SBC58WHBIADAWKDTWIN, at 32 inches high, fits perfectly under lower ADA counters and features versatile installation options with its front-breathing design.

The elegant white exterior is complemented by stainless steel accents, including a professional handle and removable drip tray. This comprehensive unit comes fully equipped with a Sankey American dual tap system, draft tower, 5 lb. nitrogen/CO2 tank with regulator, and all necessary components for serving white wine on tap.

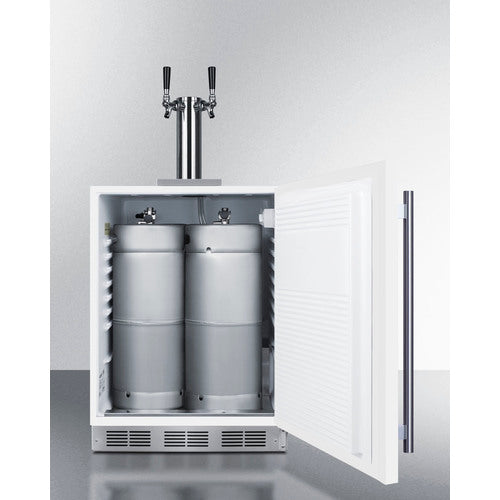

The SBC58WHBIADAWKDTWIN features an interior designed specifically for two 1/6 (sixtel) kegs, though it cannot accommodate standard half barrels. Maintenance is streamlined with automatic defrost functionality and a seamless interior design that facilitates cleaning. Durability is enhanced by a stainless steel floor that withstands keg loading. Operational features include an interior light with an on/off rocker switch and intuitive temperature control via dial thermostat.

The integrated tank bracket allows internal tank storage, optimizing exterior space requirements. This model meets ETL-S listing to NSF-7 commercial standards. Summit offers additional ADA compliant European kegerators with various door options including stainless steel, panel-ready, and glass configurations.

FEATURES

ADA compliant height

Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters

Commercially approved

ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings

Built-in capable

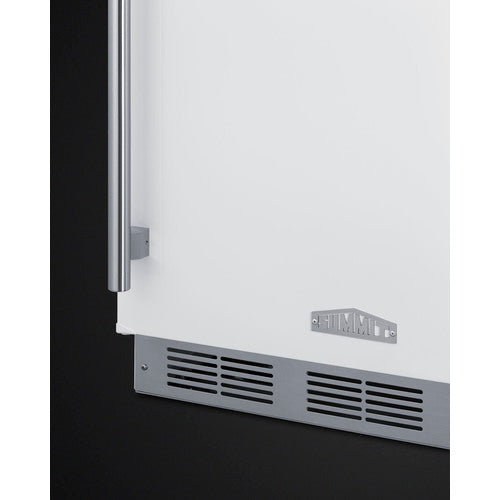

Front-breathing design allows fully recessed installation under counters

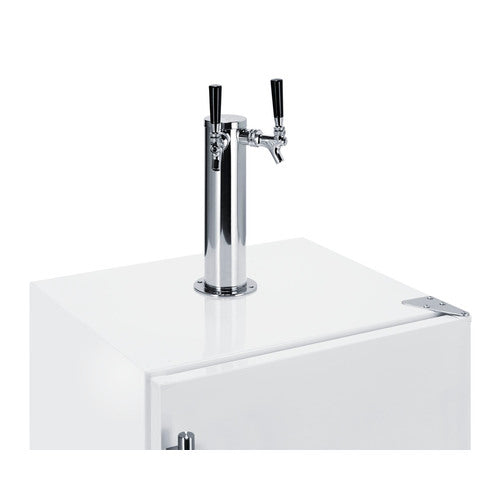

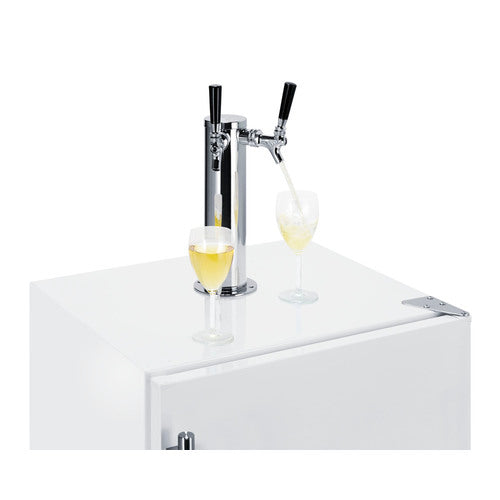

Complete dual tap kit

Ships with a complete twin tap wine tap kit that includes a dispenser tower, regulator, and all the connection equipment you need to serve from a 1/6 wine keg or disposable wine keg

White exterior finish

Classic and clean look suits any setting

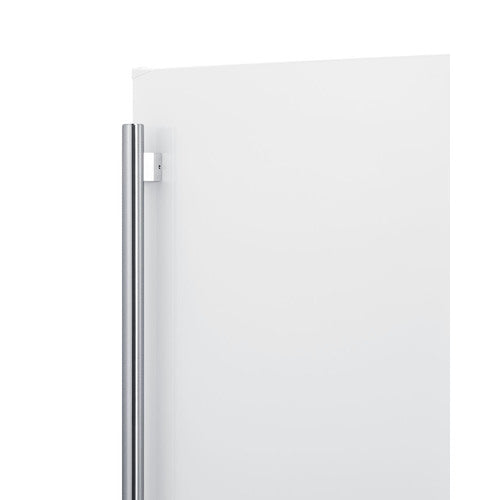

Professional handle

Solid tube style handle in brushed stainless steel offers a modern accent to the white door finish

Adjustable thermostat

Interior dial thermostat ensures easy temperature management

Automatic defrost

No-frost operation for minimum user maintenance

Stainless steel drip tray

Removable two-piece drip tray included for added convenience

Nitrogen/CO2 tank included

Canister is best suited for a 75% nitrogen/25% CO2 mixture

Interior light

Turn the light on when you need it and off when you're done with a convenient rocker switch

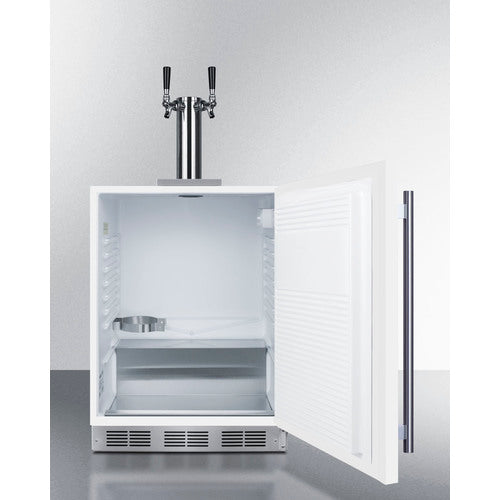

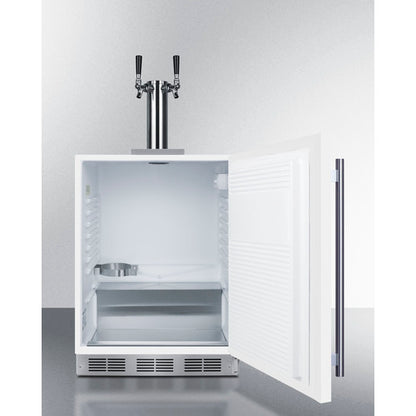

Interior tank holder

Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Factory-installed lock

Keyed lock located at the top of the door for convenient security as needed (2 keys included)

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SPECIFICATIONS

Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.75" (63 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101086545
Kegerator
Door Swing RHD
Reversible Factory Reversible
Tap Kit Yes
Height with Tap 47.5" (121 cm)
Number of Taps 2
Thermostat Type Dial
Interior Light Yes
Fan Type Exterior
Refrigerant R600a
Refrigerant Amount 0.64 oz.
High Side PSI 180.0
Low Side PSI 80.0
Inter Height 25.75" (65 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range 34º to 43ºF

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing DT - Digital thermostat
Door
CDG-Emerald green door     CDY-Saffron gold door wrap
CDB-Cobalt blue door wrap CDP-Lavender purple door wrap
Lock
L-SideLock

DOWNLOADS

BROCHURE w/ DRAWINGS
SBC58WHBIADAWKDTWIN.pdf
TECHNICAL DRAWING (.dwg) SBCWHBIADAWKDTWIN.dwg
USE & CARE SBC58BL_SBC56G_ADA_Kegerators_User_Manual.pdf
USE & CARE SBC_Wine_Dispensing_Tap_Kit.pdf
