Summit Appliance 24 inch Wide Premium Dual Zone Undercounter Wine Cellar With Panel-Ready Glass Door
Summit Appliance 24 inch Wide Premium Dual Zone Undercounter Wine Cellar With Panel-Ready Glass Door
Couldn't load pickup availability
Summit's CL244WC2PNRLHD represents premium wine storage engineering, offering a sophisticated 24" dual zone solution for both residential and commercial environments. The versatile design features front-breathing technology for built-in applications while maintaining freestanding capability with its finished black cabinet. Elegant stainless steel trim complements the subtly tinted glass door, creating a refined aesthetic. Installation flexibility is enhanced through the sealed rear, right-angle cord, and fully articulating European hinges with a 2-piece bracket kit for custom panel integration. Security is discreetly incorporated into the kickplate. The interior showcases a stainless steel back wall for enhanced durability, while tri-colored dimmable LED lighting (amber, blue, white) creates customizable display environments. Precision temperature management allows 41-50°F in the upper chamber for whites and 50-64°F in the lower zone for reds, with fan-forced cooling ensuring consistent temperature maintenance and rapid recovery.
The unit features six full-extension steel shelves finished in sophisticated jet black, operating on precision ball-bearing glides with elegant stainless steel front trim. These flat-profile shelves are optimized for beverage cans while accommodating up to 48 standard Bordeaux or Burgundy bottles (capacity varies by bottle configuration). The CL244WC2PNRLHD offers dual operational modes: Silent mode minimizes vibration and noise for stable wine preservation, while DynaClima mode creates optimal temperature and humidity conditions mimicking traditional wine cabinets. Advanced functionality includes temperature memory that restores settings after power interruptions and Sabbath mode for religious observance periods. The intelligent monitoring system provides audible alerts for ajar doors or temperature fluctuations outside recommended parameters, ensuring comprehensive protection for your collection.
Safety is prioritized with the included anti-tip bracket, which requires installation to prevent unit displacement. The CL244WC2PNRLHD exemplifies compact luxury design for space-conscious environments. For alternative configurations, consider the CL155WC1PNRLHD single-zone 15" model. Create a coordinated entertainment suite by pairing with the complementary CL24BV1PNRLHD 24" beverage center or the compact CL156BV1PNRLHD 15" variant. This specific model features left-hand door articulation; for right-hand operation, the CL244WC2PNR offers identical specifications. Summit's comprehensive collection of wine storage and beverage refrigeration solutions can be explored in detail at summitappliance.com, providing options for every spatial requirement and aesthetic preference.
Premium dual zone built-in undercounter wine cooler for residential and commercial storage
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Panel-ready door lets you customize the unit for a seamless look that integrates into your kitchen or bar
ETL-S listed to NSF-7 Standards for use in commercial establishments
Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 23 1/4" W with a 3 1/4" inner frame
Attractive glass door provides a complete but protected display of stored contents
Single-piece stainless steel door trim offers a more deluxe look

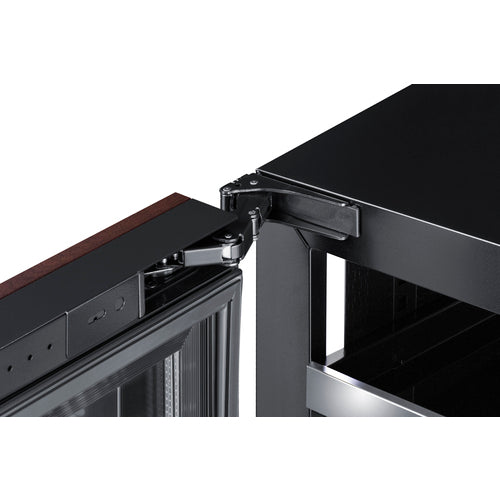

European style hinge design ensures a flush fit and allows for a smoother opening
Keyed lock located in the kickplate for added security as needed

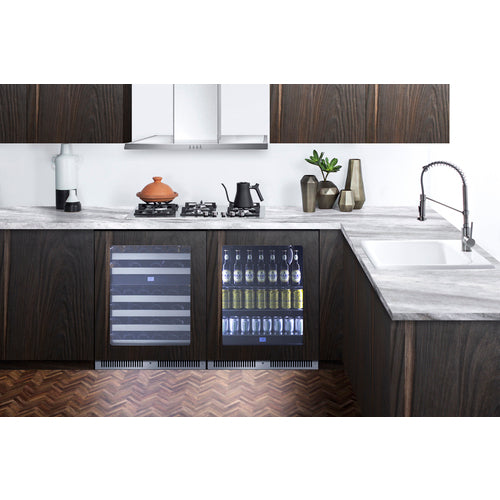

Universal collection design allows you to pair this unit with our 24" wide deluxe beverage center, model CL24BV1PNR, or our 15" wide beverage center, model CL156BV1PNR, depending on your need
Upper zone operates between 41 and 50ºF for chilled white and sparkling wine storage, while the lower zone can be set between 50 and 64ºF to best preserve red wine
Each shelf can hold up to 8 Burgundy or Bordeaux style bottles for an overall 48-bottle capacity to meet your storage needs (NOTE: capacity may vary depending on specific bottle style)
Removable flat steel shelves in a black finish with stainless steel trim for an elegant but modern look
Six shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity
Shelf design makes it easier to store cans and other styles of beverages
Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle
Stainless steel rear wall protects the unit's integrity and is easier to clean
Rotate your presentation style with a choice of blue, white, or amber LED lighting
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
Temperature readout can be shown in Celsius or Fahrenheit
This function provides consistent temperature and humidity distribution, mimicking a natural wine cellar environment
Reduces vibration disturbances by slowing down and pausing the cooling unit's operation
No-frost operation for minimum user maintenance
Complete luxury down to the toe kick
Bracket (included) helps prevent tipping for added safety
For this unit with the door opening from the other side, see model CL244WC2PNR
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
Overview
|
|
---|---|

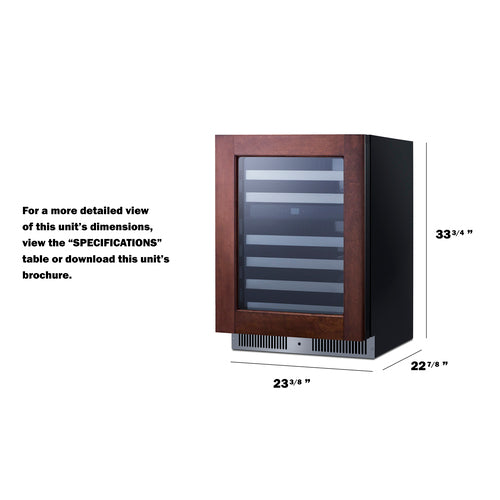

Height of Cabinet | 33.75" (86 cm) |
Width | 23.38" (59 cm) |
Depth | 22.88" (58 cm) |
Depth with door at 90° | 46.63" (118 cm) |
Bottles | 48 bottles |
Defrost Type | Automatic |
Door | Glass/Panel-Ready Frame |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 3.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 117.0 lbs. (53 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101156118 |
Wine Cellar
|
|
Number of Zones | 2 |
Door Swing | LHD |
Reversible | No |
Adjustable Shelves | Yes |
Shelf Type | Steel |
Shelf Qty | 6 |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.38 oz. |
Interior Height 1 | 8.5" (22 cm) |
Interior Width 1 | 19.25" (49 cm) |
Interior Depth 1 | 15.0" (38 cm) |
Compressor Step Height | 3.75" (10 cm) |
Compressor Step Width | 19.25" (49 cm) |
Compressor Step Depth | 5.0" (13 cm) |
Temperature Range | Upper zone: 41º to 50ºF; Lower zone: 50º to 64ºF |
Interior Height 2 | 15.5" (39 cm) |
Interior Width 2 | 19.25" (49 cm) |
Interior Depth 2 | 15.0" (38 cm) |
Sabbath Mode | Yes |
AVAILABLE UPGRADES
Door | |
T4 Door Tint | T3 Door Tint |
T2 Door Tint | T1S Door Tint |
T1 Door Tint |
DOWNLOADS
BROCHURE w/ DRAWINGS |
CL244WC2PNRLHD.pdf
|
TECHNICAL DRAWING | CL244WC2PNR.dwg |
TECHNICAL DRAWING | CL244WC2PNR-Assembly__1_(2).pdf |
USE & CARE | ASDG_ASDW_SDH_CL_ALFD_Series_Wine_and_Beverage_User_Manual(2).pdf |
