Summit Appliance 24 inch Wide Premium Dual Zone Undercounter Wine Cellar With Panel-Ready Glass Door
Summit Appliance 24 inch Wide Premium Dual Zone Undercounter Wine Cellar With Panel-Ready Glass Door
Couldn't load pickup availability

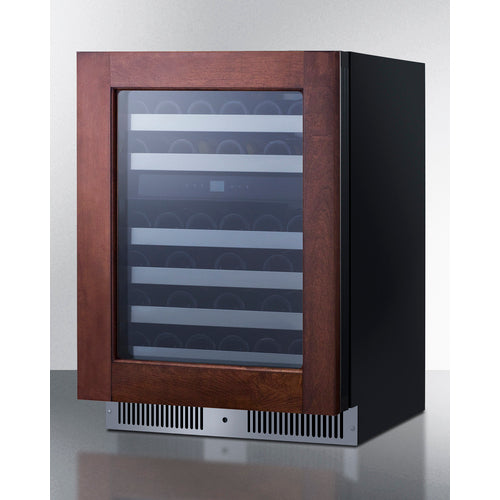

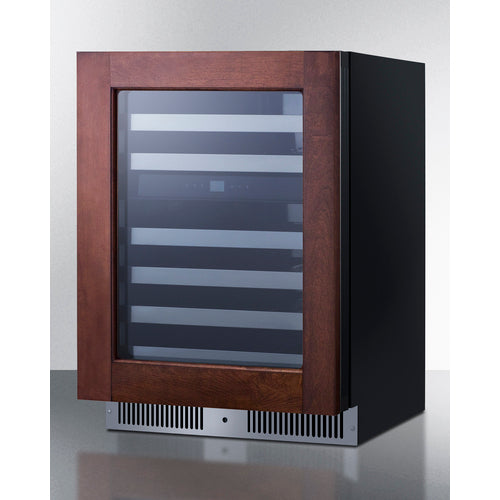

Summit's premium 24" CL244WC2PNRLHD dual zone wine cellar delivers sophisticated climate control for both residential and commercial applications. The versatile unit features front-breathing technology for built-in installation while maintaining freestanding capability with its finished black cabinet.
The elegant stainless steel trim and tinted glass door are complemented by customizable tri-colored LED lighting with adjustable brightness. Precision temperature management allows 41-50°F in the upper chamber for whites and 50-64°F in the lower zone for reds, with fan-forced cooling ensuring optimal temperature stability. The European-style articulating hinge accommodates custom door panels, while the discreet kickplate lock provides security without compromising aesthetics.
The CL244WC2PNRLHD features six full-extension jet black steel shelves with premium ball-bearing glides and elegant stainless steel trim, designed to accommodate up to 48 standard 750ml wine bottles (capacity varies by bottle shape). The versatile flat shelf design also supports can storage for diverse beverage options.
Two specialized operating modes enhance functionality: Silent mode reduces vibration and noise for optimal wine preservation, while DynaClima mode creates ideal temperature and humidity conditions mimicking traditional wine cabinets. Advanced features include temperature memory function for power recovery, Sabbath mode for religious observance periods, and a sophisticated alarm system that alerts users to ajar doors or temperature fluctuations outside recommended parameters.
The CL244WC2PNRLHD includes an essential anti-tip bracket installation for enhanced safety. This luxuriously appointed dual-zone wine cellar brings sophisticated wine storage to compact kitchen environments with its left-hand door configuration. For alternative options, consider the CL155WC1PNRLHD (15" single-zone model), or the right-hand door variant (CL244WC2PNR).

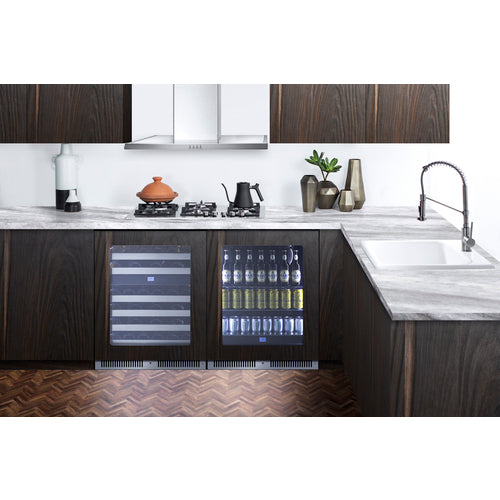

Create a comprehensive beverage management system by pairing with Summit's complementary beverage centers—the 24" CL24BV1PNRLHD or 15" CL156BV1PNRLHD. Summit's extensive portfolio of premium wine and beverage storage solutions offers additional configurations to meet specialized requirements, all viewable at summitappliance.com.
Premium dual zone built-in undercounter wine cooler for residential and commercial storage
Front-breathing design lets you make the best use of space by installing your appliance under the counter

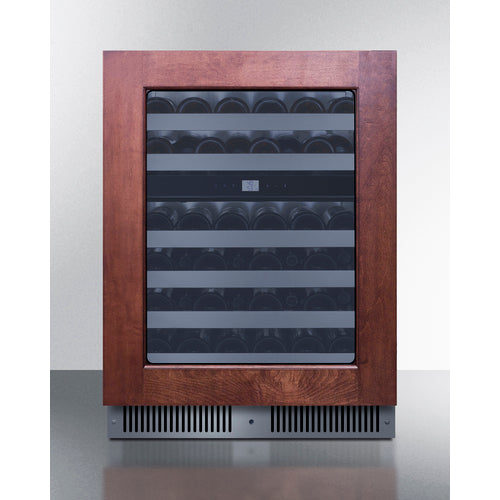

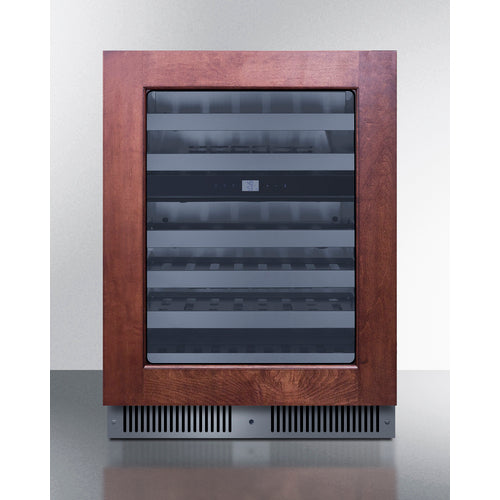

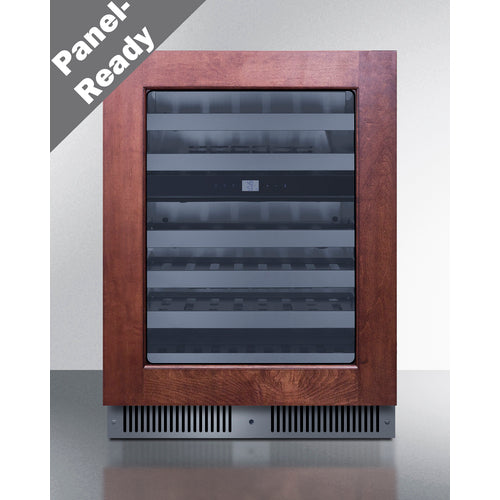

Panel-ready door lets you customize the unit for a seamless look that integrates into your kitchen or bar
ETL-S listed to NSF-7 Standards for use in commercial establishments
Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 23 1/4" W with a 3 1/4" inner frame
Attractive glass door provides a complete but protected display of stored contents
Single-piece stainless steel door trim offers a more deluxe look

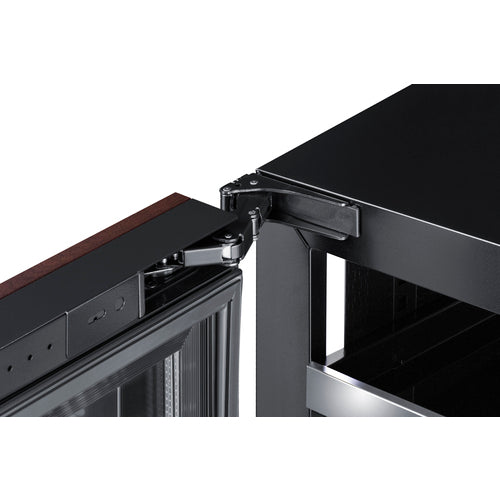

European style hinge design ensures a flush fit and allows for a smoother opening
Keyed lock located in the kickplate for added security as needed
Universal collection design allows you to pair this unit with our 24" wide deluxe beverage center, model CL24BV1PNR, or our 15" wide beverage center, model CL156BV1PNR, depending on your need
Upper zone operates between 41 and 50ºF for chilled white and sparkling wine storage, while the lower zone can be set between 50 and 64ºF to best preserve red wine
Each shelf can hold up to 8 Burgundy or Bordeaux style bottles for an overall 48-bottle capacity to meet your storage needs (NOTE: capacity may vary depending on specific bottle style)
Removable flat steel shelves in a black finish with stainless steel trim for an elegant but modern look

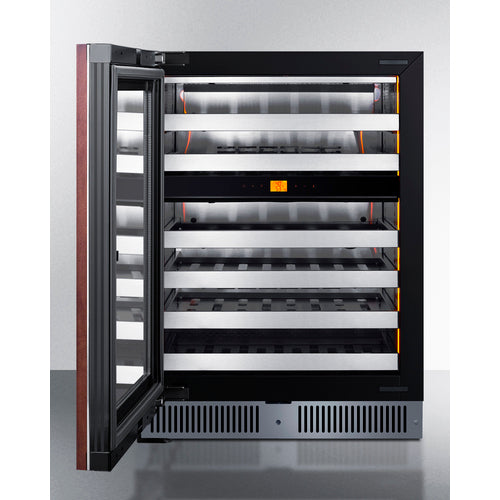

Six shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity
Shelf design makes it easier to store cans and other styles of beverages
Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle
Stainless steel rear wall protects the unit's integrity and is easier to clean
Rotate your presentation style with a choice of blue, white, or amber LED lighting
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
Temperature readout can be shown in Celsius or Fahrenheit
This function provides consistent temperature and humidity distribution, mimicking a natural wine cellar environment
Reduces vibration disturbances by slowing down and pausing the cooling unit's operation
No-frost operation for minimum user maintenance
Complete luxury down to the toe kick
Bracket (included) helps prevent tipping for added safety
For this unit with the door opening from the other side, see model CL244WC2PNR
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|

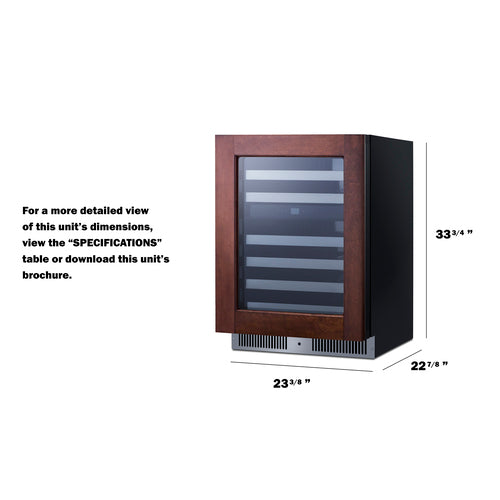

| Height of Cabinet | 33.75" (86 cm) |
| Width | 23.38" (59 cm) |
| Depth | 22.88" (58 cm) |
| Depth with door at 90° | 46.63" (118 cm) |
| Bottles | 48 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 3.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 117.0 lbs. (53 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101156118 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | LHD |
| Reversible | No |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38 oz. |
| Interior Height 1 | 8.5" (22 cm) |
| Interior Width 1 | 19.25" (49 cm) |
| Interior Depth 1 | 15.0" (38 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.25" (49 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Temperature Range | Upper zone: 41º to 50ºF; Lower zone: 50º to 64ºF |
| Interior Height 2 | 15.5" (39 cm) |
| Interior Width 2 | 19.25" (49 cm) |
| Interior Depth 2 | 15.0" (38 cm) |
| Sabbath Mode | Yes |
AVAILABLE UPGRADES
| Door |
| T1 Door Tint | T4 Door Tint |
| T2 Door Tint | T3 Door Tint |
| T1S Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
CL244WC2PNRLHD.pdf |
| TECHNICAL DRAWING (.dwg) | CL244WC2PNR.dwg |
| ASSEMBLY DRAWING | CL244WC2PNR-Assembly__1_(2).pdf |
| USE & CARE |
