Summit Appliance 24 inch Wide Premium Dual Zone Undercounter Wine Cellar With Panel-Ready Glass Door
Summit Appliance 24 inch Wide Premium Dual Zone Undercounter Wine Cellar With Panel-Ready Glass Door
Couldn't load pickup availability

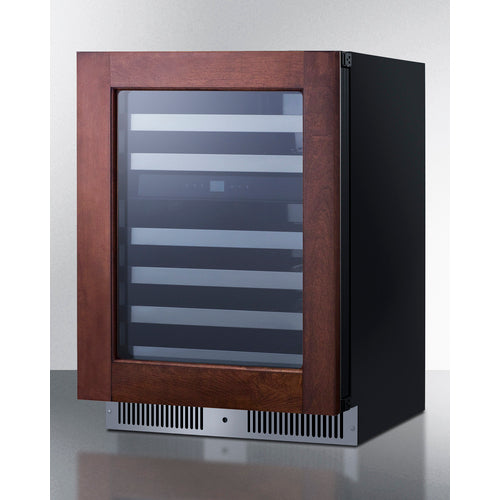

Summit's CL244WC2PNR is a sophisticated 24" dual zone wine cellar engineered for versatile installation in residential or commercial environments. The unit features a front-breathing system for built-in applications while maintaining freestanding capability with its finished black cabinet. The elegant stainless steel trim complements the reversible tinted glass door, while the European-style articulating hinges accommodate custom panel installation.
Temperature management is precise, with the upper chamber maintaining 41-50°F for white wines and the lower zone operating at 50-64°F for reds. Advanced features include tri-colored dimmable LED lighting, stainless steel interior, fan-forced cooling for temperature stability, and a discreet kickplate lock for security.
The CL244WC2PNR features six full-extension steel shelves finished in jet black with premium ball-bearing glides and elegant stainless steel front trim. These flat-design shelves accommodate various beverage containers, with optimal capacity for up to 48 standard 750ml wine bottles (capacity varies by bottle shape).
The unit offers two specialized operating modes: Silent mode, which reduces vibration and noise for stable wine preservation, and DynaClima mode, which optimizes temperature and humidity distribution similar to traditional wine cabinets. Advanced functionality includes temperature memory that restores settings after power interruptions, Sabbath mode for religious observance periods, and a sophisticated alarm system that alerts users to ajar doors or temperature fluctuations outside recommended parameters.
The CL244WC2PNR exemplifies refined luxury engineering for compact kitchen environments. For those seeking a more slender profile, the CL155WC1PNR offers similar sophistication in a 15" single-zone configuration.
Create a comprehensive beverage management system by complementing this unit with the CL24BV1PNR deluxe beverage center in matching 24" width, or the more compact CL156BV1PNR 15" beverage center. Summit Appliance's complete portfolio of premium wine storage and beverage preservation solutions can be explored at summitappliance.com, offering options for every spatial requirement and collection size.
Premium dual zone built-in undercounter wine cooler for residential and commercial storage
Front-breathing design lets you make the best use of space by installing your appliance under the counter

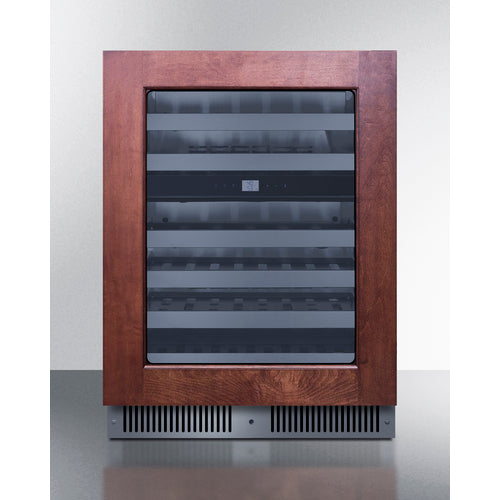

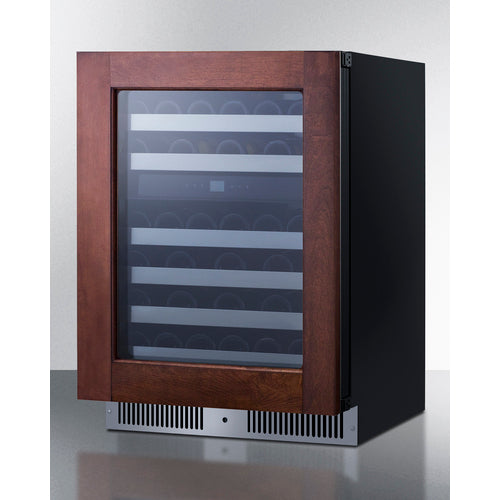

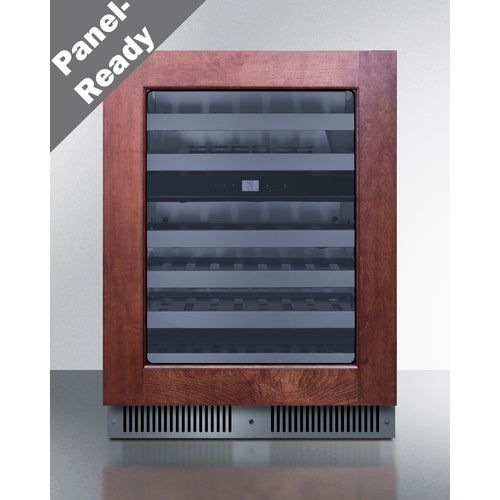

Panel-ready door lets you customize the unit for a seamless look that integrates into your kitchen or bar
ETL-S listed to NSF-7 Standards for use in commercial establishments
Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 23 1/4" W with a 3 1/4" inner frame
Attractive glass door provides a complete but protected display of stored contents

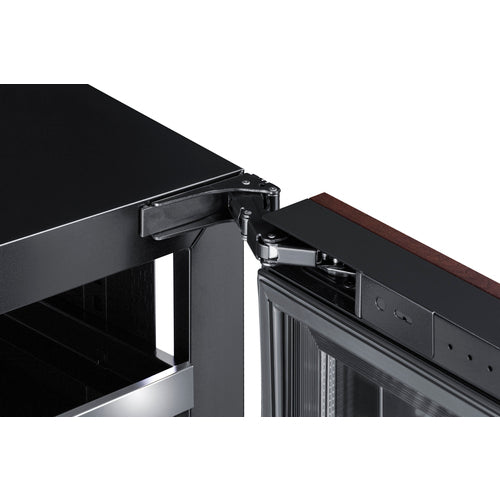

European style hinge design ensures a flush fit and allows for a smoother opening
Single-piece stainless steel door trim offers a more deluxe look
Keyed lock located in the kickplate for added security as needed

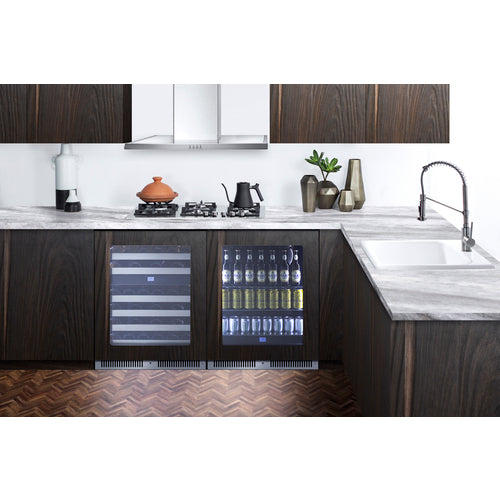

Universal collection design allows you to pair this unit with our 24" wide deluxe beverage center, model CL24BV1PNR, or our 15" wide beverage center, model CL156BV1PNR, depending on your need
Upper zone operates between 41 and 50ºF for chilled white and sparkling wine storage, while the lower zone can be set between 50 and 64ºF to best preserve red wine

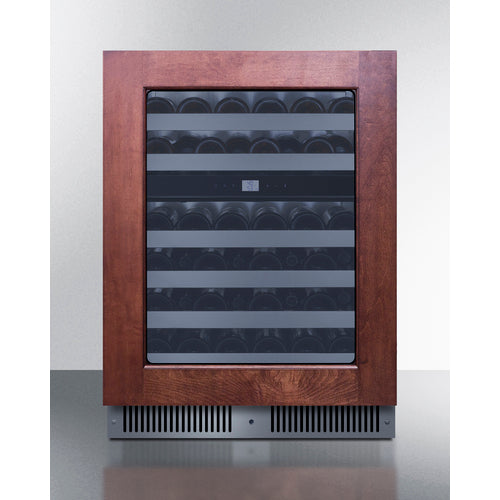

Each shelf can hold up to 8 Burgundy or Bordeaux style bottles for an overall 48-bottle capacity to meet your storage needs (NOTE: capacity may vary depending on specific bottle style)

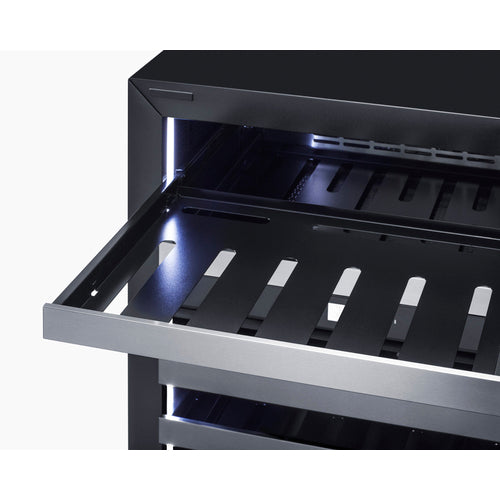

Removable flat steel shelves in a black finish with stainless steel trim for an elegant but modern look

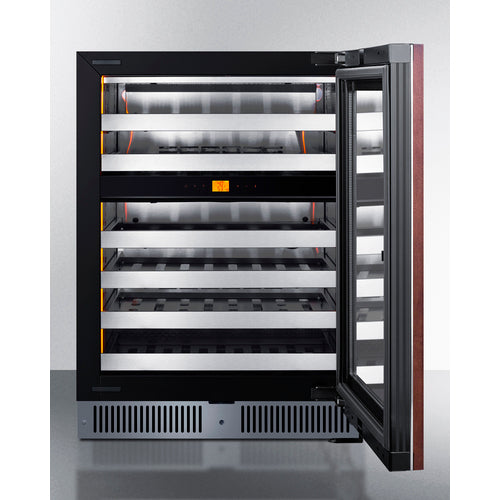

Six shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity
Shelf design makes it easier to store cans and other styles of beverages
Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle
Stainless steel rear wall protects the unit's integrity and is easier to clean

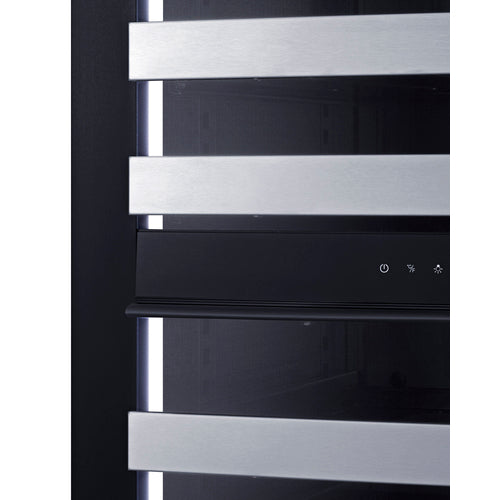

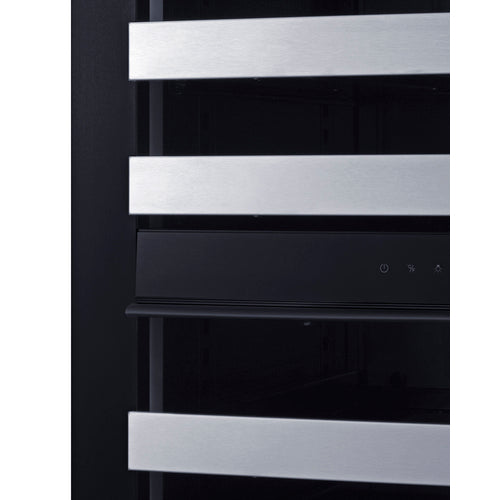

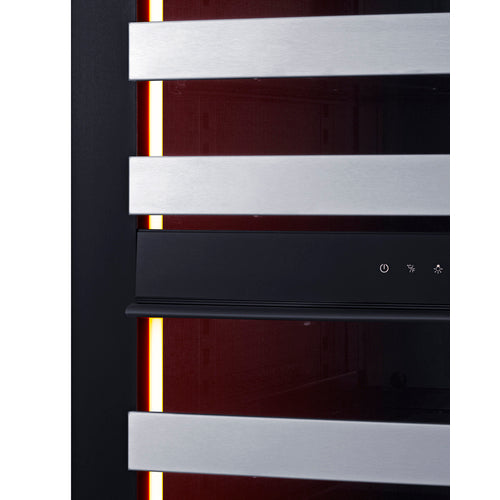

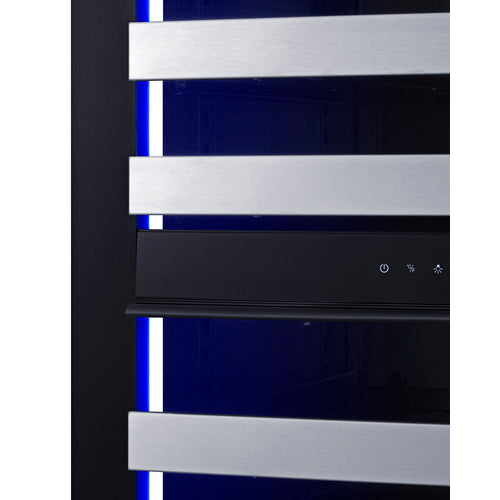

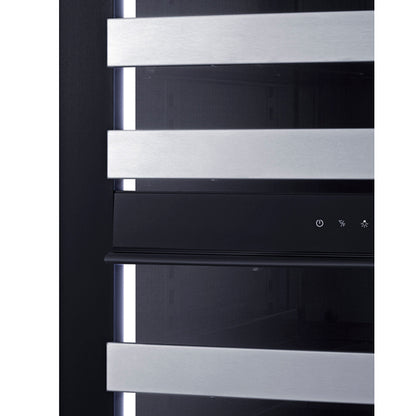

Rotate your presentation style with a choice of blue, white, or amber LED lighting
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
Temperature readout can be shown in Celsius or Fahrenheit
This function provides consistent temperature and humidity distribution, mimicking a natural wine cellar environment
Reduces vibration disturbances by slowing down and pausing the cooling unit's operation
No-frost operation for minimum user maintenance
Complete luxury down to the toe kick
Bracket (included) helps prevent tipping for added safety
User-reversible door swing for added flexibility to best accommodate your setting
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.75" (86 cm) |
| Width | 23.38" (59 cm) |
| Depth | 22.88" (58 cm) |
| Depth with door at 90° | 46.63" (118 cm) |
| Bottles | 48 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 3.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 117.0 lbs. (53 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101156101 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38 oz. |
| Interior Height 1 | 8.5" (22 cm) |
| Interior Width 1 | 19.25" (49 cm) |
| Interior Depth 1 | 15.0" (38 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.25" (49 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Temperature Range | Upper zone: 41º to 50ºF; Lower zone: 50º to 64ºF |
| Interior Height 2 | 15.5" (39 cm) |
| Interior Width 2 | 19.25" (49 cm) |
| Interior Depth 2 | 15.0" (38 cm) |
| Sabbath Mode | Yes |
AVAILABLE UPGRADES
| Door |
| T1 Door Tint | T4 Door Tint |
| T2 Door Tint | T3 Door Tint |
| T1S Door Tint | |
| Exterior | |
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
CL244WC2PNR.pdf |
| TECHNICAL DRAWING (.dwg) | CL244WC2PNR.dwg |
| ASSEMBLY DRAWING | CL244WC2PNR-Assembly__1_.pdf |
| USE & CARE |
