Summit Appliance 24 inch Wide Premium Dual Zone Undercounter Wine Cellar
Summit Appliance 24 inch Wide Premium Dual Zone Undercounter Wine Cellar
Couldn't load pickup availability

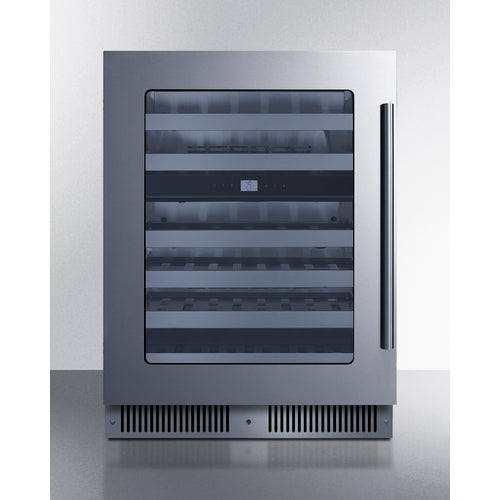

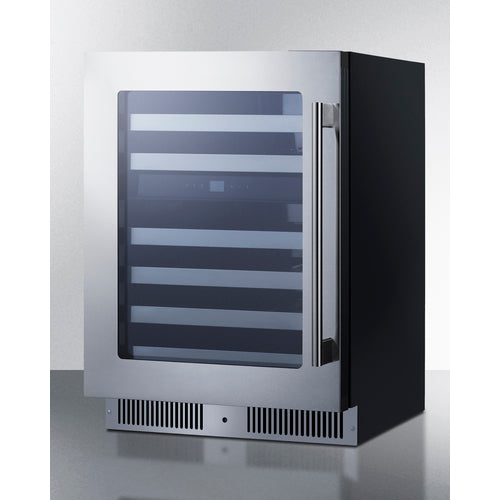

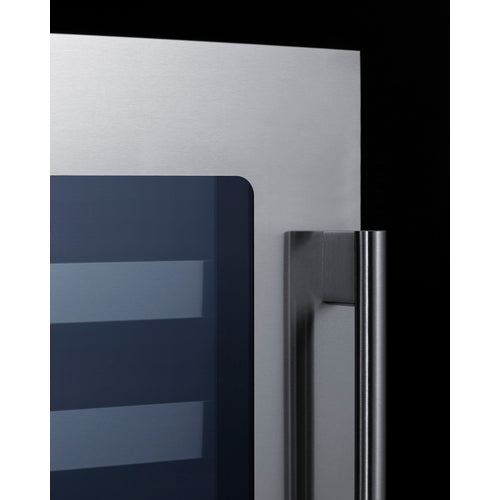

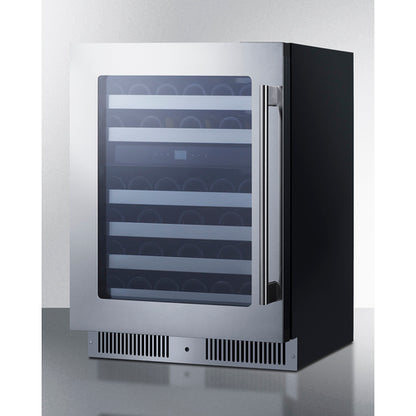

Summit's CL244WC2LHD is a sophisticated 24" dual zone wine cellar engineered for versatile installation in residential or commercial environments. The front-breathing design accommodates built-in placement, while the finished black cabinet allows freestanding positioning. Premium features include stainless steel trim, tinted glass door, professional handle, and a discreet kickplate lock for security.
The interior boasts a stainless steel rear wall, tri-colored dimmable LED lighting, and precise digital temperature control—maintaining 41-50°F in the upper chamber for whites and 50-64°F in the lower zone for reds. Fan-forced cooling ensures optimal temperature consistency and rapid recovery for impeccable wine preservation.

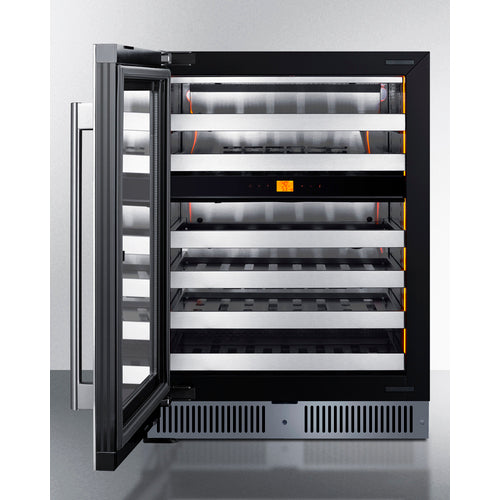

The CL244WC2LHD showcases six premium jet black steel shelves that extend fully on precision ball-bearing mechanisms, complemented by refined stainless steel trim for a distinguished aesthetic. These flat-profile shelves accommodate both traditional wine bottles and alternative beverages, with optimal capacity for 48 standard Bordeaux or Burgundy bottles (actual capacity contingent on bottle dimensions).
Dual operational modes enhance functionality: Silent mode reduces vibration and noise for superior wine preservation, while DynaClima mode precisely regulates temperature and humidity to replicate traditional cellar conditions. Advanced features include temperature memory that restores settings after power interruptions, Sabbath mode for religious observance periods, and an intelligent alarm system that monitors door closure and temperature stability to safeguard your collection.
The CL244WC2LHD exemplifies sophisticated design and premium functionality, delivering exceptional wine storage elegance in compact kitchen environments. For those requiring a more slender profile, the CL155WC1LHD offers comparable quality in a 15" single-zone configuration.
zCreate a comprehensive beverage management system by pairing with the complementary 24" CL24BV1LHD deluxe beverage center or its 15" counterpart, the CL156BV1LHD. This particular model features a left-hand door swing; for right-hand operation, the CL244WC2 provides identical specifications with reversed articulation. Discover Summit's complete portfolio of precision-engineered wine and beverage storage solutions at summitappliance.com.
Premium dual zone built-in undercounter wine cooler for residential and commercial storage
Front-breathing design lets you make the best use of space by installing your appliance under the counter
ETL-S listed to NSF-7 Standards for use in commercial establishments
Attractive glass door provides a complete but protected display of stored contents
Single-piece stainless steel door trim offers a more deluxe look

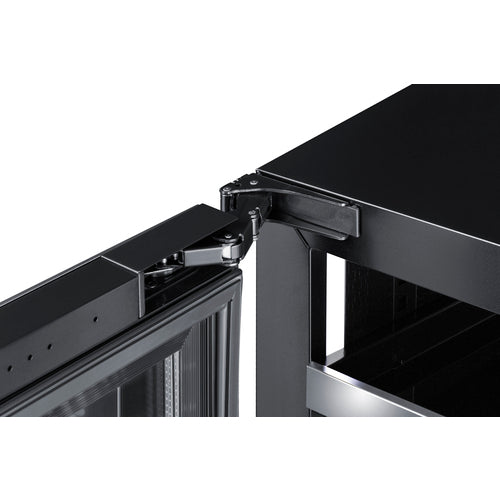

European style hinge design ensures a flush fit and allows for a smoother opening
Stainless steel look for added elegance
Keyed lock located in the kickplate for added security as needed

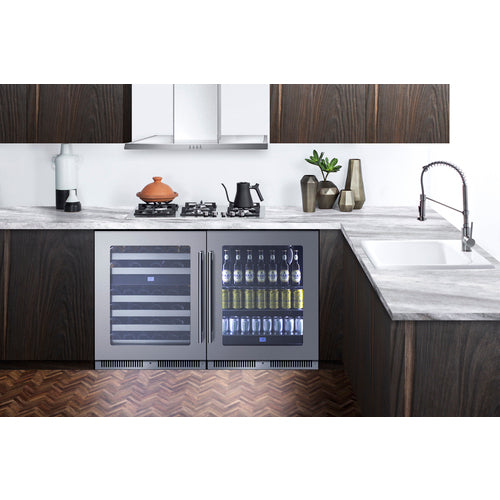

Universal collection design allows you to pair this unit with our 24" wide deluxe beverage center, model CL24BV1, or our 15" wide beverage center, model CL156BV1, depending on your need
Upper zone operates between 41 and 50ºF for chilled white and sparkling wine storage, while the lower zone can be set between 50 and 64ºF to best preserve red wine

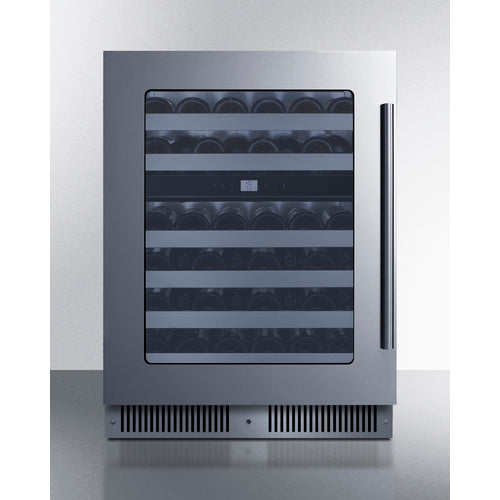

Each shelf can hold up to 8 Burgundy or Bordeaux style bottles for an overall 48-bottle capacity to meet your storage needs (NOTE: capacity may vary depending on specific bottle style)
Removable flat steel shelves in a black finish with stainless steel trim for an elegant but modern look
Six shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity
Shelf design makes it easier to store cans and other styles of beverages
Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle
Stainless steel rear wall protects the unit's integrity and is easier to clean
Rotate your presentation style with a choice of blue, white, or amber LED lighting
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
Temperature readout can be shown in Celsius or Fahrenheit
This function provides consistent temperature and humidity distribution, mimicking a natural wine cellar environment
Reduces vibration disturbances by slowing down and pausing the cooling unit's operation
No-frost operation for minimum user maintenance
Complete luxury down to the toe kick
Bracket (included) helps prevent tipping for added safety
For this unit with the door opening from the other side, see model CL244WC2
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.75" (86 cm) |
| Width | 23.38" (59 cm) |
| Depth | 22.88" (58 cm) |
| Depth with Handle | 24.13" (61 cm) |
| Depth with door at 90° | 46.63" (118 cm) |
| Bottles | 48 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 3.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 117.0 lbs. (53 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101156095 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | LHD |
| Reversible | No |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38 oz. |
| Interior Height 1 | 8.5" (22 cm) |
| Interior Width 1 | 19.25" (49 cm) |
| Interior Depth 1 | 15.0" (38 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.25" (49 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Temperature Range | Upper zone: 41º to 50ºF; Lower zone: 50º to 64ºF |
| Interior Height 2 | 15.5" (39 cm) |
| Interior Width 2 | 19.25" (49 cm) |
| Interior Depth 2 | 15.0" (38 cm) |
| Sabbath Mode | Yes |
AVAILABLE UPGRADES
| Door |
| T1 Door Tint | T4 Door Tint |
| T2 Door Tint | T3 Door Tint |
| T1S Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
CL244WC2LHD.pdf |
| TECHNICAL DRAWING (.dwg) | CL244WC2.dwg |
| ASSEMBLY DRAWING | CL244WC2-Assembly.pdf |
| USE & CARE |
ASDG_ASDW_SDH_CL_ALFD_Series_Wine_and_Beverage_User_Manual(2).pdf |
