Summit Appliance 24 inch Wide Premium Built-In Undercounter Beverage Center With Panel-Ready Glass Door
Summit Appliance 24 inch Wide Premium Built-In Undercounter Beverage Center With Panel-Ready Glass Door
Couldn't load pickup availability

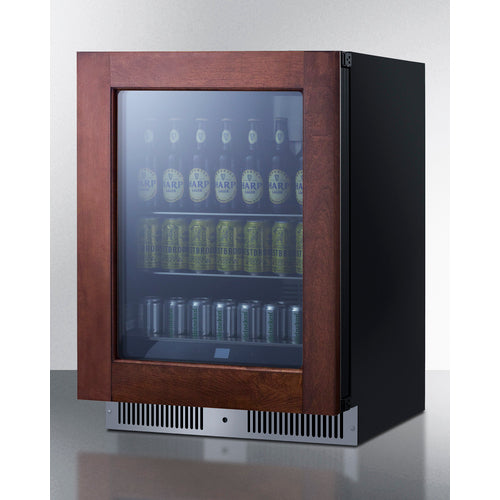

Summit's CL24BV1PNR is a sophisticated 24" wide beverage center offering 4.73 cu. ft. of storage capacity for residential or commercial applications. The unit features a front-breathing system for built-in installation while maintaining freestanding capability with its finished black cabinet.
Distinguished by seamless stainless steel trim and a reversible double-pane glass door, this model includes a customizable panel-ready design with a 2-piece bracket kit for personal door trim installation. Interior highlights include fan-forced cooling for temperature consistency, tri-colored dimmable LED lighting, stainless steel rear wall construction, and three adjustable glass shelves for versatile bottle storage. Security is enhanced with a conveniently positioned lock in the kickplate.
The CL24BV1PNR features an angled digital thermostat with dual Celsius/Fahrenheit display for enhanced readability. Its specialized dipped flat floor design accommodates upright bottle storage, while user-friendly features include a reversible door, sabbath mode for religious observance, and temperature memory function that restores settings after power interruptions.
An integrated alarm system provides alerts for ajar doors and temperature fluctuations outside recommended ranges. This sophisticated beverage center can be complemented with Summit's matching 15" model (CL156BV1PNR) or paired with wine cellars in 24" (CL244WC2PNR) or 15" (CL155WC1PNR) widths to create a cohesive entertainment solution. Summit's comprehensive beverage storage portfolio offers additional options at summitappliance.com.

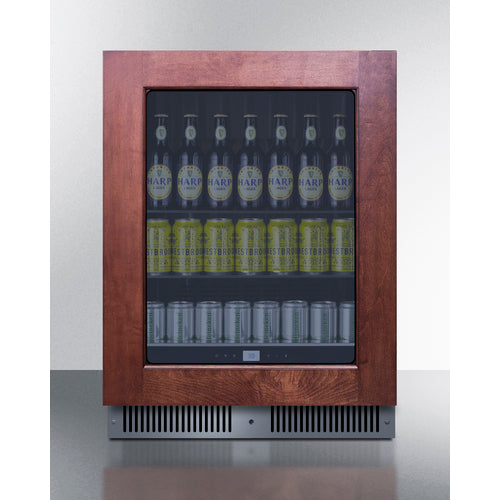

Premium glass door beverage refrigerator for residential and commercial use
Front-breathing design lets you make the best use of space by installing your appliance under the counter

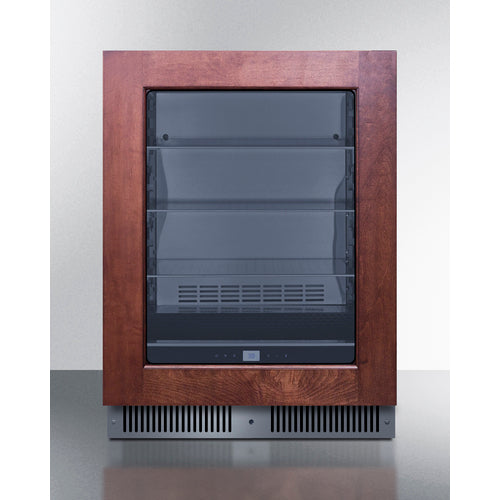

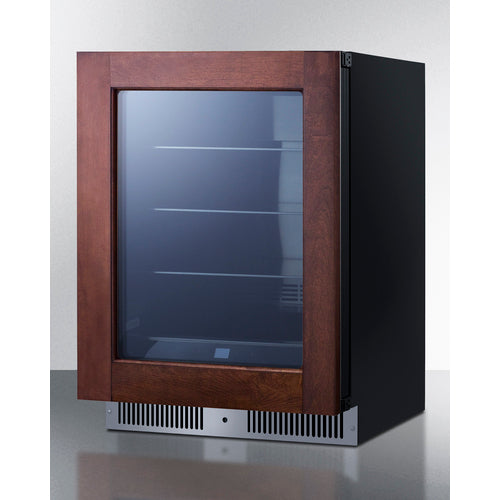

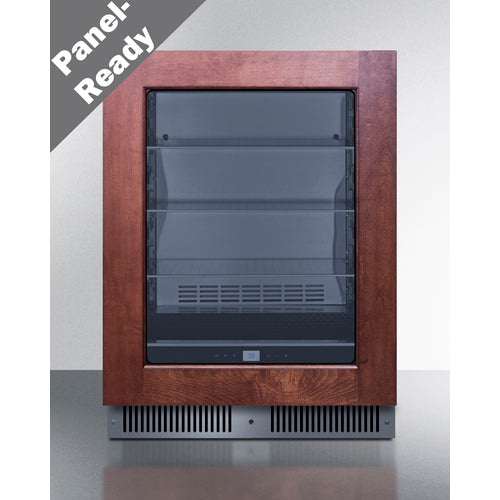

Panel-ready door lets you customize the unit for a seamless look that integrates into your kitchen
ETL-S listed to NSF-7 Standards for use in commercial establishments
Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 23 1/4" W with a 3 1/4" inner frame

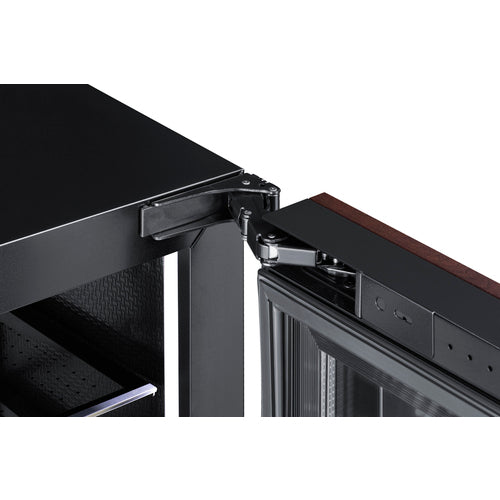

European style hinge design ensures a flush fit and allows for a smoother opening
Single-piece stainless steel door trim offers a more deluxe look
Attractive tinted glass door provides a complete but protected display of stored contents
Allows for seamless integration with other appliances

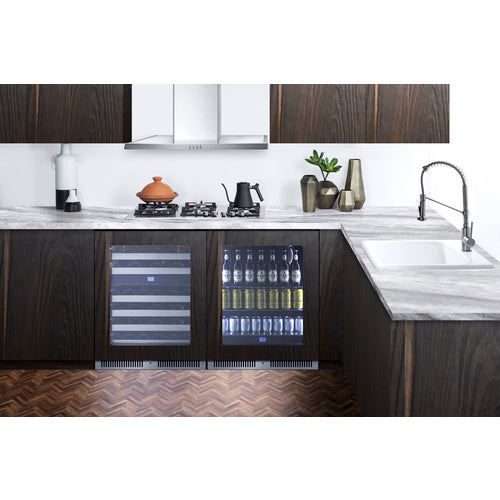

Pair with our 24” wide wine cellar, model CL244WC2PNR, for a matching side-by-side set under standard-height counters. This unit can also be paired with our 15” wine cellar, see model CL155WC1PNR, to fit your unique needs
4.7 cu. ft. of interior storage space

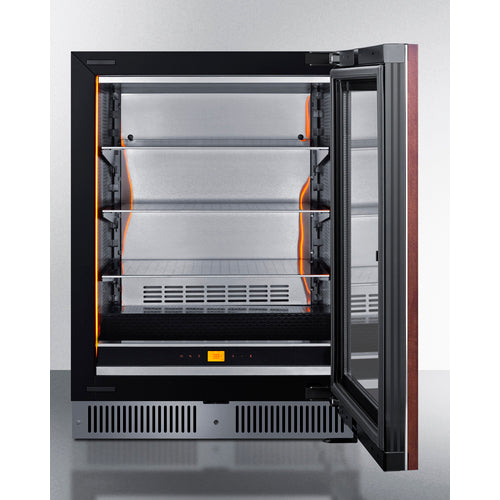

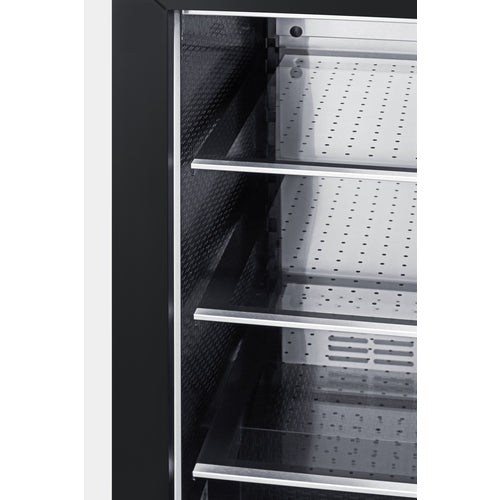

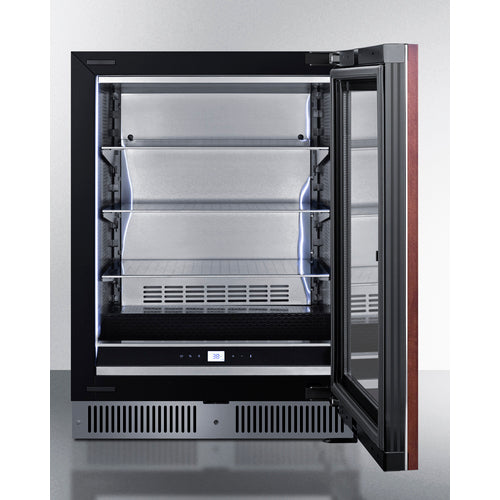

Three easy-to-clean glass shelves for flexible storage
The unit's dipped flat floor design makes it easier to store certain beverages in an upright position
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle
Ensures a more accessible view of the digital controls and thermostat, keeping the temperature in view without the need to bend to read it
Easy-to-use digital controls for precise temperature management
Temperature readout can be shown in Celsius or Fahrenheit

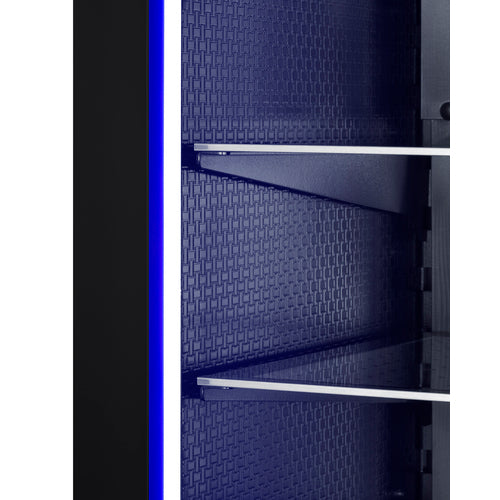

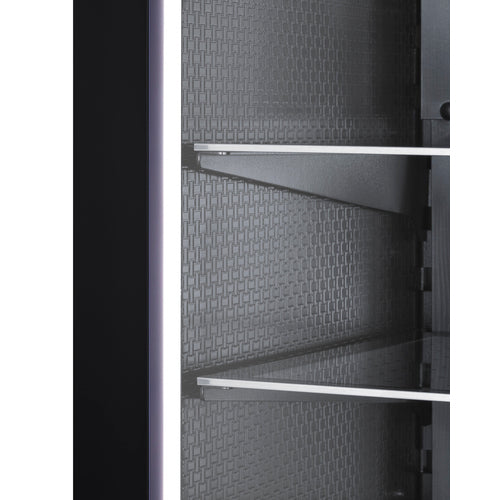

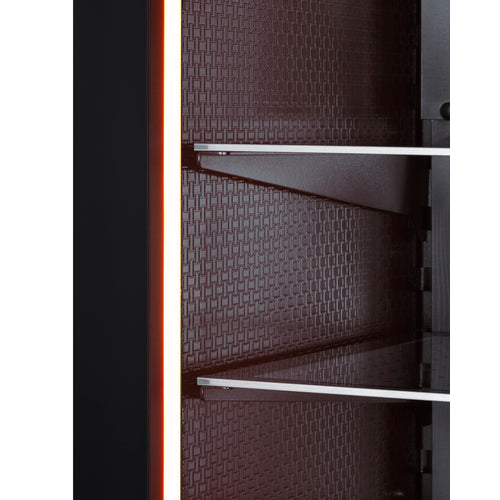

Rotate your presentation style with a choice of blue, white, or amber LED lighting
No-frost operation for minimum user maintenance
Audible alarm will sound if the door is left open longer than one minute
Temperature alarm sounds if the unit's interior goes out of the recommended range
Unit will retain its last settings when power is restored in the event of power loss
Optional setting lets you disable the lighting and alarm for up to 96 hours
Keyed lock located in the kickplate for added security as needed
Space-saving design with no exposed coils that offers easier cleanability
Allows the unit to be used freestanding
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Complete luxury down to the toe kick
Bracket (included) helps prevent tipping for added safety
User-reversible door swing for added flexibility to best accommodate your setting
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
Overview
|
|
---|---|
Nominal Height | 34.0" (86 cm) |
Height of Cabinet | 33.75" (86 cm) |
Nominal Width | 24.0" (61 cm) |
Width | 23.38" (59 cm) |
Nominal Depth | 24.0" (61 cm) |
Depth | 22.88" (58 cm) |
Depth with door at 90° | 46.63" (118 cm) |
Capacity | 4.73 cu.ft. (134 L) |
Defrost Type | Automatic |
Door | Glass/Panel-Ready Frame |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Energy Usage/Year | 280.0kWh/year |
Amps | 3.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 117.0 lbs. (53 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101156071 |
Refrigerator Features
|
|
Sabbath Mode | Yes |
Door Swing | RHD |
Reversible | Yes |
Shelf Type | Glass |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.38oz. |
Interior Light | Yes |
Temperature Range | 36°F to 43°F |
Drawer Dimensions
|
|
Interior Height 1 | 3.75" (10 cm) |
Interior Width 1 | 19.25" (49 cm) |
Interior Depth 1 | 5.0" (13 cm) |
Dimensions
|
|
Interior Height | 26.0" (66 cm) |
Interior Width | 19.25" (49 cm) |
Interior Depth | 17.0" (43 cm) |
AVAILABLE UPGRADES
Door |
T1 Door Tint | T4 Door Tint |
T2 Door Tint | T3 Door Tint |
T1S Door Tint | |
Exterior | |
---|---|
LHD - Left hand door swing |
DOWNLOADS
BROCHURE w/ DRAWINGS |
CL24BV1PNR.pdf |
TECHNICAL DRAWING (.dwg) | CL24BV1PNR__1_.dwg |
ASSEMBLY DRAWING | CL24BV1PNR-Assembly.pdf |
USE & CARE | |
ENERGY GUIDE |
https://www.summitappliance.com/energy_guide/8720.pdf
|
