Summit Appliance 24 inch Wide Front Tap Built-In Cold Brew Coffee Kegerator, ADA-Compliant
Summit Appliance 24 inch Wide Front Tap Built-In Cold Brew Coffee Kegerator, ADA-Compliant
Couldn't load pickup availability

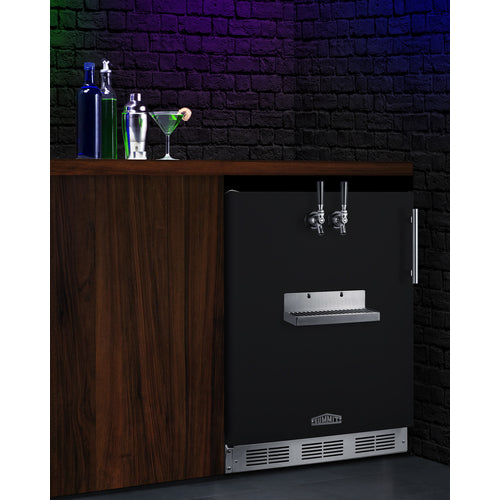

Summit's ADA-compliant kegerator delivers cold brew coffee convenience without countertop modifications. The SBC58BFRTPCFADALHD features innovative front-door twin taps, preserving valuable counter space in residential and commercial settings. This 24-inch unit accommodates two 1/6 kegs and includes a complete nitrogen system for optimal serving temperature.
At 32 inches high, it fits perfectly under ADA counters while maintaining a professional aesthetic with its jet black finish and stainless steel accents. ETL-S listed to NSF-7 standards, it arrives fully assembled with all necessary dispensing equipment.

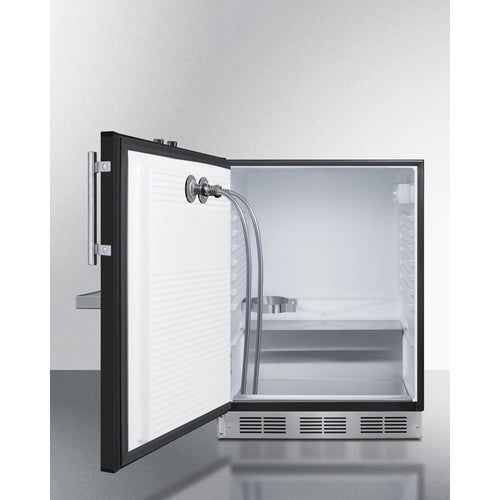

The SBC58BFRTPCFADALHD boasts a durable white interior liner complemented by a stainless steel floor, offering enhanced protection during keg loading operations. Interior illumination is easily controlled via a rocker switch positioned behind the dial thermostat. The kegerator employs reliable mechanical controls, eliminating potential electronic component failures while maintaining straightforward operation.
Maintenance requirements are minimized through an automatic defrost system, and Summit's proprietary cold wall technology ensures consistent, efficient cooling performance. This model is part of Summit's comprehensive line, which includes wine and beer dispensers, as well as the SBC7BRSFLTWADA with its innovative floating tap design. Additional options include standard-height and outdoor-rated kegerators to accommodate diverse installation requirements.
FEATURES
Kegerator includes front taps accessed via the door and includes all of the equipment needed to serve cold brew coffee from two sixtel kegs
Unique design requires no alterations to your countertop, freeing up valuable countertop space

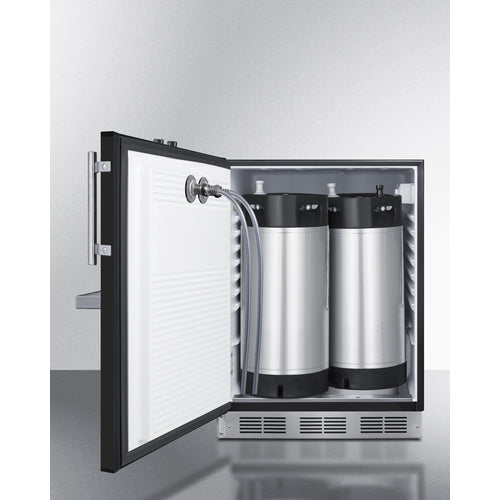

Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs
Designed for installation under the counter

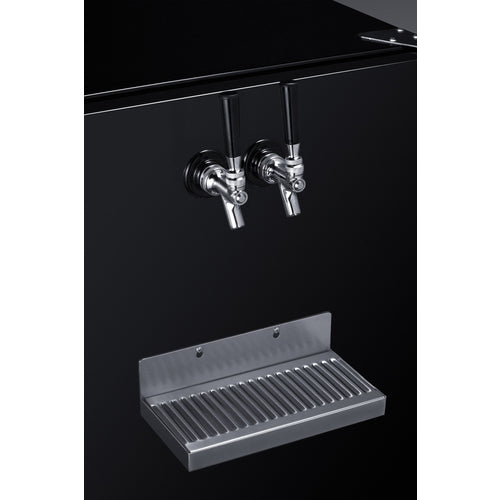

Taps are located on the front of the door, requiring no added reach
Sized at 32 inches high for installation under lower ADA-compliant counters
ETL-S listed to ANSI-NSF Standard 7 for commercial use
Approved for both residential and commercial settings
Includes a 5 lb. nitrogen tank and regulator, dual tap draft arm, Sankey American tap, and the needed connection hardware.
Full-sized cannister ships with tapping equipment (ships empty)
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
No-frost operation for minimum user maintenance
Simple and intuitive analog controls located inside for easy temperature management
Interior includes steel cover to protect the floor when loading kegs
Cold wall design with hidden evaporator creates a seamless, easy to clean interior
Removable cover that lets you fill the gap that can appear between the refrigerator's kickplate and floor when raising the height
Front-mounted two-piece drip tray included for added convenience that can be easily removed for better cleanability
Vertically-mounted handle bar in stainless steel
Attractive finish to match the taps and handle
Allows the dispenser to be used freestanding
Refrigeration unit constructed in Europe then designed and modified in the USA
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.88" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 28.0" (71 cm) |
| Depth | 27.38" (70 cm) |
| Depth with door at 90° | 51.88" (132 cm) |
| Capacity | 5.3 cu.ft. (150 L) |
| Defrost Type | Automatic |
| Door | Black |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 293.0kWh/year |
| Amps | 0.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101145501 |
|
Kegerator
|
|
| Door Swing | LHD |
| Tap Kit | Yes |
| Number of Taps | 2 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Refrigerant | R600a |
| Refrigerant Amount | 0.64 oz. |
| Inter Height | 27.75" (70 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Level Legs Qty | 4 |
| Temperature Range | 36 to 46°F |
AVAILABLE UPGRADES
| Exterior | |
| RHD - Right hand door swing | Latch - Factory-installed door latch requires manual release to open unit |
| CAS3 3" casters |
| Lock | |
| L-SideLock | L-TopLock |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
SBC58BFRTPCFADALHD.pdf |
| TECHNICAL DRAWING (.dwg) | SBC58BFRTPADA.dwg |
| USE & CARE | SBC58BFRTPADA-Assembly__1_.pdf |
| USE & CARE | |
| ENERGY GUIDE |
https://www.summitappliance.com/energy_guide/8490.pdf
|
