Summit Appliance 24 inch Wide Front Tap Built-In Beer Kegerator, ADA-Compliant
Summit Appliance 24 inch Wide Front Tap Built-In Beer Kegerator, ADA-Compliant
Couldn't load pickup availability
Summit's ADA-compliant kegerator delivers innovative convenience with its unique front-tap design, eliminating countertop modifications while maintaining easy beer access in both commercial and residential settings. The SBC58BFRTPADALHD features twin taps on the front door, preserving valuable counter space in compact kitchens and bars.
This fully assembled 24" unit accommodates two 1/6 kegs and includes a stainless steel drip tray, CO2 tank, regulator, and all necessary dispensing equipment. At 32" high, it's ideal for installation under ADA-compliant counters, featuring a professional jet black finish with stainless steel accents and ETL-S listing to NSF-7 commercial standards.

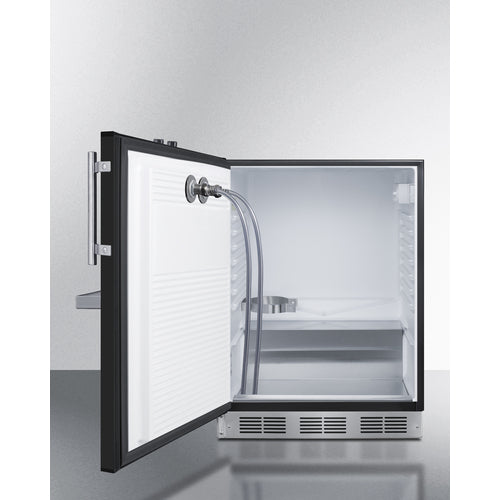

The SBC58BFRTPADALHD boasts a pristine white interior with a durable stainless steel floor, offering enhanced protection during keg loading. Visibility is optimized through an interior light controlled by a convenient rocker switch positioned behind the dial thermostat. The kegerator employs reliable mechanical controls for straightforward operation without complex electronic components, while an automatic defrost system minimizes maintenance requirements.
Summit's proprietary cold wall technology ensures consistent, efficient cooling performance. Beyond this dual-tap model, Summit offers variants for cold brew coffee dispensing and the innovative SBC7BRSFLTWADA with floating tap design. The company's comprehensive portfolio extends to standard-height kegerators and outdoor-rated units, with product specialists available to guide your selection process.

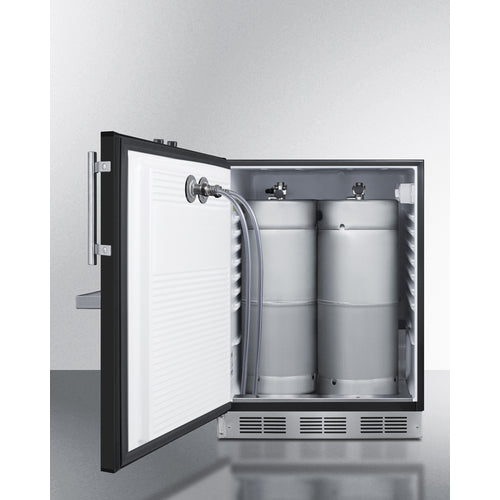

Kegerator includes front taps accessed via the door and includes all of the equipment needed to serve beer from two sixtel kegs
Unique design requires no alterations to your countertop, freeing up valuable countertop space
Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs
Taps are located on the front of the door, requiring no added reach

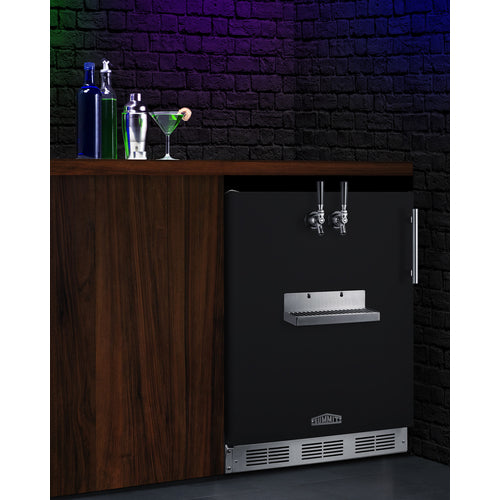

Sized at 32 inches high for installation under lower ADA-compliant counters
ETL-S listed to ANSI-NSF Standard 7 for commercial use
Approved for both residential and commercial settings
Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, and the needed connection hardware.
Full-sized cannister ships with tapping equipment (ships empty)
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
No-frost operation for minimum user maintenance
Simple and intuitive analog controls located inside for easy temperature management
Interior includes steel cover to protect the floor when loading kegs
Cold wall design with hidden evaporator creates a seamless, easy to clean interior

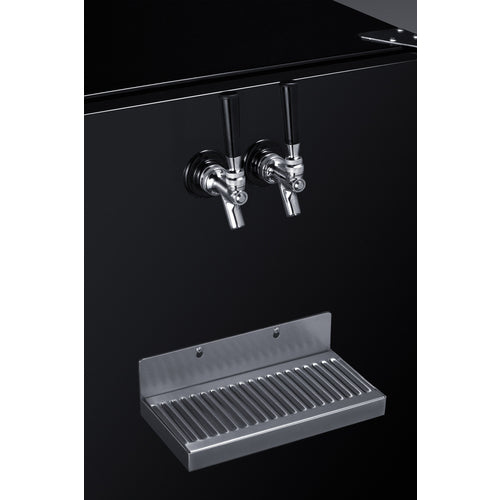

Front-mounted two-piece drip tray included for added convenience that can be easily removed for better cleanability
Vertically-mounted handle bar in stainless steel
For this unit with a standard right-hand door swing, see model SBC58BFRTPADA
Attractive finish to match the taps and handle
Allows the dispenser to be used freestanding
Refrigeration unit constructed in Europe then designed and modified in the USA
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.88" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 28.0" (71 cm) |
| Depth | 27.38" (70 cm) |
| Depth with door at 90° | 51.88" (132 cm) |
| Capacity | 5.3 cu.ft. (150 L) |
| Defrost Type | Automatic |
| Door | Black |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 293.0kWh/year |
| Amps | 0.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101145426 |
|
Kegerator
|
|
| Door Swing | LHD |
| Height Adjustable | Yes |
| Tap Kit | Yes |
| Number of Taps | 2 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Refrigerant | R600a |
| Refrigerant Amount | 0.64 oz. |
| Inter Height | 27.75" (70 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Level Legs Qty | 4 |
| Temperature Range | 36 to 46°F |
AVAILABLE UPGRADES
| Exterior | |
| RHD - Right hand door swing | Latch - Factory-installed door latch requires manual release to open unit |
| CAS3 3" casters |
| Lock | |
| L-SideLock | L-TopLock |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
SBC58BFRTPADALHD.pdf |
| TECHNICAL DRAWING (.dwg) | SBC7BRSFRTPADA.dwg |
| USE & CARE | SBC7BRSFRTP-Assembly__1_.pdf |
| USE & CARE | |
| ENERGY GUIDE |
https://www.summitappliance.com/energy_guide/8486.pdf
|
