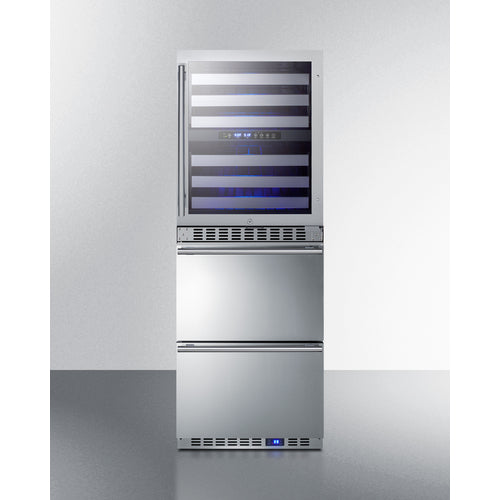

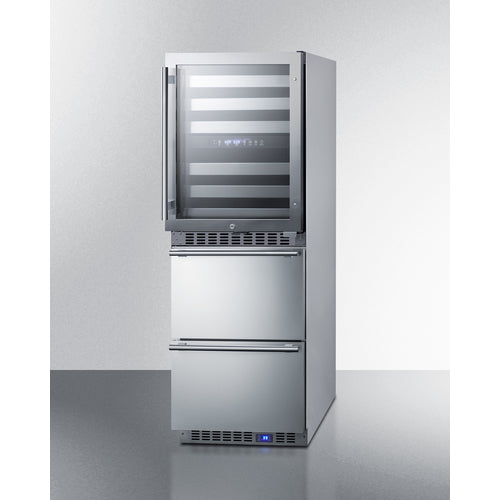

Summit's innovative dual-zone solution elegantly combines a 46-bottle wine cellar with a 3.4 cu.ft. two-drawer refrigerator in one sophisticated unit. At just under 24" wide, the SWCDAR24 creates the ultimate home entertainment station. Its versatile front-breathing design accommodates both built-in installation and freestanding placement, enhanced by professional-style brushed stainless steel handles and a sealed back for space efficiency. The thoughtful design includes a 6' Y-shaped cord allowing single-outlet operation without sacrificing depth, and arrives fully assembled for immediate use.
The sophisticated upper wine cellar features a reversible double-pane tempered glass door with seamless stainless steel framing and security lock. Operating with automatic defrost technology, it accommodates 46 Bordeaux bottles or a combination of 30 Bordeaux and 16 wider Burgundy bottles.
Precision temperature management is achieved through a digital control panel, maintaining 41°F-50°F in the upper zone for whites and 50°F-64°F in the lower zone for reds. Six full-extension black wire shelves with stainless steel trim glide effortlessly on ball-bearing tracks for easy access. Both compartments are illuminated by recessed blue LED lighting, creating an elegant display while ensuring energy efficiency.
The lower refrigeration unit showcases premium stainless steel construction throughout, ensuring exceptional durability and maintenance simplicity. Temperature management is effortlessly controlled via a digital thermostat, while an integrated fan maintains consistent cooling across both drawers. Versatile organization is achieved through adjustable dividers that create two or four distinct zones—perfect for beverages, charcuterie, or cheese selections.
A sliding chrome basket provides supplemental storage options, with LED illumination enhancing visibility during access. Advanced features include high-temperature and open-drawer alerts, Sabbath Mode functionality for religious observance periods, and temperature memory that preserves settings during power interruptions.
The SWCDAR24 delivers comprehensive refrigeration in a space-efficient profile, making it ideal for residential entertainment areas. Alternative configurations include custom panel compatibility (SWCDAR24PNR), bottom freezer option (SWCDAF24), or refrigerator-freezer combination (SWCDRF24). Installation requires the included anti-tip bracket for safety compliance.
FEATURES
Combination wine cellar and refrigerator
Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532) and two-drawer all-refrigerator (model FF642D), perfect for home bars, kitchens, and similar residential spaces
24" wide
Slim 24" wide fit offers full storage for wine, food, and beverage in a compact footprint
Built-in capable
Front-breathing design allows this unit be built in for added space savings

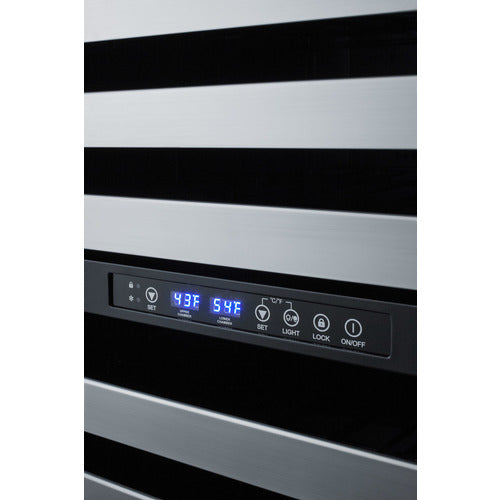

Digital controls (both units)
Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius
LED lighting (both units)
LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of both drawer interiors for easy access
Double pane tempered glass door (wine cellar)
Provides a full display of the interior, with two levels of glass for added protection
Seamless stainless steel door frame (wine cellar)
Single-piece door trim offers a more deluxe look

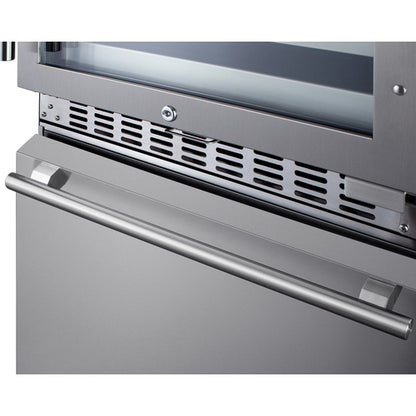

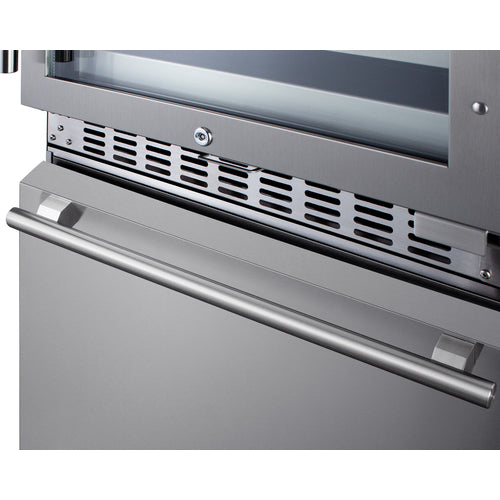

Professional handles (both units)
Solid stainless steel handles 1” in diameter afford style to any setting
Two temperature zones (wine cellar)
Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F
Commercial shelving design (wine cellar)
Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

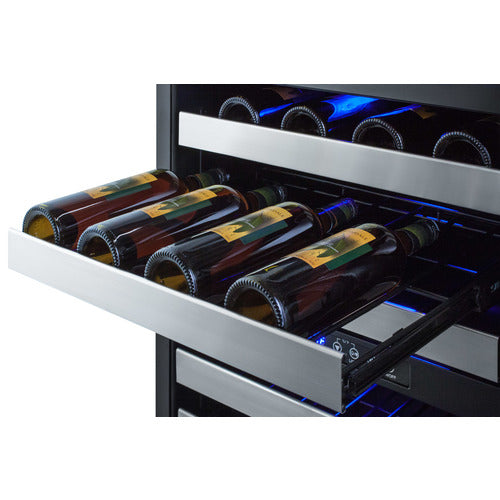

Full-extension shelving (wine cellar)
Shelves move smoothly on ball-bearing glides for easier loading and unloading
Automatic defrost (wine cellar)
Reduced maintenance with auto defrost system
Factory installed lock (wine cellar)
Keyed lock for secure interior, with two keys included
Reversible door (wine cellar)
User-reversible door swing makes it easy to best accommodate your setting

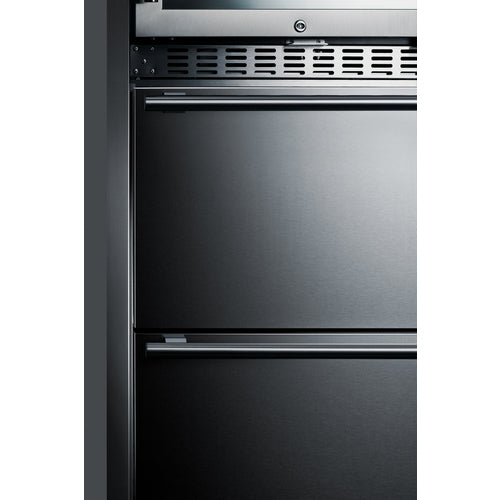

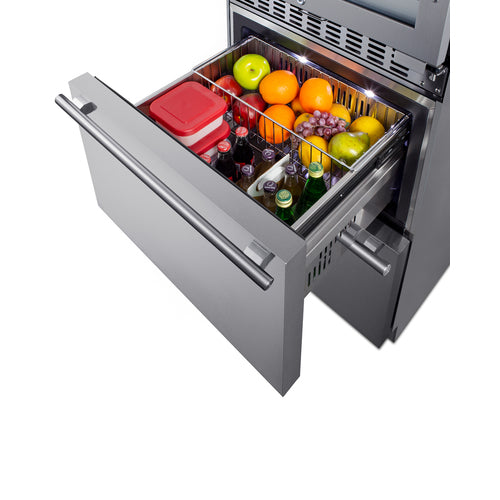

Two stainless steel drawers (refrigerator)
Slide-out drawers offer 3.4 cu.ft. of interior storage
Stainless steel construction (refrigerator)
Complete stainless steel construction offers added durability in an easy-cleaning design

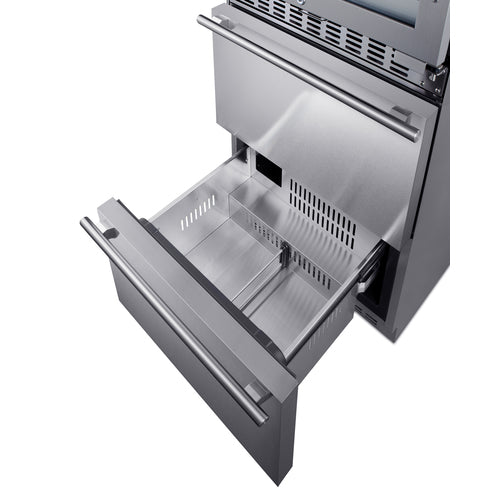

Drawer dividers (refrigerator)
Two adjustable dividers make it simple to organize the drawer interiors

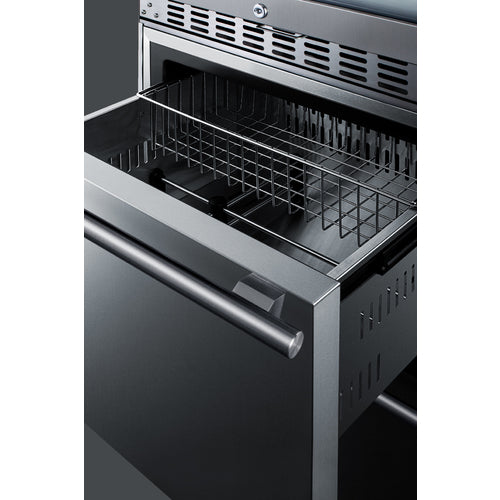

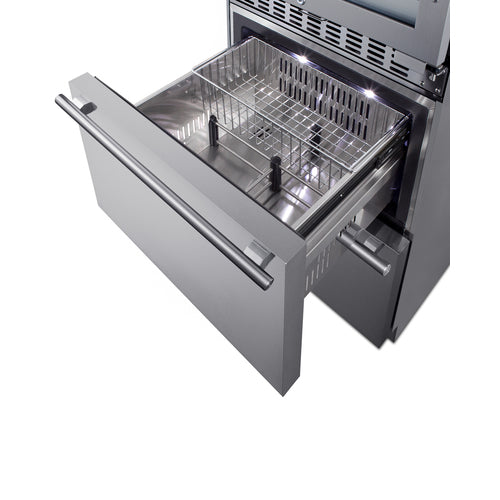

Sliding basket (refrigerator)
Removable chrome basket included for easier storage convenience
Frost-free operation (refrigerator)
No-frost operation for minimum user maintenance
Internal fan (refrigerator)
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Stainless steel kickplate (refrigerator)
Protects from everyday wear and tear in a durable, elegant design
Open drawer alarm (refrigerator)
Audible alarm will sound if the drawers are left ajar for over a minute
Temperature alarm (refrigerator)
High temperature alarm sounds if the unit's interior goes out of the recommended range
Temperature Memory Function (refrigerator)
Unit will retain its last settings when power is restored in the event of power loss
Sabbath Mode (refrigerator)
Optional setting lets you disable the lighting and alarm for up to 48 hours

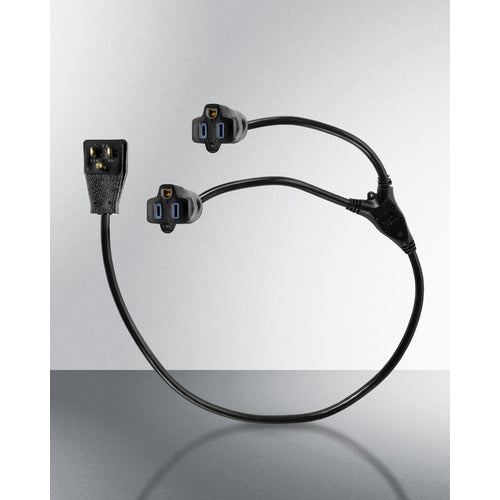

Y-cord with single 3-prong right angle plug included
Included 6 ft. cord allows users to operate both the wine cellar & refrigerator using a single plug for added convenience
Anti-tip bracket
Included and recommended for user-installation to reduce the risk of tipping
Fully finished stainless steel cabinet
Allows the unit to be used freestanding
Ships fully assembled
Unit comes fully assembled for user convenience
Additional choices available
This unit is also available with a bottom freezer (see the SWCDAF24) or a bottom refrigerator-freezer (see the SWCDRF24)
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
|
Overview
|
| Nominal Height |
66.0" (168 cm) |
| Height of Cabinet |
65.63" (167 cm) |
| Nominal Width |
24.0" (61 cm) |
| Width |
23.63" (60 cm) |
| Nominal Depth |
24.0" (61 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
25.5" (65 cm) |
| Depth with door at 90° |
45.75" (116 cm) |
| Capacity |
3.4 cu.ft. (96 L) |
| Bottles |
46 bottles |
| Defrost Type |
Automatic |
| Door |
Glass/SS |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Energy Usage/Year |
275.0kWh/year |
| Other Energy Info |
ALWC532: 1.25Ams; FF642D: 0.8 Amps |
| Amps |
2.05 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
229.0 lbs. (104 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101082806 |
|
Wine Cellar
|
| Number of Zones |
2 |
| Door Swing |
RHD |
| Reversible |
Yes |
| Shelf Type |
Wire |
| Shelf Qty |
6 |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Interior Height 1 |
11.88" (30 cm) |
| Interior Width 1 |
20.5" (52 cm) |
| Interior Depth 1 |
18.0" (46 cm) |
| Interior Height - Drawer 1 |
9.25" (23 cm) |
| Interior Width - Drawer 1 |
17.25" (44 cm) |
| Interior Depth - Drawer 1 |
15.5" (39 cm) |
| Interior Height - Drawer 2 |
10.0" (25 cm) |
| Interior Width - Drawer 2 |
17.25" (44 cm) |
| Interior Depth - Drawer 2 |
15.5" (39 cm) |
| Temperature Range |
ALWC532: 41°F to 64°F; FF642D: 36°F to 43°F |
| Interior Height 2 |
11.63" (30 cm) |
| Interior Width 2 |
20.5" (52 cm) |
| Interior Depth 2 |
18.0" (46 cm) |
AVAILABLE UPGRADES
| Door |
|
| T4 Door Tint |
T3 Door Tint |
| T2 Door Tint |
T1S Door Tint |
| T1 Door Tint |
|
| Exterior |
|
| Latch - Factory-installed door latch requires manual release to open unit |
LHD - Left hand door swing |
