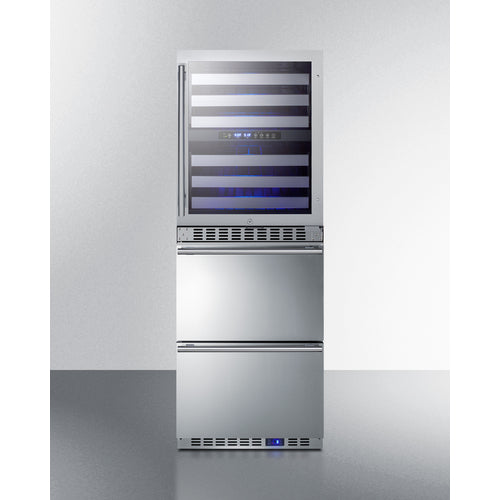

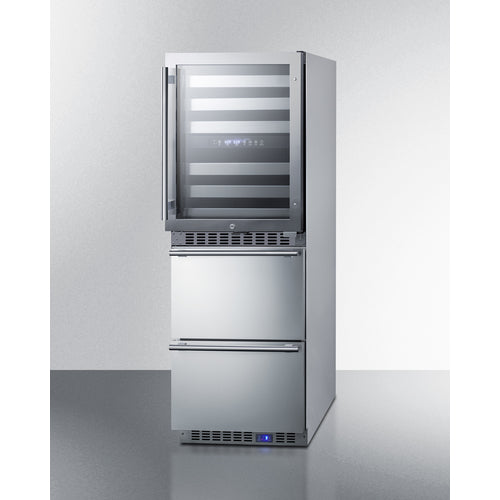

Summit's innovative SWCDAF24 combines a dual-zone wine cellar holding 46 bottles with a 3.4 cu.ft. two-drawer freezer, creating the ultimate home entertainment center. At just under 24" wide, this versatile unit offers both built-in capability with its front-breathing design and freestanding flexibility with its durable stainless steel construction.
Professional brushed stainless handles enhance its contemporary aesthetic, while the sealed back maximizes placement options. The ingenious Y-shaped power cord allows single-outlet operation without sacrificing depth, and the unit arrives fully assembled for immediate use.
The dual-zone wine cellar features a reversible double-pane tempered glass door with sleek stainless steel framing and security lock. Its automatic defrost system minimizes maintenance while accommodating 46 Bordeaux bottles or a combination of 30 Bordeaux and 16 wider Burgundy bottles.
Precise temperature control allows customization between 41°F-50°F in the upper zone for whites and 50°F-64°F in the lower zone for reds. Six full-extension black wire shelves with stainless steel trim glide smoothly on ball bearings for effortless access. Both compartments showcase elegant blue recessed LED lighting, enhancing visibility while creating a sophisticated display environment for your collection.
The lower freezer section boasts full stainless steel construction throughout, ensuring exceptional durability and simplified cleaning. Temperature management is effortless with the digital thermostat, while an integrated fan maintains consistent cooling across both drawers.
Organizational flexibility comes from two adjustable dividers that create customizable storage zones, complemented by a sliding chrome basket for additional storage options. LED illumination provides clear visibility of contents during access. Advanced features include high-temperature and open drawer alarms, Sabbath Mode for religious observance periods, and temperature memory function that preserves settings during power interruptions.
The SWCDAF24's compact yet comprehensive design makes it ideal for residential bars and kitchens seeking sophisticated wine and food storage. Custom panel options (SWCDAF24PNR) and alternative configurations with refrigerator (SWCDAR24) or refrigerator-freezer (SWCDRF24) are also available.
FEATURES
Combination wine cellar and freezer
Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532) and two-drawer all-freezer (model SCFF532D), perfect for home bars, kitchens, and similar residential spaces
24" wide
Slim 24" wide fit offers full storage capacity in a compact footprint
Built-in capable
Front-breathing design allows this unit be built in for added space savings

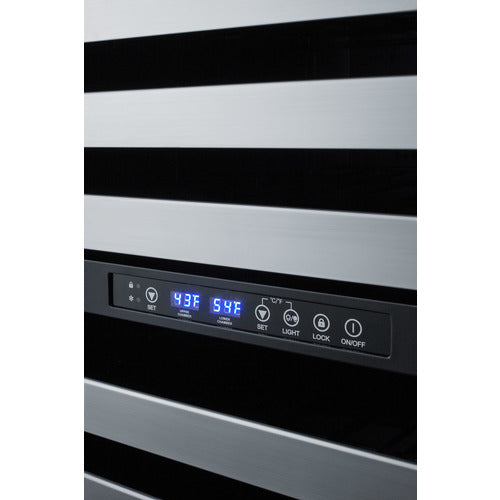

Digital controls (both units)
Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius
LED lighting (both units)
LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of both drawer interiors for easy access
Double pane tempered glass door (wine cellar)
Provides a full display of the interior, with two levels of glass for added protection
Seamless stainless steel door frame (wine cellar)
Single-piece door trim offers a more deluxe look

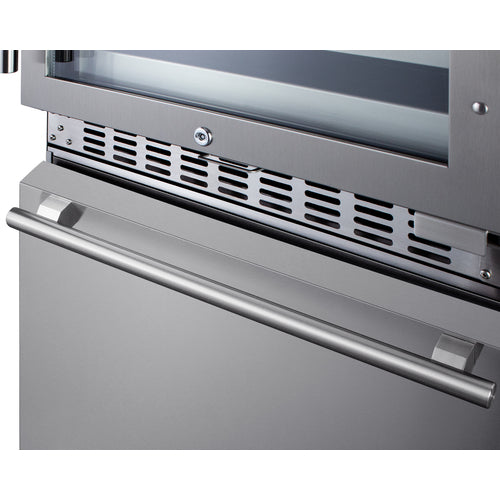

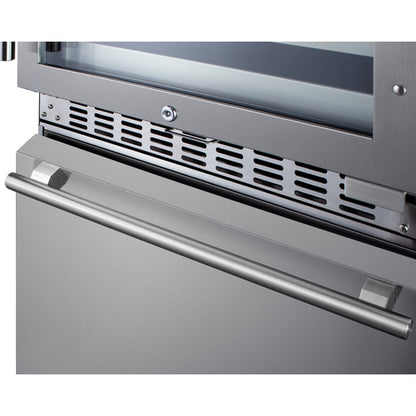

Professional handles (both units)
Solid stainless steel handles 1” in diameter afford style to any setting
Two temperature zones (wine cellar)
Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F
Commercial shelving design (wine cellar)
Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

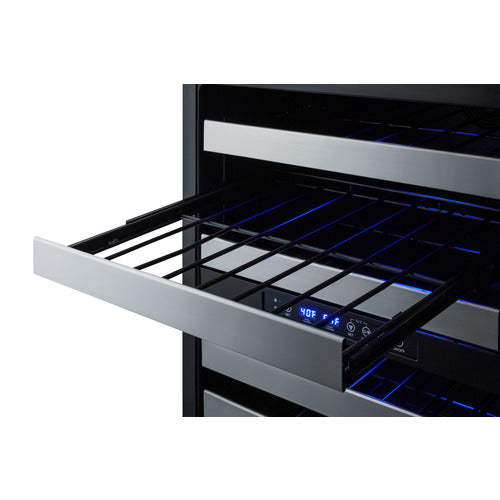

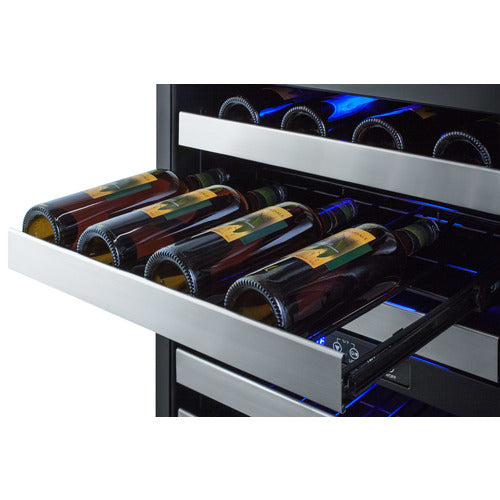

Full-extension shelving (wine cellar)
Shelves move smoothly on ball-bearing glides for easier loading and unloading
Automatic defrost (wine cellar)
Reduced maintenance with auto defrost system
Factory installed lock (wine cellar)
Keyed lock for secure interior, with two keys included
Reversible door (wine cellar)
User-reversible door swing makes it easy to best accommodate your setting

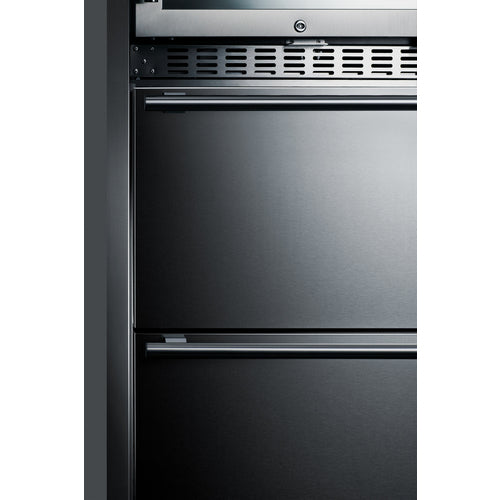

Two stainless steel drawers (freezer)
Slide-out drawers offer 3.4 cu.ft. of interior storage
Stainless steel construction (freezer)
Complete stainless steel construction offers added durability in an easy-cleaning design

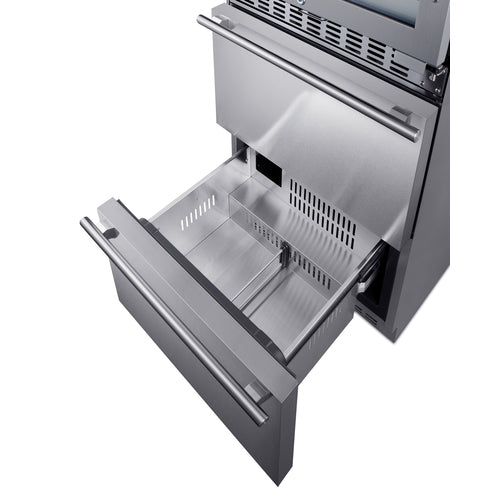

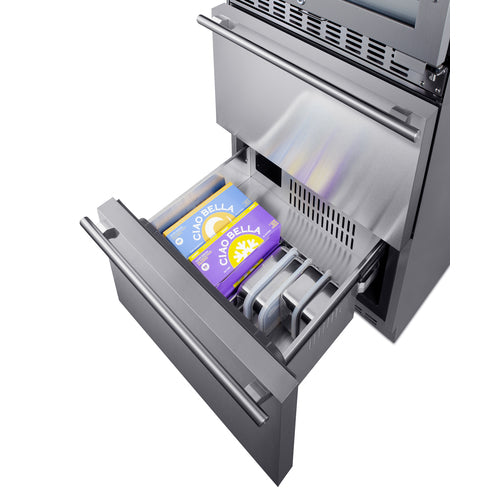

Drawer dividers (freezer)
Two adjustable dividers make it simple to organize the drawer interiors

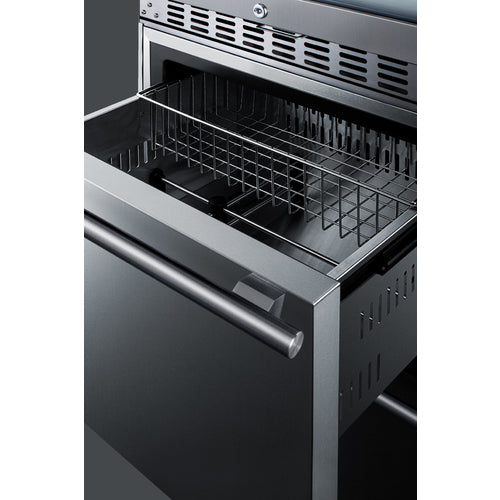

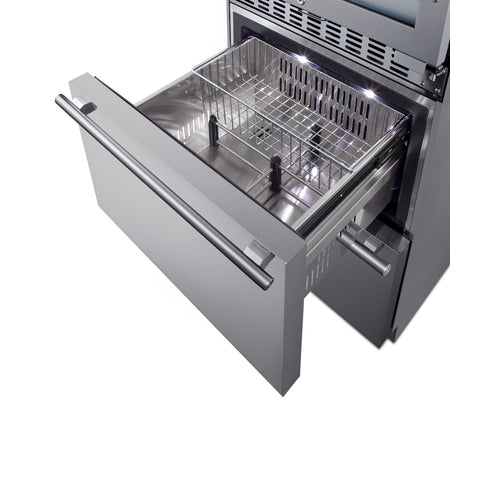

Sliding basket (freezer)
Removable chrome basket included for easier storage convenience
Frost-free operation (freezer)
No-frost operation for minimum user maintenance
Internal fan (freezer)
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Stainless steel kickplate (freezer)
Protects from everyday wear and tear in a durable, elegant design
Open drawer alarm (freezer)
Audible alarm will sound if the drawers are left ajar for over a minute
Temperature alarm (freezer)
High temperature alarm sounds if the unit's interior goes out of the recommended range
Temperature Memory Function (freezer)
Unit will retain its last settings when power is restored in the event of power loss
Sabbath Mode (freezer)
Optional setting lets you disable the lighting and alarm for up to 48 hours

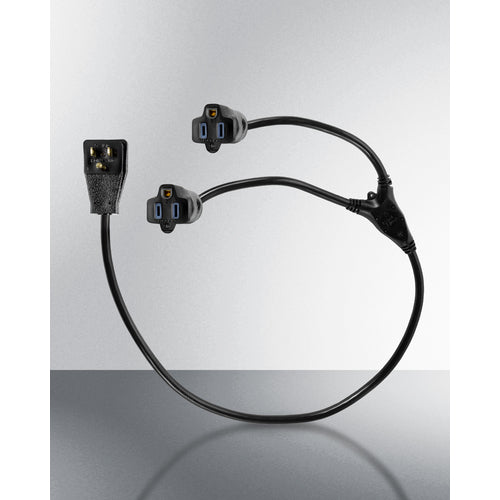

Y-cord with single 3-prong right angle plug included
Included 6 ft. cord allows users to operate both the wine cellar & freezer using a single plug for added convenience
Anti-tip bracket
Included and recommended for user-installation to reduce the risk of tipping
Fully finished stainless steel cabinet
Allows the unit to be used freestanding
Ships fully assembled
Unit comes fully assembled for user convenience
Additional choices available
This unit is also available with a bottom refrigerator (see the SWCDAR24) or a bottom refrigerator-freezer (see the SWCDRF24)
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
|
Overview
|
| Nominal Height |
66.0" (168 cm) |
| Height of Cabinet |
65.63" (167 cm) |
| Nominal Width |
24.0" (61 cm) |
| Width |
23.63" (60 cm) |
| Nominal Depth |
24.0" (61 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
25.5" (65 cm) |
| Depth with door at 90° |
45.75" (116 cm) |
| Capacity |
3.4 cu.ft. (96 L) |
| Bottles |
46 bottles |
| Defrost Type |
Automatic |
| Door |
Glass/SS |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Energy Usage/Year |
405.0kWh/year |
| Other Energy Info |
ALWC532: 1.25Ams; SCFF532D: 0.8 Amps |
| Amps |
2.05 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
229.0 lbs. (104 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101082820 |
|
Wine Cellar
|
| Number of Zones |
2 |
| Door Swing |
RHD |
| Reversible |
Yes |
| Shelf Type |
Wire |
| Shelf Qty |
6 |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Interior Height 1 |
11.88" (30 cm) |
| Interior Width 1 |
20.5" (52 cm) |
| Interior Depth 1 |
18.0" (46 cm) |
| Interior Height - Drawer 1 |
9.25" (23 cm) |
| Interior Width - Drawer 1 |
17.25" (44 cm) |
| Interior Depth - Drawer 1 |
15.5" (39 cm) |
| Interior Height - Drawer 2 |
10.0" (25 cm) |
| Interior Width - Drawer 2 |
17.25" (44 cm) |
| Interior Depth - Drawer 2 |
15.5" (39 cm) |
| Temperature Range |
ALWC532: 41°F to 64°F; SCFF532D: -11° to 11°F |
| Interior Height 2 |
11.63" (30 cm) |
| Interior Width 2 |
20.5" (52 cm) |
| Interior Depth 2 |
18.0" (46 cm) |
AVAILABLE UPGRADES
| Door |
|
| T4 Door Tint |
T3 Door Tint |
| T2 Door Tint |
T1S Door Tint |
| T1 Door Tint |
|
| Exterior |
|
| Latch - Factory-installed door latch requires manual release to open unit |
LHD - Left hand door swing |
