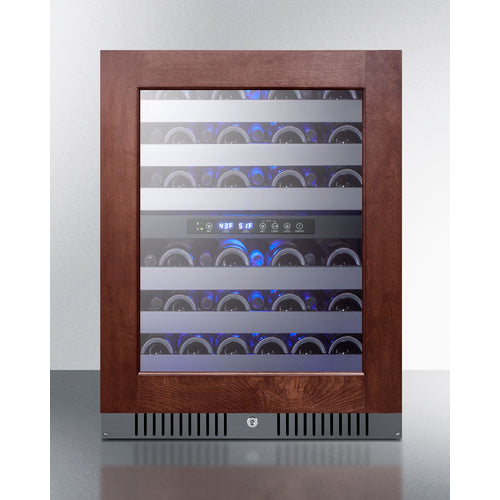

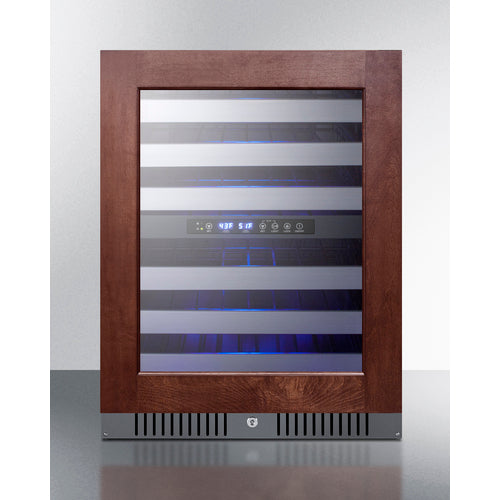

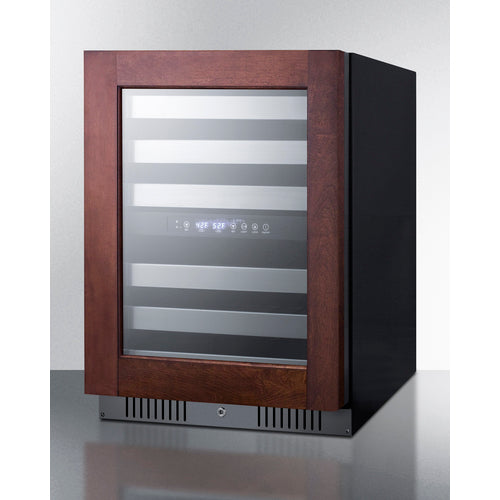

Summit Appliance 24 inch Wide Built-In Wine Cellar, ADA Compliant (Panel Not Included)
Summit Appliance 24 inch Wide Built-In Wine Cellar, ADA Compliant (Panel Not Included)
Couldn't load pickup availability
Summit's versatile 24-inch built-in wine cellar offers exceptional flexibility for custom installations. The ALWC532PNRLHD features dual temperature zones in a compact, ADA compliant design that fits perfectly under 32-inch counters. Its front-breathing system allows seamless integration while the finished black cabinet supports freestanding placement.
The panel-ready door includes European-style articulating hinges with a 2-piece bracket kit for custom panel installation, enabling perfect matching with existing cabinetry. Security is enhanced with a factory-installed lock, while the stainless steel kickplate provides a refined finishing touch to this sophisticated storage solution.
The ALWC532PNRLHD accommodates an impressive 46 standard Bordeaux bottles, or alternatively, 30 Bordeaux plus 16 wider Burgundy bottles. Its sophisticated dual-zone temperature management system allows precise climate control—41-50°F in the upper chamber for whites and 50-64°F in the lower section for reds.
The cellar features six full-extension black wire shelves with elegant stainless steel trim, operating on smooth ball-bearing glides for effortless access. Ambient blue LED lighting illuminates both compartments, enhancing visibility while creating a sophisticated display. ETL-S listed to NSF-7 commercial standards, this wine
FEATURES
Undercounter wine cellar with a panel-ready glass door in a 24" footprint with evenly split temperature zones
Sized just under 32" high for an easy fit under lower ADA compliant counters
ETL-S listed to NSF-7 Standards for use in commercial establishments
Front-breathing design allows this unit to be installed under counters

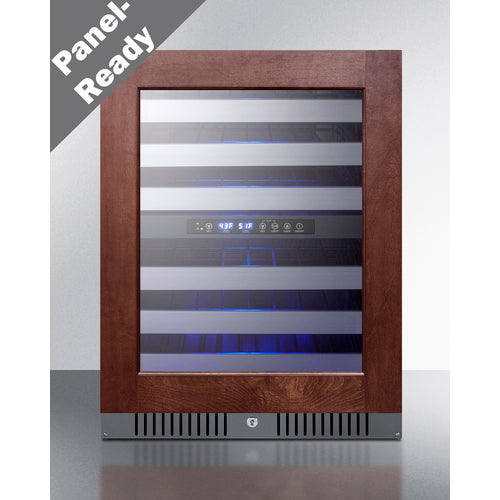

Innovative bracket kit allows easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 29 1/4" H x 23 1/8" W with a 22 3/8" H x 17 3/4" W viewable area
Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving and offers a more versatile fit for a variety of bottles

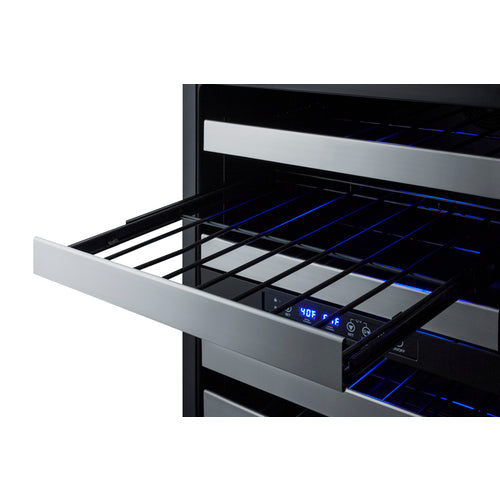

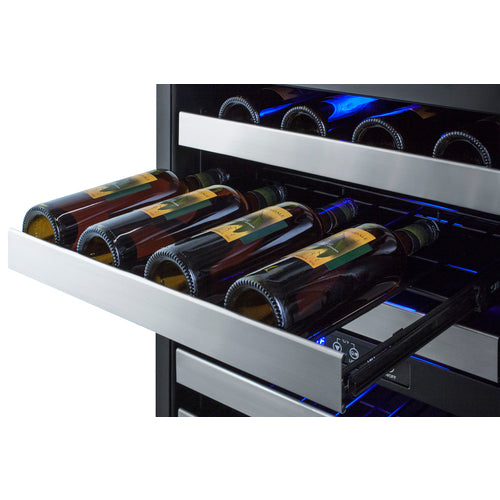

Shelves move smoothly on ball-bearing glides for easier loading and unloading
Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F

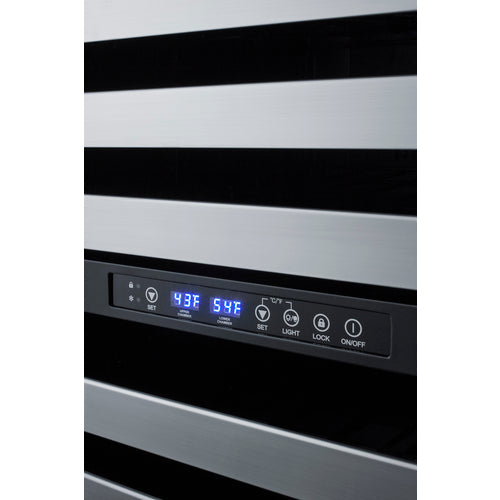

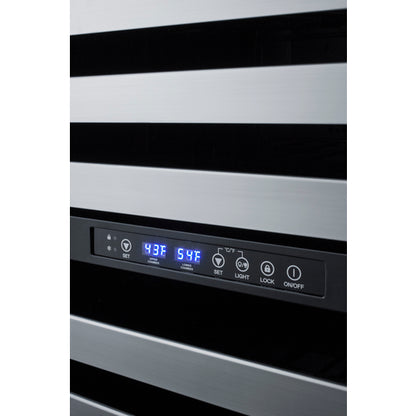

Easy temperature management with electronic controls located inside
Temperature viewable in Celsius or Fahrenheit
Reduced maintenance with auto defrost system
Provides a full display of the interior, with two levels of glass for added protection
Recessed LED lighting in both compartments brings striking blue illumination to your collection
Keyed lock for secure interior, with two keys included
Smoother opening and a better fit with an integrated European style door hinge
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with door at 90° | 47.38" (120 cm) |
| Bottles | 46 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 113.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101092102 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | LHD |
| Shelf Type | Wire |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 11.63" (30 cm) |
| Interior Width 1 | 20.5" (52 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Level Legs | 2 |
| Temperature Range | 41 to 64ºF |
| Interior Height 2 | 11.88" (30 cm) |
| Interior Width 2 | 20.5" (52 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
| Sound Level | 34 dB |
| Door |
|---|
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE | ALWC532PNRLHD.pdf |
| USE & CARE | ALWC532PNR_SWC532BLBISTPNR_user_manual_8-21-24.pdf |
