Summit Appliance 24 inch Wide Built-In Beverage Center (Panel Not Included)
Summit Appliance 24 inch Wide Built-In Beverage Center (Panel Not Included)
Couldn't load pickup availability

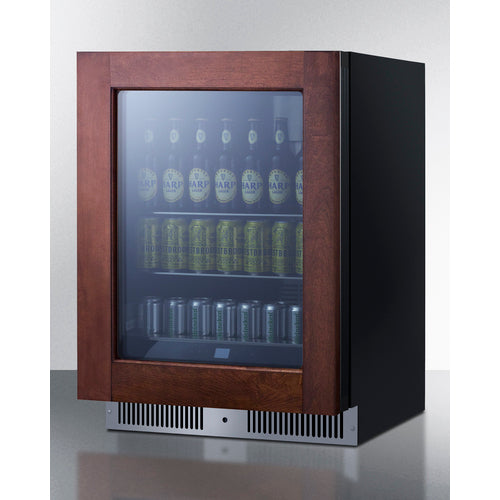

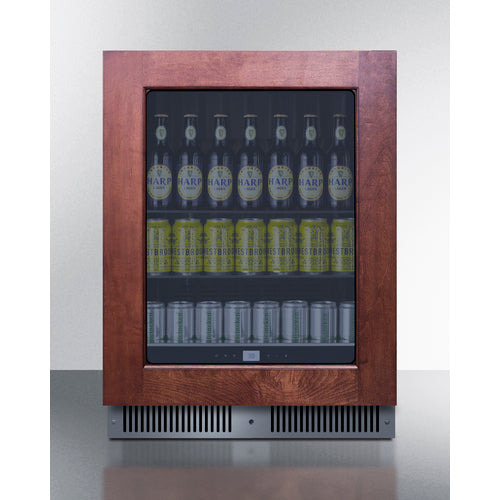

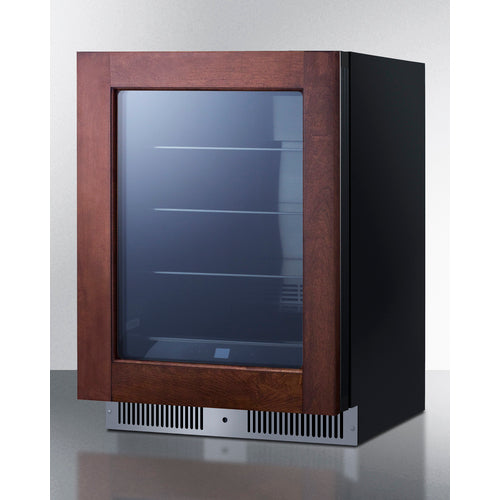

Summit's CL24BV1PNRLHD is a sophisticated 24" wide beverage center offering 4.73 cu. ft. of storage capacity for residential or commercial applications. The versatile unit features a front-breathing system for built-in installation while maintaining freestanding capability with its finished black cabinet.
Premium elements include stainless steel trim, double-pane tempered glass, and a fully articulating European hinge design with a 2-piece bracket kit for custom panel installation. Interior highlights comprise fan-forced cooling for temperature consistency, tri-colored dimmable LED lighting, and three adjustable glass shelves for maximum storage flexibility. The kickplate-integrated lock ensures security without compromising aesthetics.
The CL24BV1PNRLHD features an angled digital thermostat with Celsius/Fahrenheit display for enhanced readability. Its specialized dipped floor design accommodates upright bottle storage, while advanced functionality includes sabbath mode and temperature memory that maintains settings during power interruptions. The unit incorporates intelligent alarm systems that alert users to ajar doors or temperature fluctuations outside optimal ranges.
This left-hand swing model can be paired with Summit's complementary wine cellars (CL244WC2PNRLHD or CL155WC1PNRLHD) for a coordinated installation, or alternatively, the right-hand swing CL24BV1PNR model is available. The beverage center's sophisticated design and comprehensive features deliver exceptional convenience for any premium kitchen or entertainment space.
Premium glass door beverage refrigerator for residential and commercial use
Front-breathing design lets you make the best use of space by installing your appliance under the counter

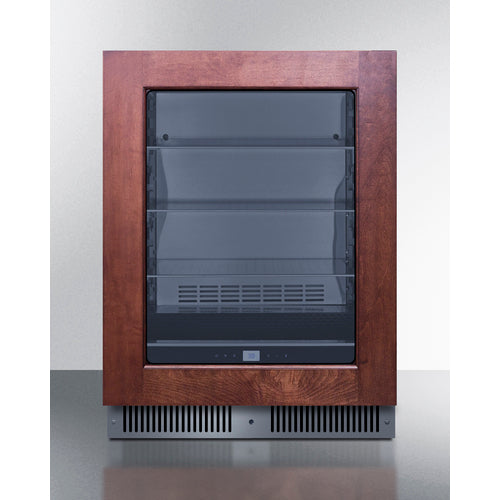

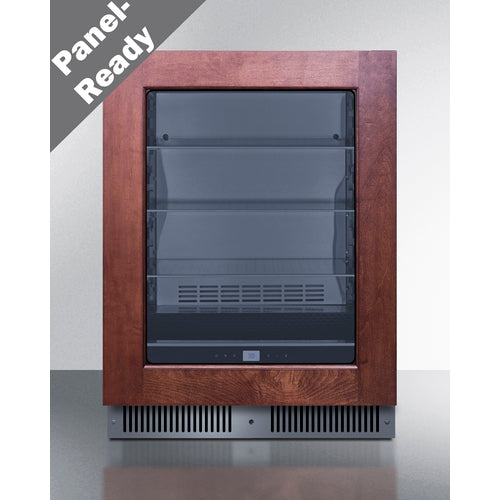

Panel-ready door lets you customize the unit for a seamless look that integrates into your kitchen
ETL-S listed to NSF-7 Standards for use in commercial establishments
Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 23 1/4" W with a 3 1/4" inner frame

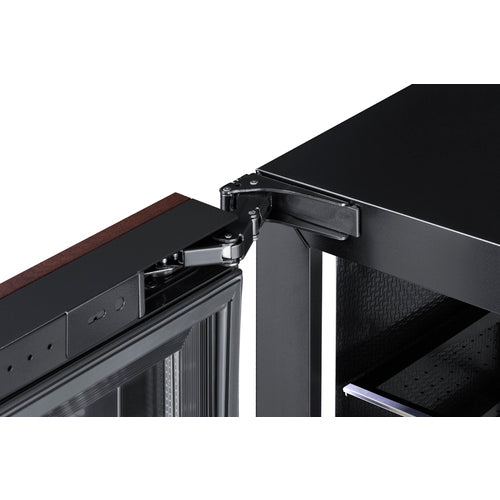

European style hinge design ensures a flush fit and allows for a smoother opening
Single-piece stainless steel door trim offers a more deluxe look
Attractive tinted glass door provides a complete but protected display of stored contents
Allows for seamless integration with other appliances

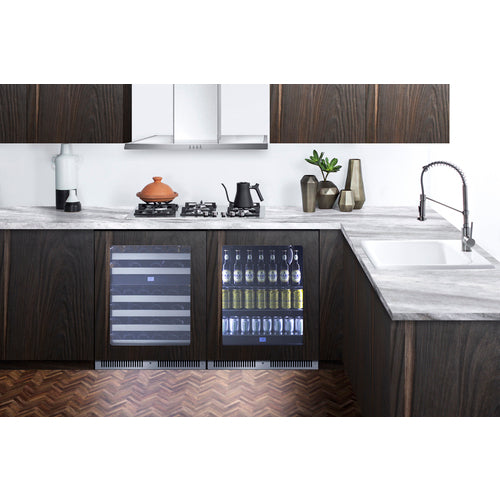

Pair with our 24” wide wine cellar, model CL244WC2PNR, for a matching side-by-side set under standard-height counters. This unit can also be paired with our 15” wine cellar, see model CL155WC1PNR, to fit your unique needs
4.7 cu. ft. of interior storage space

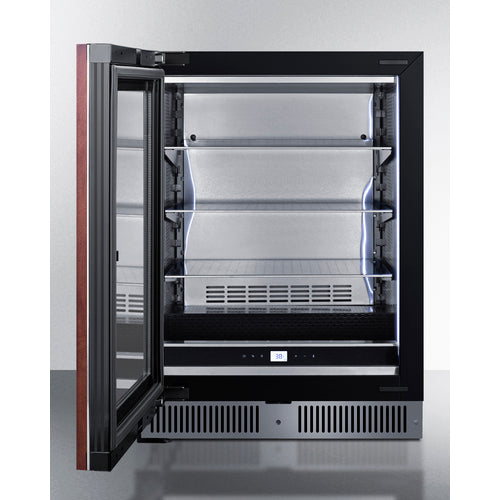

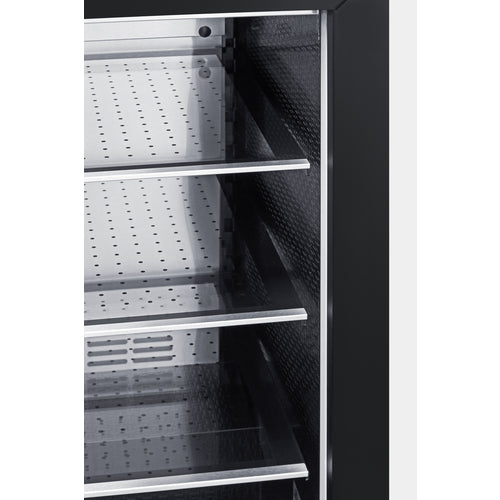

Three easy-to-clean glass shelves for flexible storage
The unit's dipped flat floor design makes it easier to store certain beverages in an upright position
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle
Ensures a more accessible view of the digital controls and thermostat, keeping the temperature in view without the need to bend to read it
Easy-to-use digital controls for precise temperature management
Temperature readout can be shown in Celsius or Fahrenheit
Rotate your presentation style with a choice of blue, white, or amber LED lighting
No-frost operation for minimum user maintenance
Audible alarm will sound if the door is left open longer than one minute
Temperature alarm sounds if the unit's interior goes out of the recommended range
Unit will retain its last settings when power is restored in the event of power loss
Optional setting lets you disable the lighting and alarm for up to 96 hours
Keyed lock located in the kickplate for added security as needed
Space-saving design with no exposed coils that offers easier cleanability
Allows the unit to be used freestanding
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Complete luxury down to the toe kick
Bracket (included) helps prevent tipping for added safety
For this unit with the door opening from the other side, see model CL24BV1PNR
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|

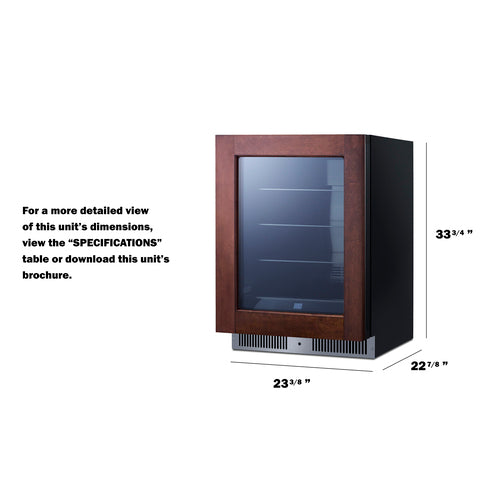

| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.75" (86 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 22.88" (58 cm) |
| Depth with door at 90° | 46.63" (118 cm) |
| Capacity | 4.73 cu.ft. (134 L) |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 280.0kWh/year |
| Amps | 3.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 117.0 lbs. (53 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101156071 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38oz. |
| Interior Light | Yes |
| Temperature Range | 36°F to 43°F |
|
Drawer Dimensions
|
|
| Interior Height 1 | 3.75" (10 cm) |
| Interior Width 1 | 19.25" (49 cm) |
| Interior Depth 1 | 5.0" (13 cm) |
|
Dimensions
|
|
| Interior Height | 26.0" (66 cm) |
| Interior Width | 19.25" (49 cm) |
| Interior Depth | 17.0" (43 cm) |
AVAILABLE UPGRADES
| Door |
| T1 Door Tint | T4 Door Tint |
| T2 Door Tint | T3 Door Tint |
| T1S Door Tint | |
| Exterior | |
|---|---|
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
CL24BV1PNRLHD.pdf |
| TECHNICAL DRAWING (.dwg) | CL24BV1PNR__1_.dwg |
| ASSEMBLY DRAWING | CL24BV1PNR-Assembly.pdf |
| USE & CARE | |
| ENERGY GUIDE |
https://www.summitappliance.com/energy_guide/8727.pdf
|
