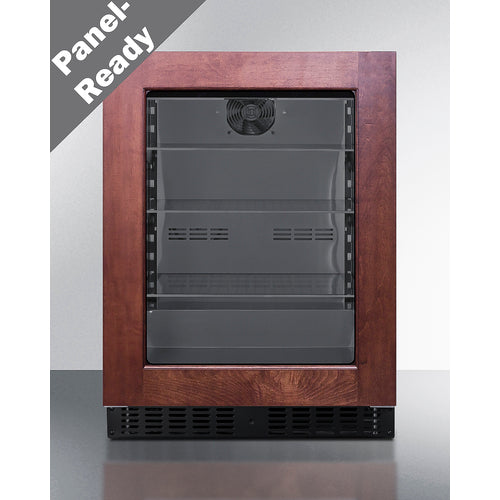

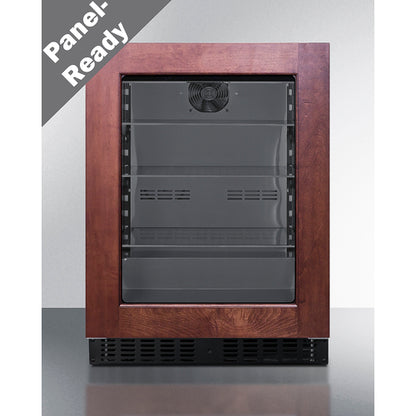

Summit Appliance 24 inch Wide Built-In Beverage Center, ADA Compliant (Panel Not Included)
Summit Appliance 24 inch Wide Built-In Beverage Center, ADA Compliant (Panel Not Included)
Couldn't load pickup availability

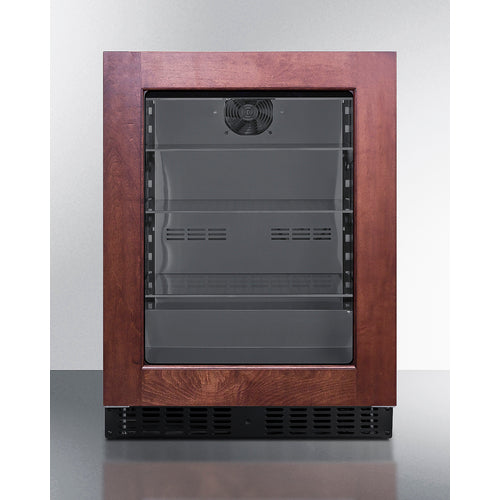

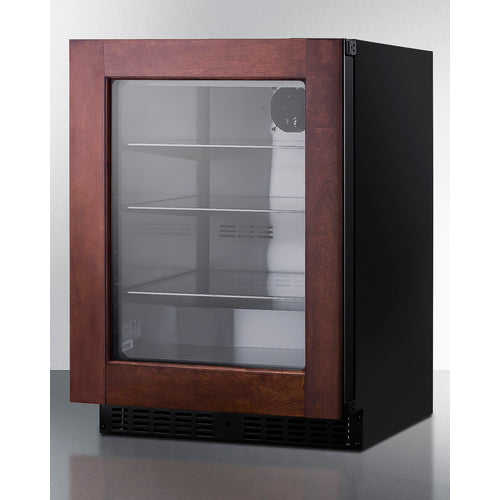

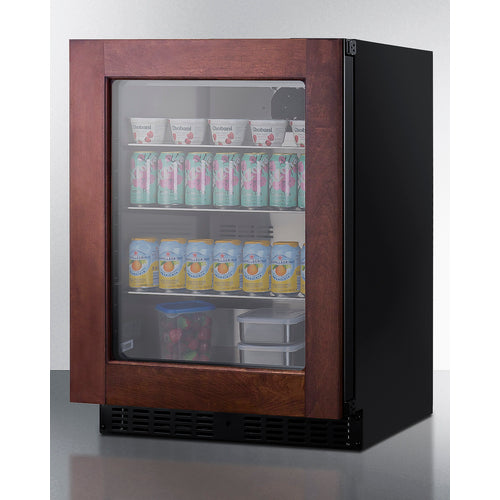

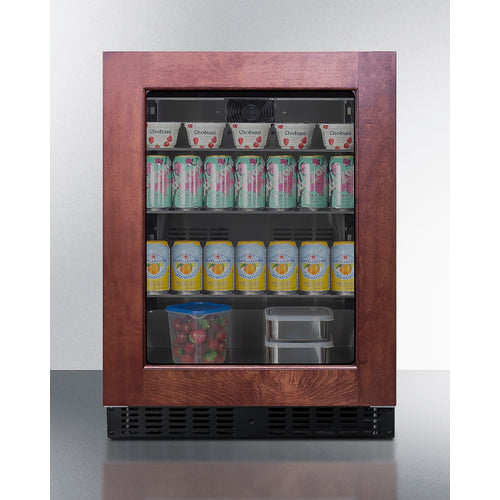

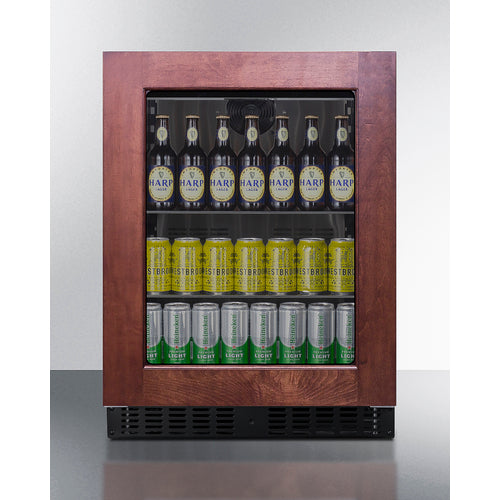

Summit's shallow depth built-in undercounter beverage center offers versatile functionality in space-constrained environments like kitchen islands and wet bars. The ASDG2411PNRLHD model measures 24" wide with a depth under 18", featuring adjustable height from 32" (ADA compliant) to 34" (standard counter height). Its front-breathing design enables built-in installation, while the finished black cabinet supports freestanding placement.
The European fully articulating hinge accommodates custom door panels, complemented by a sealed rear and right-angle cord for optimal positioning. This left-hand swing unit includes a front lock for security.
The ASDG2411PNRLHD features premium stainless steel interior construction, enhancing longevity and hygiene. Its fan-forced cooling system maintains consistent temperatures with rapid recovery capabilities. Dual LED strips with adjustable brightness provide customizable white illumination for optimal display. The commercial-grade cantilevered glass shelving system accommodates various storage configurations.
Advanced features include open door and high temperature alerts, plus Sabbath mode functionality for observant users. ETL-S listed to NSF-7 commercial standards, this versatile unit excels in both professional and residential applications. Its sophisticated design, user-centric features, and compact depth deliver exceptional value across diverse settings. Complement with the ASDW2412PNR wine cellar or explore additional 18" deep options in various widths and configurations.
3.25 cu.ft. interior for residential or commercial cold storage
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
32" height allows easy installation under lower ADA compliant counters
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Front-breathing design lets you make the best use of space by installing your appliance under the counter
European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 28 1/4" H x 23 1/4" W with a 3 1/4" H x 3 1/4" W inner frame
Elegant design offers a clear but protected view of your interior
Glass is framed by with a flush one-piece stainless steel trim for an elevated look
Walls and floor are constructed from stainless steel for added strength and easy cleanup
Keyed lock for a secure interior (2 keys included)
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

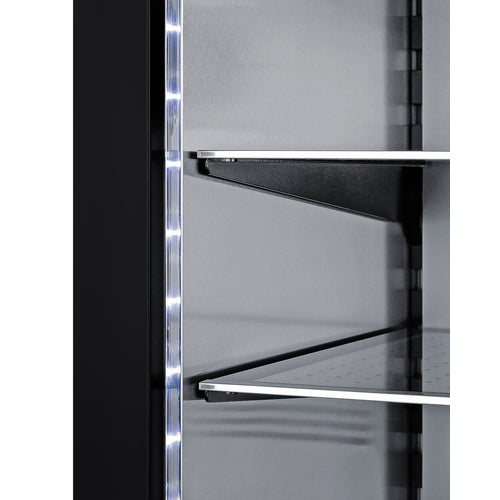

Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
No-frost operation for minimum user maintenance
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

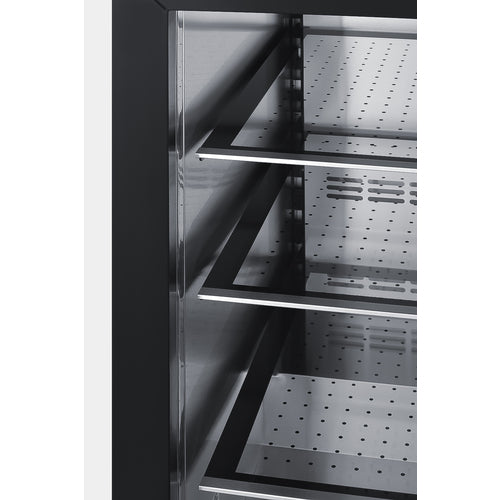

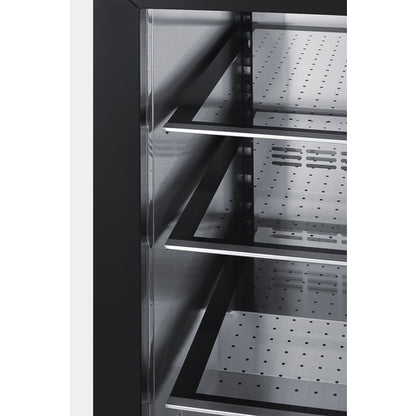

Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm sounds if the unit's interior goes out of the recommended range
Optional setting lets you disable the lighting and alarm for up to 48 hours
Unit will retain its last settings when power is restored in the event of power loss
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space-saving design with no exposed coils that offers easier cleanability
Smoother opening and a better fit with an integrated European hinge
For this unit with the door opening from the other side, see model ASDG2411PNR
Allows the unit to be used freestanding
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.75" (45 cm) |
| Depth with door at 90° | 39.88" (101 cm) |
| Capacity | 3.25 cu.ft. (92 L) |
| Defrost Type | Frost-Free |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 285.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 120.0 lbs. (54 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101104201 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | LHD |
| Reversible | No |
| Height Adjustable | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33.1 dB |
|
Dimensions
|
|
| Interior Height | 24.5" (62 cm) |
| Interior Width | 19.5" (50 cm) |
| Interior Depth | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.5" (50 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Door |
|---|
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE | ASDG2411PNRLHD.pdf |
| USE & CARE | ASDG_ASDW_SDH_CL_ALFD_Series_Wine_and_Beverage_User_Manual(2).pdf |
| MSDS INFORMATION | R600a_K.pdf |
| ENERGY GUIDE | https://www.summitappliance.com/energy_guide/8420.pdf |
