Summit Appliance 24 inch Wide Built-In Beverage Center, ADA Compliant
Summit Appliance 24 inch Wide Built-In Beverage Center, ADA Compliant
Couldn't load pickup availability

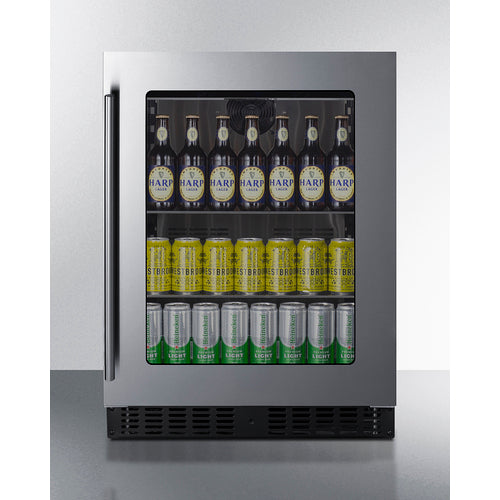

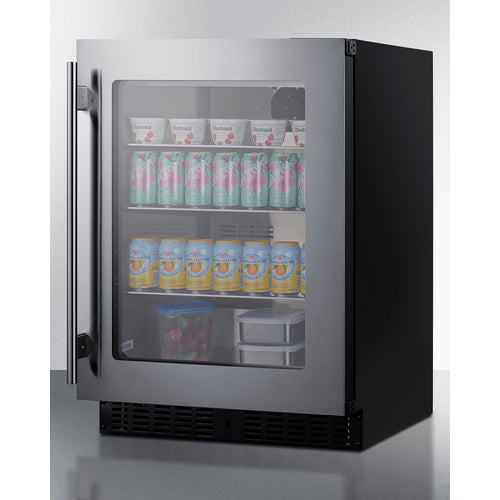

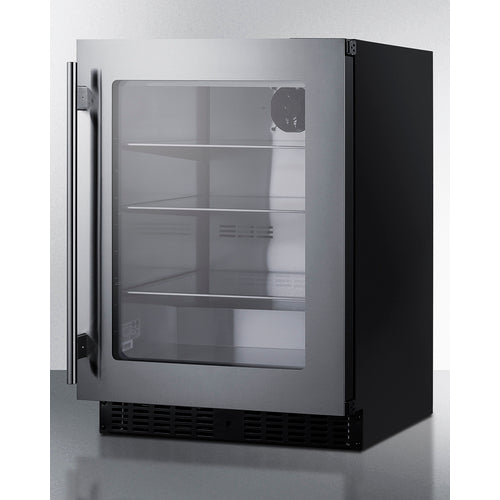

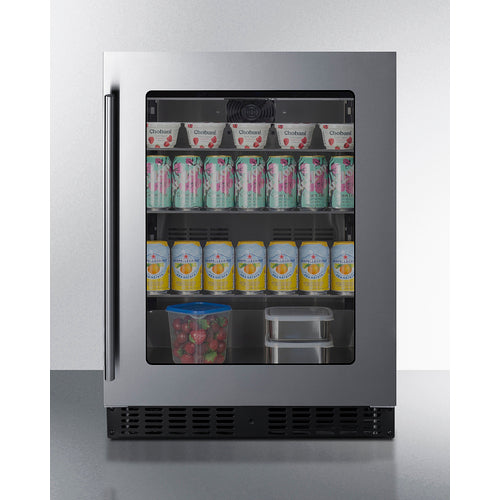

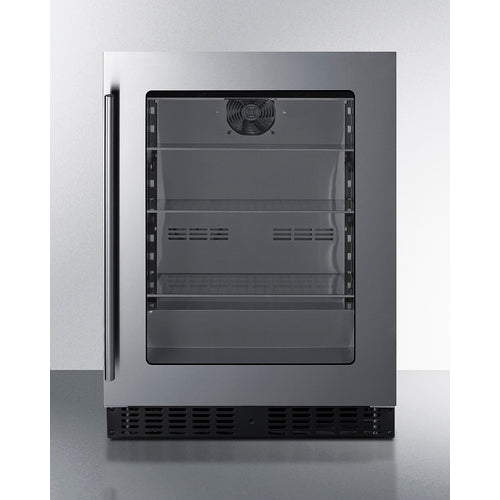

Summit's shallow depth built-in undercounter beverage center maximizes functionality in space-constrained environments. The ASDG2411 model features a compact 24" width and under 18" depth, with adjustable height from 32" (ADA compliant) to 34" (standard counters). Its front-breathing design enables built-in installation, while the finished black cabinet allows freestanding placement.
Premium details include seamless stainless steel trim, double-pane tempered glass, professional handle, sealed rear with right-angle cord, and a reversible door with front lock for security.
The ASDG2411 features durable stainless steel interior construction with advanced fan-forced cooling for optimal temperature consistency. Dual LED strips with adjustable brightness provide customizable display illumination, while commercial-grade cantilevered glass shelving offers versatile storage configurations.

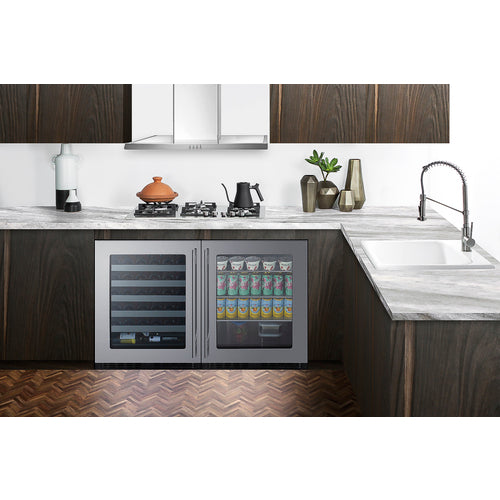

Safety features include open door and high temperature alarms, plus a Sabbath mode for religious observance periods. ETL-S listed to NSF-7 commercial standards, this premium beverage center delivers exceptional functionality for both commercial and residential applications. For a coordinated installation, pair with the ASDW2412 wine cellar, or explore other 18" deep options available in various widths and configurations, including outdoor models and refrigerator drawers.
3.25 cu.ft. interior for residential or commercial cold storage
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
32" height allows easy installation under lower ADA compliant counters
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Walls and floor are constructed from stainless steel for added strength and easy cleanup
Elegant design offers a clear but protected view of your interior
Glass is framed by with a flush one-piece stainless steel trim for an elevated look
Keyed lock for a secure interior (2 keys included)

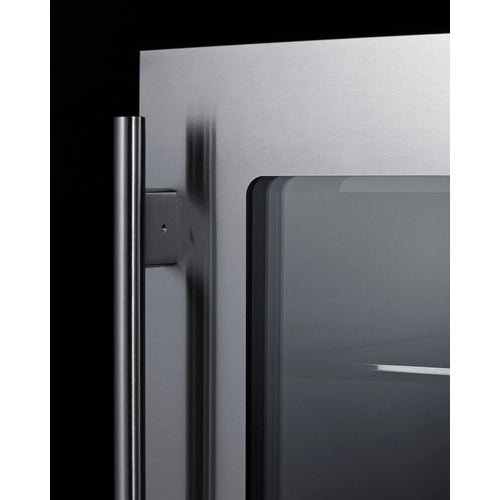

Stainless steel handle completes the look
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

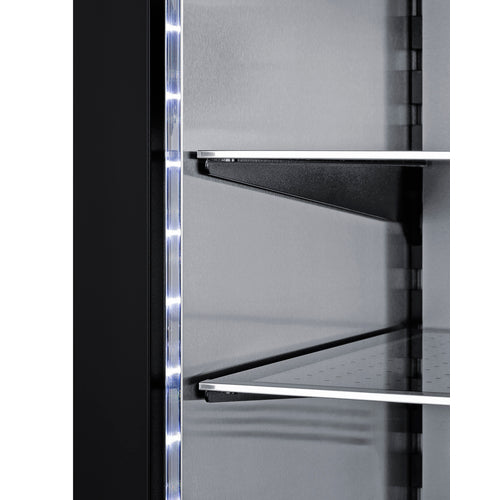

Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
No-frost operation for minimum user maintenance
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

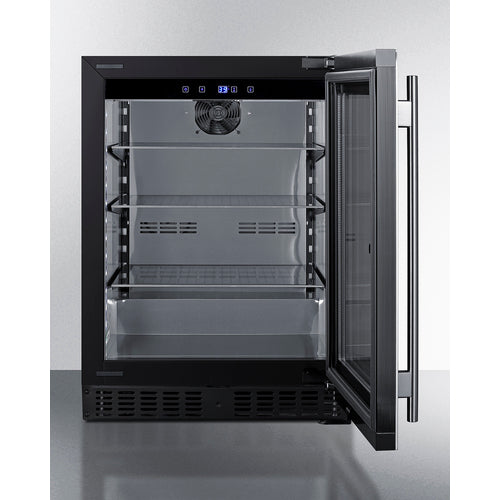

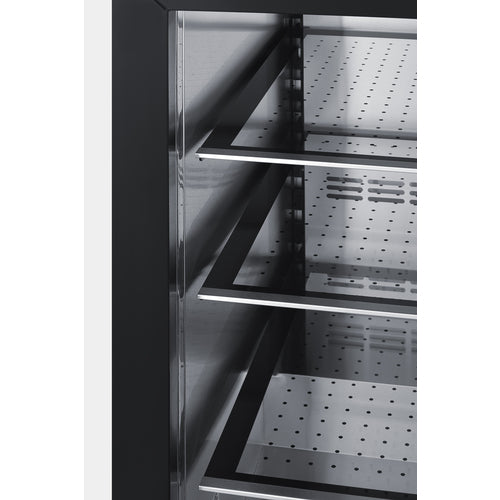

Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm sounds if the unit's interior goes out of the recommended range
Optional setting lets you disable the lighting and alarm for up to 48 hours
Unit will retain its last settings when power is restored in the event of power loss
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space-saving design with no exposed coils that offers easier cleanability

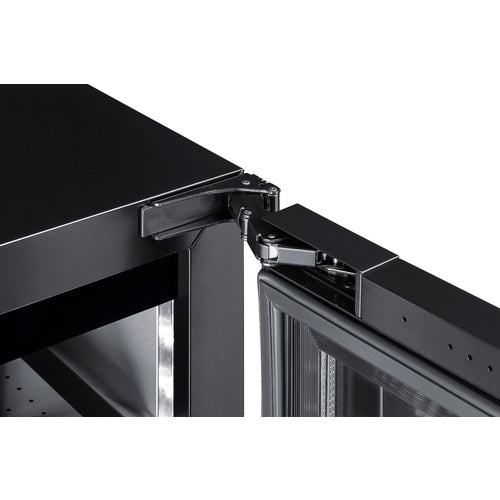

Smoother opening and a better fit with an integrated European hinge
User-reversible door swing for added flexibility
Allows the unit to be used freestanding
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

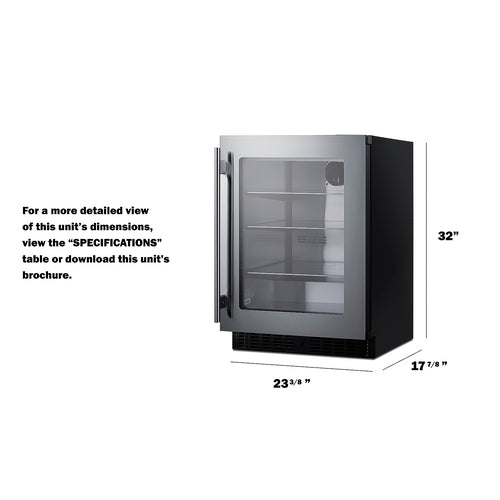

SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.75" (45 cm) |
| Depth with Handle | 19.63" (50 cm) |
| Depth with door at 90° | 39.88" (101 cm) |
| Capacity | 3.25 cu.ft. (92 L) |
| Defrost Type | Frost-Free |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 285.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 120.0 lbs. (54 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101079455 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33.1 dB |
|
Dimensions
|
|
| Interior Height | 24.5" (62 cm) |
| Interior Width | 19.5" (50 cm) |
| Interior Depth | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.5" (50 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Door |
|---|
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint | |
| Exterior | |
|---|---|

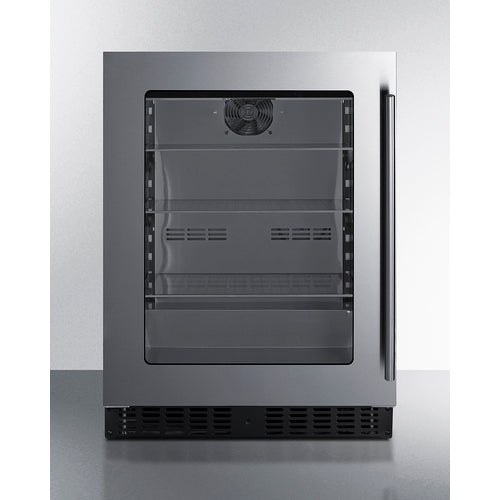

| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS | ASDG2411.pdf |
| TECHNICAL DRAWING (.dwg) | |
| ASSEMBLY DRAWING | |
| REVIT MODEL | QF_Summit_ASDG2411_ADA_Compliant_Beverage_Center.rfa |
| USE & CARE | ASDG_ASDW_SDH_CL_ALFD_Series_Wine_and_Beverage_User_Manual(2).pdf |
| MSDS INFORMATION | R600a_K.pdf |
| Energy Guide | https://www.summitappliance.com/energy_guide/8418.pdf |
