Summit Appliance 24 inch Wide Built-In Beverage Center
Summit Appliance 24 inch Wide Built-In Beverage Center
Couldn't load pickup availability

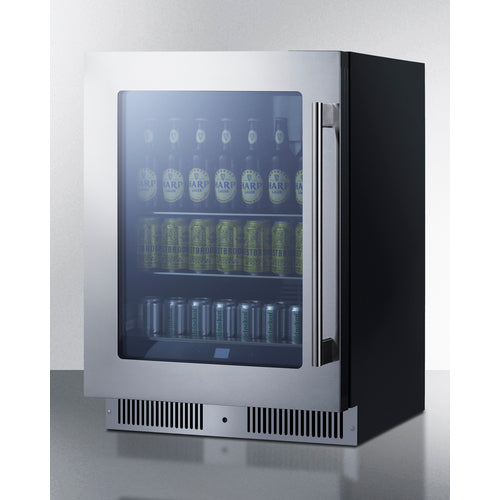

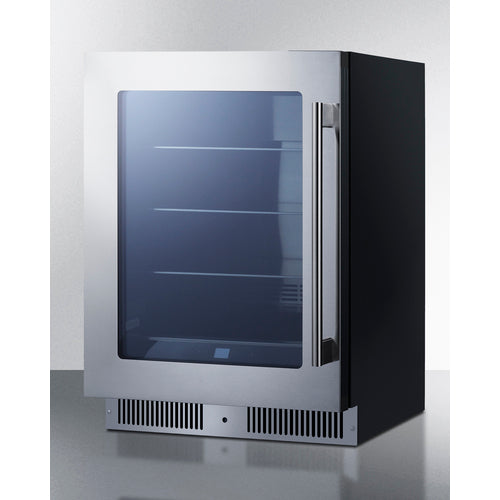

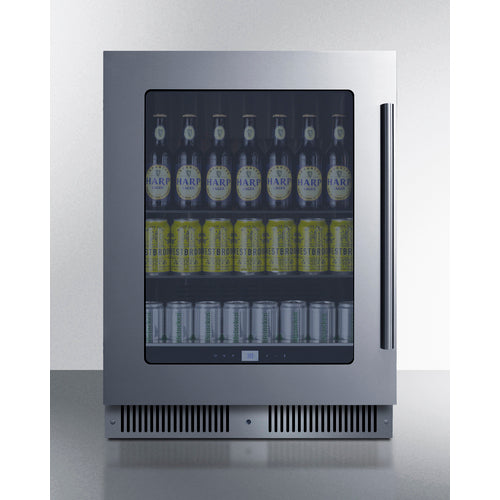

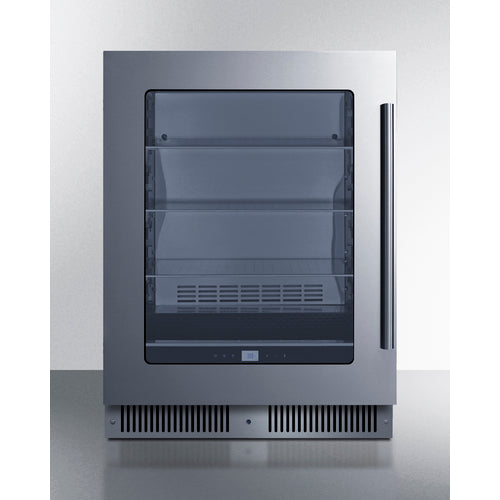

Summit's CL24BV1LHD is a sophisticated 24" wide beverage center offering 4.73 cu. ft. of storage capacity for residential or commercial applications. The front-breathing design enables seamless built-in installation, while the finished black cabinet accommodates freestanding placement.

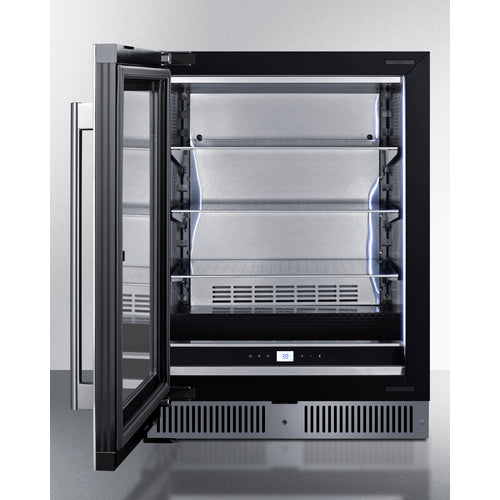

Distinguished by elegant stainless steel trim and a double-pane glass door, this unit features a professional handle, sealed rear, and right-angle cord for optimal positioning. The European-style articulating hinge ensures smooth operation, with a discreet kickplate lock for security. Interior highlights include a stainless steel back wall, fan-forced cooling for temperature consistency, customizable tri-colored LED lighting with dimming capabilities, and three adjustable glass shelves for versatile bottle storage.
The interior features an accessible angled digital thermostat with Celsius/Fahrenheit display options. A specialized dipped flat floor design accommodates upright bottle storage, while sabbath mode supports observance periods. The temperature memory function restores settings after power interruptions, and built-in alarms alert users to ajar doors or temperature fluctuations.
Safety is enhanced with an included anti-tip bracket. The CL24BV1LHD, with its left-hand door swing, delivers sophisticated functionality to any kitchen or bar environment. For alternative configurations, consider the 15" CL156BV1LHD model, or create a coordinated setup with the matching CL244WC2LHD wine cellar. Right-hand door configuration is available in model CL24BV. Discover Summit's complete beverage storage solutions at summitappliance.com.
Premium glass door beverage refrigerator for residential and commercial use
Front-breathing design lets you make the best use of space by installing your appliance under the counter
ETL-S listed to NSF-7 Standards for use in commercial establishments

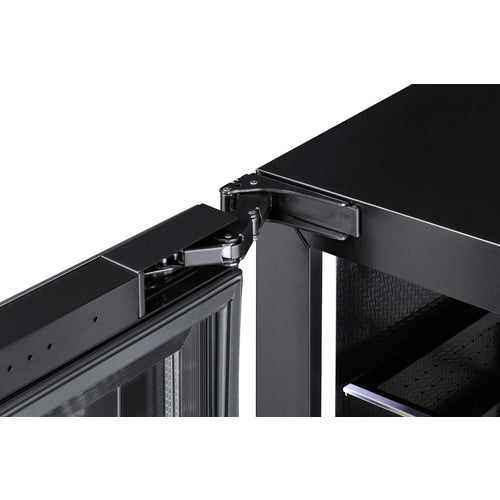

European style hinge design ensures a flush fit and allows for a smoother opening
Allows for seamless integration with other appliances

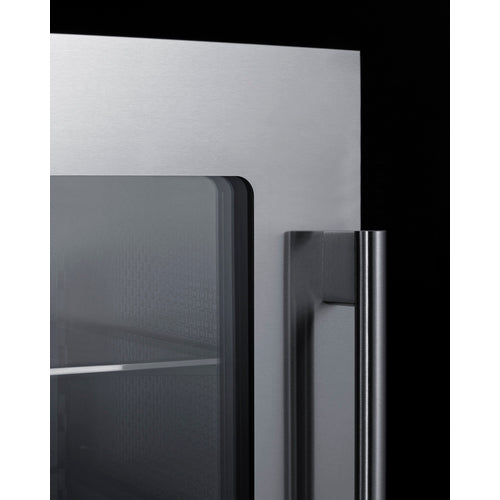

Single-piece stainless steel door trim offers a more deluxe look
Attractive tinted glass door provides a complete but protected display of stored contents

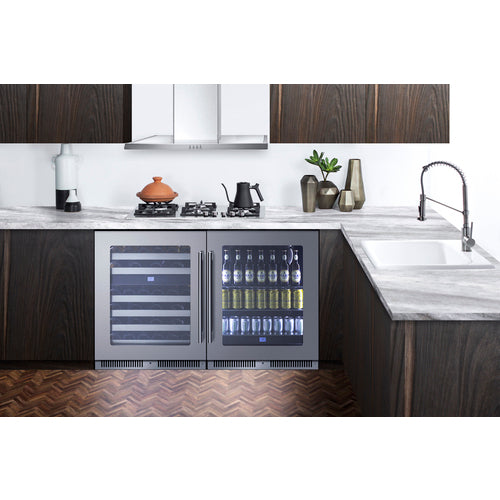

Pair with our 24” wide wine cellar, model CL244WC2, for a matching side-by-side set under standard-height counters. This unit can also be paired with our 15” wine cellar, see model CL155WC1, to fit your unique needs
Stainless steel look for added elegance
4.7 cu. ft. of interior storage space

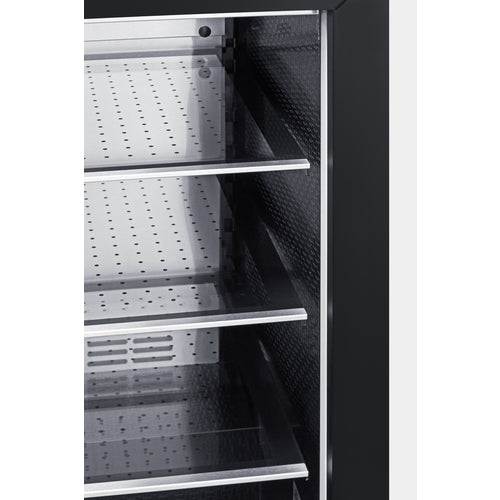

Three easy-to-clean glass shelves for flexible storage
The unit's dipped flat floor design makes it easier to store certain beverages in an upright position
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle
Ensures a more accessible view of the digital controls and thermostat, keeping the temperature in view without the need to bend to read it
Easy-to-use digital controls for precise temperature management
Temperature readout can be shown in Celsius or Fahrenheit

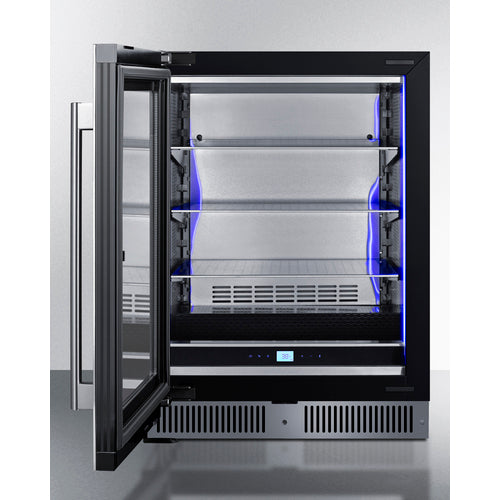

Rotate your presentation style with a choice of blue, white, or amber LED lighting
No-frost operation for minimum user maintenance
Audible alarm will sound if the door is left open longer than one minute
Temperature alarm sounds if the unit's interior goes out of the recommended range
Unit will retain its last settings when power is restored in the event of power loss
Optional setting lets you disable the lighting and alarm for up to 96 hours
Keyed lock located in the kickplate for added security as needed
Space-saving design with no exposed coils that offers easier cleanability
Allows the unit to be used freestanding
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Complete luxury down to the toe kick
Bracket (included) helps prevent tipping for added safety
User-reversible door swing for added flexibility to best accommodate your setting
For this unit with the door opening from the other side, see model CL24BV1
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.75" (86 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 22.88" (58 cm) |
| Depth with Handle | 24.13" (61 cm) |
| Depth with door at 90° | 46.63" (118 cm) |
| Capacity | 4.73 cu.ft. (134 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 280.0kWh/year |
| Amps | 3.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 117.0 lbs. (53 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101156064 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | LHD |
| Reversible | No |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38oz. |
| Interior Light | Yes |
| Temperature Range | 36°F to 43°F |
|
Drawer Dimensions
|
|
| Interior Height 1 | 3.75" (10 cm) |
| Interior Width 1 | 19.25" (49 cm) |
| Interior Depth 1 | 5.0" (13 cm) |
|
Dimensions
|
|
| Interior Height | 26.0" (66 cm) |
| Interior Width | 19.25" (49 cm) |
| Interior Depth | 17.0" (43 cm) |
AVAILABLE UPGRADES
| Door |
| T1 Door Tint | T4 Door Tint |
| T2 Door Tint | T3 Door Tint |
| T1S Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
CL24BV1LHD.pdf |
| TECHNICAL DRAWING (.dwg) | CL24BV1.dwg |
| ASSEMBLY DRAWING | CL24BV1-Assembly.pdf |
| USE & CARE | |
| ENERGY GUIDE |
https://www.summitappliance.com/energy_guide/8724.pdf
|
