Summit Appliance 24 inch Outdoor Wine Kegerator Built-in Or Freestanding ADA
Summit Appliance 24 inch Outdoor Wine Kegerator Built-in Or Freestanding ADA
Couldn't load pickup availability
Summit Commercial's ADA-compliant outdoor wine dispenser combines versatility with premium functionality. At 32 inches high, the SBC54OSBIADAWKDTWIN fits perfectly under lower ADA counters and offers both built-in or freestanding installation options. Constructed with weatherproof 304 grade stainless steel, this European-made unit features a professional towel bar handle, guard rail, and two-piece stainless steel drip tray. The comprehensive package includes a Sankey American dual tap kit, draft tower, 5 lb. nitrogen/CO2 tank with regulator, and all necessary components for serving white wine on tap.

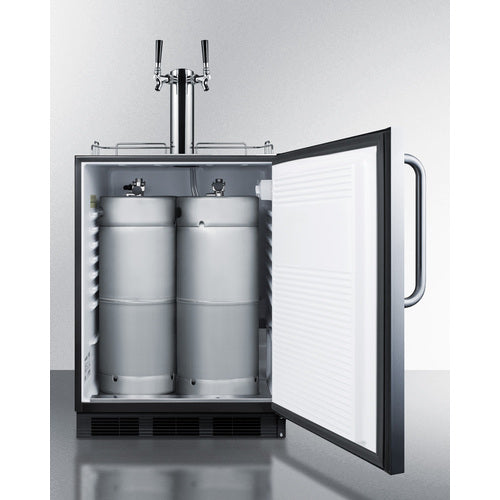

The SBC54OSBIADAWKDTWIN features a thoughtfully designed interior accommodating two 1/6 (sixtel) kegs, though standard half barrels exceed its capacity. Maintenance is streamlined with automatic defrost and a seamless interior, while the stainless steel floor enhances durability during keg loading.
Temperature control is intuitive via a dial thermostat, complemented by an interior light with on/off rocker switch. Space efficiency is maximized with an internal CO2 tank bracket. This ETL-S listed unit meets NSF-7 commercial standards and utilizes eco-friendly R600a hydrocarbon refrigerant. Alternative configurations are available for beer, coffee, or kombucha service—explore additional options online or contact sales at 78-893-3900.
Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
Front-breathing design allows fully recessed installation under counters
Ships with a complete twin tap wine tap kit that includes a dispenser tower, regulator, and all the connection equipment you need to serve from a 1/6 wine keg or disposable wine keg
Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs
Complete stainless steel construction for easy durability in the outdoors
Curved towel bar style handle in brushed stainless steel
Interior dial thermostat ensures easy temperature management
No-frost operation for minimum user maintenance
Removable two-piece drip tray included for added convenience
Durable railing makes it easier to neaten service
Turn the light on when you need it and off when you're done with a convenient rocker switch
Canister is best suited for a 75% nitrogen/25% CO2 mixture
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
Interior includes steel cover to protect the floor when loading kegs
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Cold wall design with hidden evaporator and seamless interior
Allows the unit to be used freestanding
Our integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks
Environmentally friendly design without ozone-damaging chemicals
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.75" (60 cm) |
| Nominal Depth | 25.0" (64 cm) |
| Depth | 24.75" (63 cm) |
| Depth with Handle | 27.25" (69 cm) |
| Depth with door at 90° | 47.0" (119 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.2 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 110.0 lbs. (50 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101069609 |
|
Kegerator
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Tap Kit | Yes |
| Height with Tap | 47.5" (121 cm) |
| Number of Taps | 2 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Fan Type | Exterior |
| Refrigerant | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Inter Height | 26.25" (67 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 17.75" (45 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
| Temperature Range | 34º to 43ºF |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
| LHD - Left hand door swing | DT - Digital thermostat |
| SSK - Stainless steel kickplate | |
| Lock | |
| L-TopLock | L-SideLock |
DOWNLOADS
| BROCHURE w/ DRAWINGS | SBC54OSBIADAWKDTWIN.pdf |
| TECHNICAL DRAWING (.dwg) | SPR7OSSTBCADA_BEER_DISPE.__A-C_2018__.dwg |
| USE & CARE | SBC54OSBIADA_User_Manual.pdf |
| USE & CARE | SBC_Wine_Dispensing_Tap_Kit.pdf |
