Summit Appliance 24 inch Dual Zone Built-In Wine Cellar
Summit Appliance 24 inch Dual Zone Built-In Wine Cellar
Couldn't load pickup availability

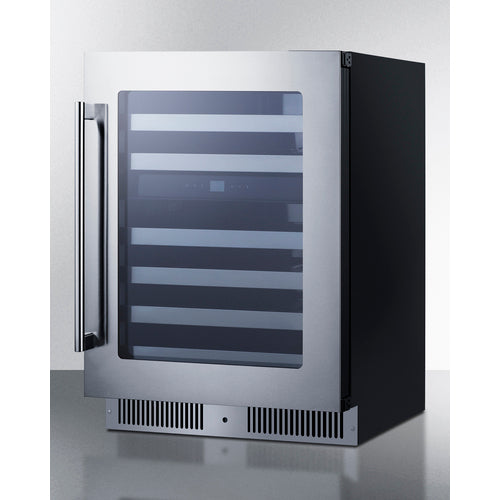

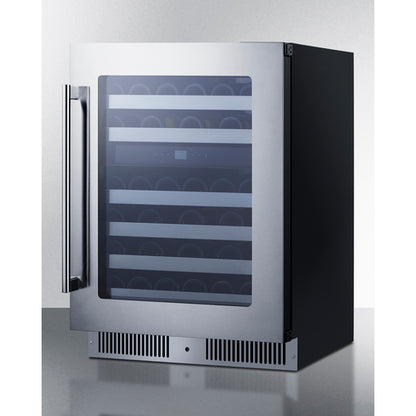

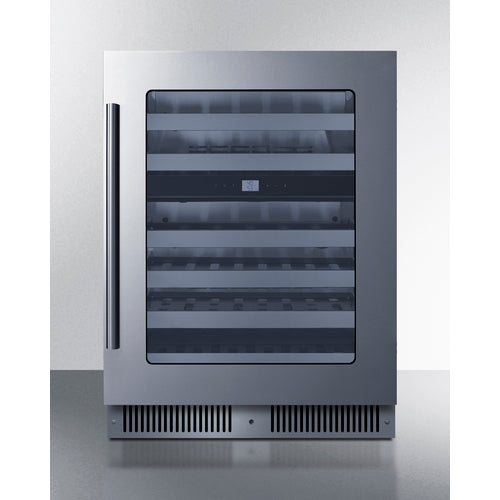

Summit's CL244WC2 is a sophisticated 24" dual zone wine cellar offering versatility for both built-in and freestanding applications. The seamless stainless steel trim and tinted glass door create an elegant aesthetic, complemented by a professional handle and convenient kickplate lock. Interior features include a durable stainless steel rear wall and customizable tri-colored LED lighting with dimming capabilities. The precision digital controls maintain separate temperature zones—41-50°F for whites in the upper chamber and 50-64°F for reds in the lower zone—while fan-forced cooling ensures optimal temperature stability and recovery for proper wine preservation.
The CL244WC2 features six full-extension steel shelves finished in jet black with stainless steel trim, gliding effortlessly on ball-bearing tracks. These flat-design shelves accommodate up to 48 standard 750ml wine bottles, with actual capacity varying by bottle shape. Two specialized operating modes enhance functionality: Silent mode reduces vibration and noise for stable wine preservation, while DynaClima mode optimizes temperature and humidity distribution for cellar-like storage conditions. Advanced features include temperature memory function for power recovery, Sabbath mode for religious observance periods, and intelligent alarm systems that alert users to ajar doors or temperature fluctuations outside optimal ranges.
The CL244WC2 exemplifies sophisticated luxury in a compact footprint, delivering premium wine storage for space-conscious environments. For alternative configurations, consider the CL155WC1 single-zone 15" model. Create a comprehensive beverage management system by pairing with the complementary CL24BV1 24" deluxe beverage center or the more compact CL156BV1 15" beverage center. Summit's complete collection of specialized wine and beverage storage solutions can be explored at summitappliance.com, offering options for every connoisseur's requirements.
Premium dual zone built-in undercounter wine cooler for residential and commercial storage
Front-breathing design lets you make the best use of space by installing your appliance under the counter
ETL-S listed to NSF-7 Standards for use in commercial establishments

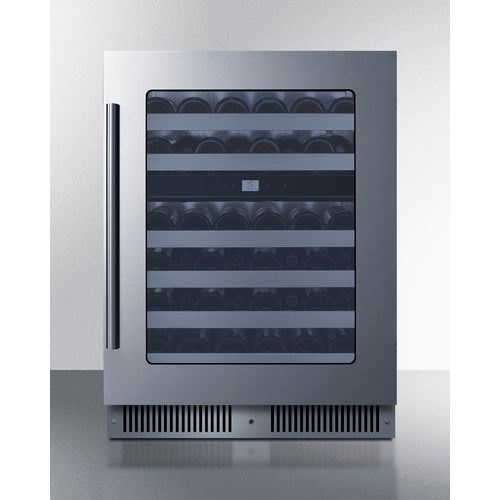

Attractive glass door provides a complete but protected display of stored contents

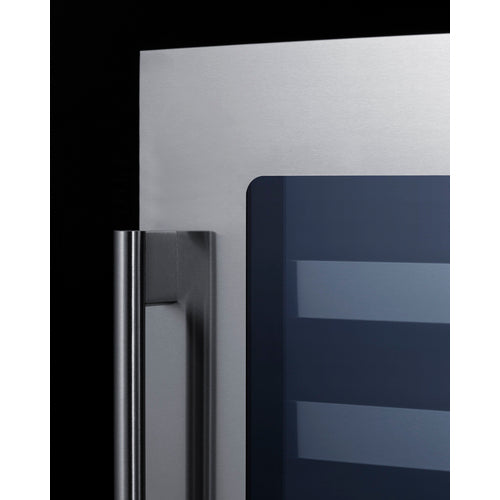

Single-piece stainless steel door trim offers a more deluxe look

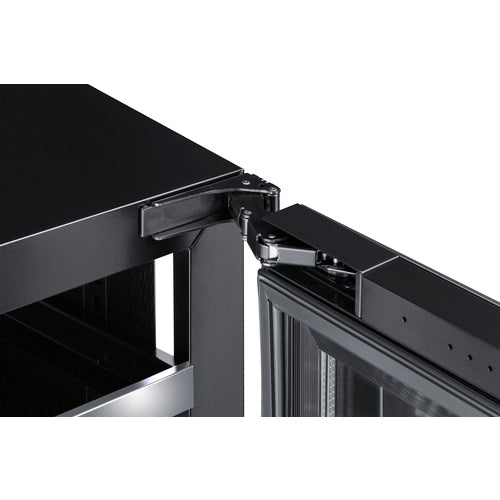

European style hinge design ensures a flush fit and allows for a smoother opening
Stainless steel look for added elegance
Keyed lock located in the kickplate for added security as needed

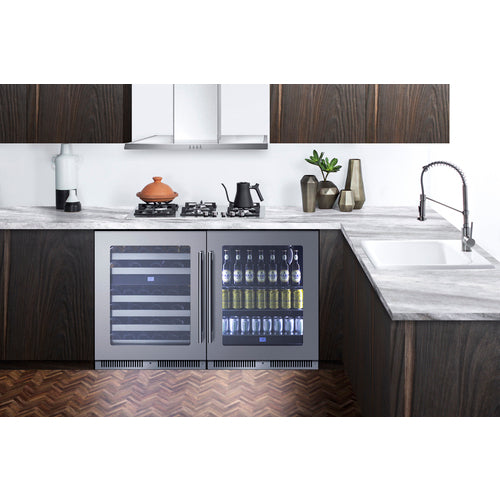

Universal collection design allows you to pair this unit with our 24" wide deluxe beverage center, model CL24BV1, or our 15" wide beverage center, model CL156BV1, depending on your need
Upper zone operates between 41 and 50ºF for chilled white and sparkling wine storage, while the lower zone can be set between 50 and 64ºF to best preserve red wine
Each shelf can hold up to 8 Burgundy or Bordeaux style bottles for an overall 48-bottle capacity to meet your storage needs (NOTE: capacity may vary depending on specific bottle style)

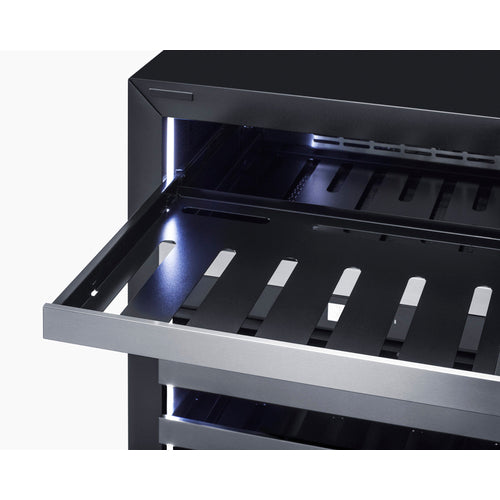

Removable flat steel shelves in a black finish with stainless steel trim for an elegant but modern look

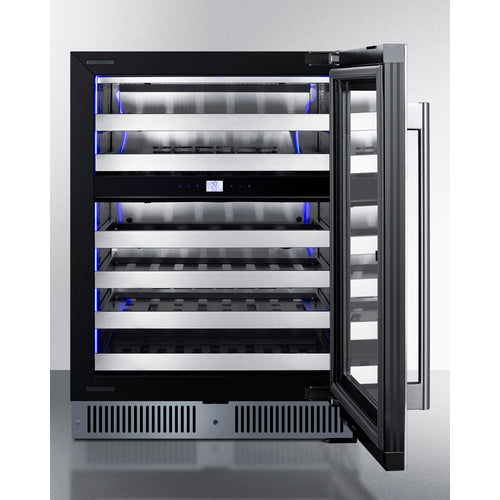

Six shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity
Shelf design makes it easier to store cans and other styles of beverages
Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle
Stainless steel rear wall protects the unit's integrity and is easier to clean

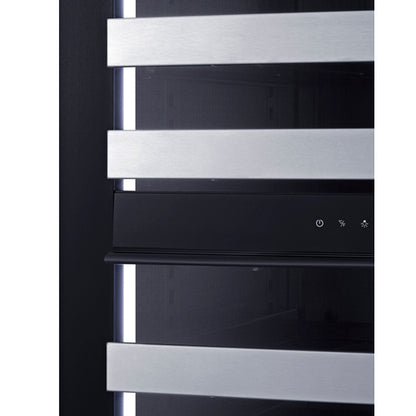

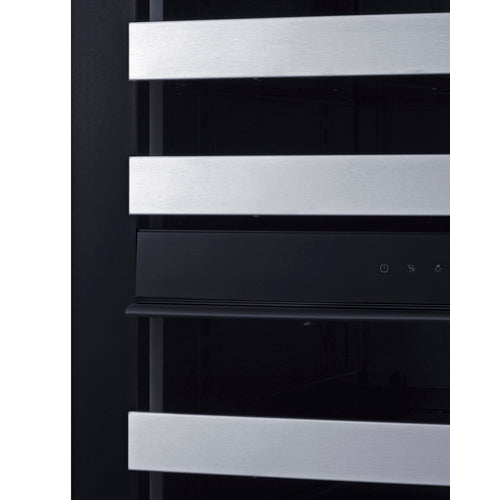

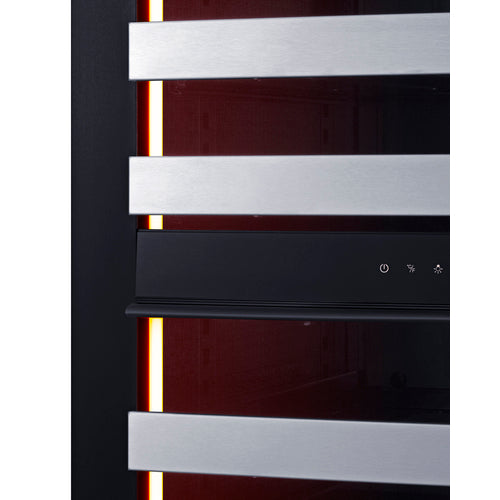

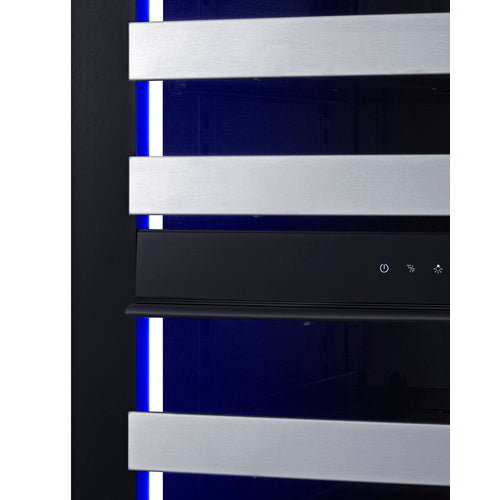

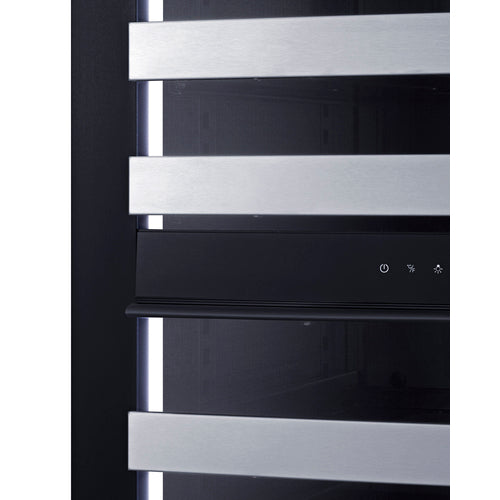

Rotate your presentation style with a choice of blue, white, or amber LED lighting
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
Temperature readout can be shown in Celsius or Fahrenheit
This function provides consistent temperature and humidity distribution, mimicking a natural wine cellar environment
Reduces vibration disturbances by slowing down and pausing the cooling unit's operation
No-frost operation for minimum user maintenance
Complete luxury down to the toe kick
Bracket (included) helps prevent tipping for added safety
User-reversible door swing for added flexibility to best accommodate your setting
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.75" (86 cm) |
| Width | 23.38" (59 cm) |
| Depth | 22.88" (58 cm) |
| Depth with Handle | 24.13" (61 cm) |
| Depth with door at 90° | 45.63" (116 cm) |
| Bottles | 48 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 3.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 117.0 lbs. (53 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101145242 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38 oz. |
| Interior Height 1 | 8.5" (22 cm) |
| Interior Width 1 | 19.25" (49 cm) |
| Interior Depth 1 | 15.0" (38 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.25" (49 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Temperature Range | Upper zone: 41º to 50ºF; Lower zone: 50º to 64ºF |
| Interior Height 2 | 15.5" (39 cm) |
| Interior Width 2 | 19.25" (49 cm) |
| Interior Depth 2 | 15.0" (38 cm) |
| Sabbath Mode | Yes |
AVAILABLE UPGRADES
| Door |
| T1 Door Tint | T4 Door Tint |
| T2 Door Tint | T3 Door Tint |
| T1S Door Tint |
| Exterior | |
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
CL244WC2.pdf |
| TECHNICAL DRAWING (.dwg) | CL244WC2.dwg |
| ASSEMBLY DRAWING | CL244WC2-Assembly.pdf |
| USE & CARE |
ASDG_ASDW_SDH_CL_ALFD_Series_Wine_and_Beverage_User_Manual(2).pdf |
