Summit Appliance 24 inch Built-In Undercounter Front Tap Coffee Kegerator For Commercial Or Home Use
Summit Appliance 24 inch Built-In Undercounter Front Tap Coffee Kegerator For Commercial Or Home Use
Couldn't load pickup availability
Summit's SBC58BFRTPCFLHD kegerator delivers innovative countertop-preserving convenience with its unique front-door twin tap design. This specialized configuration maximizes space efficiency in residential and commercial settings while maintaining easy access to cold brew coffee. The 24-inch unit arrives fully assembled with a door-mounted stainless steel drip tray and commercial-grade dispensing system capable of serving two 1/6 kegs simultaneously.
Complete with nitrogen tank, regulator, and all necessary components, it ensures optimal cold brew service. ETL-S listed to NSF-7 commercial standards while meeting residential requirements, this versatile dispenser features height-adjustable legs (32.5"-34.5") with an optional leg shield. The professional jet black finish with stainless steel accents complements both built-in and freestanding installations.

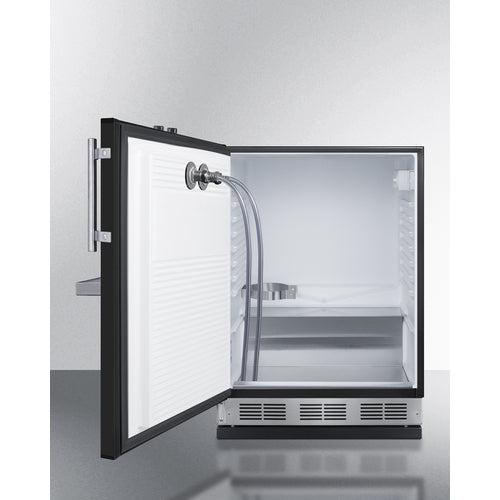

The SBC58BFRTPCFLHD incorporates a pristine white interior liner with a reinforced stainless steel floor, enhancing durability during keg handling operations. Visibility is optimized through an interior illumination system controlled by a conveniently positioned rocker switch behind the dial thermostat.
Engineered with traditional mechanical controls, this unit delivers reliable performance without vulnerable electronic components. Maintenance requirements are minimized through an integrated automatic defrost system, while Summit's proprietary cold wall technology ensures superior cooling efficiency. This dual-tap configuration is part of Summit's comprehensive product range, which includes beer dispensers and the innovative floating tap SBC7BRSFLTWADA model.
The manufacturer also offers ADA-compliant height variants and outdoor-rated alternatives to accommodate diverse installation scenarios. Explore Summit's complete collection or consult with product specialists to determine the optimal solution for your specific requirements.
FEATURES
Kegerator includes front taps accessed via the door and includes all of the equipment needed to serve cold brew coffee from two sixtel kegs
Unique design requires no alterations to your countertop, freeing up valuable countertop space

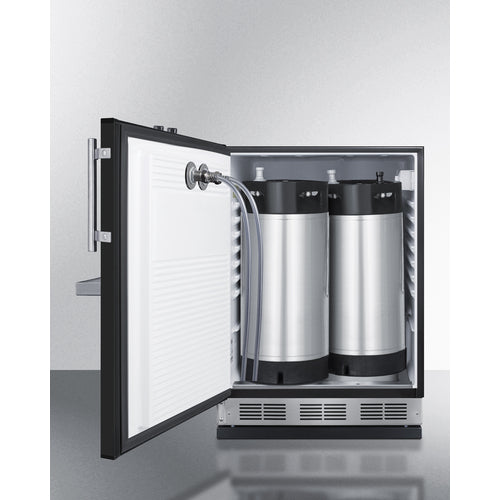

Twin draft tower allows you to serve cold brew coffee from two 1/6 (sixtel) sized kegs

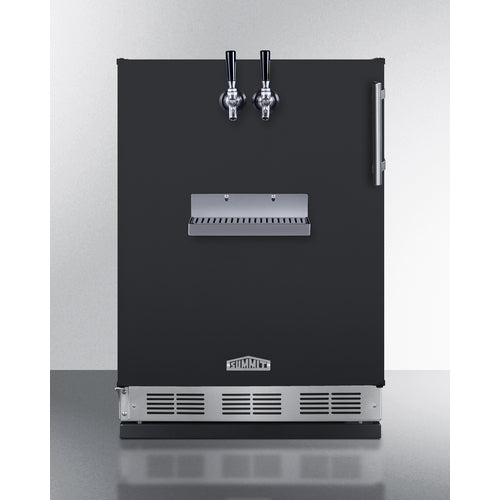

Taps are located on the front of the door, requiring no added reach
ETL-S listed to ANSI-NSF Standard 7 for commercial use
Approved for both residential and commercial settings
Includes a 5 lb. nitrogen tank and regulator, dual tap draft arm, Sankey American tap, and the needed connection hardware.
Full-sized cannister ships with tapping equipment (ships empty)
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
No-frost operation for minimum user maintenance
Simple and intuitive analog controls located inside for easy temperature management
Interior includes steel cover to protect the floor when loading kegs
Cold wall design with hidden evaporator creates a seamless, easy to clean interior
Adjust the unit’s height between 33.5" and 34.5" to best fit under your counter. Includes a removable leg cover that lets you fill the gap that can appear between the kickplate and the floor
Removable cover that lets you fill the gap that can appear between the refrigerator's kickplate and floor when raising the height

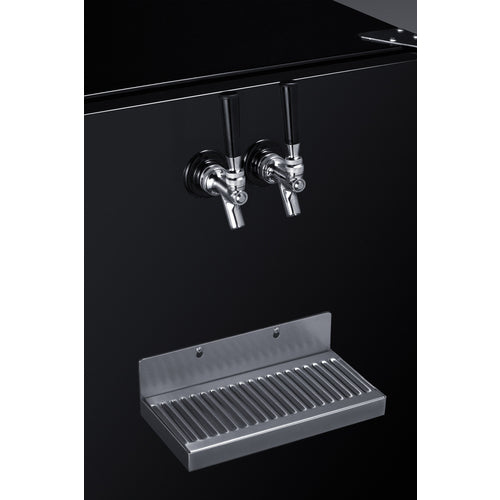

Front-mounted two-piece drip tray included for added convenience that can be easily removed for better cleanability
Vertically-mounted handle bar in stainless steel
For this unit with a standard right hand door swing, see model SBC58BFRTPCF
Attractive finish to match the taps and handle
Allows the dispenser to be used freestanding
Refrigeration unit constructed in Europe then designed and modified in the USA
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.5" (85 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 28.0" (71 cm) |
| Depth | 27.38" (70 cm) |
| Depth with door at 90° | 51.88" (132 cm) |
| Capacity | 5.3 cu.ft. (150 L) |
| Defrost Type | Automatic |
| Door | Black |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 293.0kWh/year |
| Amps | 0.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101145495 |
|
Kegerator
|
|
| Door Swing | LHD |
| Height Adjustable | Yes |
| Tap Kit | Yes |
| Number of Taps | 2 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Refrigerant | R600a |
| Refrigerant Amount | 0.64 oz. |
| Inter Height | 27.75" (70 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Level Legs Qty | 4 |
| Temperature Range | 36 to 46°F |
AVAILABLE UPGRADES
| Exterior | |
| RHD - Right hand door swing | Latch - Factory-installed door latch requires manual release to open unit |
| CAS3 3" casters |
| Lock | |
| L-SideLock | L-TopLock |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
SBC58BFRTPCFLHD.pdf |
| TECHNICAL DRAWING (.dwg) | SBC58BFRTP.dwg |
| USE & CARE | SBC58BFRTP-Assembly.pdf |
| USE & CARE | |
| ENERGY GUIDE |
https://www.summitappliance.com/energy_guide/8489.pdf
|
