Summit Appliance 24 inch Built-In Undercounter Front Tap Coffee Kegerator For Commercial Or Home Use
Summit Appliance 24 inch Built-In Undercounter Front Tap Coffee Kegerator For Commercial Or Home Use
Couldn't load pickup availability

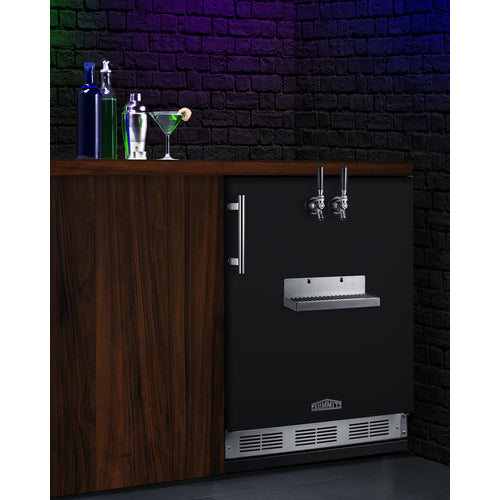

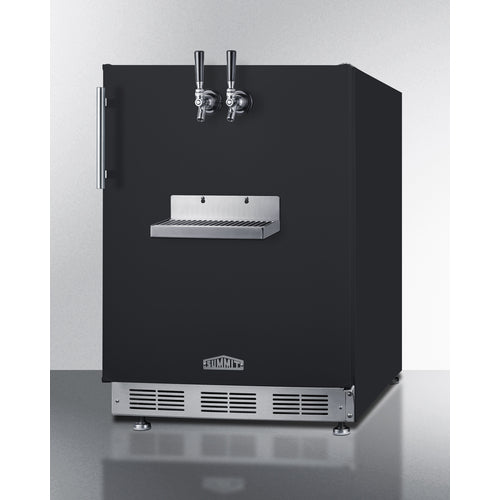

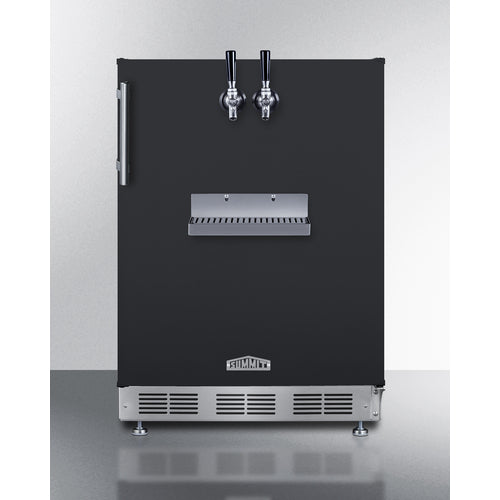

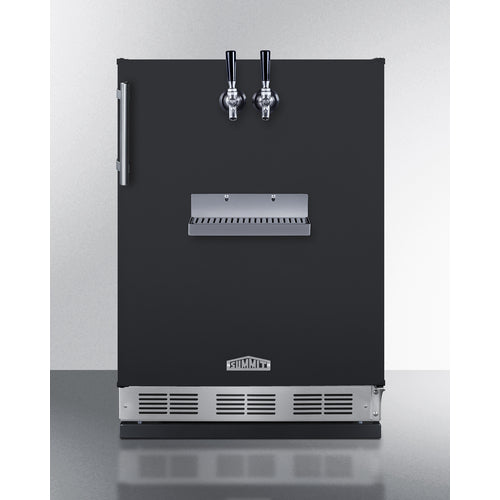

Summit's built-in kegerators deliver cold brew coffee on tap without countertop modifications. The SBC58BFRTPCF features front-door twin taps, maximizing counter space in kitchens, coffee shops, and cafes.
This 24" unit accommodates two 1/6 kegs and includes a complete nitrogen system with tank and regulator. ETL-S listed to NSF-7 commercial standards, it's equally suitable for residential use with adjustable height from 32.5" to 34.5". Available in black with stainless accents for built-in or freestanding installation.
The SBC58BFRTPCF boasts a white interior with a stainless steel floor for enhanced keg loading protection. Interior illumination is easily controlled via a rocker switch positioned behind the dial thermostat. Its mechanical control system delivers reliable performance without complex electronic components, while automatic defrost minimizes maintenance requirements.
The efficient cold wall cooling design ensures consistent temperature regulation. Summit's comprehensive lineup includes additional models for wine and coffee dispensing, featuring innovations like the floating tap design in model SBC7BRSFLTWADA. The collection extends to ADA-compliant and outdoor-rated units, with product specialists available to guide your selection process.

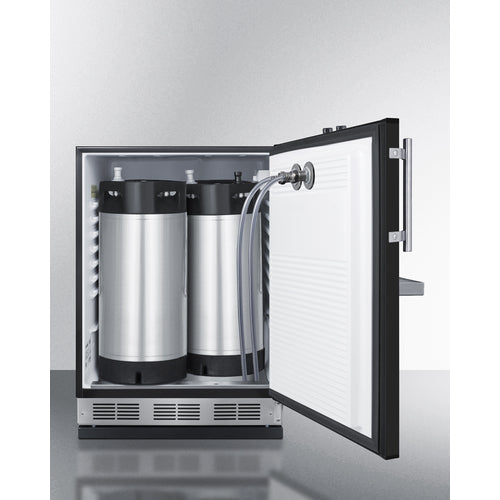

Kegerator includes front taps accessed via the door and includes all of the equipment needed to serve cold brew coffee from two sixtel kegs
Unique design requires no alterations to your countertop, freeing up valuable countertop space
Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs

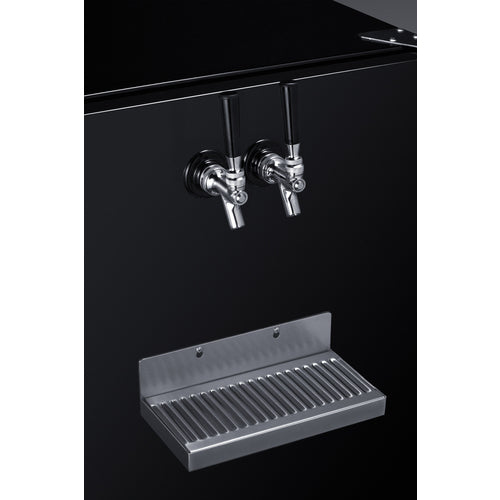

Taps are located on the front of the door, requiring no added reach
ETL-S listed to ANSI-NSF Standard 7 for commercial use
Approved for both residential and commercial settings
Includes a 5 lb. nitrogen tank and regulator, dual tap draft arm, Sankey American tap, and the needed connection hardware.
Full-sized cannister ships with tapping equipment (ships empty)

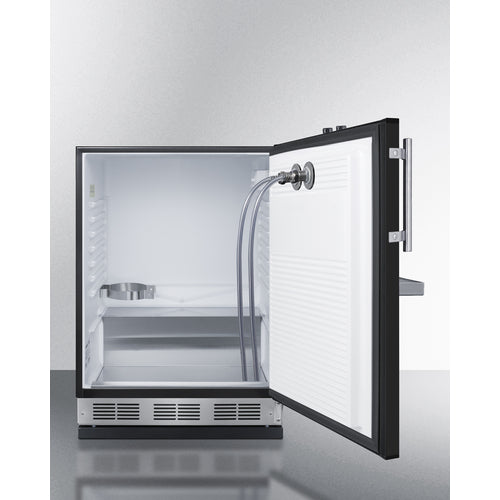

Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
No-frost operation for minimum user maintenance
Simple and intuitive analog controls located inside for easy temperature management
Interior includes steel cover to protect the floor when loading kegs
Cold wall design with hidden evaporator creates a seamless, easy to clean interior
Adjust the unit’s height between 33.5" and 34.5" to best fit under your counter. Includes a removable leg cover that lets you fill the gap that can appear between the kickplate and the floor
Removable cover that lets you fill the gap that can appear between the refrigerator's kickplate and floor when raising the height
Front-mounted two-piece drip tray included for added convenience that can be easily removed for better cleanability
Vertically-mounted handle bar in stainless steel
Attractive finish to match the taps and handle
Allows the dispenser to be used freestanding
Refrigeration unit constructed in Europe then designed and modified in the USA
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.5" (85 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 28.0" (71 cm) |
| Depth | 27.38" (70 cm) |
| Depth with door at 90° | 51.88" (132 cm) |
| Capacity | 5.3 cu.ft. (150 L) |
| Defrost Type | Automatic |
| Door | Black |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 293.0kWh/year |
| Amps | 0.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101145471 |
|
Kegerator
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Height Adjustable | Yes |
| Tap Kit | Yes |
| Number of Taps | 2 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Refrigerant | R600a |
| Refrigerant Amount | 0.64 oz. |
| Inter Height | 27.75" (70 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Level Legs Qty | 4 |
| Temperature Range | 36 to 46°F |
AVAILABLE UPGRADES
| Exterior | |
| RHD - Right hand door swing | Latch - Factory-installed door latch requires manual release to open unit |
| CAS3 3" casters |
| Lock | |
| L-SideLock | L-TopLock |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
SBC58BFRTPCF.pdf |
| TECHNICAL DRAWING (.dwg) | SBC58BFRTP.dwg |
| USE & CARE | SBC58BFRTP-Assembly.pdf |
| USE & CARE | |
| ENERGY GUIDE |
https://www.summitappliance.com/energy_guide/8487.pdf
|
