Summit Appliance 24 inch Built-In Undercounter ADA Height Front Tap Kegerator For Commercial Or Home Use
Summit Appliance 24 inch Built-In Undercounter ADA Height Front Tap Kegerator For Commercial Or Home Use
Couldn't load pickup availability
Summit's ADA compliant kegerator delivers innovative convenience with front-access twin taps that eliminate countertop modifications while preserving valuable space. The SBC58BFRTPADA accommodates two 1/6 kegs and includes a complete dispensing system with CO2 tank, regulator, and stainless steel drip tray. At 24" wide and 32" high, this ETL-S listed, NSF-7 certified unit installs seamlessly under ADA counters in both commercial and residential settings. Its jet black finish with stainless steel accents ensures a professional appearance while maintaining accessibility and performance.
The SBC58BFRTPADA boasts a durable white interior liner complemented by a stainless steel floor, offering enhanced protection during keg loading operations. Visibility is optimized through an interior light controlled by a convenient rocker switch positioned behind the dial thermostat.
The unit employs reliable mechanical controls that ensure straightforward operation without complex electronic components. Maintenance requirements are minimized thanks to an automatic defrost system, while the efficient cold wall cooling design delivers consistent temperature performance.
Summit's comprehensive product line extends beyond this dual tap kegerator to include cold brew coffee dispensers and the innovative floating tap SBC7BRSFLTWADA model, with additional standard height and outdoor variants available through our product specialists.

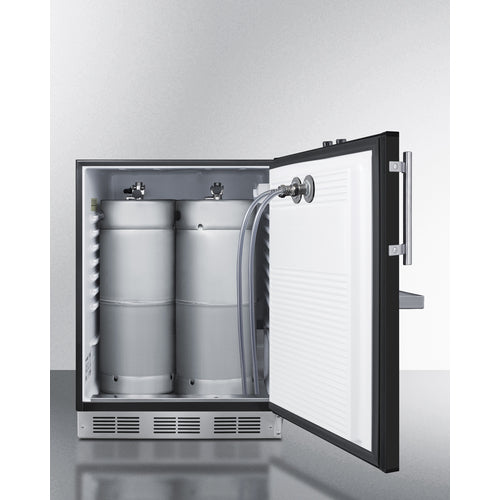

Kegerator includes front taps accessed via the door and includes all of the equipment needed to serve beer from two sixtel kegs
Unique design requires no alterations to your countertop, freeing up valuable countertop space
Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs
Taps are located on the front of the door, requiring no added reach
Sized at 32 inches high for installation under lower ADA-compliant counters
ETL-S listed to ANSI-NSF Standard 7 for commercial use
Approved for both residential and commercial settings
Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, and the needed connection hardware.
Full-sized cannister ships with tapping equipment (ships empty)

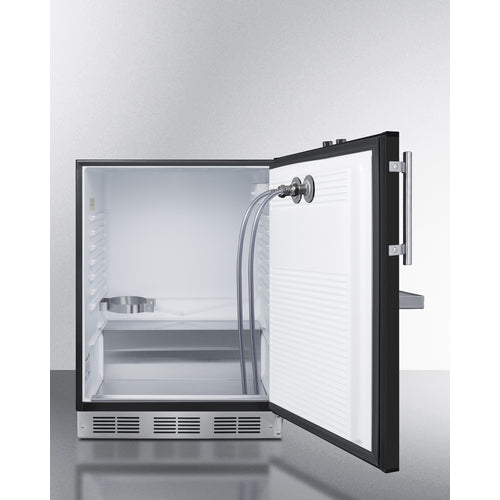

Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
No-frost operation for minimum user maintenance
Simple and intuitive analog controls located inside for easy temperature management
Interior includes steel cover to protect the floor when loading kegs
Cold wall design with hidden evaporator creates a seamless, easy to clean interior

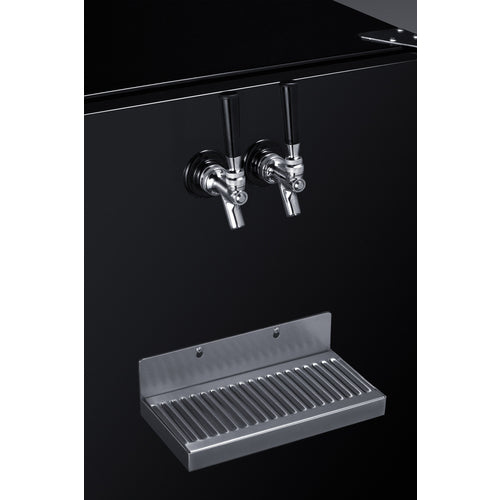

Front-mounted two-piece drip tray included for added convenience that can be easily removed for better cleanability
Vertically-mounted handle bar in stainless steel
Attractive finish to match the taps and handle
Allows the dispenser to be used freestanding
Refrigeration unit constructed in Europe then designed and modified in the USA
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.88" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 28.0" (71 cm) |
| Depth | 27.38" (70 cm) |
| Depth with door at 90° | 51.88" (132 cm) |
| Capacity | 5.3 cu.ft. (150 L) |
| Defrost Type | Automatic |
| Door | Black |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 293.0kWh/year |
| Amps | 0.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101145402 |
|
Kegerator
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Tap Kit | Yes |
| Number of Taps | 2 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Refrigerant | R600a |
| Refrigerant Amount | 0.64 oz. |
| Inter Height | 27.75" (70 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Level Legs Qty | 4 |
| Temperature Range | 36 to 46°F |
AVAILABLE UPGRADES
| Exterior | |
| RHD - Right hand door swing | Latch - Factory-installed door latch requires manual release to open unit |
| CAS3 3" casters |
| Lock | |
| L-SideLock | L-TopLock |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
SBC58BFRTPADA.pdf |
| TECHNICAL DRAWING (.dwg) | SBC58BFRTPADA.dwg |
| USE & CARE | SBC58BFRTP-Assembly__1_.pdf |
| USE & CARE | Front_Dispensing_Tap_Kegerators_7.22.24.pdf |
