Summit Appliance 24 inch Built-In Kegerator For Use Under ADA Compliant Counters In Stainless Steel; No Tap Kit Included
Summit Appliance 24 inch Built-In Kegerator For Use Under ADA Compliant Counters In Stainless Steel; No Tap Kit Included
Couldn't load pickup availability
Summit Commercial's ADA-compliant beer dispenser stands 32 inches high, fitting perfectly under lower counters. This European-made kegerator features a front-breathing design for built-in installation, while its stainless steel exterior allows freestanding placement.
The double pane tempered glass door showcases contents, complemented by a top-positioned lock and brushed stainless steel handle. Includes an uninstalled guard rail and removable two-piece stainless steel drip tray. The SBC56GBINKCSSADA comes without tapping equipment, offering customization flexibility for draft system enthusiasts.

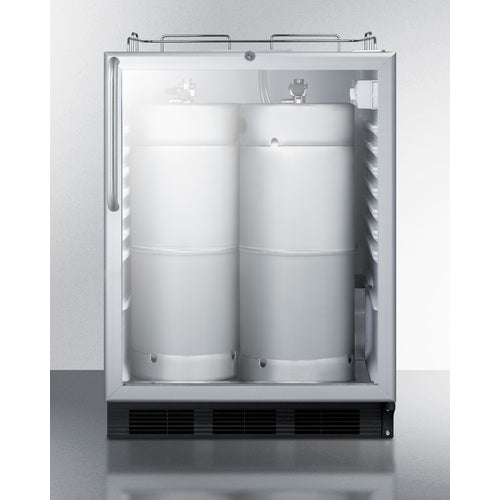

The SBC56GBINKCSSADA accommodates two 1/6 (sixtel) kegs, though it cannot fit a standard half barrel. Featuring automatic defrost for minimal maintenance and a seamless interior for effortless cleaning, this unit boasts a durable stainless steel floor ideal for keg loading.
Temperature control is simplified with an intuitive dial thermostat, while an interior light with on/off rocker switch enhances visibility. The interior CO2 tank bracket optimizes space by reducing exterior depth requirements. ETL-S listed to NSF-7 commercial standards, this model is part of a comprehensive line of ADA compliant kegerators, available with various door options including panel-ready and glass configurations.
Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
Front-breathing design allows fully recessed installation under counters
Install your own tapping equipment to create a customized beer cooler
Interior can store up to two sixtel kegs
Heat resistant design provides clear view to promote impulse buys
Exterior features a wrapped stainless steel finish for lasting durability in busy commercial settings
Curved towel bar style handle in brushed stainless steel
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Interior dial thermostat ensures easy temperature management
No-frost operation for minimum user maintenance
Removable two-piece drip tray included for added convenience
Durable railing makes it easier to neaten service
Turn the light on when you need it and off when you're done with a convenient rocker switch

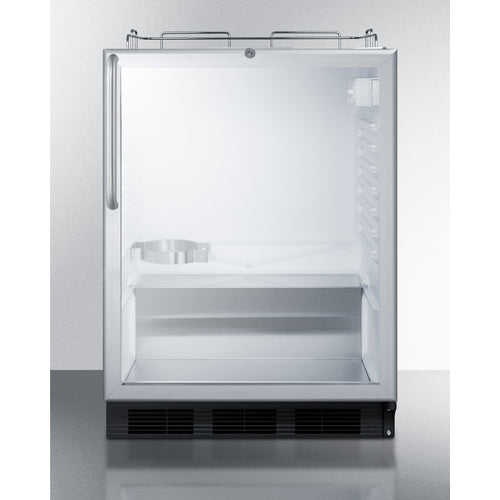

Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
Interior includes steel cover to protect the floor when loading kegs
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Cold wall design with hidden evaporator and seamless interior
Unit ships with a right hand door swing. For a left hand version, add option LHD upon order
Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 23.0" (58 cm) |
| Depth with Handle | 25.5" (65 cm) |
| Depth with door at 90° | 44.5" (113 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 110.0 lbs. (50 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101062860 |
|
Kegerator
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Fan Type | Exterior |
| Refrigerant | R600a |
| Refrigerant Amount | 0.67 oz. |
| High Side PSI | 124.0 |
| Low Side PSI | 30.0 |
| Inter Height | 26.0" (66 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 7.0" (18 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
| Temperature Range | 34º to 43ºF |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
| LHD - Left hand door swing | DT - Digital thermostat |
| SSK - Stainless steel kickplate | |
| Door | |
| T1 Door Tint | T1SF Door Tint |
| T2 Door Tint | T4 Door Tint |
| T1S Door Tint | |
| Handle | |
| TBC Copper Towel Bar Handle Upgrade |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
SBC56GBINKCSSADA.pdf |
| TECHNICAL DRAWING (.dwg) | SBC56GBBICSSADA_BEER_DISP.__A-C-2010_.dwg |
| USE & CARE | SBC58_SBC56_SBC7RS_Kegerators_Manual_12-23.pdf |
