Summit Appliance
Summit Appliance 24 inch Built-In Glass Door Kegerator For Use Under ADA Compliant Counters; No Tap Kit Included
Summit Appliance 24 inch Built-In Glass Door Kegerator For Use Under ADA Compliant Counters; No Tap Kit Included
Couldn't load pickup availability

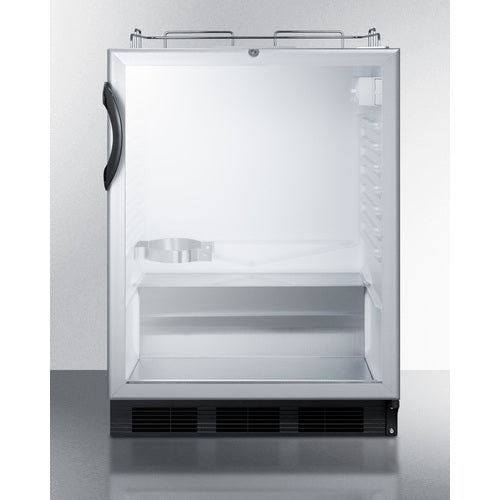

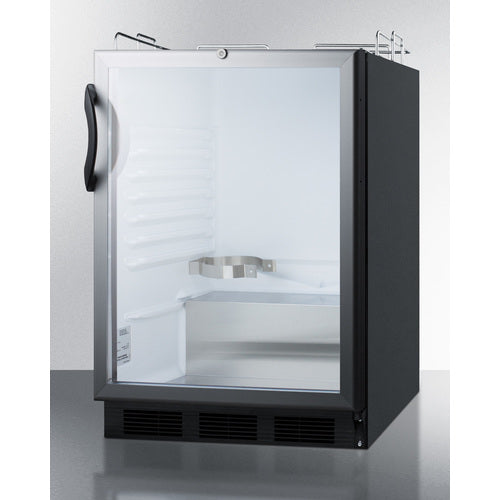

Summit Commercial introduces a specialized 24-inch built-in kegerator designed specifically for ADA compliant environments. At 32 inches high, the SBC56GBINKADA fits perfectly under lower counters while maintaining accessibility. Its versatile front-breathing design accommodates both built-in and freestanding installation with a finished black cabinet.
Features include a reversible double pane glass door for optimal display, a strategically positioned top lock for security, and included guard rail and removable stainless steel drip tray for professional service. This European-made unit comes without tapping equipment, allowing for complete customization of your draft system.
The SBC56GBINKADA features a thoughtfully designed interior capable of accommodating two 1/6 (sixtel) kegs. Maintenance is streamlined with automatic defrost functionality and a seamless interior construction that facilitates thorough cleaning. The stainless steel floor provides exceptional durability during keg loading operations.
Temperature control is intuitive via a dial thermostat, while an interior light with on/off rocker switch enhances visibility. Space efficiency is maximized with an internal CO2 tank bracket, eliminating the need for external tank storage. This model meets rigorous commercial standards with ETL-S listing to NSF-7 specifications. Summit offers additional ADA compliant kegerator options with various door configurations to suit diverse installation requirements.
Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
Front-breathing design allows fully recessed installation under counters
Install your own tapping equipment to create a customized beer cooler

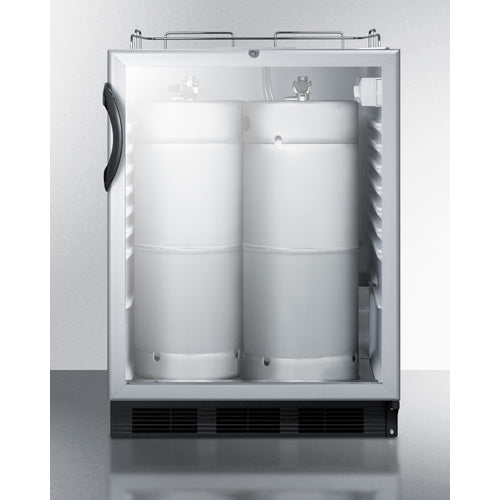

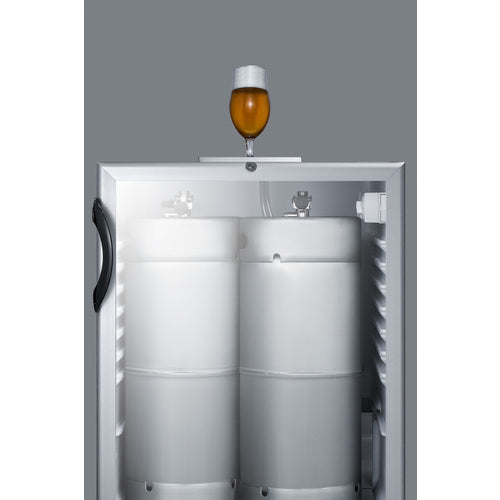

Interior can store up to two sixtel kegs
Heat resistant design provides clear view to promote impulse buys
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Interior dial thermostat ensures easy temperature management
No-frost operation for minimum user maintenance
User-reversible door swing allows you to easily adjust to better accommodate your setting
Removable two-piece drip tray included for added convenience
Durable railing makes it easier to neaten service
Turn the light on when you need it and off when you're done with a convenient rocker switch
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
Interior includes steel cover to protect the floor when loading kegs
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Cold wall design with hidden evaporator and seamless interior
Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 24.88" (63 cm) |
| Depth with door at 90° | 44.5" (113 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 110.0 lbs. (50 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101062853 |
|
Kegerator
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Fan Type | Exterior |
| Refrigerant | R600a |
| Refrigerant Amount | 0.67 oz. |
| High Side PSI | 124.0 |
| Low Side PSI | 30.0 |
| Inter Height | 26.0" (66 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 7.0" (18 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
| Temperature Range | 34º to 43ºF |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
| LHD - Left hand door swing | DT - Digital thermostat |
| SSK - Stainless steel kickplate | |
| Door | |
| T1 Door Tint | T1SF Door Tint |
| T2 Door Tint | T4 Door Tint |
| T1S Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
SBC56GBINKADA.pdf |
| TECHNICAL DRAWING (.dwg) | SBC56GBIADA_BEER_DISP.__A-C_2010_.dwg |
| USE & CARE | SBC58BL_SBC56G_ADA_Kegerators_User_Manual.pdf |
