Summit Appliance 23 inch Dual Zone Built-In Wine Cellar With Panel-Ready Glass Door, Full Extension Shelves, Digital Thermostat, And Black Cabinet
Summit Appliance 23 inch Dual Zone Built-In Wine Cellar With Panel-Ready Glass Door, Full Extension Shelves, Digital Thermostat, And Black Cabinet
Couldn't load pickup availability
Summit's dual zone SWC532BLBISTPNRLHD wine cellar combines versatility with sophisticated design for 24" spaces. The front-breathing system allows seamless built-in installation, while the black cabinet supports freestanding placement.
Its panel-ready door with European hinges accommodates custom trim for cabinetry integration. Complete with full extension shelves, digital thermostat, factory-installed lock, and stainless steel kickplate, this commercially approved unit delivers both security and elegance for discerning wine collectors.
The SWC532BLBISTPNRLHD accommodates 46 standard Bordeaux bottles or a combination of 30 Bordeaux and 16 wider Burgundy bottles. Its sophisticated dual-zone technology maintains optimal temperatures—41-50°F in the upper chamber for whites and 50-64°F in the lower zone for reds. Six full-extension black wire shelves with stainless steel trim glide effortlessly on ball-bearing tracks, while recessed blue LED lighting enhances presentation in both compartments.
ETL-S listed to NSF-7 commercial standards, this ADA compliant unit exemplifies modern wine storage sophistication. Summit offers additional panel-ready models in various dimensions, including shallow-depth options, to suit any space requirements.
FEATURES
Undercounter wine cellar with a panel-ready glass door in a 24" footprint with evenly split temperature zones
Front-breathing design allows this unit to be installed under counters
Innovative bracket kit allows easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 29 1/4" H x 23 1/8" W with a 22 3/8" H x 17 3/4" W viewable area
Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving and offers a more versatile fit for a variety of bottles
Shelves move smoothly on ball-bearing glides for easier loading and unloading
Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F
Easy temperature management with electronic controls located inside
Temperature viewable in Celsius or Fahrenheit
Reduced maintenance with auto defrost system
Provides a full display of the interior, with two levels of glass for added protection
Recessed LED lighting in both compartments brings striking blue illumination to your collection
Keyed lock for secure interior, with two keys included

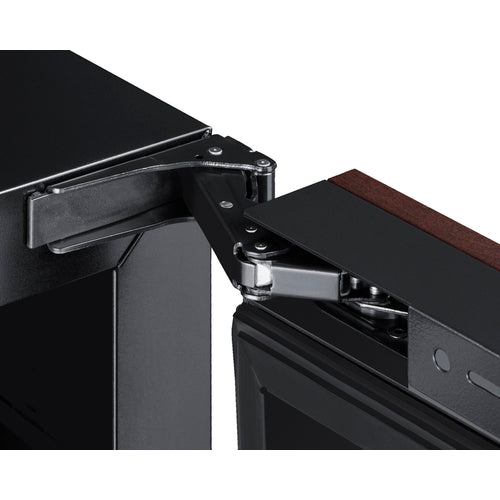

Smoother opening and a better fit with an integrated European style door hinge
Allows the unit to be used freestanding
ETL-S listed to NSF-7 Standards for use in commercial establishments
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|

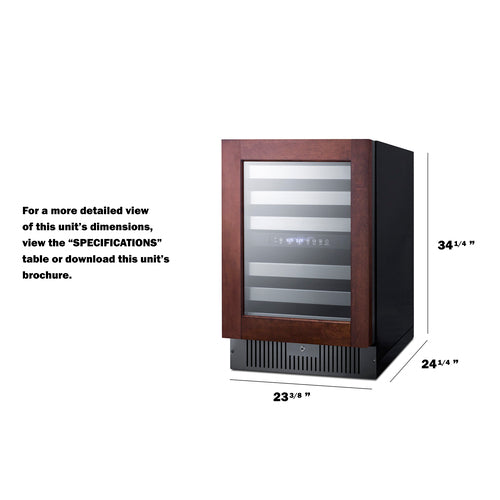

| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 34.25" (87 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with door at 90° | 47.38" (120 cm) |
| Bottles | 46 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 113.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101101552 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | LHD |
| Shelf Type | Wire |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 11.63" (30 cm) |
| Interior Width 1 | 20.5" (52 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Level Legs | 2 |
| Temperature Range | 41 to 64ºF |
| Interior Height 2 | 11.88" (30 cm) |
| Interior Width 2 | 20.5" (52 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
AVAILABLE UPGRADES
| Door | |
| T4 Door Tint | T3 Door Tint |
| T2 Door Tint | T1S Door Tint |
| T1 Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS | SWC1224B.pdf |
| REVIT MODEL | QF_Summit_SWC1224B_12_Wide_Built_In_Undercounter.rfa |
| USE & CARE | SWC1224B_User_Manual-180611.pdf |
| SUPPORT | SWC1224_Shelving_Guide.pdf |
