This wine cellar features five wooden shelves that can store up to 23 bottles of your favorite wine. The shelves have been specifically designed to accommodate standard Bordeaux style or wider Burgundy style bottles. The built-in LED lighting provides a sleek and energy-efficient display for your collection.
This model utilizes automatic defrost for easy maintenance and has an internal fan for more even temperature distribution. An audible alarm will sound if the door is left open for more than one minute or if the temperature goes outside the recommended storage range. The unit also has a Sabbath mode option for disabling certain electrical functions during periods of religious observance.

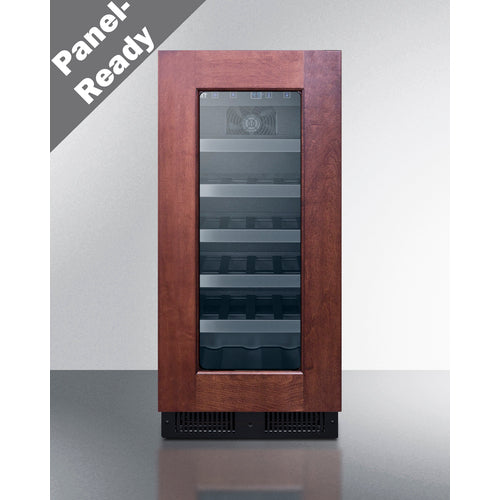

The Summit Appliance 23 Bottle 15" Wide Built-In Wine Cellar, ADA Compliant (Panel Not Included), is an ideal solution for meeting ADA standards while providing reliable and convenient wine storage. Other ADA-compliant options are also available in various widths ranging from 6" to 36".
FEATURES

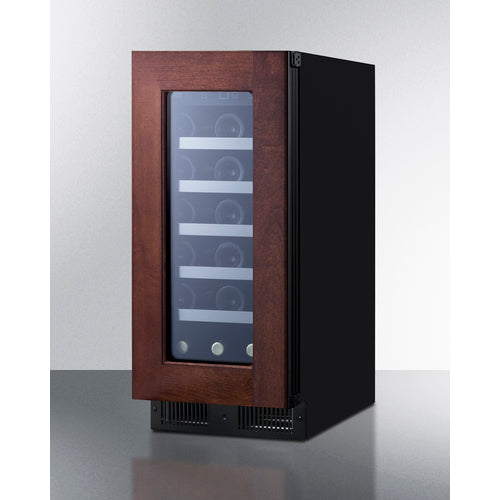

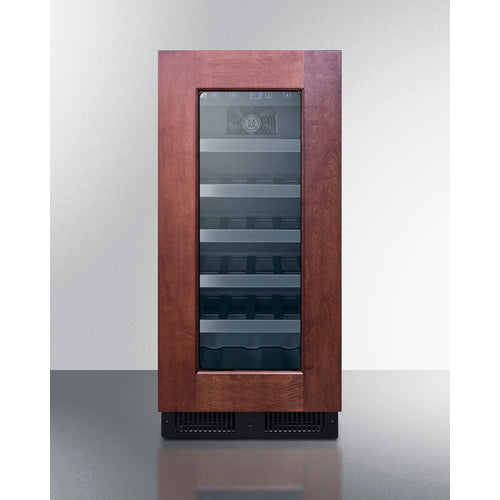

32" high single zone glass door wine cellar with panel-ready door trim
Sized at 32" high for use under lower ADA-compliant counters

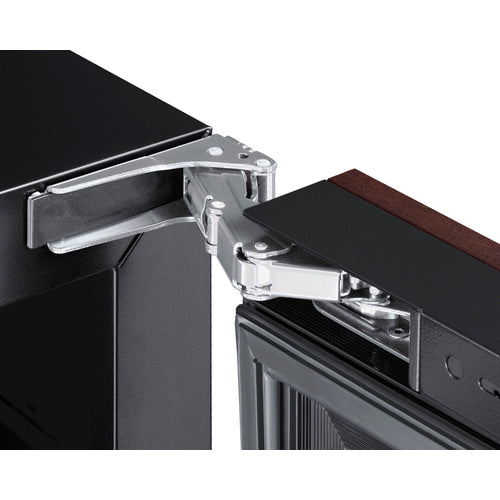

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry
Make the best use of space by installing your appliance under the counter
Meets UL-471 commercial standards
Provides a full display of your stored collection with a heat-safe double-tempered design
Keyed lock for a secure interior, with two keys included
Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines
Temperature readout can be shown in Celsius or Fahrenheit
Gentle illumination with an on/off switch

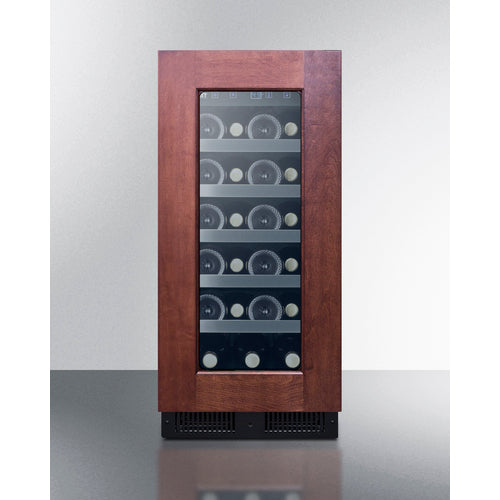

Classic look holds up to 23 Bordeaux or Burgundy style bottles
The floor includes slots to hold bottles in place, and can store up to three champagne bottles
Reduced maintenance and steady temperature performance
The stainless steel handle completes the professional look
User-reversible door swing on the refrigerator for added flexibility
The optional setting lets you disable the lighting and alarm for up to 48 hours
Alarm sounds if the door is left open for more than 60 seconds
An audible alarm sounds if the interior temperature rises out of the set range
In the event of power loss, the unit will return to its last settings when power is restored
The design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Smoother opening and a better fit with an integrated European hinge
Space-saving design makes it easier to install flush against the wall
Pair with the ALBV15PNR for a perfectly matched ADA-compliant set
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
Overview
|
|
---|---|
Height of Cabinet | 32.0" (81 cm) |
Width | 14.75" (37 cm) |
Depth | 23.63" (60 cm) |
Depth with door at 90° | 38.25" (97 cm) |
Capacity | 2.2 cu. ft. (62 L) |
Bottles | 23 bottles |
Defrost Type | Automatic |
Door | Glass/Panel-Ready Frame |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 65.0 lbs. (29 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101082882 761101092072 |
Wine Cellar
|
|
Number of Zones | 1 |
Door Swing | RHD |
Reversible | Yes |
Adjustable Shelves | Yes |
Shelf Type | Wood |
Shelf Qty | 5 |
Thermostat Type | Digital |
Interior Light | Yes |
Refrigerant Type | R600a |
Refrigerant Amount | 0.78 oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Interior Height 1 | 21.25" (54 cm) |
Interior Width 1 | 10.5" (27 cm) |
Interior Depth 1 | 17.25" (44 cm) |
Compressor Step Height | 3.5" (9 cm) |
Compressor Step Width | 10.5" (27 cm) |
Compressor Step Depth | 5.0" (13 cm) |
Level Legs | 4 |
Temperature Range | 41º to 64ºF |
Sabbath Mode | Yes |
Sound Level | 32.9 dB |
AVAILABLE UPGRADES
Exterior | LHD - Left-hand door swing |
Latch - Factory-installed door latch requires manual release to open unit |
SSK - Stainless steel kickplate |
Door |
T3F Door Tint | T1SF Door Tint |
T4F Door Tint | T2F Door Tint |
