Equipped with five wooden shelves, this built-in wine cellar can store up to 23 bottles of your favorite wine, whether they are standard Bordeaux style or wider Burgundy style. With recessed LED lighting, your collection can be showcased in an energy-efficient and attractive manner.
Additionally, this model features an automatic defrost for effortless maintenance and an internal fan for more consistent temperature distribution. Plus, an audible alarm will sound if the door is left open for over one minute or if the temperature rises outside of the recommended storage range. This unit also offers a Sabbath mode option to disable certain electrical functions during periods of religious observance.
Experience the best in wine storage with the ALWC15 and ALWC15CSS models that are specifically designed for ADA-compliant settings. Choose from a range of sizes including 6", 18", 24", and 36" to meet your specific needs.
FEATURES
Designed for built-in or freestanding installation in slim-fitting ADA-compliant spaces
Sized at 32" high for use under lower ADA-compliant counters
Make the best use of space by installing your appliance under the counter
Meets UL-471 commercial standards
Provides a full display of your stored collection with a heat-safe double-tempered design
Keyed lock for a secure interior, with two keys included
Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines
Temperature readout can be shown in Celsius or Fahrenheit
Gentle illumination with an on/off switch
Classic look holds up to 23 Bordeaux or Burgundy style bottles
The floor includes slots to hold bottles in place and can store up to three champagne bottles
Reduced maintenance and steady temperature performance
The stainless steel handle completes the professional look
User-reversible door swing on the refrigerator for added flexibility
The optional setting lets you disable the lighting and alarm for up to 48 hours
Alarm sounds if the door is left open for more than 60 seconds
An audible alarm sounds if the interior temperature rises out of the set range
In the event of power loss, the unit will return to its last settings when power is restored
The design allows you to plug the unit in flush against the wall socket with no need to add extra depth

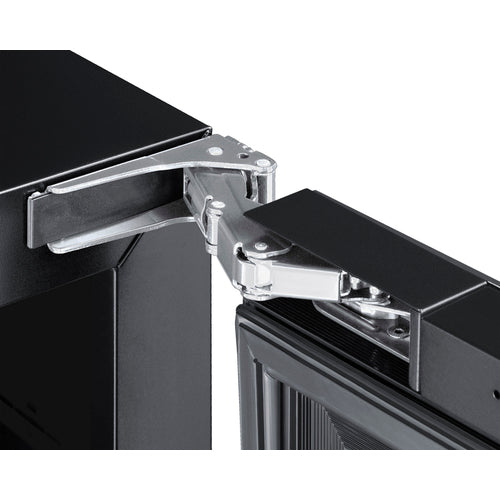

Smoother opening and a better fit with an integrated European hinge
Space-saving design makes it easier to install flush against the wall
Pair with the ALBV15 for a perfectly matched ADA-compliant set
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Width | 14.75" (37 cm) |
| Depth | 23.63" (60 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 38.25" (97 cm) |
| Capacity | 2.2 cu. ft. (62 L) |
| Bottles | 23 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black/Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 65.0 lbs. (29 kg) 70.0 lbs. (32 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101056395 761101061481 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 5 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.78 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 21.25" (54 cm) |
| Interior Width 1 | 10.5" (27 cm) |
| Interior Depth 1 | 17.25" (44 cm) |
| Compressor Step Height | 3.5" (9 cm) |
| Compressor Step Width | 10.5" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 41º to 64ºF |
| Sabbath Mode | Yes |
| Sound Level | 32.9 dB |
AVAILABLE UPGRADES
| Exterior | LHD - Left-hand door swing |
SSK - Stainless steel kickplate |
|
|
| Door |
| T3F Door Tint | T1SF Door Tint |
| T4F Door Tint | T2F Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
ALWC15.pdf ALWC15CSS.pdf |
| USE & CARE | |
| TECHNICAL DRAWING (.dwg) | |
| ASSEMBLY DRAWING | |
| REVIT MODEL | |
| SUPPORT | |
| MSDS INFORMATION |
