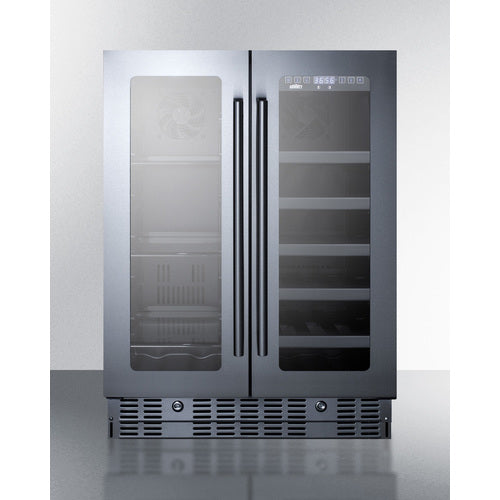

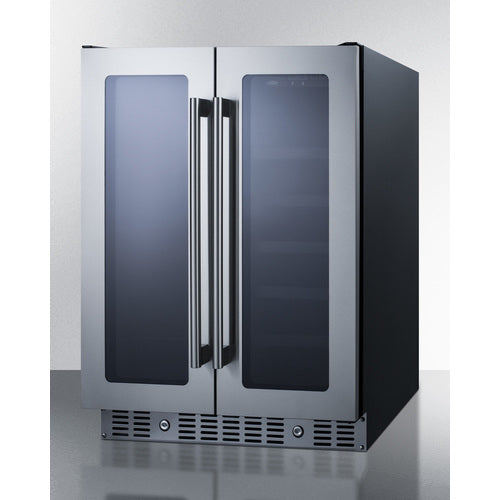

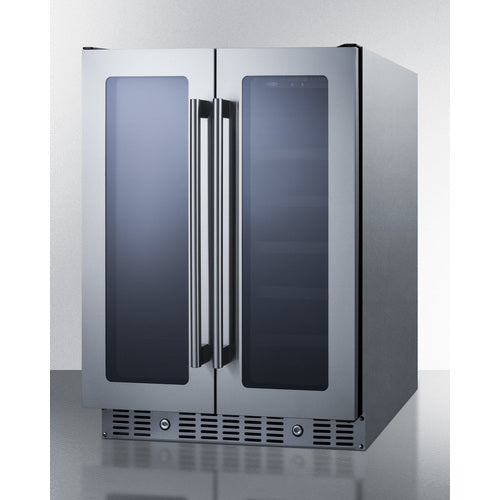

The ALFD24WBV and ALFD24WBVCSS have two distinct temperature zones specifically designed to store beverages and wine at their ideal temperatures. With digital temperature controls, managing the temperature of each compartment is effortless, and the temperature can be displayed in either Fahrenheit or Celsius with the touch of a button.
The left side has adjustable glass shelves for spill-proof storage of beverages, with a temperature range of 36 to 43ºF. The right compartment has adjustable wooden shelves and a jet-black finish, perfect for storing red or white wine between 41 and 72ºF. Additionally, the LED lighting not only adds to the unit's appearance but also provides energy efficiency.
Audible alarms are included to alert you if the doors have been open for more than one minute, or if the temperature is outside the recommended range. For periods of observance, the Sabbath mode allows for certain electrical features to be disabled.

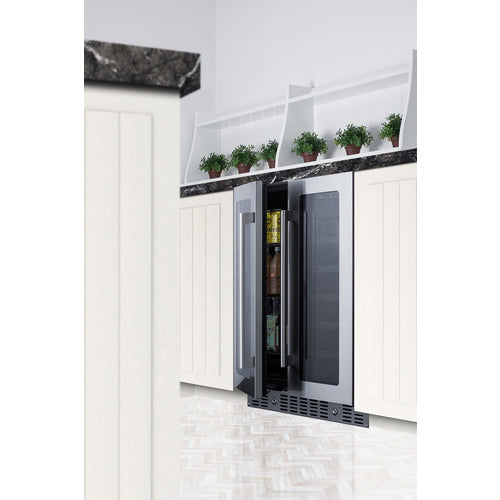

Discover versatile storage options with the ALFD24WBV and ALFD24WBVCSS models from Summit Appliance. These built-in dual-zone produce refrigerators are designed with advanced features to accommodate any under-counter space. Summit also offers other ADA compliant choices in our product line. Visit our website for more details.
FEATURES
Sized at just 32" high for installation under lower ADA-compliant counters
Make the best use of space by installing your appliance under the counter
Leveling legs can raise the unit to up to 33.5" for more standardized counters

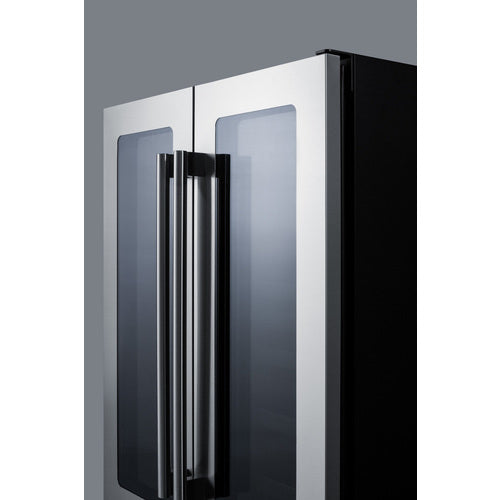

Glass is framed by seamless 304-grade stainless steel
Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit

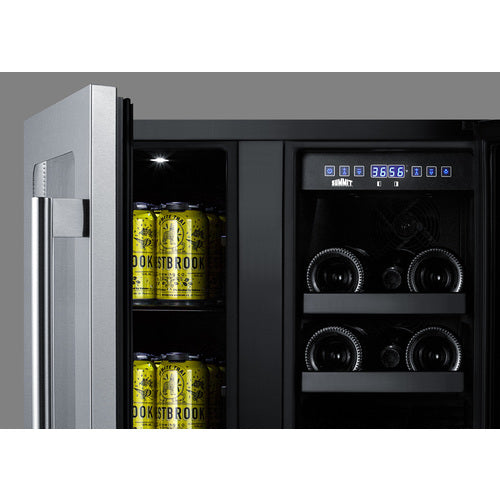

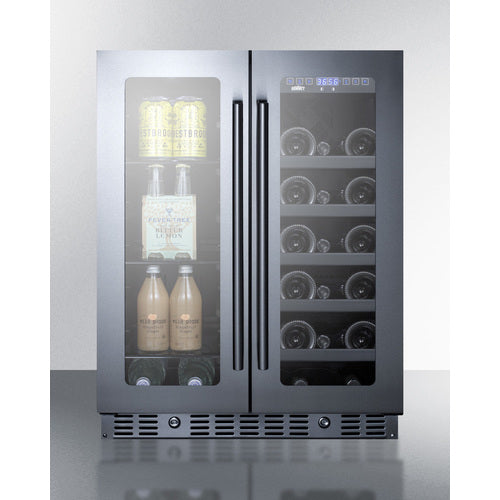

Independent zones let you store beverages in the left compartment and wine in the right
Each door includes a keyed lock for optional security
The wine zone includes size adjustable wooden shelves in a modern jet black finish
Spill-proof glass shelves make it easy to store and display bottles and cans in the beverage zone
Attractive and energy-efficient LED lighting offers an elegant presentation
Reduced user maintenance with automatic defrost operation
Internal fans ensure both interiors are evenly cooled from top to bottom

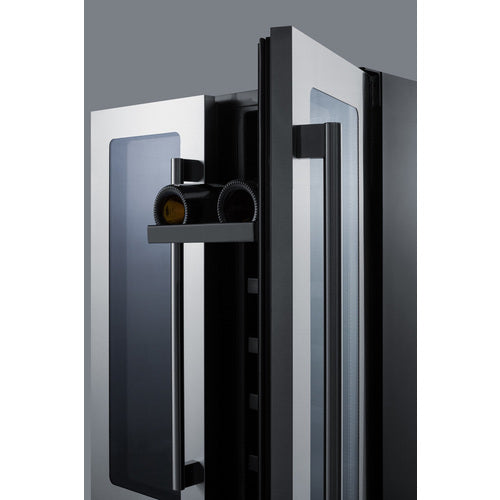

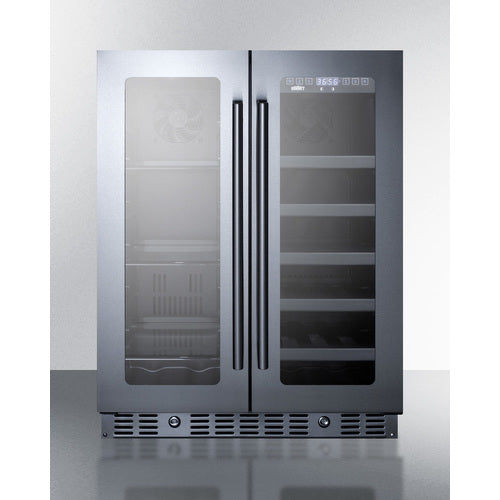

Two side-by-side doors with French door opening
Completes the professional look down to the toe kick
Audibly alerts if the interior temperature rises out of the recommended wine storage range
An audible alarm will sound if the doors are left ajar for over 60 seconds
Allows you to disable certain electrical functions for up to 48 hours for periods of observance
The unit will retain its last settings when power is restored in the event of power loss
The design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space-saving design with easier cleanability
The door hinge adds no additional height, making it easier to install under a counter

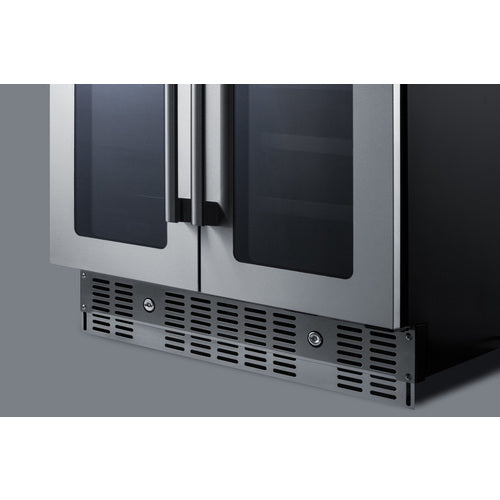

Includes an extra stainless steel kickplate piece to cover the legs if the unit's height is raised
Allows the unit to be used freestanding
The environmentally friendly design does not contain ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Width | 23.38" (59 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 33.0" (84 cm) |
| Capacity | 4.6 cu. ft. (130 L) |
| Bottles | 21 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black/Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101058580 761101061467 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | French |
| Reversible | No |
| Height Adjustable | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Glass and Wood |
| Shelf Qty | 8 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 25.38" (64 cm) |
| Interior Width 1 | 8.38" (21 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 3.5" (9 cm) |
| Compressor Step Width | 8.38" (21 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | Beverage zone: 36 to 43°F; Wine zone: 41 to 72ºF |
| Interior Height 2 | 25.38" (64 cm) |
| Interior Width 2 | 8.38" (21 cm) |
| Interior Depth 2 | 17.5" (44 cm) |
