Featuring a specialized stainless steel shelving unit designed to hold champagne and sparkling wine bottles at a slight angle, the Summit Appliance SCR610BLCH and SCR610BLCHCSS models offer a full display of the label. With an interior constructed from durable stainless steel, this wine cellar is built to withstand the demands of busy commercial settings.
Adding to its appeal, the unit is illuminated by efficient LED lighting in a striking blue hue. Convenient digital controls allow for easy management of the interior.
Featuring a distinctive design and durable, commercial-quality construction, the SCR610BLCH and SCR610BLCHCSS models from Summit Appliance are ideal for undercounter storage and showcasing larger wine bottles.
Explore our website for a variety of other options, including models designed for outdoor use and larger capacities to accommodate more bottles.
FEATURES
ETL-S is listed to NSF-7 Standards for use in commercial establishments
Make the best use of space by installing this unit under the counter and flush with other cabinetry
Stainless steel shelves are specially sized to store wider wine and champagne bottles
Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate more shelves

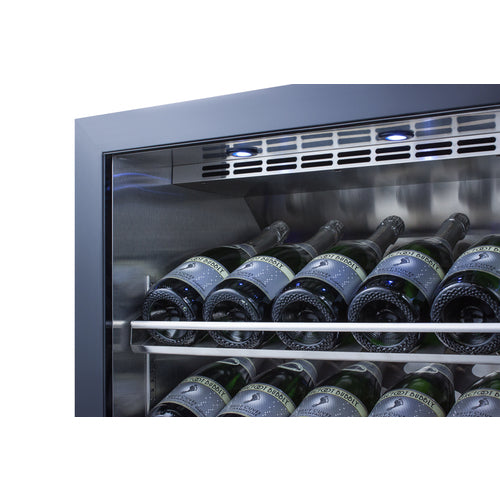

Fully lit interior with a striking blue LED hue, providing an attractive and energy-efficient view
Stainless steel trimmed glass door offers a full display of stored items
Walls are constructed from stainless steel for added strength and easy cleanup
Keyed lock for a secure interior
Intuitive digital controls ensure easy temperature management
User-reversible door swing allows for more flexibility in placing the unit
The stainless steel handle completes the professional look
Reduced user maintenance with automatic defrost
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
The internal fan ensures the interior is evenly cooled from top to bottom
Space-saving design with easier cleanability
Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.0" (86 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Capacity | 5.0 cu. ft. (142 L) |
| Bottles | 20 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black/Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 0.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 140.0 lbs. (64 kg) 150.0 lbs. (68 kg |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101059945 761101065120 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Steel |
| Shelf Qty | 3 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 25.0" (64 cm) |
| Interior Width 1 | 19.38" (49 cm) |
| Interior Depth 1 | 17.38" (44 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.38" (49 cm) |
| Compressor Step Depth | 4.63" (12 cm) |
| Temperature Range | 36 to 43ºF |
| Sound Level | 37.4 dB |
AVAILABLE UPGRADES
| Exterior | SSK - Stainless steel kickplate | LHD - Left-hand door swing |
| Door |
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
SCR610BLCH.pdf SCR610BLCHCSS.pdf |
| USE & CARE | |
| REVIT MODEL |
