Utilizing Summit's shallow-depth series, this built-in wine cellar offers full functionality to kitchen islands, wet bars, and other settings with limited space.
The SDHW1532PNR and SDHW1532PNRLHD models are single-zone wine cellars that measure 15" wide and 18" deep. Their 34" height makes them suitable for standard undercounter spaces. These units can be installed as built-in or used as freestanding units thanks to the front-breathing system and fully finished black cabinet.
The sealed rear and right angle cord provide a perfect fit, and for added security, a lock is located in the kickplate. The panel-ready versions, SDHW1532PNR and SDHW1532PNRLHD, feature a fully articulating European hinge and come with a 2-piece bracket kit for easy installation of custom door trim. The user-reversible door swing allows for easy adjustments.
This product features durable and hygienic stainless steel construction. The side walls are equipped with elegant white LED lighting that can be dimmed to create the perfect display conditions. The angled digital control panel allows temperature adjustment between 41º and 68ºF to store red, white, or sparkling wine bottles.

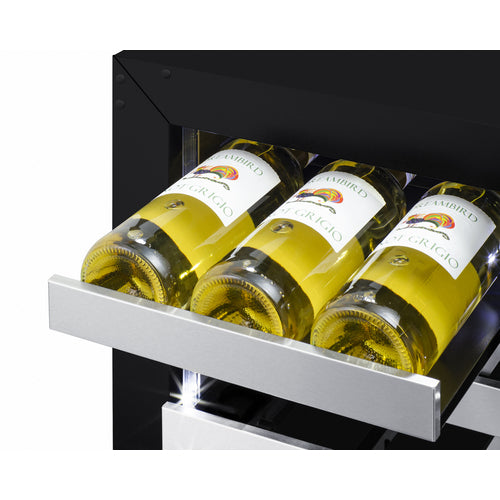

Our specially designed jet black finish steel shelves with stainless steel front trim slide out effortlessly, providing a classic look. Fan-forced cooling ensures uniform temperature distribution and quick temperature recovery.
Enhance your experience with added functions such as an open-door alert, a high-temperature alarm, and a Sabbath mode option that suspends certain electrical components for up to 96 hours during religious observances. The SDHW1532PNR and SDHW1532PNRLHD are certified by ETL-S to meet commercial standards for NSF-7, but can also cater to residential needs.Other options in 15", 19", and 24" widths are offered, such as outdoor refrigerators and refrigerator drawers, with a depth of 18".
Expert Tip: Maximize the storage capacity of Summit Appliance's 19 Bottle 15" Wide Built-In Wine Cellar (Panel Not Included) by loading up to 18 Bordeaux-style bottles with the cork facing the rear. While most shelves can accommodate wider Burgundy bottles, their varying sizes may affect loading capacity. For thicker bottles, like champagne and sparkling wine, simply remove shelves for a perfect fit.
FEATURES
Single-zone wine cooler for residential or commercial storage
Unique 18" shallow depth is ideal for wet bars, island kitchens, and other under-counter areas with limited footprint space
Front-breathing design lets you make the best use of space by installing your appliance under the counter
ETL-S is listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

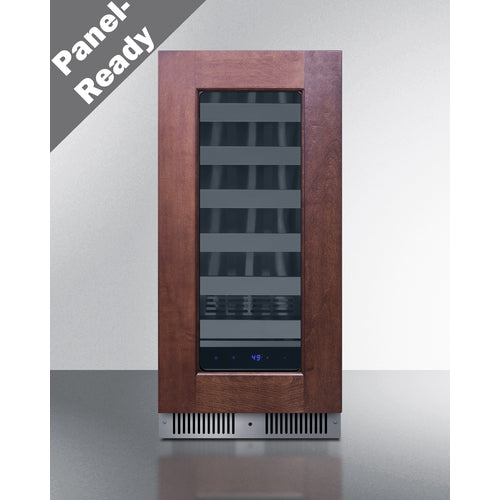

Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of stainless steel door trim

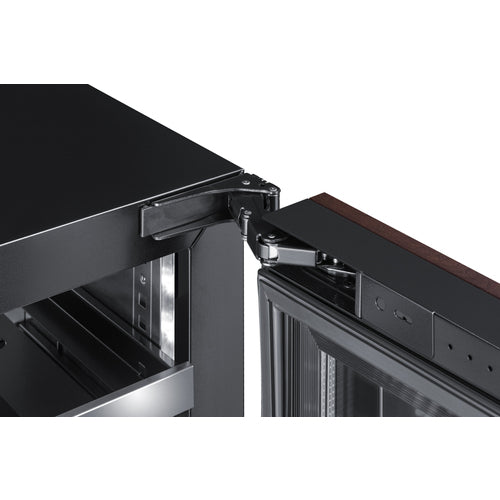

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry
Elegant design offers a clear but protected view of your interior
The unit's temperature range of 41º to 68ºF is ideal for red, white, or sparkling wine bottles
Smoother opening and a better fit with an integrated European hinge
Keyed lock for a secure interior (2 keys included)
The walls and floor are constructed from stainless steel for added strength and easy cleanup
Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
No-frost operation for minimum user maintenance
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
The thermostat’s unique and ergonomic position allows for more accessible temperature readings with zero bending required
Alarm sounds if the door is left open for more than 60 seconds
An audible alarm sounds if the interior temperature rises out of the set range
18-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

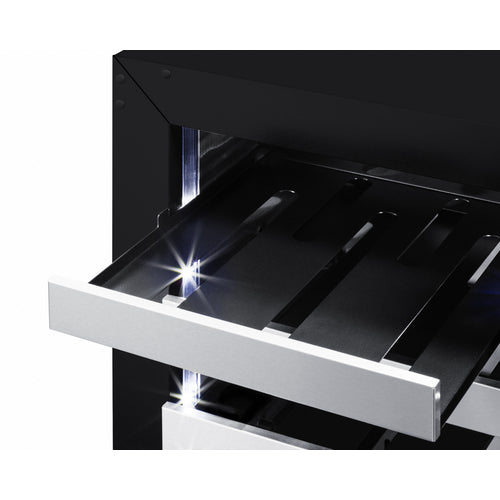

Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
The optional setting lets you disable the lighting and alarm for up to 96 hours
The unit will retain its last settings when power is restored in the event of power loss
Allows the unit to be used freestanding
Space-saving design with no exposed coils that offers easier cleanability
The design allows you to plug the unit in flush against the wall socket with no need to add extra depth
User-reversible door swing for added flexibility to best accommodate your setting
Runs under 34 dB for a quiet performance that won't interrupt your conversation
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.75" (86 cm) |
| Width | 14.75" (37 cm) |
| Depth | 18.0" (46 cm) |
| Depth with door at 90° | 32.63" (83 cm) |
| Capacity | 1.8 cu.ft. (51 L) |
| Bottles | 18 bottles |
| Defrost Type | Frost-Free |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 88.0 lbs. (40 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101145716 761101145778 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 10.63" (27 cm) |
| Interior Depth 1 | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.63" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Temperature Range | 41°F to 68°F |
| Sabbath Mode | Yes |
| Sound Level | 33.3 dB |
DOWNLOADS
| BROCHURE w/ DRAWINGS | |
| TECHNICAL DRAWING (.dwg) | SDHW1532PNR.dwg |
| ASSEMBLY DRAWING | |
| USE & CARE |
