Elevate your outdoor kitchen with Summit's 18" Clear Icemaker. With its compact size and streamlined design, it's built for convenience and luxury. Features include a front-breathing design for easy installation, a reversible door and pro-style handle for customization, and a sturdy stainless steel exterior built to withstand the elements. Perfect for outdoor spaces up to 18 inches wide.
Get ready to impress with the Summit Appliance 18" Wide Outdoor Clear Icemaker. This compact yet powerful machine produces 60 lbs. of clear ice daily while the intuitive control panel makes it easy to use. UV lighting and an automatic defrost system add convenience and protection against bacteria. Comes with an internal pump, drain and water hose, and scoop for added convenience.
Complete your outdoor space with Summit's 18" Wide Clear Icemaker, part of their wide range of stylish and functional appliances. Don't forget to check out their drain-free options and matching refrigerators, beverage centers, and wine cellars!
FEATURES
Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings
Durable stainless steel construction for safe installation in outdoor spaces
Make the best use of space by installing your icemaker under the counter
Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs. per day
Unit is sized at 32 1/2" and can be raised to 34 3/4" to best fit a variety of spaces
Internal pump affords more flexibility in placing the unit

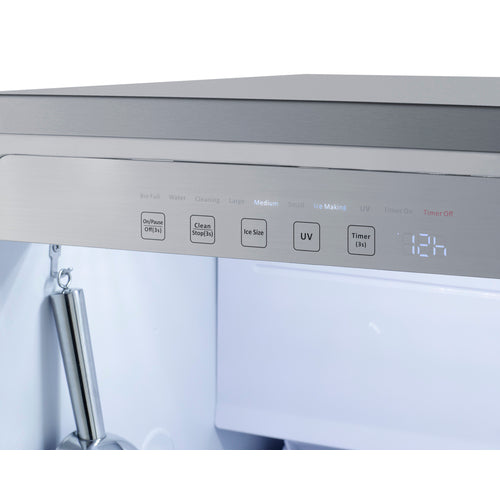

Provides easy operation of the unit with indicator lights for each stage of the production process
Unit allows users to choose from small, medium, or large clear ice cubes
Reduced maintenance with auto defrost system

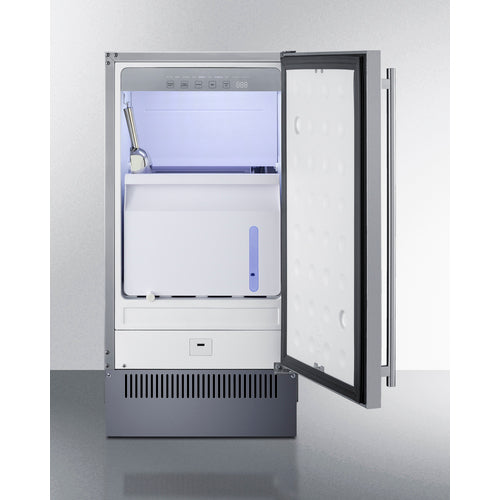

LED lighting automatically illuminates when the door is opened
Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes

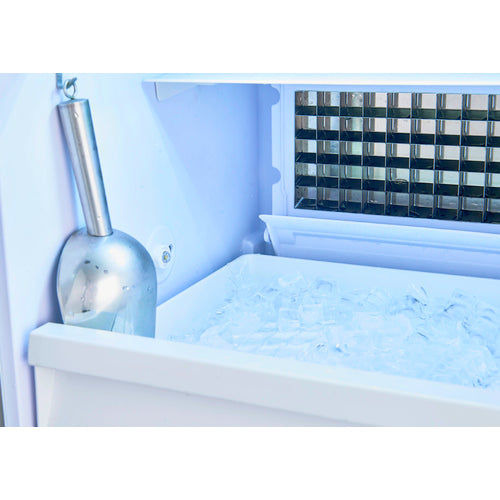

Interior wall includes brackets to hang for easy storage
Users can remove the ice bucket for fast and easy cleaning
Ice stays solid longer in this cold-protected bin
User-reversible door swing for flexible placement
Allows the unit to be used freestanding

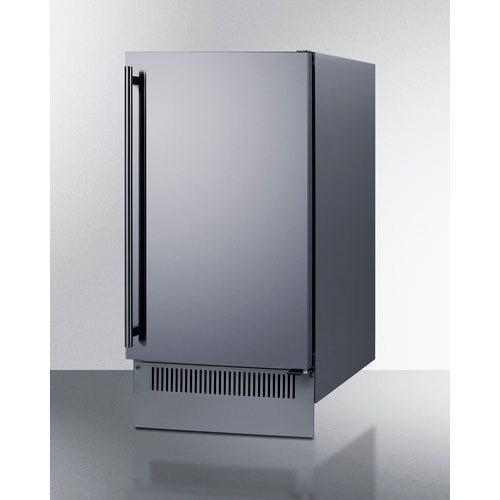

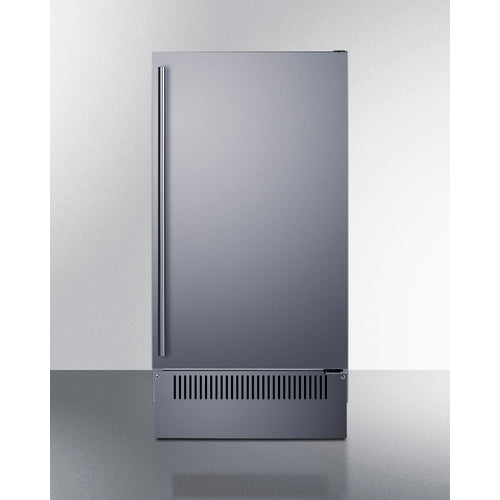

Vertically mounted stainless steel handle completes the look
Space-saving design with easier cleanability
Flat design offers added space savings by requiring no extra depth to plug the unit in
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|

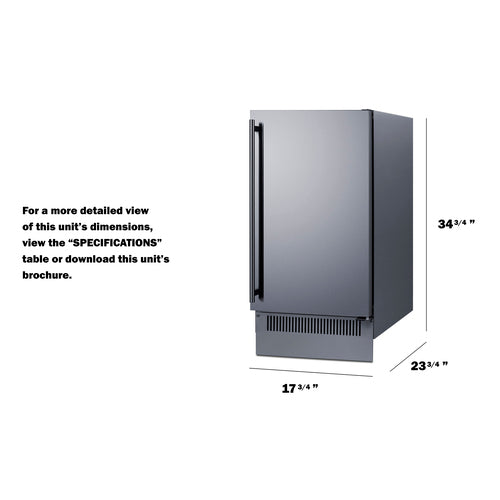

| Height of Cabinet | 34.75" (88 cm) |
| Width | 17.75" (45 cm) |
| Depth | 23.75" (60 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90° | 41.0" (104 cm) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 11.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101108162 761101150666 |
|
Icemaker
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Drain Required | Yes |
| Daily Ice Production | 60.0 lbs. (27 kg) |
| Ice Storage Capacity | 33.0 lbs. (15 kg) |
| Ice Shape | Cube |
| Size of Cube | .87" x .87" . 87" |
| Number of Ice Cube Sizes | 3 |
| Interior Light | Yes |
| Refrigerant Type | R290 |
| Refrigerant Amount | 1.37 oz. |
| High Side PSI | 330.0 |
| Low Side PSI | 160.0 |
| Interior Height | 18.75" (48 cm) |
| Interior Width | 14.75" (37 cm) |
| Interior Depth | 16.75" (43 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior |
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS | |
| TECHNICAL DRAWING (.dwg) | BIM182.dwg |
| USE & CARE | |
| ASSEMBLY DRAWING |
