Upgrade your kitchen with Summit's 18" clear icemaker, designed for built-in installation under standard height counters. The front-breathing design and included stainless steel kickplate extender provide a seamless fit. Customize the door with overlay panels to match your cabinetry. Compact yet powerful, this icemaker is a must-have for any luxury kitchen.
Get ready to chill with the Summit Appliance 18" Wide Indoor Clear Icemaker! This compact yet powerful machine can produce 60 lbs. of clear ice cubes daily, while the UV lighting and automatic defrost system keep things clean and easy. With an intuitive control panel and included accessories, this icemaker is perfect for any kitchen setup. For the outdoor version, check out model BIM182OSIF (also great for hot tub parties)!
Create the perfect ice for any occasion with the Summit Appliance 18" Indoor Clear Icemaker. With options for drain-free choices and traditional 15 inch wide icemakers, this versatile machine is perfect for both residential and commercial spaces. Pair it with a matching refrigerator, beverage center, or wine cellar for a complete undercounter setup! (Panel not included).
FEATURES
Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings
Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness)
Make the best use of space by installing your icemaker under the counter
Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs. per day
Unit is sized at 32 1/2" and can be raised to 34 3/4" to best fit a variety of spaces
Internal pump affords more flexibility in placing the unit

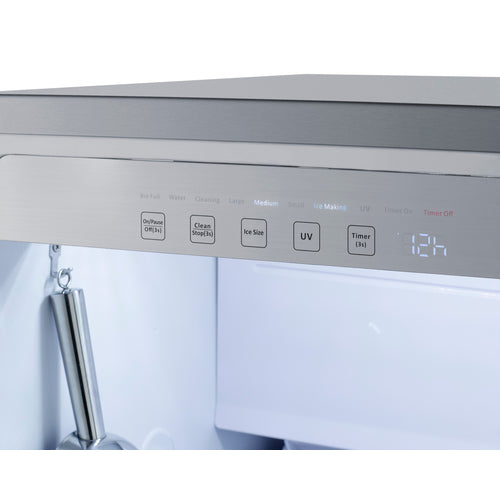

Provides easy operation of the unit with indicator lights for each stage of the production process
Unit allows users to choose from small, medium, or large clear ice cubes
Reduced maintenance with auto defrost system

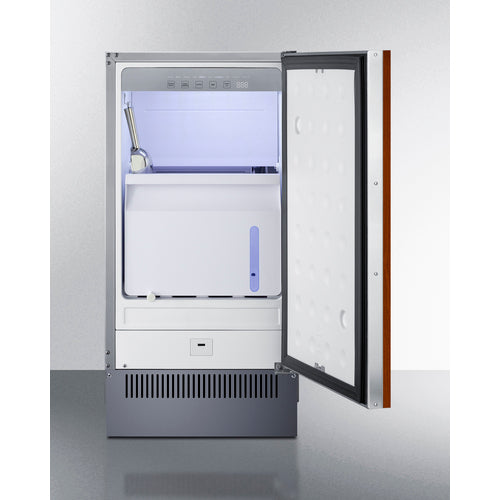

LED lighting automatically illuminates when the door is opened
Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes
Interior wall includes brackets to hang for easy storage
Users can remove the ice bucket for fast and easy cleaning
Ice stays solid longer in this cold-protected bin
Allows the unit to be used freestanding
Vertically mounted stainless steel handle completes the look
Space-saving design with easier cleanability
Flat design offers added space savings by requiring no extra depth to plug the unit in
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|

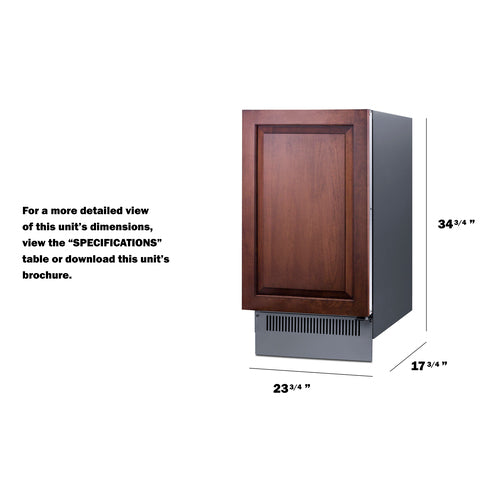

| Height of Cabinet | 34.75" (88 cm) |
| Width | 17.75" (45 cm) |
| Depth | 23.75" (60 cm) |
| Depth with door at 90° | 41.0" (104 cm) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 11.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101150765 761101150789 |
|
Icemaker
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Height Adjustable | Yes |
| Drain Required | Yes |
| Daily Ice Production | 60.0 lbs. (27 kg) |
| Ice Storage Capacity | 33.0 lbs. (15 kg) |
| Ice Shape | Cube |
| Size of Cube | .87" x .87" . 87" |
| Number of Ice Cube Sizes | 3 |
| Interior Light | Yes |
| Refrigerant Type | R290 |
| Refrigerant Amount | 1.37 oz. |
| High Side PSI | 330.0 |
| Low Side PSI | 160.0 |
| Interior Height | 18.75" (48 cm) |
| Interior Width | 14.75" (37 cm) |
| Interior Depth | 16.75" (43 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior |
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS | |
| TECHNICAL DRAWING (.dwg) | BIM182IF.dwg |
| USE & CARE | |
| ASSEMBLY DRAWING |
