Summit Appliance 18" Wide Indoor Clear Icemaker, ADA Compliant (Panel Not Included)
Summit Appliance 18" Wide Indoor Clear Icemaker, ADA Compliant (Panel Not Included)
Couldn't load pickup availability
Get the ultimate in convenience and luxury with Summit's 18" Wide Indoor Clear Icemaker. Perfectly designed for under-the-counter installation, this icemaker features a front-breathing design and can be raised for ADA-compliant counters. Plus, with a stainless steel frame for customizable panel integration, you can match or complement your cabinetry. Enjoy streamlined style in tight spaces with Summit.
The Summit Appliance 18" Icemaker is not your average ice machine. With its UV lighting for bacteria protection, automatic defrost system, and included accessories, this compact yet powerful appliance produces 60 lbs of clear ice daily. Plus, its ADA compliant design and playful size make it a fun and convenient addition to any kitchen. Add an outdoor version for even more versatility!
Add a pop of quirk to your space with Summit Appliance 18" Icemaker. Versatile options include drain-free, standard 15" models, and matching refrigerators and beverage centers. ADA compliant with no draining required. (Note: Panel not included - fridge sold separately)
FEATURES
Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings
32.5" height allows easy installation under lower ADA compliant counters

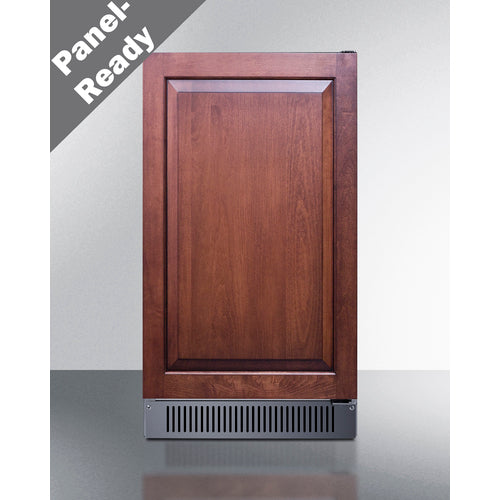

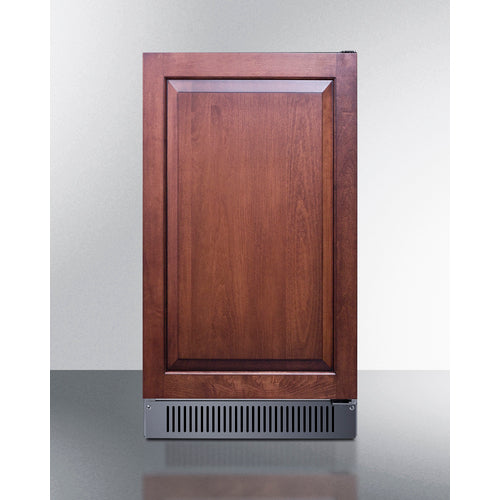

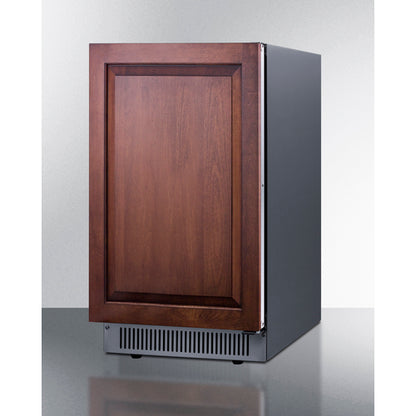

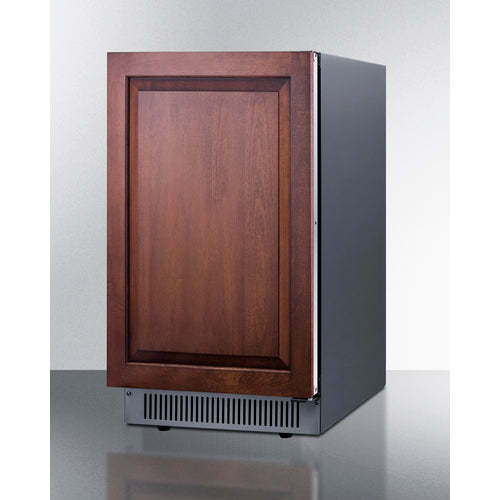

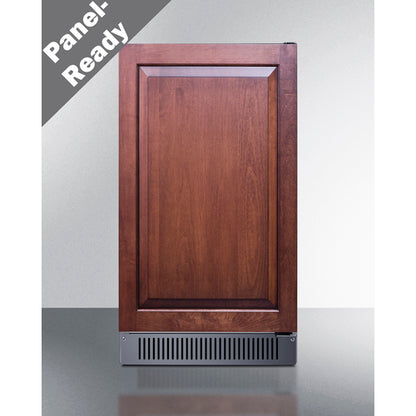

Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness)
Make the best use of space by installing your icemaker under the counter
Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs. per day
This unit can be raised to 34.75", with a taller kickplate included for a seamless aesthetic
Internal pump affords more flexibility in placing the unit

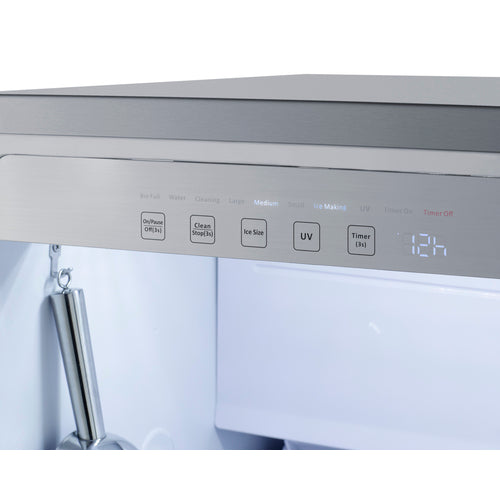

Provides easy operation of the unit with indicator lights for each stage of the production process
Unit allows users to choose from small, medium, or large clear ice cubes
Reduced maintenance with auto defrost system
LED lighting automatically illuminates when the door is opened

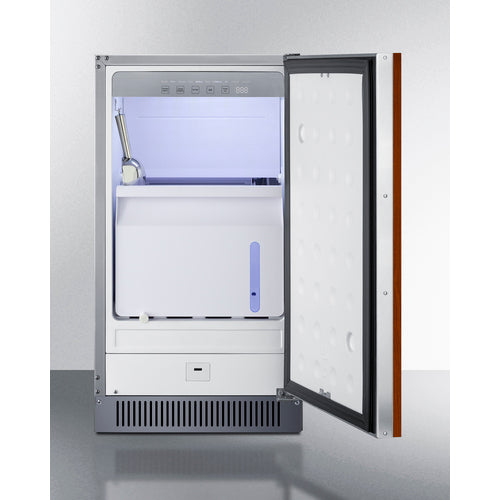

Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes

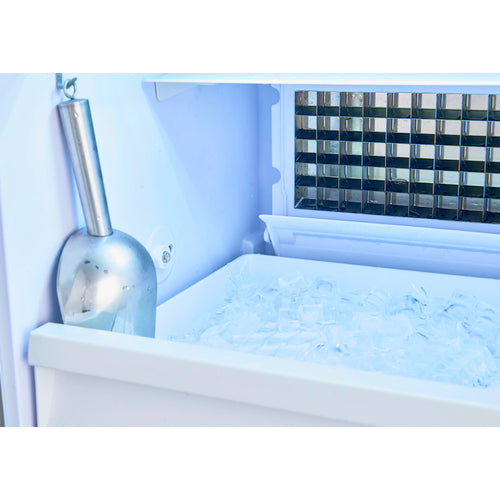

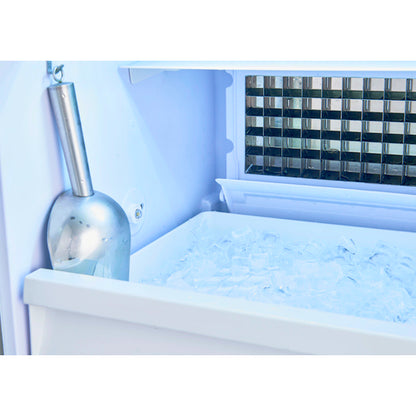

Interior wall includes brackets to hang for easy storage
Users can remove the ice bucket for fast and easy cleaning
Ice stays solid longer in this cold-protected bin
Allows the unit to be used freestanding
Vertically mounted stainless steel handle completes the look
Space-saving design with easier cleanability
Flat design offers added space savings by requiring no extra depth to plug the unit in
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|

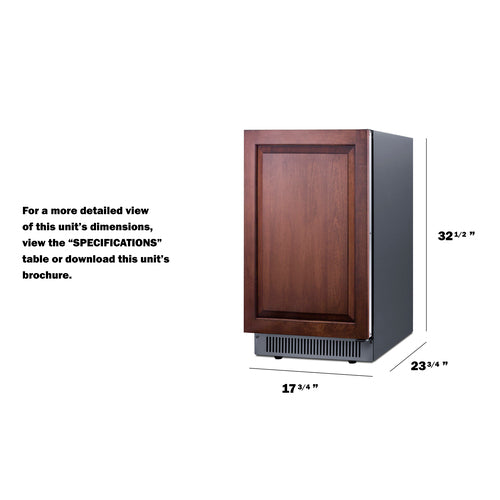

| Height of Cabinet | 32.5" (83 cm) |
| Width | 17.75" (45 cm) |
| Depth | 23.75" (60 cm) |
| Depth with door at 90° | 41.0" (104 cm) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 11.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101150680 761101150703 |
|
Icemaker
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Height Adjustable | Yes |
| Drain Required | Yes |
| Daily Ice Production | 60.0 lbs. (27 kg) |
| Ice Storage Capacity | 33.0 lbs. (15 kg) |
| Ice Shape | Cube |
| Size of Cube | .87" x .87" . 87" |
| Number of Ice Cube Sizes | 3 |
| Interior Light | Yes |
| Refrigerant Type | R290 |
| Refrigerant Amount | 1.37 oz. |
| High Side PSI | 330.0 |
| Low Side PSI | 160.0 |
| Interior Height | 18.75" (48 cm) |
| Interior Width | 14.75" (37 cm) |
| Interior Depth | 16.75" (43 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior |
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS | |
| TECHNICAL DRAWING (.dwg) | BIM182ADAIF.dwg |
| USE & CARE | |
| ASSEMBLY DRAWING |
