Introducing Summit's 18" Indoor Clear Icemaker, perfectly sized for compact spaces. Designed for easy built-in installation under ADA-compliant counters, with adjustable height and handy stainless steel kickplate extender included. Enjoy a sleek and modern look with a complete stainless steel exterior and reversible door, all topped off with a professional style handle. Space-saving sealed back and right angle cord make this icemaker a convenient choice.
The Summit Appliance 18" Icemaker produces 60 lbs. of clear ice per day, with UV lighting for bacteria protection. User-friendly controls and an indicator light make operation a breeze, while the integrated pump and automatic defrost system minimize maintenance. Hang the included scoop for easy access. Perfect for any kitchen, and an outdoor version is also available.
Get the perfect ice with the Summit Appliance 18" Wide Indoor Clear Icemaker, ADA Compliant. With options for drain-free and traditional models, and a full lineup of matching refrigerators and wine cellars, complete any undercounter space with style and convenience.
FEATURES
Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings
32.5" height allows easy installation under lower ADA compliant counters
Make the best use of space by installing your icemaker under the counter
Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs. per day
This unit can be raised to 34.75", with a taller kickplate included for a seamless aesthetic
Internal pump affords more flexibility in placing the unit

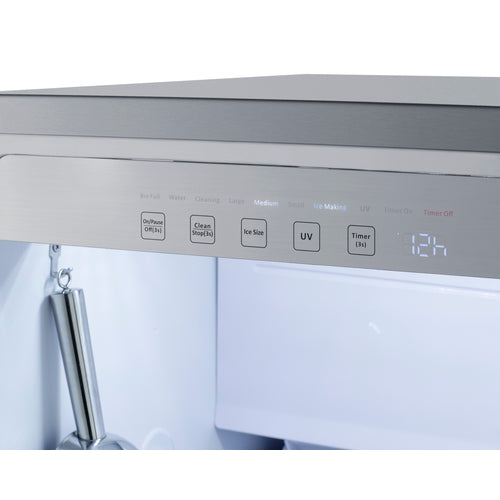

Provides easy operation of the unit with indicator lights for each stage of the production process
Unit allows users to choose from small, medium, or large clear ice cubes
Reduced maintenance with auto defrost system
LED lighting automatically illuminates when the door is opened

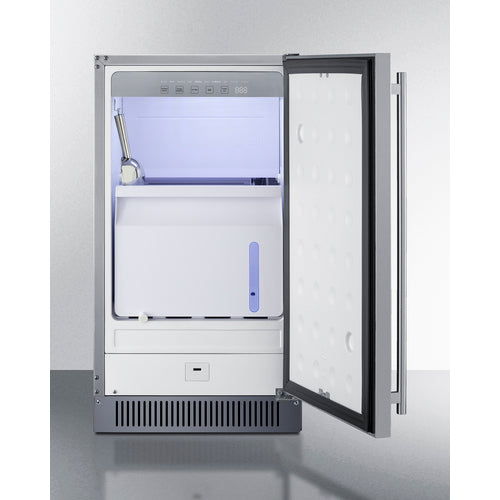

Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes

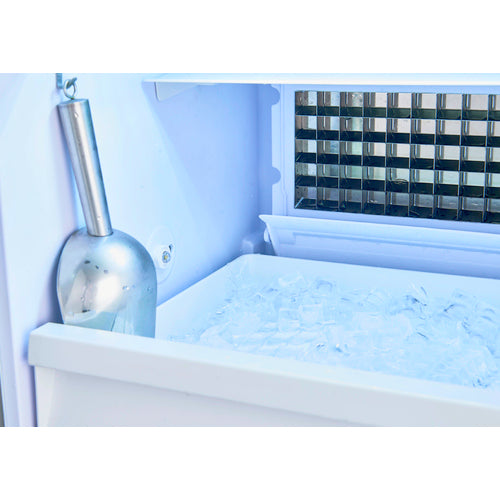

Interior wall includes brackets to hang for easy storage
Users can remove the ice bucket for fast and easy cleaning
Ice stays solid longer in this cold-protected bin
User-reversible door swing for flexible placement
Allows the unit to be used freestanding
Vertically mounted stainless steel handle completes the look
Space-saving design with easier cleanability
Flat design offers added space savings by requiring no extra depth to plug the unit in
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|

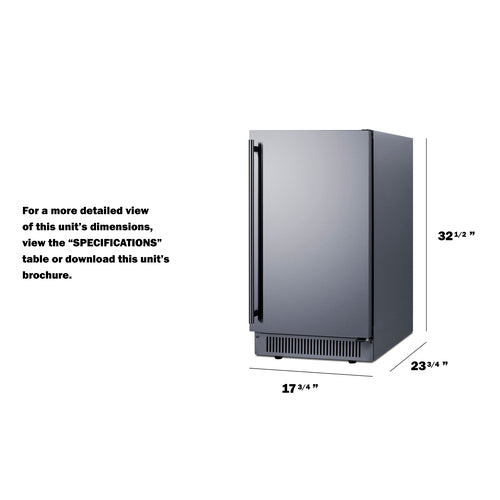

| Height of Cabinet | 32.5" (83 cm) |
| Width | 17.75" (45 cm) |
| Depth | 23.75" (60 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90° | 41.0" (104 cm) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 11.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101108148 761101149479 |
|
Icemaker
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Drain Required | Yes |
| Daily Ice Production | 60.0 lbs. (27 kg) |
| Ice Storage Capacity | 33.0 lbs. (15 kg) |
| Ice Shape | Cube |
| Size of Cube | .87" x .87" . 87" |
| Number of Ice Cube Sizes | 3 |
| Interior Light | Yes |
| Refrigerant Type | R290 |
| Refrigerant Amount | 1.37 oz. |
| High Side PSI | 330.0 |
| Low Side PSI | 160.0 |
| Interior Height | 18.75" (48 cm) |
| Interior Width | 14.75" (37 cm) |
| Interior Depth | 16.75" (43 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior |
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS | |
| TECHNICAL DRAWING (.dwg) | BIM182ADA.dwg |
| USE & CARE | |
| ASSEMBLY DRAWING |
