Upgrade your kitchen with Summit's 18" Clear Icemaker. Perfect for small spaces, this built-in appliance offers convenience and modern luxury. Customize with a reversible door and pro-style handle. Easy installation with the front-breathing design and included kickplate extender. ADA-compliant option available.
Never run out of ice cubes again with the Summit Appliance 18" Clear Icemaker. Producing 60 lbs. of clear ice daily, this model is equipped with an intuitive control panel, UV lighting, and an automatic defrost system for easy operation and minimal maintenance. Perfect for any kitchen setup!
Upgrade your ice game with the Summit Appliance 18" Wide Indoor Clear Icemaker. Stay cool with drain-free options and matching refrigerators, beverage centers, and wine cellars. Perfect for any residential or commercial undercounter space.
FEATURES
Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings
Make the best use of space by installing your icemaker under the counter
Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs. per day

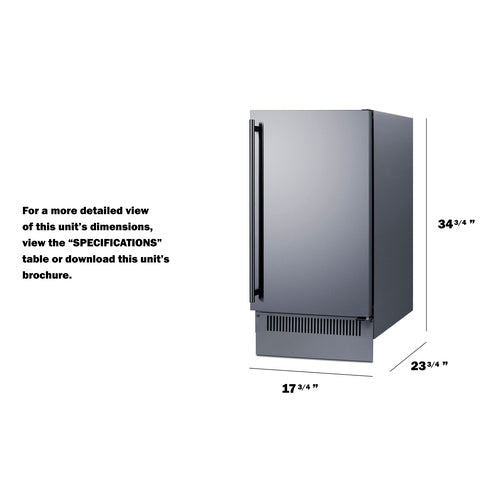

Unit is sized at 32 1/2" and can be raised to 34 3/4" to best fit a variety of spaces
Internal pump affords more flexibility in placing the unit

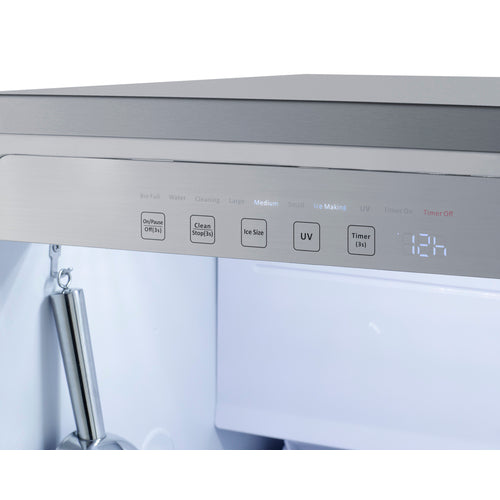

Provides easy operation of the unit with indicator lights for each stage of the production process
Unit allows users to choose from small, medium, or large clear ice cubes
Reduced maintenance with auto defrost system
LED lighting automatically illuminates when the door is opened

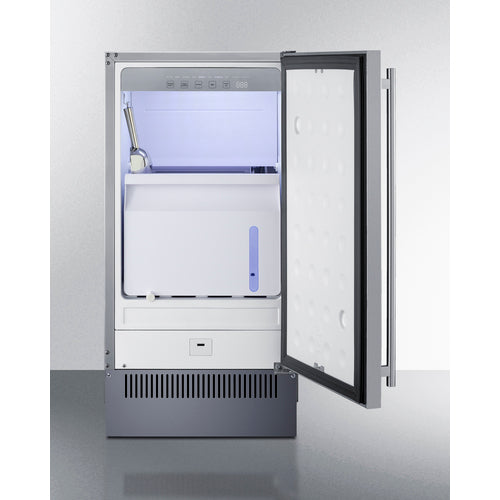

Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes
Interior wall includes brackets to hang for easy storage

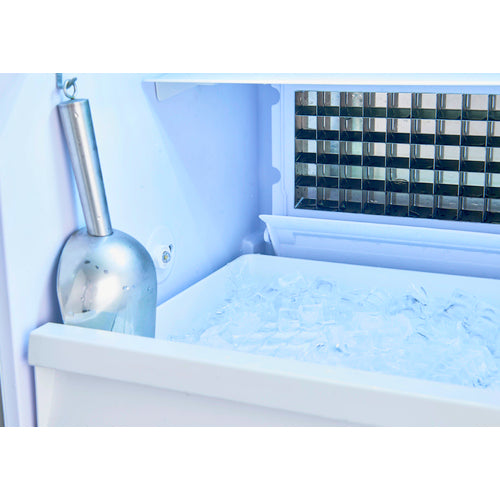

Users can remove the ice bucket for fast and easy cleaning
Ice stays solid longer in this cold-protected bin
User-reversible door swing for flexible placement
Allows the unit to be used freestanding
Vertically mounted stainless steel handle completes the look
Space-saving design with easier cleanability
Flat design offers added space savings by requiring no extra depth to plug the unit in
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.75" (88 cm) |
| Width | 17.75" (45 cm) |
| Depth | 23.75" (60 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90° | 41.0" (104 cm) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 11.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101108155 761101150635 |
|
Icemaker
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Drain Required | Yes |
| Daily Ice Production | 60.0 lbs. (27 kg) |
| Ice Storage Capacity | 33.0 lbs. (15 kg) |
| Ice Shape | Cube |
| Size of Cube | .87" x .87" . 87" |
| Number of Ice Cube Sizes | 3 |
| Interior Light | Yes |
| Refrigerant Type | R290 |
| Refrigerant Amount | 1.37 oz. |
| High Side PSI | 330.0 |
| Low Side PSI | 160.0 |
| Interior Height | 18.75" (48 cm) |
| Interior Width | 14.75" (37 cm) |
| Interior Depth | 16.75" (43 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior |
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS | |
| TECHNICAL DRAWING (.dwg) | BIM182.dwg |
| USE & CARE | |
| ASSEMBLY DRAWING |
