Summit Appliance 18" Wide Clear Outdoor Icemaker, ADA Compliant (Panel Not Included)

Summit Appliance 18" Wide Clear Outdoor Icemaker, ADA Compliant (Panel Not Included)

Height
Door Swing
Color
Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Turn your outdoor space into an entertaining oasis with Summit's 18" clear icemaker. Weatherproof and ADA compliant, it offers flexible installation options and a sleek stainless steel design. Plus, the option to add a custom panel for a personalized touch. Perfect for your luxury kitchen needs!

Complete your outdoor kitchen with style and convenience using the Summit Appliance 18" Clear Outdoor Icemaker. This ADA compliant icemaker produces 60 lbs of clear ice cubes daily and features an intuitive control panel, interior UV lighting, and automatic defrost system. A hook to hang the included ice scoop adds extra convenience. (Panel not included)

Elevate your outdoor entertaining with the Summit Appliance 18" Clear Ice Outdoor Icemaker. With a daily production of 60 lbs. of crystal-clear ice cubes, this ADA-compliant machine is perfect for large gatherings. The intuitive control panel makes operation a breeze, while UV lighting and automatic defrost add convenience. Plus, with an internal pump and included accessories, this icemaker has everything you need for easy installation.

18" Wide Clear Icemaker

Built-in undercounter icemaker ideal for installation in outdoor kitchens

Weatherproof design

Durable stainless steel construction for safe installation in outdoor spaces

ADA-compliant

32.5" height allows easy installation under lower ADA compliant counters

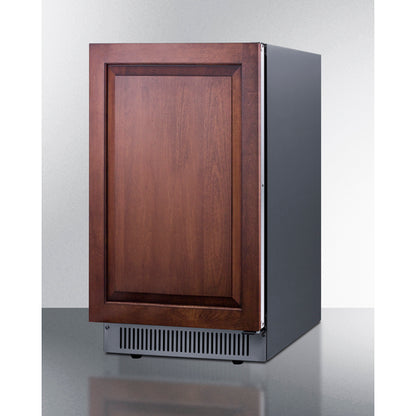

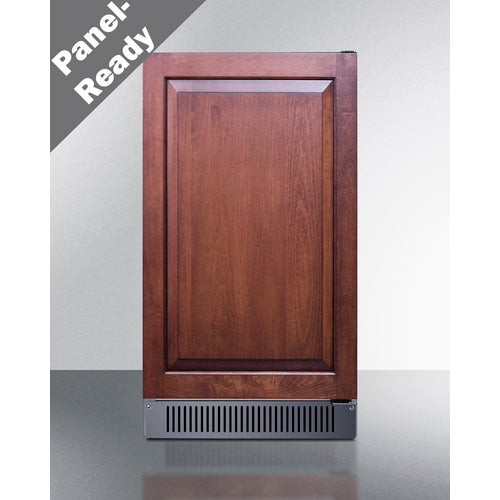

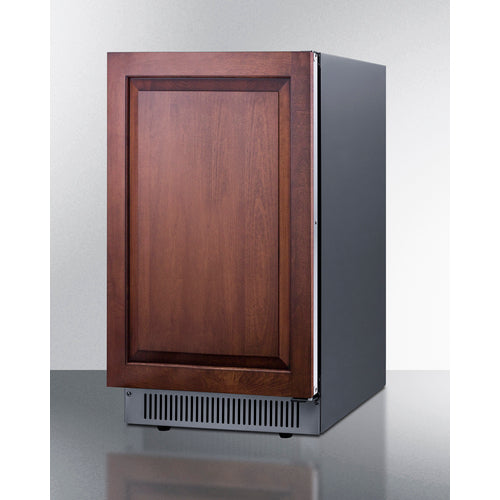

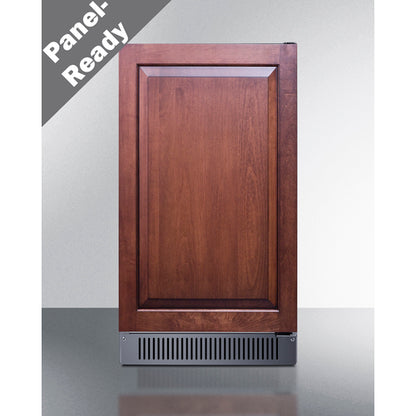

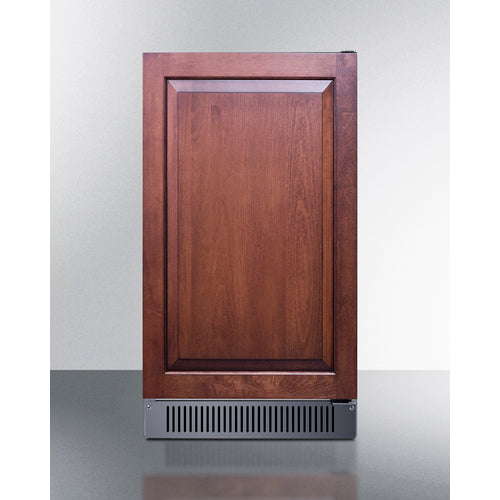

Panel-ready door

Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness)

Built-in capable

Make the best use of space by installing your icemaker under the counter

60 lb. production capacity

Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs. per day

Height adjustable

This unit can be raised to 34.75", with a taller kickplate included for a seamless aesthetic

Built-in pump

Internal pump affords more flexibility in placing the unit

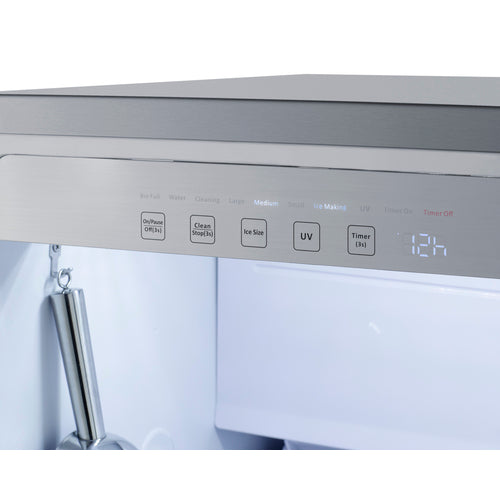

Touch control panel

Provides easy operation of the unit with indicator lights for each stage of the production process

Ice selection

Unit allows users to choose from small, medium, or large clear ice cubes

Automatic defrost

Reduced maintenance with auto defrost system

Interior light

LED lighting automatically illuminates when the door is opened

Interior UV light

Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes

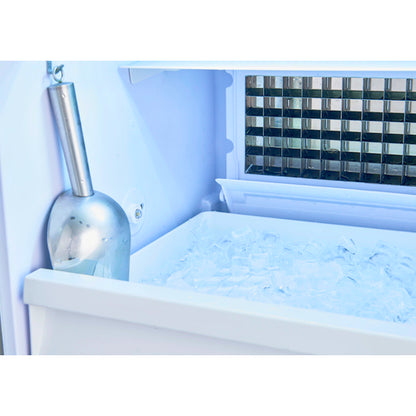

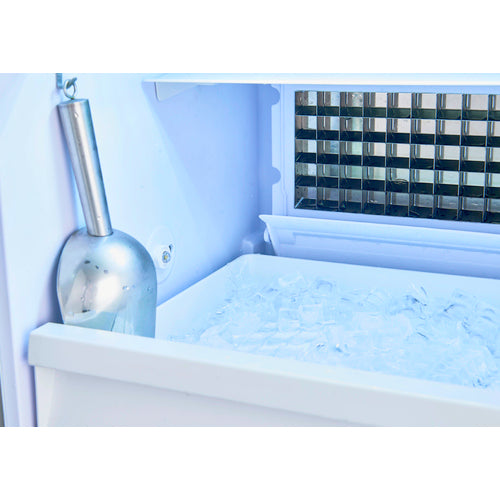

Ice scoop included

Interior wall includes brackets to hang for easy storage

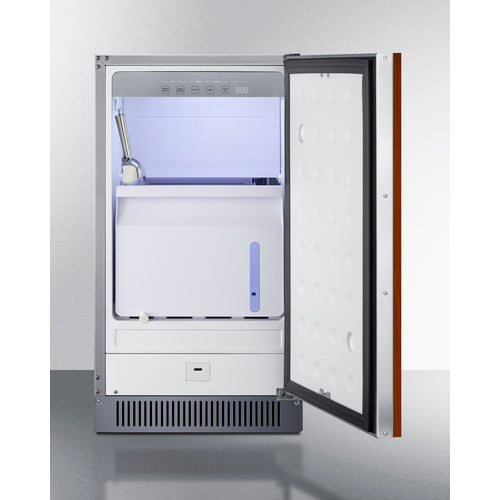

Removable bin

Users can remove the ice bucket for fast and easy cleaning

Insulated storage bin

Ice stays solid longer in this cold-protected bin

Fully finished stainless steel cabinet

Allows the unit to be used freestanding

Sealed back

Space-saving design with easier cleanability

Right angle plug

Flat design offers added space savings by requiring no extra depth to plug the unit in

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Lead-free certified

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Overview

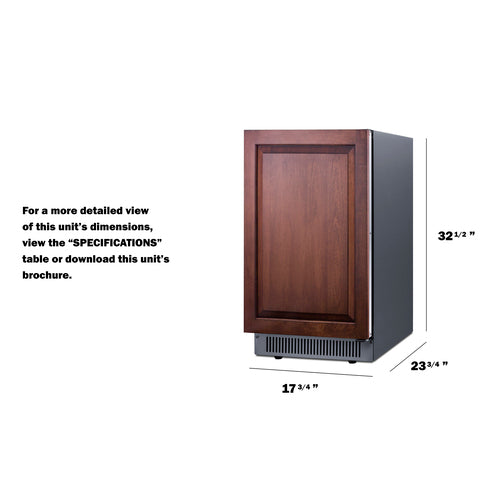

Height of Cabinet 32.5" (83 cm)
Width 17.75" (45 cm)
Depth 23.75" (60 cm)
Depth with door at 90° 41.0" (104 cm)
Defrost Type Automatic
Door Panel-Ready
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 11.8
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101150727
Icemaker
Door Swing RHD
Reversible Factory Reversible
Height Adjustable Yes
Drain Required Yes
Daily Ice Production 60.0 lbs. (27 kg)
Ice Storage Capacity 33.0 lbs. (15 kg)
Ice Shape Cube
Size of Cube .87" x .87" . 87"
Number of Ice Cube Sizes 3
Interior Light Yes
Refrigerant Type R290
Refrigerant Amount 1.37 oz.
High Side PSI 330.0
Low Side PSI 160.0
Interior Height 18.75" (48 cm)
Interior Width 14.75" (37 cm)
Interior Depth 16.75" (43 cm)
Level Legs 4
 Exterior
LHD - Left hand door swing


BROCHURE w/ DRAWINGS



BIM182OSADAIF.pdf

BIM182OSADAIFLHD.pdf

TECHNICAL DRAWING (.dwg) BIM182ADAIF.dwg
USE & CARE BIM182ADA_User_Manual_07-30-24.pdf
ASSEMBLY DRAWING BIM182ADAIF-Assembly.pdf
