Summit Appliance
Summit Appliance 18" Wide Clear Icemaker (Panel Not Included)
Summit Appliance 18" Wide Clear Icemaker (Panel Not Included)
No reviews
Regular price
$3,210.00 USD
Regular price
Sale price
$3,210.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Add some luxury and convenience to your outdoor kitchen with Summit's 18" wide clear icemaker. Its front-breathing design allows for easy built-in installation, and the height can be adjusted to fit standard counters. The stainless steel door is customizable with overlay panels, giving it a sleek and custom look. Plus, with a sealed back and durable stainless steel construction, this icemaker is built to last.
Make perfectly clear ice cubes with ease using the Summit Appliance 18" Wide Clear Icemaker. With a spacious capacity of 60 lbs. daily, UV lighting for visibility and bacteria protection, and an automatic defrost system, this icemaker is a convenient addition to any kitchen. Plus, it comes with all the necessary accessories and even has a hook for the ice scoop. Perfect for your unique kitchen setup!
Upgrade your undercounter space with the Summit Appliance 18" Clear Icemaker. With a variety of matching refrigerators, beverage centers, and wine cellars, we have a solution for any residential or commercial need. Say goodbye to messy drain systems - choose from our drain-free options. (Panel not included.)
FEATURES
Outdoor 18" Wide Clear Icemaker
Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings
Weatherproof design
Durable stainless steel construction for safe installation in outdoor spaces

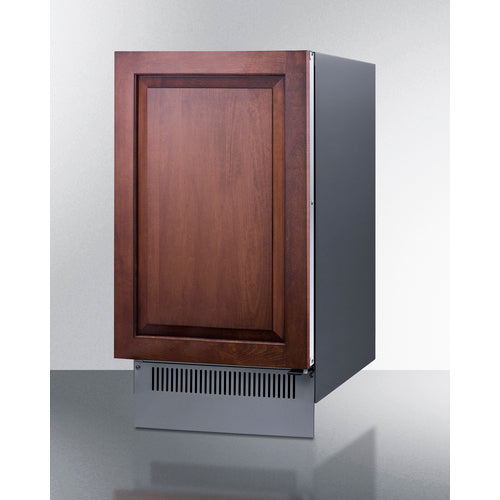

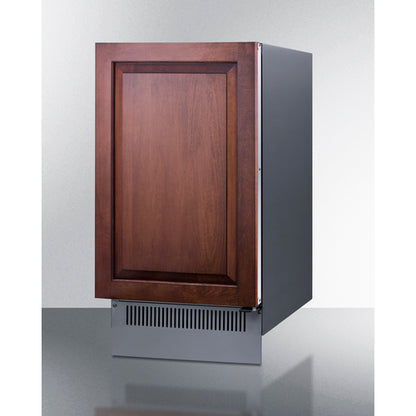

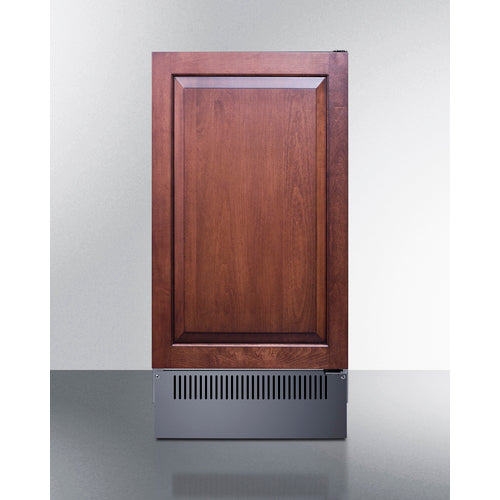

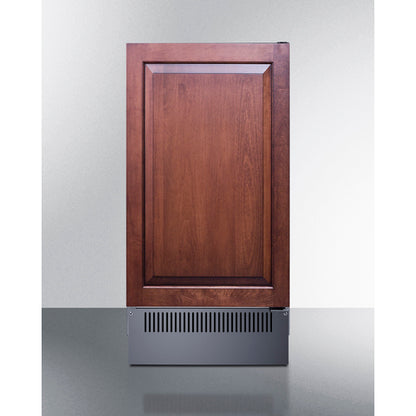

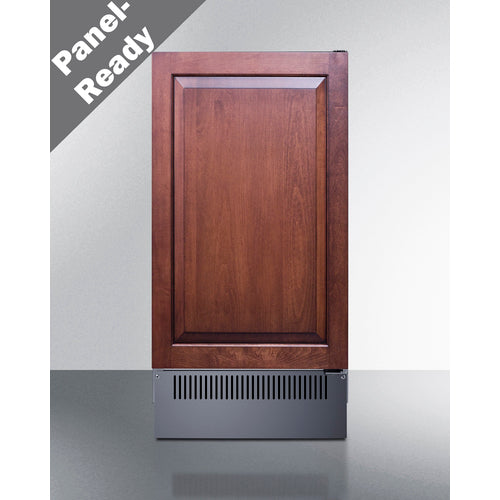

Panel-ready door
Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness)
Built-in capable
Make the best use of space by installing your icemaker under the counter
60 lb. production capacity
Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs. per day
Height adjustable
Unit is sized at 32 1/2" and can be raised to 34 3/4" to best fit a variety of spaces
Built-in pump
Internal pump affords more flexibility in placing the unit

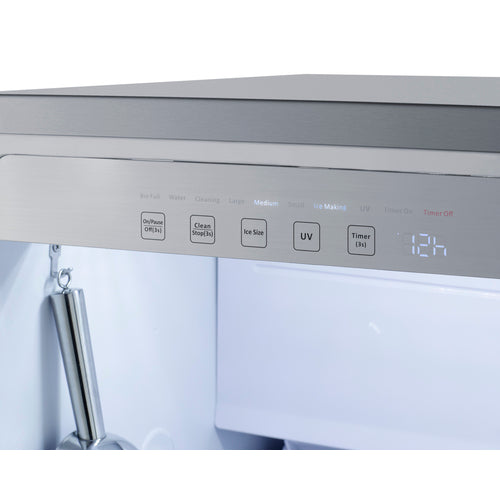

Touch control panel
Provides easy operation of the unit with indicator lights for each stage of the production process
Ice selection
Unit allows users to choose from small, medium, or large clear ice cubes
Automatic defrost
Reduced maintenance with auto defrost system
Interior light
LED lighting automatically illuminates when the door is opened
Interior UV light
Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes

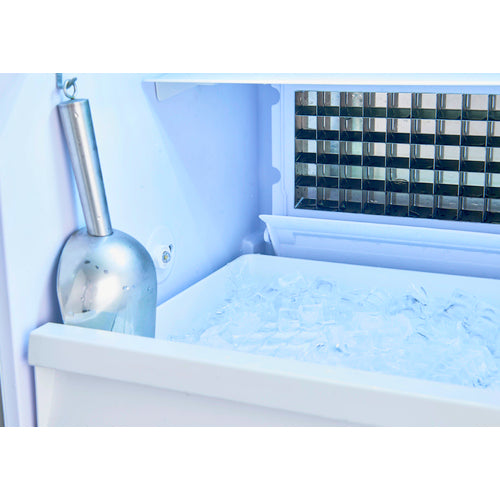

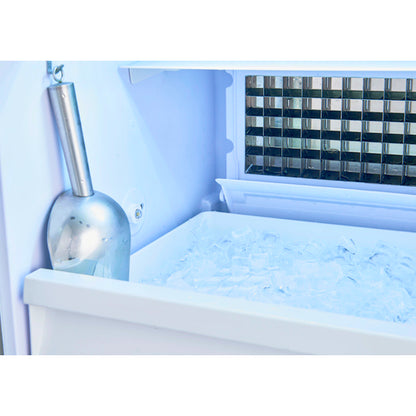

Ice scoop included
Interior wall includes brackets to hang for easy storage

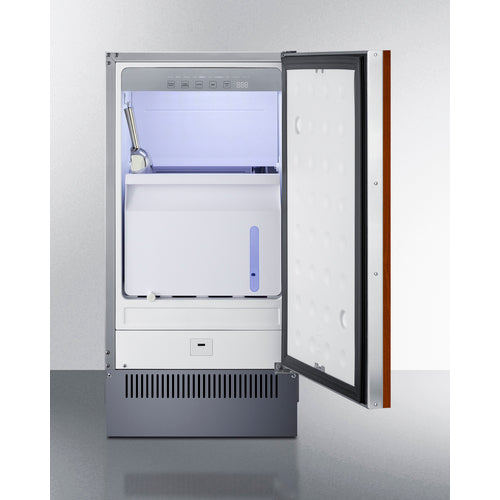

Removable bin
Users can remove the ice bucket for fast and easy cleaning
Insulated storage bin
Ice stays solid longer in this cold-protected bin
Fully finished stainless steel cabinet
Allows the unit to be used freestanding
Pro style handle
Vertically mounted stainless steel handle completes the look
Sealed back
Space-saving design with easier cleanability
Right angle plug
Flat design offers added space savings by requiring no extra depth to plug the unit in
CARB compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|

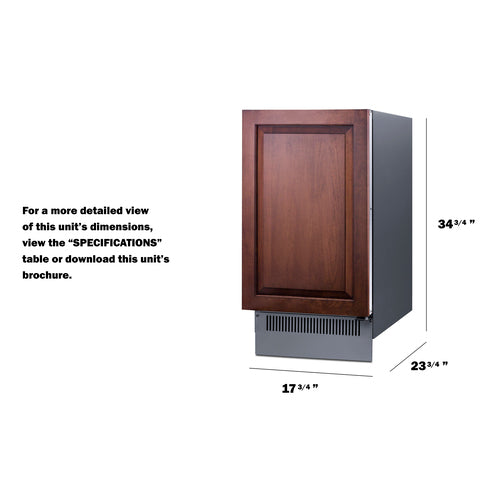

Overview
|
|
|---|---|
| Height of Cabinet | 34.75" (88 cm) |
| Width | 17.75" (45 cm) |
| Depth | 23.75" (60 cm) |
| Depth with door at 90° | 41.0" (104 cm) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 11.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101150802 |
|
Icemaker
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Height Adjustable | Yes |
| Drain Required | Yes |
| Daily Ice Production | 60.0 lbs. (27 kg) |
| Ice Storage Capacity | 33.0 lbs. (15 kg) |
| Ice Shape | Cube |
| Size of Cube | .87" x .87" . 87" |
| Number of Ice Cube Sizes | 3 |
| Interior Light | Yes |
| Refrigerant Type | R290 |
| Refrigerant Amount | 1.37 oz. |
| High Side PSI | 330.0 |
| Low Side PSI | 160.0 |
| Interior Height | 18.75" (48 cm) |
| Interior Width | 14.75" (37 cm) |
| Interior Depth | 16.75" (43 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior |
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
|
| TECHNICAL DRAWING (.dwg) | BIM182IF.dwg |
| USE & CARE | |
| ASSEMBLY DRAWING |
