This drawer appliance by Summit is designed for convenience and luxury, with a solid state and 18" width that make it perfect for home kitchens, hotel spaces, corporate offices, back bar settings, and more. It is ideal for storing and cooling both wine and other beverages, making it a versatile choice for a variety of settings.
The Summit Appliance COOL1D model is a 1-drawer refrigerator designed for both wine and beverage storage. It utilizes an efficient and quiet solid state cooling system for optimal performance. The stainless steel drawer features a fully finished front with a horizontal grain, providing a professional and sleek look. Additionally, the drawer can be customized with an overlay panel to match or complement surrounding cabinetry.

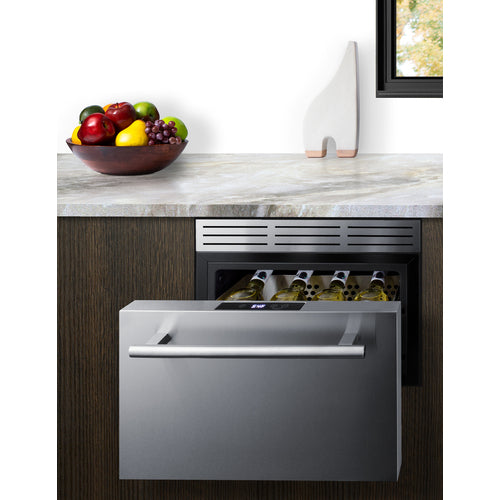

This appliance is specifically designed for installation in cabinet openings measuring 12" H x 18" W x 22.5" D, and requires a 5.11" x 2.36" ventilation channel above the cabinet for proper operation. Alternatively, a stainless steel front grill is included to raise the height by 2" to accommodate exhaust.
The COOL1D is a versatile addition to any kitchen, with intuitive digital controls that allow you to easily adjust the temperature between 46 and 68ºF. You can select between Fahrenheit and Celsius for the temperature readout according to your personal preference. An audible/visual alarm will sound if the drawer is left open for more than 5 minutes, ensuring the safety of your wine and beverages.
The white hue LED lights provide elegant illumination when the drawer is opened, and the Sabbath mode feature allows you to turn off the interior light and digital temperature display as desired.

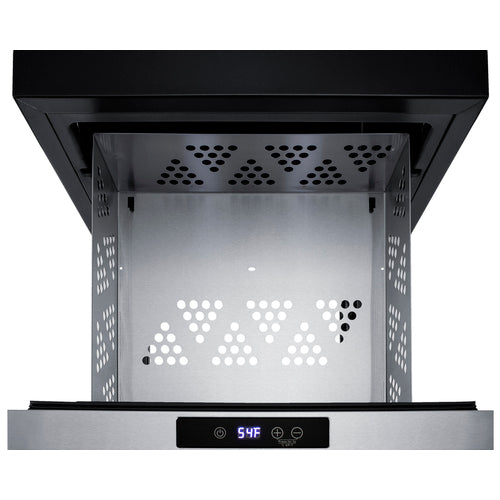

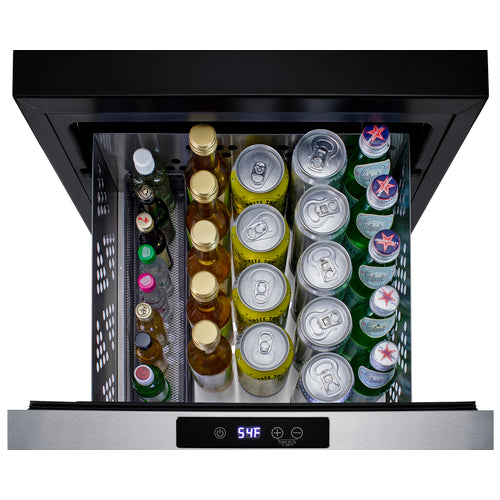

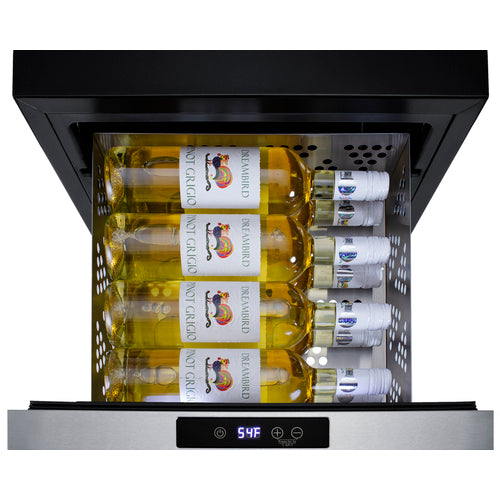

This wine and beverage cooler drawer comes equipped with two removable wine shelves, providing a convenient angle for standard Bordeaux style bottles. This allows for easy access and storage of open bottles, with the necks facing forward. The shelves can hold up to 4 bottles, with an additional 2 on the bottom of the drawer. For more flexibility, the shelves can be removed to accommodate up to 8 bottles or a variety of other beverage options, such as soda cans and water bottles. The COOL1D also has a mild temperature range and elegant design, making it suitable for storing skincare products like face masks, serums, creams, and other cosmetics that require cooler temperatures.

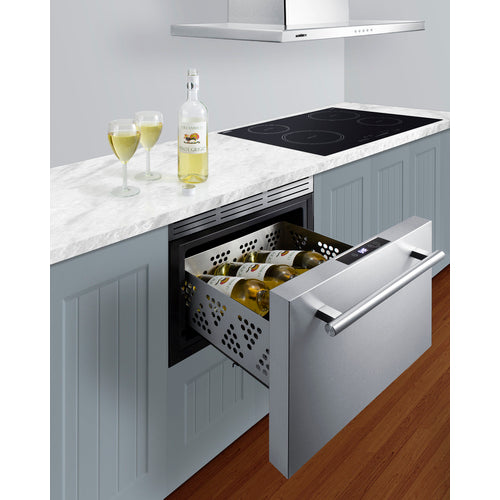

The COOL1D is a compact and dynamic cooling system that can enhance undercounter openings in a variety of spaces, including home kitchens, wet bars, corporate locations, bathrooms, walk-in closets, and hotel suites. Its versatile performance makes it perfect for numerous installations.
FEATURES
Slim fit allows you to elevate extra undercounter or wall space
Solid state cooling eliminates the typical noises and vibrations produced by compressor-based coolers
Designed for installation in 12" H x 18" W x 22.5" D cutouts with cross ventilation in rear

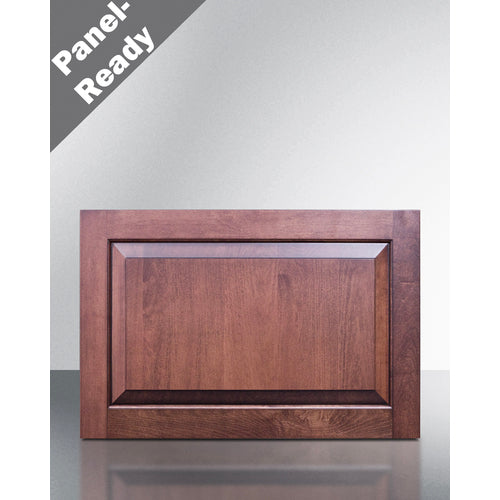

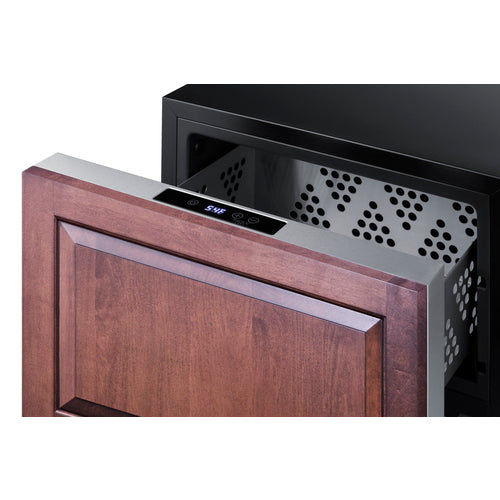

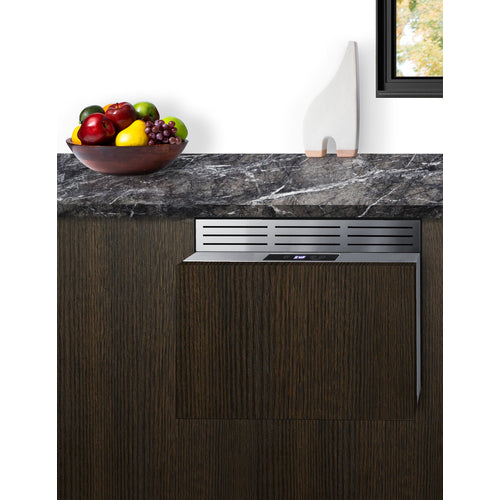

Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 11.9" H x 17.87" W at 3/4" thickness)
Drawer front and interior constructed from stainless steel for added durability and easy cleanability

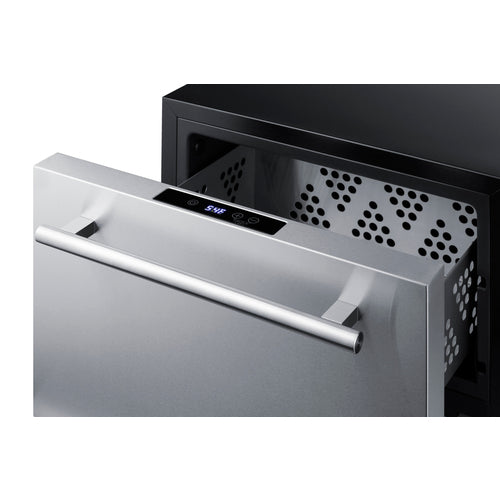

Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
Designed to operate between 46 and 68ºF for the ideal storage of wine, beverages, and certain cosmetics

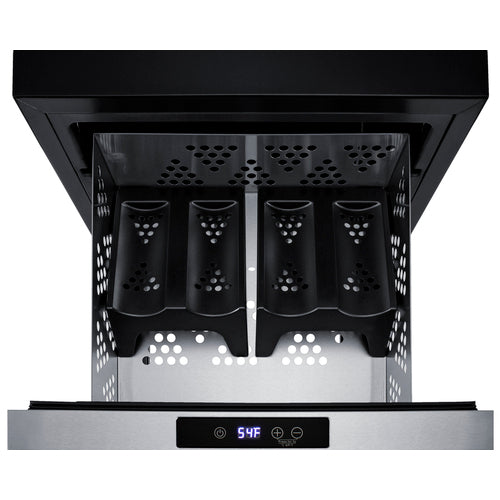

Two molded plastic racks included to store Bordeaux style and other bottles at a slight angle

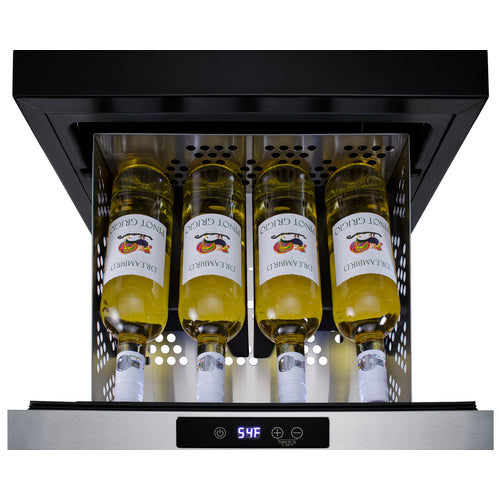

Thoughtfully designed shelving allows you to store up to 4 bottles at a 45º angle, perfect for chilling open bottles without in spill-proof style

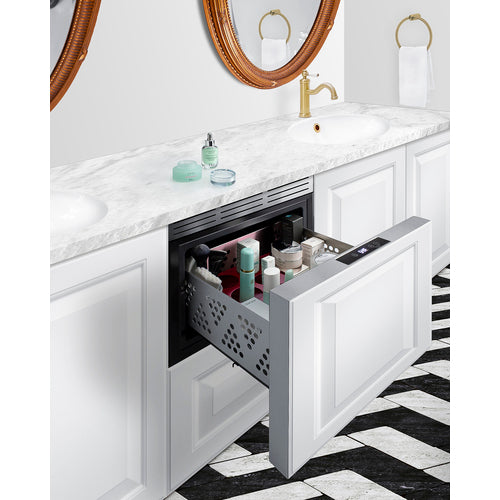

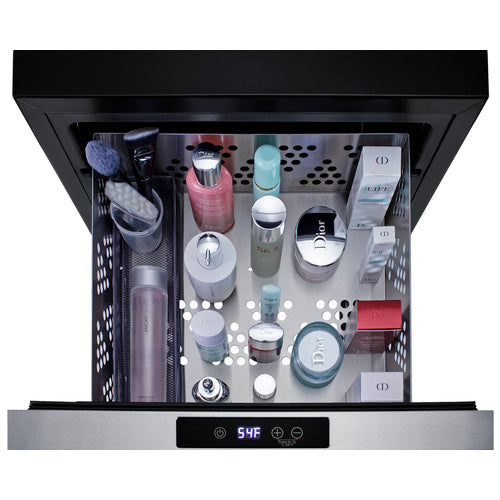

Temperature range and unit size makes it the perfect spa or vanity cooler to keep cosmetics, serums, and other skincare products stored at the proper conditions

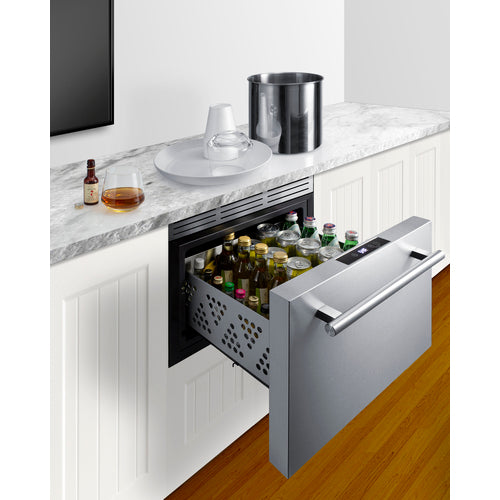

Ideal for hospitality design looking to elevate the in-room minibar with a more luxurious design
Audible/visual alarm alerts if the drawer has been left open for five minutes
Optional setting lets you disable certain electrical functions during periods of religious observance

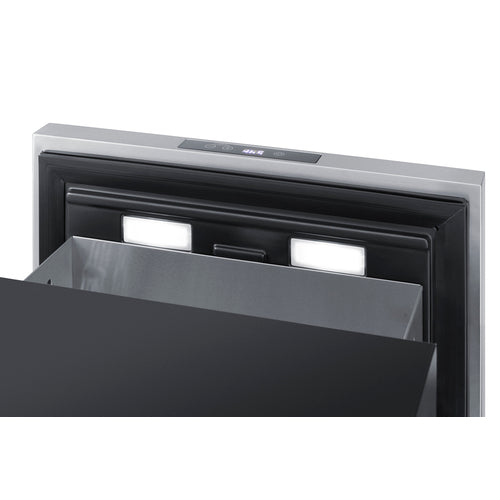

Elegant LED lighting in a gentle white hue illuminates the drawer for an easy view of the interior

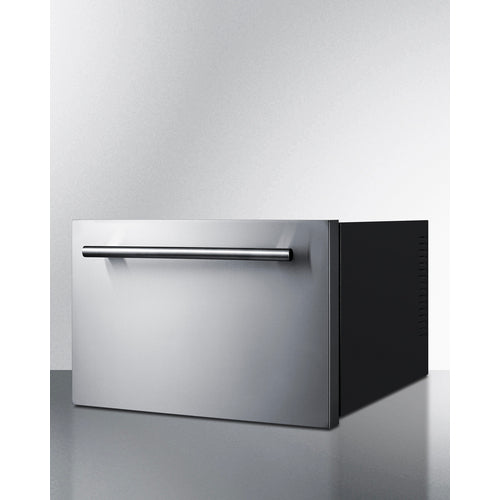

A sleek stainless steel handle adds an elegant touch to any setting
Space-saving design with no exposed coils for easier cleanability
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Allows the unit to be used freestanding if preferred
Environmentally friendly design without ozone-damaging chemicals
SPECIFICATIONS
|
Overview
|
|
|---|---|

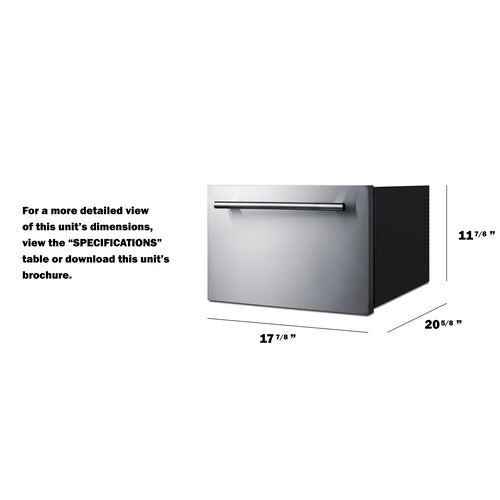

| Height of Cabinet | 11.88" (30 cm) |
| Width | 17.88" (45 cm) |
| Depth | 20.63" (52 cm) |
| Depth with Handle | 22.5" (57 cm) |
| Capacity | 0.8 cu.ft. (23 L) |
| Bottles | 8 bottles |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 62.0 lbs. (28 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101088945 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | Drawer |
| Adjustable Shelves | Yes |
| Shelf Type | Plastic |
| Shelf Qty | 2 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Exterior |
| Interior Height 1 | 7.0" (18 cm) |
| Interior Width 1 | 13.63" (35 cm) |
| Interior Depth 1 | 12.25" (31 cm) |
| Level Legs | 2 |
| Temperature Range | 46 to 68ºF |
| Sabbath Mode | Yes |
