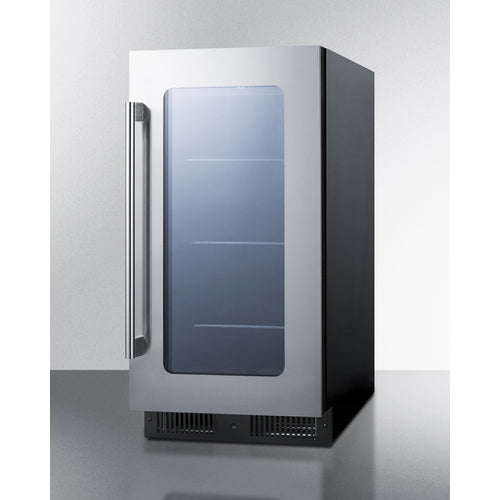

Summit Appliance 18 inch Wide Built-In Commercial Beverage Center
Summit Appliance 18 inch Wide Built-In Commercial Beverage Center
Couldn't load pickup availability
Summit's commercial beverage center lineup features distinctive 18" wide models engineered for professional applications. The CL181WBV, ETL-S certified to NSF-7 commercial standards, combines functionality with sophisticated design. Its front-breathing architecture facilitates under-counter integration, while the jet black finished cabinet allows for standalone placement.
The unit showcases premium construction with seamless stainless steel door trim that elegantly transitions into tinted double-pane tempered glass. A professional-grade stainless steel handle and fully articulating European hinge system ensure precision operation and alignment. Strategic side-wall white LED illumination contrasts beautifully with the black interior, creating an optimal display environment that enhances product visibility. Security is thoughtfully addressed with a discreet yet accessible lock integrated into the kickplate.
The CL181WBV incorporates three adjustable glass shelves designed for containment of potential spills, complemented by a specialized floor configuration engineered to secure wine bottles. Its intuitive digital control interface features a precision thermostat with dual-scale temperature display capabilities in both Celsius and Fahrenheit. The unit's versatility extends to its user-reversible door, while the right-angle plug configuration maximizes installation flexibility in space-constrained environments.
A sealed back design facilitates maintenance and sanitation procedures, and programmable Sabbath mode accommodates specialized operational requirements. The integrated alert system provides audible notifications for door closure failures and temperature threshold violations—particularly valuable in high-traffic commercial applications. With its distinctive aesthetic and comprehensive feature set, the CL181WBV represents an optimal solution for beverage presentation and preservation across diverse commercial venues including restaurants, hospitality lounges, hotel reception areas, and similar professional environments.
Undercounter glass door beverage refrigerator for built-in or freestanding use
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Heat-safe glass ensures your items are stored safely
One-piece stainless steel door frame offers a luxurious look with no exposed seams or holes
Perfectly designed to store and display beverages in a variety of commercial settings, including energy drinks and water bottles in gyms, refreshments in lobbies, sparkling water and juices in restaurants, and much more
Electronic controls for precise temperature management
Temperature readout can be shown in Celsius or Fahrenheit
Spill-proof glass shelves make it easy to store and display bottles and cans
Floor is specially slotted to store wine and other bottles safely in place

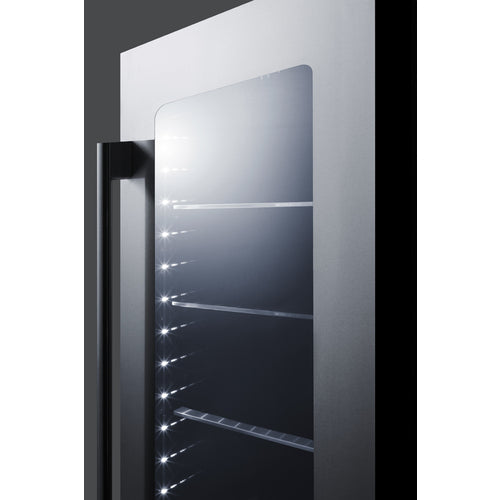

Unique white lighting located inside the walls offers elegant illumination for the jet black interior
Vertically mounted handle in brushed stainless steel
User-reversible door swing allows for more flexibility in placing the unit
Keyed lock located in the kickplate for optional security
Optional setting lets you disable the lighting and alarm for up to 48 hours
Audibly alerts if the interior temperature is too warm
Audible alarm will sound if the door is left ajar for over 60 seconds
Internal fan ensures the interior is evenly cooled from top to bottom
Reduced maintenance and steady temperature performance
Space saving design with easier cleanability
Unit will retain its last settings when power is restored in the event of power loss
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Allows the unit to be used freestanding

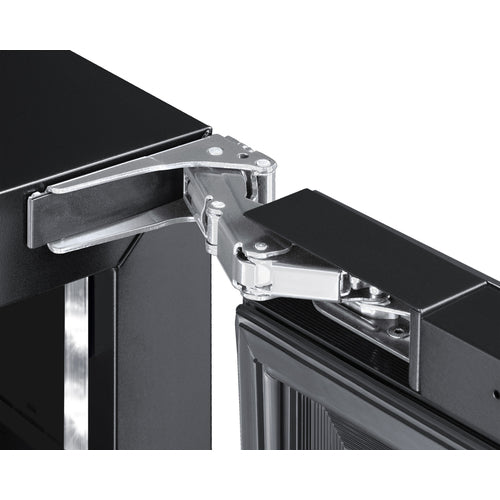

Smoother opening and a better fit with an integrated European hinge
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.75" (86 cm) |
| Nominal Width | 18.0" (46 cm) |
| Width | 17.5" (44 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 39.63" (101 cm) |
| Capacity | 3.2 cu.ft. (91 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 285.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 88.0 lbs. (40 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101053462 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | Reversible |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.85oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
|
Dimensions
|
|
| Interior Height | 23.0" (58 cm) |
| Interior Width | 12.25" (31 cm) |
| Interior Depth | 17.5" (44 cm) |
| Compressor Step Height | 3.25" (8 cm) |
| Compressor Step Width | 12.25" (31 cm) |
| Compressor Step Depth | 5.25" (13 cm) |
AVAILABLE UPGRADES
| Door |
| T1 Door Tint | T4 Door Tint |
| T2 Door Tint | T3 Door Tint |
| T1S Door Tint |
| Exterior | |
| LHD - Left hand door swing | Latch - Factory-installed door latch requires manual release to open unit |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
CL181WBV.pdf |
| TECHNICAL DRAWING (.dwg) | CL181WBV.dwg |
| ASSEMBLY DRAWING | CL181WBV-Assembly.pdf |
| REVIT MODEL |
EVIT MODEL QF_Summit_CL181WBV_Refrigerator.rfa |
| USE & CARE | CL181WBV_Manual_3-29-2019.pdf |
| MSDS INFORMATION | R600a_K.pdf |
| ENERGY GUIDE | https://www.summitappliance.com/energy_guide/5234.pdf |
