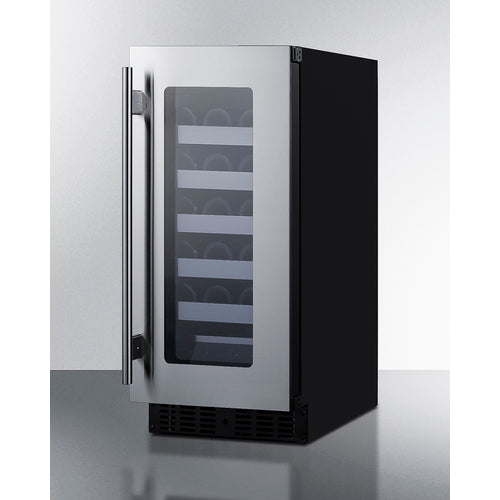

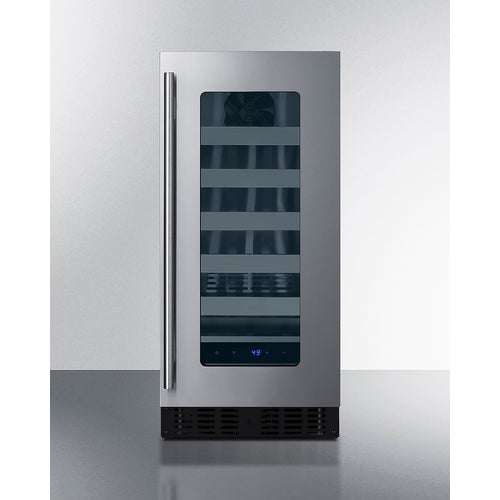

The Summit Appliance 18 Bottle 15" Wide Built-In Wine Cellar, ADA Compliant, part of their shallow depth series of under-counter refrigeration, is designed for kitchen islands, wet bars, and other small spaces. Model ASDW1522 is a single zone wine cellar with a width of 15" and a depth under 18", and can be adjusted to a height of 32" to fit under lower ADA-compliant counters. It also includes adjustable legs and a sliding kickplate cover, allowing for a maximum height of 34" to fit standard counter spaces.
The front-breathing system allows for built-in installation, while the fully finished black cabinet allows for freestanding use. With its seamless stainless steel trim and double-pane tempered glass door, this unit has a sleek and professional look. It also features a user-reversible door and a front lock for added security for your wine collection.
The ASDW1522 boasts a stainless steel construction that enhances durability and hygiene. Along the side walls, there is white LED lighting that provides a graceful display, featuring adjustable levels for the perfect showcase. Using the digital control panel, you can modify the temperature between 41º and 64ºF to accommodate different types of wine such as red, white, or sparkling.
The removable steel shelves, equipped with stainless steel front trim, provide ample space for bottle storage. With fan-forced cooling, the temperature is evenly distributed and recovers quickly. Other notable features include an open door alarm, high-temperature alarm, and Sabbath mode setting that allows for the disabling of certain electrical components during observance periods.
The ETL-S listed ASDW1522 meets NSF-7 commercial standards while also being suitable for home use. Its deluxe style, user-friendly features, and uniquely shallow depth make it a valuable addition to a variety of settings.
For a complete set, pair it with our ASDG1521 beverage center. Other options with a depth of 18 inches are available in widths of 15, 19, and 24 inches, including outdoor refrigerators and refrigerator drawers.

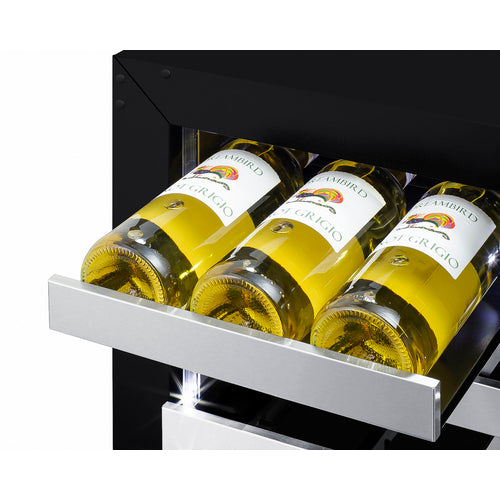

For optimal storage, this unit can hold up to 18 Bordeaux-style bottles inside. To ensure a proper fit, we suggest placing the bottles with the cork facing the back of the unit. While wider Burgundy bottles can be accommodated on most shelves, keep in mind that loading capacity may vary due to their varying sizes
. For thicker bottles, such as champagne and sparkling wine, shelves can be removed for space adjustment.
FEATURES
Single-zone wine cooler for residential or commercial cold storage
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other under-counter areas with limited footprint space
Sized at 32" high for use under lower ADA-compliant counters
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard-sized cabinets
Front-breathing design lets you make the best use of space by installing your appliance under the counter
The walls and floor are constructed from stainless steel for added strength and easy cleanup
Elegant design offers a clear but protected view of your interior
Glass is framed by with a flush one-piece stainless steel trim for an elevated look
Keyed lock for a secure interior (2 keys included)

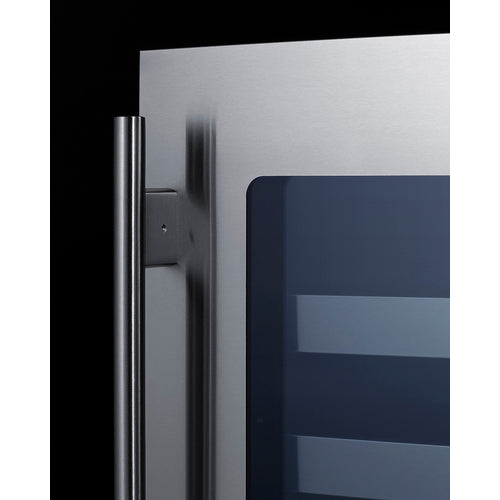

The stainless steel handle completes the look

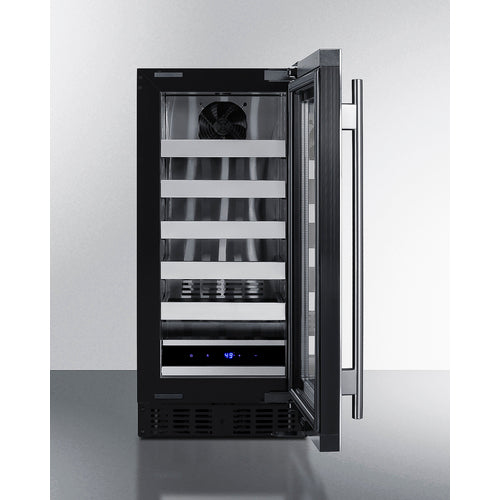

Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
No-frost operation for minimum user maintenance
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

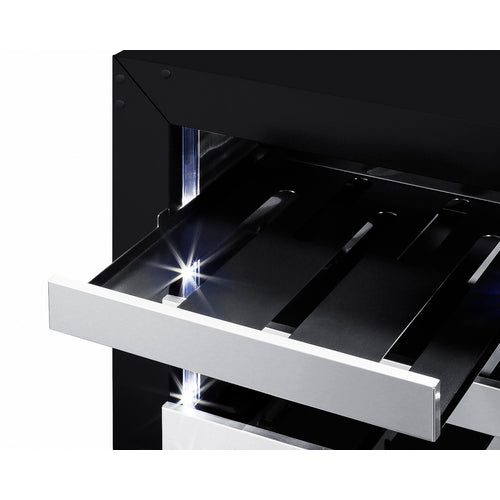

Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
Alarm sounds if the door is left open for more than 60 seconds
An audible alarm sounds if the interior temperature rises out of the set range
The optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
The unit will retain its last settings when power is restored in the event of power loss
The design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space-saving design with no exposed coils that offers easier cleanability

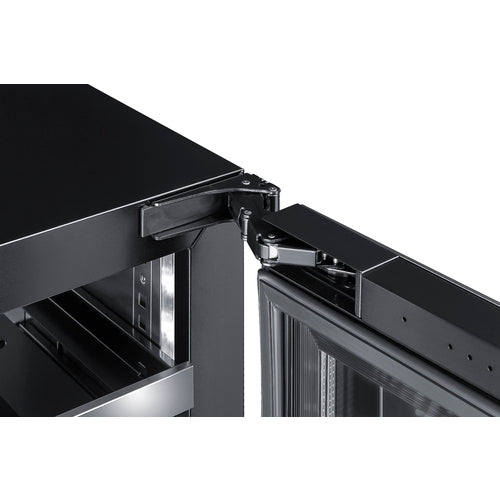

Smoother opening and a better fit with an integrated European hinge
User-reversible door swing on the refrigerator for added flexibility
Allows the unit to be used freestanding
ETL-S is listed to NSF-7 Standards for use in commercial establishments
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Width | 14.75" (37 cm) |
| Depth | 17.75" (45 cm) |
| Depth with Handle | 19.63" (50 cm) |
| Depth with door at 90° | 31.0" (79 cm) |
| Capacity | 1.8 cu. ft. (51 L) |
| Bottles | 18 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 68.0 lbs. (31 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101079516 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 5 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 20.5" (52 cm) |
| Interior Width 1 | 10.75" (27 cm) |
| Interior Depth 1 | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.75" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 41º to 64ºF |
| Sabbath Mode | Yes |
| Sound Level | 33 dB |
AVAILABLE UPGRADES
| Exterior | LHD - Left-hand door swing |
| Door |
| T4 Door Tint | T3 Door Tint |
| T2 Door Tint | T1S Door Tint |
| T1 Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
ASDW1522.pdf |
| USE & CARE | |
| TECHNICAL DRAWING (.dwg) | |
| ASSEMBLY DRAWING | |
| REVIT MODEL | |
| MSDS INFORMATION |
