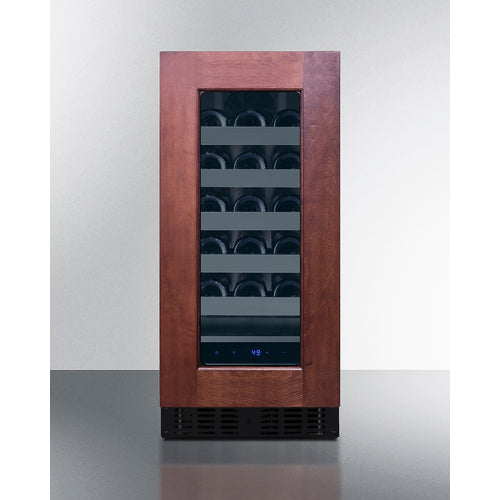

The Summit Appliance 18 Bottle 15" Wide Built-In Wine Cellar, ADA Compliant, ASDW1522PNRLHD, boasts stainless steel construction for enhanced durability and hygiene. The side walls feature white LED lighting for a sophisticated display, with adjustable dimmable levels to achieve the perfect showcase. Easily adjust the temperature between 41º and 64ºF for your red, white, or sparkling wines using the digital control panel.
Keep your bottles organized on the removable steel shelves, complete with stainless steel front trim. Fan-forced cooling ensures uniform temperature distribution and quick temperature recovery. Additional convenient features include an open door alarm, high-temperature alarm, and Sabbath mode setting for disabling electrical elements during observance periods.
The ASDW1522PNRLHD and ASDW1522PNR are both ETL-S listed, meeting NSF-7 commercial standards and providing a versatile choice for either commercial or residential use. This unit boasts a deluxe design, practical features, and a notably shallow depth, making it a high-value option for various environments.
For a cohesive look, consider pairing it with our ASDG1521PNR beverage center. We also offer additional options with a depth of 18" in widths of 15", 19", and 24", such as outdoor refrigerators and refrigerator drawers.

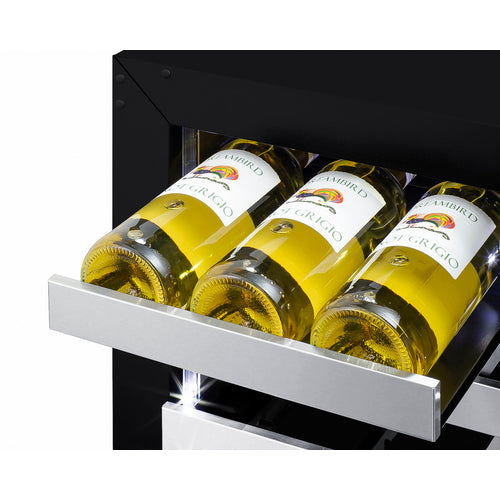

The interior of this unit can hold up to 18 Bordeaux-style bottles. Due to the shallow depth, it is recommended to load the bottles with the cork facing the rear for a better fit. Most shelves can accommodate wider Burgundy bottles, but loading capacity will vary depending on the specific bottle size. Shelves can also be removed to fit thicker bottles, like champagne or sparkling wine.
FEATURES

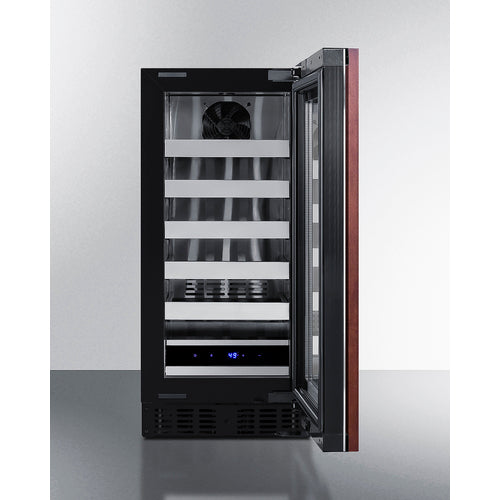

Single-zone wine cooler for residential or commercial cold storage
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other under-counter areas with limited footprint space
Sized at 32" high for use under lower ADA-compliant counters
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard-sized cabinets
Front-breathing design lets you make the best use of space by installing your appliance under the counter

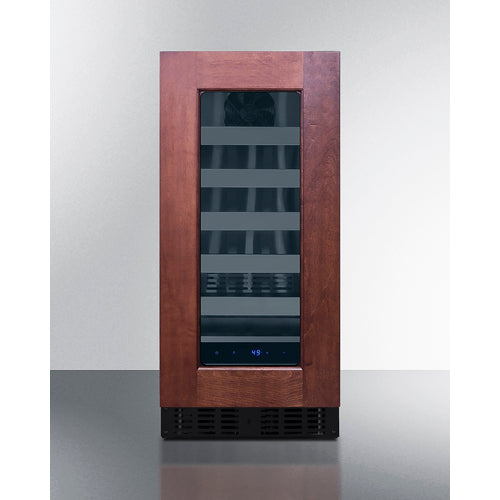

Elegant design offers a clear but protected view of your interior

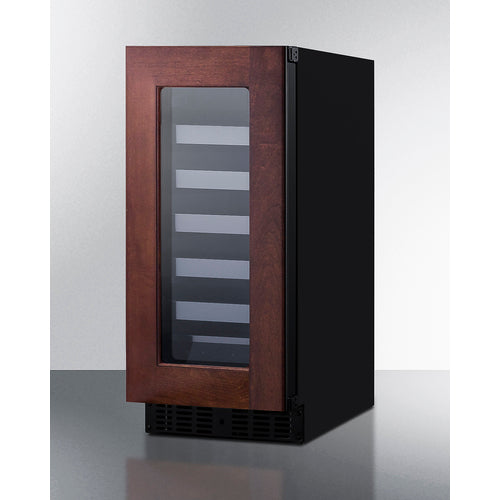

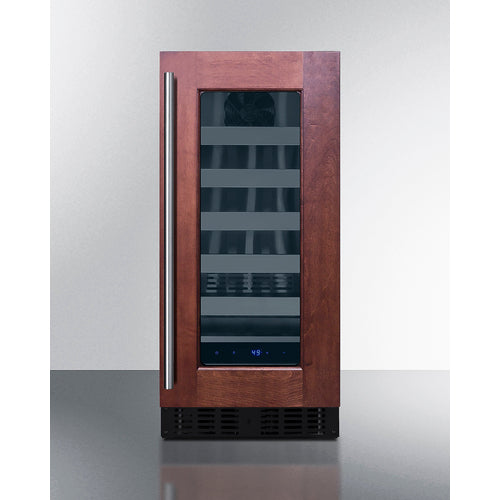

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry
Glass is framed by with a flush one-piece stainless steel trim for an elevated look
The walls and floor are constructed from stainless steel for added strength and easy cleanup
Keyed lock for a secure interior (2 keys included)
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
No-frost operation for minimum user maintenance
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

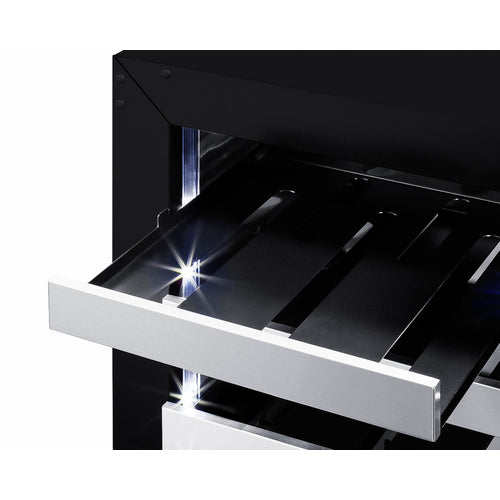

Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
Alarm sounds if the door is left open for more than 60 seconds
An audible alarm sounds if the interior temperature rises out of the set range
The optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
The unit will retain its last settings when power is restored in the event of power loss
The design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space-saving design with no exposed coils that offers easier cleanability
Smoother opening and a better fit with an integrated European hinge
User-reversible door swing on the refrigerator for added flexibility
Allows the unit to be used freestanding
ETL-S is listed to NSF-7 Standards for use in commercial establishments
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Width | 14.75" (37 cm) |
| Depth | 17.75" (45 cm) |
| Depth with door at 90° | 31.0" (79 cm) |
| Capacity | 1.8 cu. ft. (51 L) |
| Bottles | 18 bottles |
| Defrost Type | Automatic |

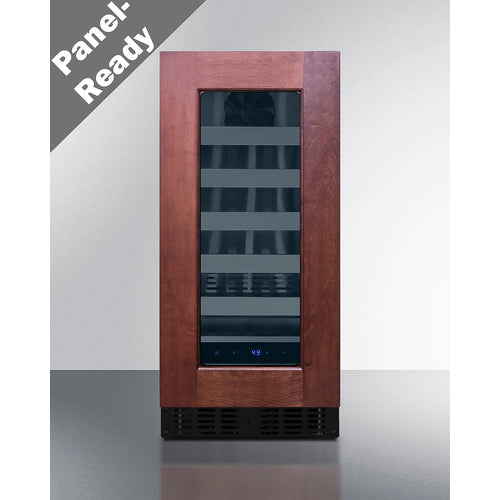

| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 68.0 lbs. (31 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC |
761101077154 761101108193 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 5 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 20.5" (52 cm) |
| Interior Width 1 | 10.75" (27 cm) |
| Interior Depth 1 | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.75" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 41º to 64ºF |
| Sabbath Mode | Yes |
| Sound Level | 33 dB |
AVAILABLE UPGRADES
| Exterior | LHD - Left-hand door swing |
| Door |
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
ASDW1522PNR.pdf ASDW1522PNRLHD.pdf |
| USE & CARE | |
| TECHNICAL DRAWING (.dwg) | |
| ASSEMBLY DRAWING | |
| REVIT MODEL | |
| MSDS INFORMATION |
