Summit's series of built-in under-counter refrigeration offers full functionality for kitchen islands, wet bars, and other spaces with limited room.

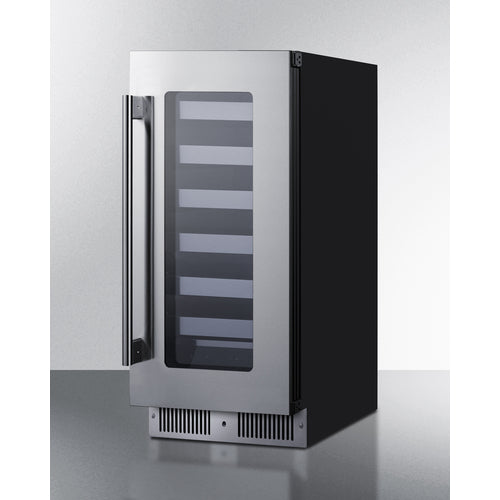

The SDHW1532 and SDHW1532LHD models both feature a single-zone 15" wide design, suitable for under counter spaces with a standard 34" height and 18" depth. The front-breathing system allows for built-in installation, while the sleek black cabinet can also be used as a freestanding unit.

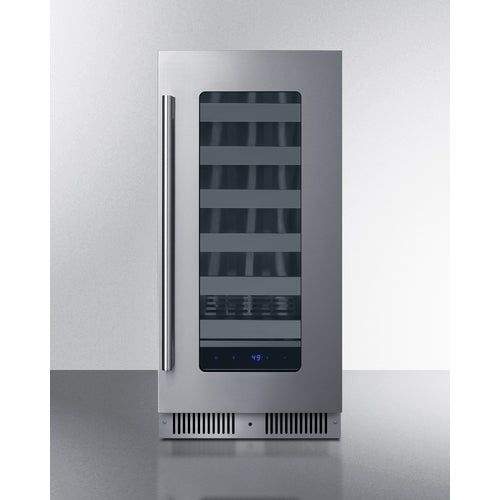

The seamless stainless steel trim and reversible double-pane tempered glass door, paired with a professional steel handle, give the wine cellar a sophisticated and elevated aesthetic. Additionally, the fully articulating European hinge design ensures a smooth opening and a lock located in the kickplate provides added convenience and security.

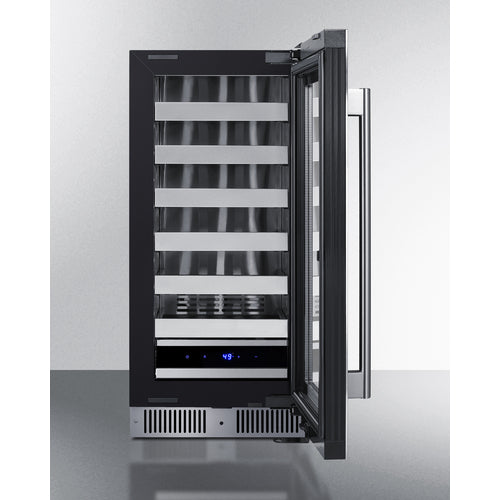

The interior of this wine cellar is constructed with stainless steel, ensuring both durability and sanitation. The side walls feature elegant white LED lighting, with adjustable dimmable levels for customizable display.
The angled digital control panel allows you to easily adjust the temperature between 41º and 68ºF to accommodate various types of wine bottles. The jet-black steel shelves are designed for smooth sliding, complemented by stainless steel front trim for a classic aesthetic. With fan-forced cooling, the temperature is evenly distributed and quickly recovered.
Enhanced capabilities include an open-door alarm, a high-temperature alarm, and a Sabbath mode setting that deactivates certain electrical components for up to 96 hours during observances.
FEATURES
Single-zone wine cooler for residential or commercial storage
Unique 18" shallow depth is ideal for wet bars, island kitchens, and other under-counter areas with limited footprint space
Front-breathing design lets you make the best use of space by installing your appliance under the counter
ETL-S is listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
Elegant design offers a clear but protected view of your interior
Glass is framed by with a flush one-piece stainless steel trim for an elevated look
Smoother opening and a better fit with an integrated European hinge
Keyed lock for a secure interior (2 keys included)
The stainless steel handle completes the look
Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
The walls and floor are constructed from stainless steel for added strength and easy cleanup
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
The unit's temperature range of 41º to 68ºF is ideal for red, white, or sparkling wine bottles
Alarm sounds if the door is left open for more than 60 seconds
An audible alarm sounds if the interior temperature rises out of the set range
No-frost operation for minimum user maintenance
The thermostat’s unique and ergonomic position allows for more accessible temperature readings with zero bending required
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
The unit will retain its last settings when power is restored in the event of power loss
The optional setting lets you disable the lighting and alarm for up to 96 hours
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
Allows the unit to be used freestanding
Space-saving design with no exposed coils that offers easier cleanability
The design allows you to plug the unit in flush against the wall socket with no need to add extra depth
User-reversible door swing for added flexibility to best accommodate your setting

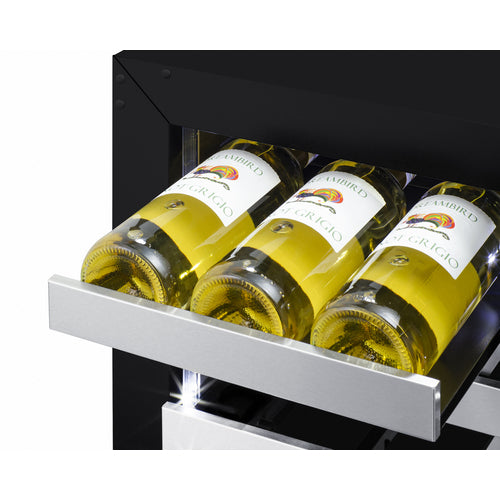

18-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)
Runs under 34 dB for a quiet performance that won't interrupt your conversation
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
SPECIFICATIONS
|
Overview
|
|
|---|---|

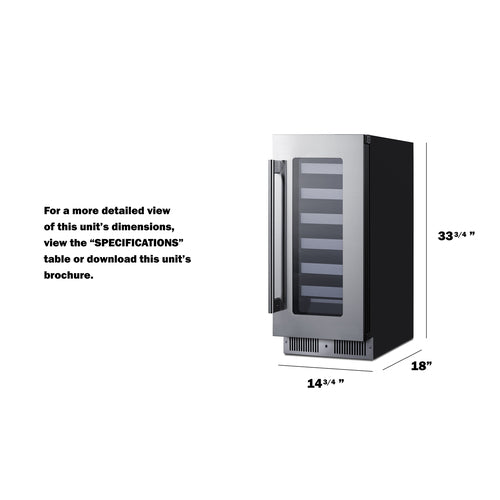

| Height of Cabinet | 33.75" (86 cm) |
| Width | 14.75" (37 cm) |
| Depth | 18.0" (46 cm) |
| Depth with Handle | 19.75" (50 cm) |
| Depth with door at 90° | 32.63" (83 cm) |
| Capacity | 1.8 cu. ft. (51 L) |
| Bottles | 18 bottles |
| Defrost Type | Frost-Free |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 88.0 lbs. (40 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101106335 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 10.63" (27 cm) |
| Interior Depth 1 | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.63" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Temperature Range | 41°F to 68°F |
| Sabbath Mode | Yes |
| Sound Level | 33.3 dB |
AVAILABLE UPGRADES
| Exterior | LHD - Left-hand door swing |
| Door |
| T1 Door Tint | T2 Door Tint |
| T3 Door Tint | T4 Door Tint |
| T1S Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
SDHW1532.pdf SDHW1532LHD.pdf |
| USE & CARE | |
| TECHNICAL DRAWING (.dwg) | |
| ASSEMBLY DRAWING |
