Upgrade your kitchen with the Summit Appliance 18" 8 lb. Drain-Free Icemaker. With a compact size and front-breathing design, this icemaker allows for easy built-in or freestanding installation. Customize the look with an integrated panel and enjoy the flexibility of no drain or pump required.
Make ice without the hassle with the Summit Appliance 18" 8 lb. Drain-Free Icemaker. Its frost-free operation means less maintenance for you, while the removable bucket and additional chrome shelves provide storage convenience. Produces 8 lbs. of crescent-shaped ice cubes. (Panel Not Included)
Introducing the versatile Summit Appliance 18" Icemaker! Perfect for smaller kitchens, this drain-free icemaker can be customized to fit your specific needs. Looking for an ADA compliant option? Check out the BIM18IFADA. Plus, we offer matching refrigerators, beverage centers, and wine cellars. Explore our selection now!
FEATURES
Make the best use of space by installing your appliance under the counter
Convenient design allows more flexibility in positioning the unit
Makes and stores up to 8 lbs. of crescent cubes

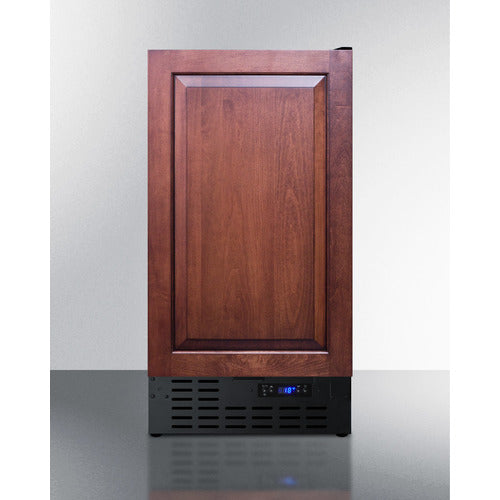

Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 17 1/2" W x 27 3/4" H; maximum weight: 10 lbs.)

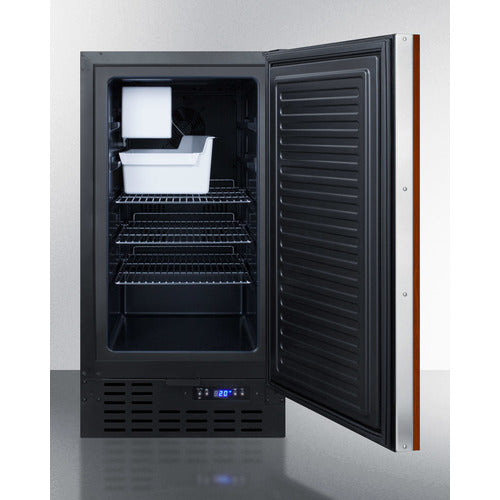

Bucket can be removed for fast and easy cleaning
Electronic controls for precise temperature management.
Temperature readout can be shown in Celsius or Fahrenheit
Eliminates the need to manually defrost the interior
Adjustable chrome shelves included to accommodate additional items
Space saving design with easier cleanability
Allows the unit to be used freestanding
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design with no ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.25" (87 cm) |
| Width | 17.75" (45 cm) |
| Depth | 24.0" (61 cm) |
| Depth with Handle | 25.75" (65 cm) |
| Depth with door at 90° | 40.0" (102 cm) |
| Capacity | 2.7 cu.ft. (76 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 82.0 lbs. (37 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101063744 |
|
Icemaker
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Daily Ice Production | 8.0 lbs. (4 kg) |
| Ice Storage Capacity | 8.0 lbs. (4 kg) |
| Ice Shape | Crescent |
| Number of Ice Cube Sizes | 1 |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 103.0 |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 12.75" (32 cm) |
| Interior Depth | 16.75" (43 cm) |
| Compressor Step Height | 4.5" (11 cm) |
| Compressor Step Width | 12.75" (32 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Level Legs | 4 |
| Temperature Range | -22 to 14ºF |
AVAILABLE UPGRADES
| Exterior |
| Latch - Factory-installed door latch requires manual release to open unit | LHD - Left hand door swing |
| SSK - Stainless steel kickplate |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
BIM18IF.pdf
|
| TECHNICAL DRAWING (.dwg) | IF_Instructions_-_General.pdf |
| USE & CARE |
