Get ready for convenient luxury with the Summit Appliance 18" Icemaker. Designed for ADA compliant settings, this built-in unit is just under 18 inches wide and 32 inches high. With an integrated stainless steel frame, you can customize the look with overlay panels. Plus, no drain or pump is required, giving you more placement options.
Efficiently make and store 8 lbs. of crescent-shaped ice with the Summit Appliance 18" Drain-Free Icemaker. No need to worry about draining - the removable bucket holds it all. No need to defrost either, thanks to frost-free operation. Additional chrome shelves add more freezing options. (Panel not included.)
Stay cool and stylish with the Summit Appliance 18" 8 lb. Drain-Free Icemaker, ADA Compliant! This compact icemaker is perfect for small ADA compliant kitchen spaces, and can be customized to match other 18 inch wide appliances. Never run out of ice again, browse our website for more options!
FEATURES

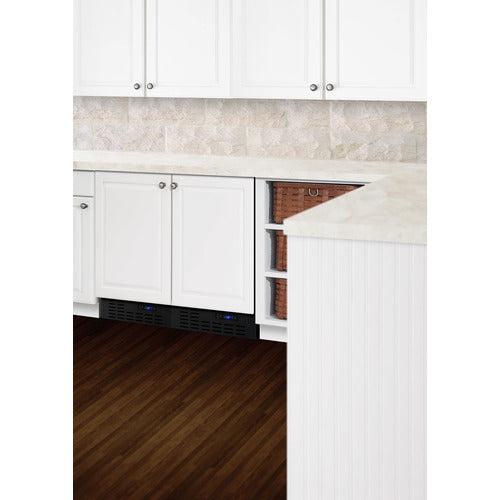

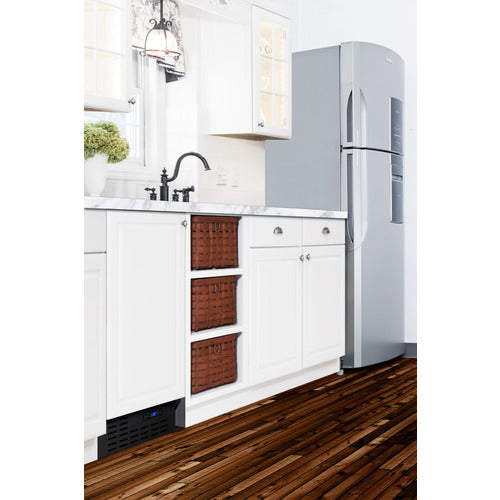

Sized just under 32" high for installation under lower ADA compliant counters

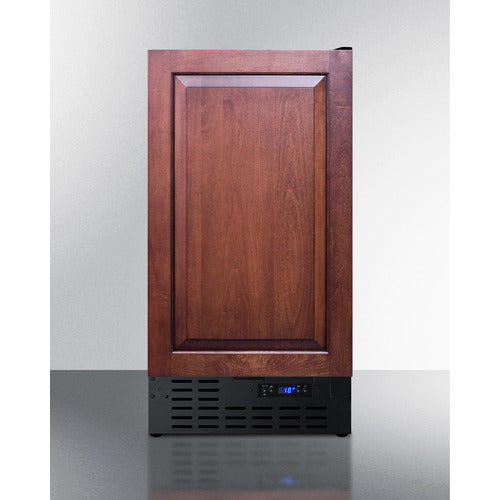

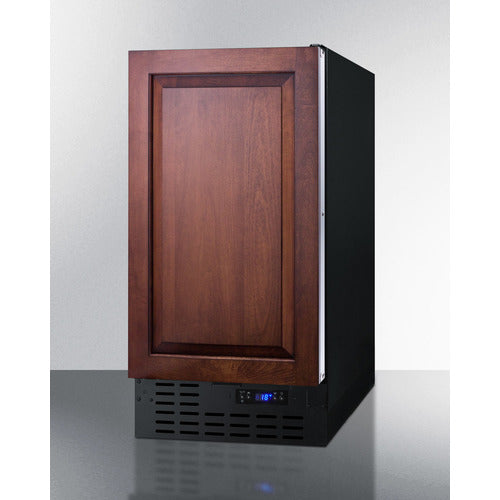

Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 17 1/2" W x 27 3/4" H; maximum weight: 10 lbs.)
Make the best use of space by installing your appliance under the counter
Convenient design allows more flexibility in positioning the unit
Makes and stores up to 8 lbs. of crescent cubes

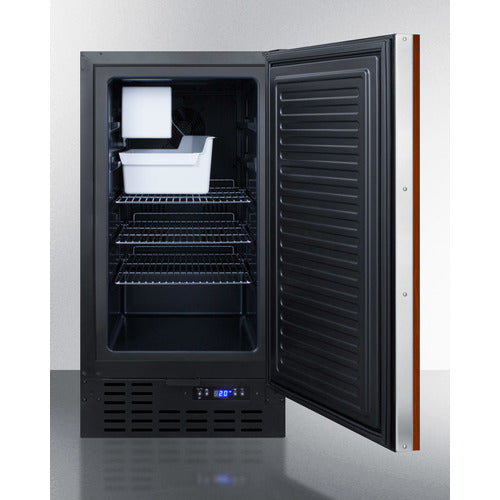

Bucket can be removed for fast and easy cleaning
Electronic controls for precise temperature management.
Temperature readout can be shown in Celsius or Fahrenheit
Eliminates the need to manually defrost the interior
Adjustable chrome shelves included to accommodate additional items
Space saving design with easier cleanability
Allows the unit to be used freestanding
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design with no ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 31.38" (80 cm) |
| Width | 17.75" (45 cm) |
| Depth | 24.0" (61 cm) |
| Depth with Handle | 25.75" (65 cm) |
| Depth with door at 90° | 40.0" (102 cm) |
| Capacity | 2.7 cu.ft. (76 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 82.0 lbs. (37 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101063751 |
|
Icemaker
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Daily Ice Production | 8.0 lbs. (4 kg) |
| Ice Storage Capacity | 8.0 lbs. (4 kg) |
| Ice Shape | Crescent |
| Number of Ice Cube Sizes | 1 |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 103.0 |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 12.75" (32 cm) |
| Interior Depth | 16.75" (43 cm) |
| Compressor Step Height | 4.5" (11 cm) |
| Compressor Step Width | 12.75" (32 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Level Legs | 4 |
| Temperature Range | -22 to 14ºF |
AVAILABLE UPGRADES
| Exterior |
| SSK - Stainless steel kickplate | LHD - Left hand door swing |
| Latch - Factory-installed door latch requires manual release to open unit |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
BIM18IFADA.pdf
|
| TECHNICAL DRAWING (.dwg) | IF_Instructions_-_General.pdf |
| USE & CARE |
