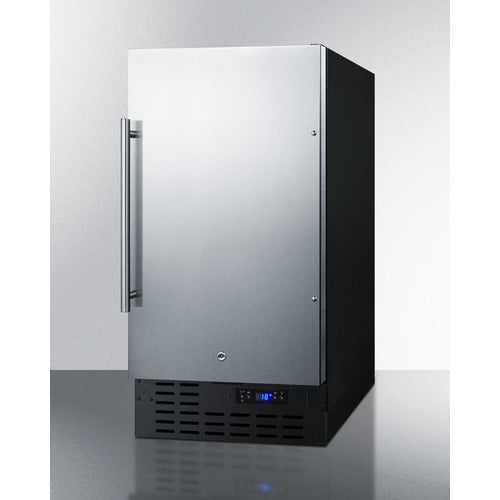

Introducing the Summit Appliance 18" 8 lb. Drain-Free Icemaker, ADA Compliant. This compact icemaker is perfect for ADA compliant settings, with a reversible 304 stainless steel door, pro style handle, and front-mounted keyed lock. No drain or pump needed, giving you more freedom to place this convenient luxury under the counter.
Effortlessly keep your drinks cool and refreshing with the Summit Appliance 18" 8 lb. Drain-Free Icemaker. This ADA compliant machine can produce and hold 8 lbs. of crescent-shaped ice cubes, while the frost-free operation ensures minimal maintenance. Store other frozen items with ease using the convenient chrome shelves. Quench your thirst with style and convenience.
Keep your cool with the Summit Appliance 18" 8 lb. Drain-Free Icemaker. The perfect size for ADA compliant kitchens, this user-friendly icemaker ensures a steady supply of ice. Need a matching fridge, beverage center, or wine cellar? Check out our website for more options.
ADA compliant
Sized just under 32" high for installation under lower ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter
No pump or drain required
Convenient design allows more flexibility in positioning the unit
Ice production
Makes and stores up to 8 lbs. of crescent cubes
Stainless steel door
Fully wrapped in stainless steel for a professional look
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Removable bin
Bucket can be removed for fast and easy cleaning
Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
Frost-free operation
Eliminates the need to manually defrost the interior
Extra shelves
Adjustable chrome shelves included to accommodate additional items
Reversible door
User-reversible door swing for added flexibility
Professional handle
Stainless steel handle completes the professional look
Flush back
Space saving design with easier cleanability
Fully finished black cabinet
Allows the unit to be used freestanding
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
|
Overview
|
| Height of Cabinet |
31.38" (80 cm) |
| Width |
17.75" (45 cm) |
| Depth |
24.0" (61 cm) |
| Depth with Handle |
25.75" (65 cm) |
| Depth with door at 90° |
40.0" (102 cm) |
| Capacity |
2.7 cu.ft. (76 L) |
| Defrost Type |
Frost-Free |
| Door |
Stainless Steel |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
1.1 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
82.0 lbs. (37 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101063713 |
|
Icemaker
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Daily Ice Production |
8.0 lbs. (4 kg) |
| Ice Storage Capacity |
8.0 lbs. (4 kg) |
| Ice Shape |
Crescent |
| Number of Ice Cube Sizes |
1 |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.06 oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
103.0 |
| Interior Height |
23.5" (60 cm) |
| Interior Width |
12.75" (32 cm) |
| Interior Depth |
16.75" (43 cm) |
| Compressor Step Height |
4.5" (11 cm) |
| Compressor Step Width |
12.75" (32 cm) |
| Compressor Step Depth |
4.5" (11 cm) |
| Level Legs |
4 |
| Temperature Range |
-22 to 14ºF |
| Latch - Factory-installed door latch requires manual release to open unit |
LHD - Left hand door swing |
| SSK - Stainless steel kickplate |
|
