Summit Appliance

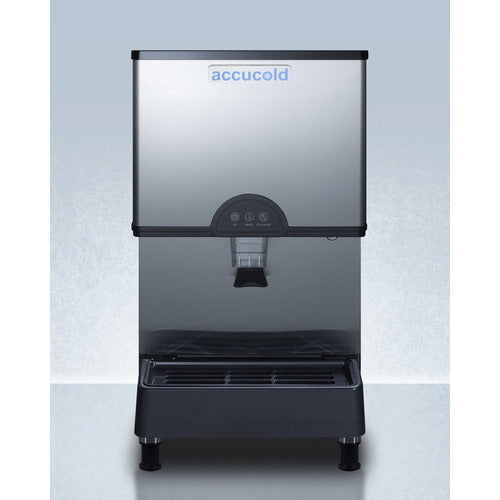

Summit Appliance 17 inch Ice & Water Dispenser with Filter Kit
Summit Appliance 17 inch Ice & Water Dispenser with Filter Kit
Couldn't load pickup availability
Make your life easier with the Summit Appliance 17 inch Ice & Water Dispenser with Filter Kit. This countertop dispenser is ETL-S listed and can produce up to 282 pounds of ice per day. With three dispenser functions and an illuminated display, you'll have easy access and control. Perfectly sized for standard counters. Game changer!
Introducing the Summit Appliance 17" Ice & Water Dispenser with Filter Kit! The adjustable legs provide flexibility in height while the stainless steel front adds a professional touch. Keep it clean with a removable tray and sealed back. Plus, the built-in UV lighting ensures you always have clean, refreshing water. Must be used with a drain and top vented.
Quench your thirst in style with the Summit Appliance 17 inch Ice & Water Dispenser. Its compact size and high production output make it perfect for hospitals, break rooms, and more. And with the included filter kit, you can enjoy clean and refreshing water with every dispense.
FEATURES
ETL-S listed to NSF-12 commercial standards
Makes it the perfect fit for countertops and similar surfaces
Adjustable legs for added convenience
Large capacity productivity capable of 282 lbs. of ice in a day cycle
Commercial grade two-stage filtration kit included to improve the quality and taste of the unit's output
Durable front in real stainless steel with a stainless steel look cabinet for a professional, sleek look
Produces nugget ice which is slow-melting and easy to chew
Save-spacing back allows unit to be flush with the wall, as well as makes cleaning the exterior unit more efficient
Provides an energy efficient, water-saving method to keep the unit cool
Dispenser includes built-in UV lighting, as studies have shown this to be an effective tool for eliminating the growth of bacteria
Provides easy, quick access to water and power supplies
Cost-efficient drainage system
Illuminated display panel for easy use between dispenser functions
Can be removed for fast and efficient cleaning.
Stores up to 11 pounds of nugget ice a day
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
Overview
|
|
---|---|
Height of Cabinet | 31.25" (79 cm) |
Width | 16.5" (42 cm) |
Depth | 25.0" (64 cm) |
Door | Stainless Steel |
Cabinet | Stainless Look |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Sanitation | ETL-S |
Amps | 5.8 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 146.0 lbs. (66 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101073217 |
Icemaker
|
|
Height Adjustable | Yes |
Drain Required | Yes |
Daily Ice Production | 282.0 lbs. (128 kg) |
Ice Storage Capacity | 11.0 lbs. (5 kg) |
Ice Shape | Nugget |
Number of Ice Cube Sizes | 1 |
Refrigerant Type | R404a |
Refrigerant Amount | 11.29 oz. |
High Side PSI | 360.0 |
Low Side PSI | 90.0 |
Level Legs | 4 |
DOWNLOADS
BROCHURE w/ DRAWINGS |
AIWD282FLTR.pdf
|
TECHNICAL DRAWING (.dwg) | AIWD282_ICE_AND_WATER_DISP.__A-C_2018_.dwg |
USE & CARE | |
ASSEMBLY DRAWING | |
REVIT MODEL |
