Summit offers a unique selection of built-in capable full-sized wine cellars with a versatile luxury design ideal for residential or commercial use

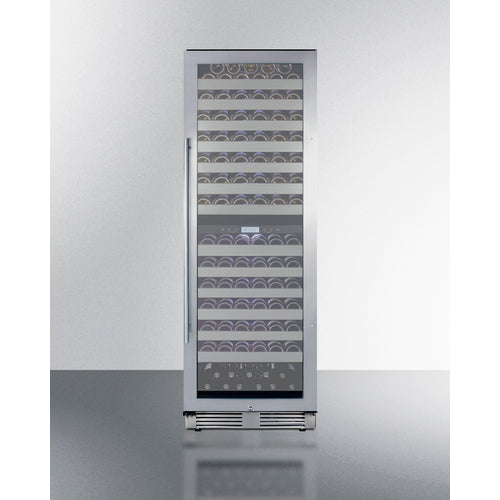

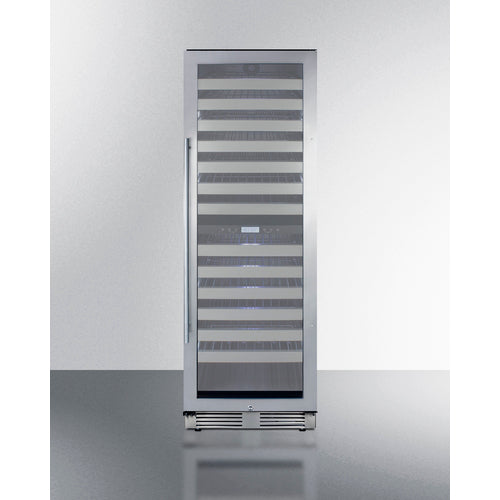

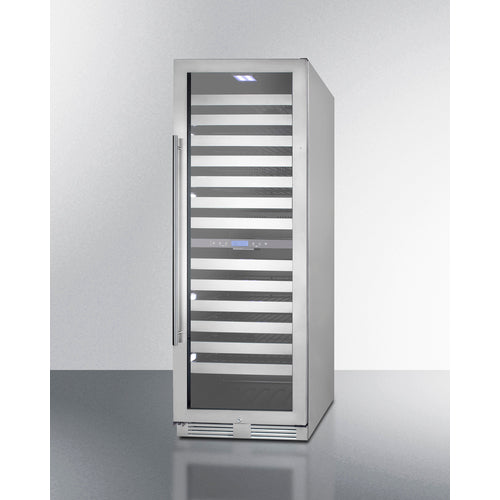

The SWCP2163CSSLHD, SWCP2163CSS, SWCP2163LHD, and SWCP2163 are all 24" wide dual-zone wine cellars that are ETL-S listed to meet NSF-7 commercial standards. The upper zone is specifically designed for white and sparkling wines, while the lower zone has a temperature range ideal for preserving reds.

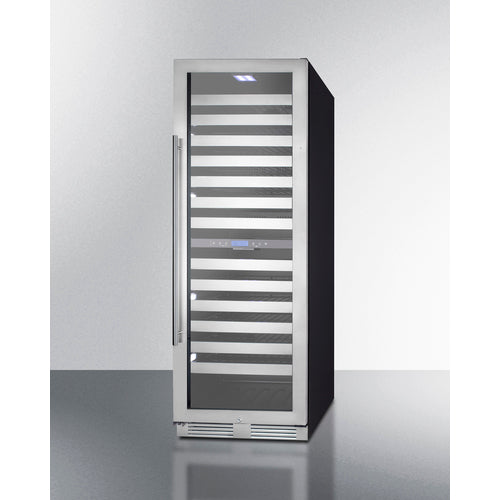

This model features a front-breathing design for built-in installation and a fully finished stainless steel cabinet that allows for freestanding use. Measuring just under 27" deep, it also has a sealed back and right angle plug, saving space and providing a sleek appearance. The luxurious exterior includes a double pane tempered glass door with a seamless stainless steel trim, as well as a stainless steel kickplate and pro-style handle for a professional look. For added security, there is a factory-installed keyed lock and powerful magnetic gaskets to ensure a proper seal in busy commercial environments.
The Summit Appliance 163 Bottle 24" Wide Dual-Zone Wine Cellar (SWCP2163CSSLHD, SWCP2163CSS, SWCP2163LHD, SWCP2163) features 13 full-extension black wire shelves with ball bearing glides for seamless loading. Its stainless steel fronts add a contemporary touch. With a generous capacity, it can hold up to 163 standard 750ml Bordeaux bottles (note: capacity may vary based on bottle style).
The SWCP2163CSS can also accommodate up to 110 bottles of wider Burgundy style (typically used for Pinot Noir and Chardonnay). The unit is equipped with nine white LED lights on the sides and top, creating a stylish display for your collection. An internal fan ensures proper chilling for both zones, while a charcoal filtration system eliminates odors. Additional features include an open door alarm and high/low temperature alarm to alert you if the unit goes out of range.
This product, the SWCP2163CSSLHD, SWCP2163CSS, SWCP2163LHD, SWCP2163, offers a compact size, advanced features, and a luxurious design, making it ideal for use in restaurants, bars, wineries, and homes. It provides full capacity storage for wine with a sleek and modern presentation.
FEATURES
ETL-S listed to NSF-7 standards for use in restaurants, bars, and other foodservice settings
Front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 70.75" H x 23.88"W x 28" D)

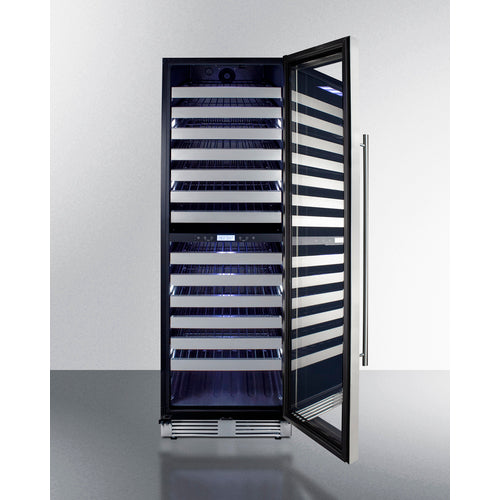

Provides a full display of the interior, with two levels of glass for added protection

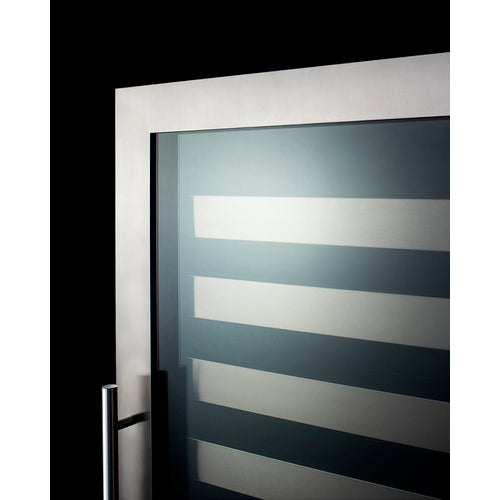

Single-piece door trim offers a more deluxe look
Chill white wine in the upper zone while preserving your reds at a warmer temperature below

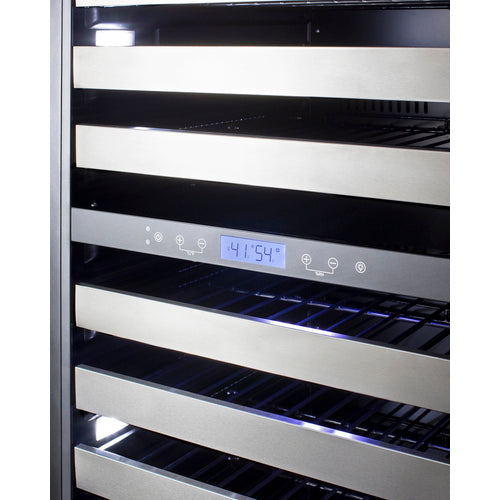

Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit

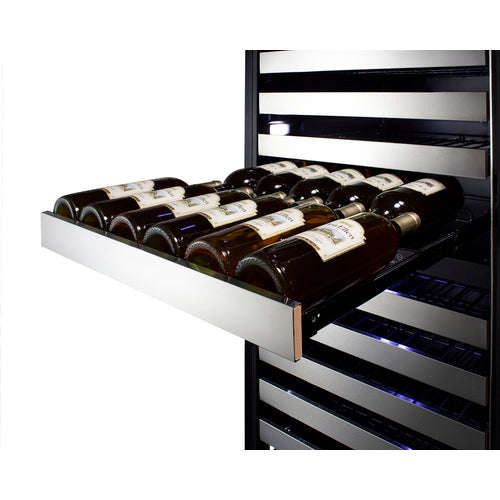

13 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity
Fronts feature a stainless steel accent to elevate your presentation
Interior can hold up to 163 standard 750ml Bordeaux style bottles (20 bottles stacked on the upper shelf, 11 bottles per middle 12 shelves, and 11 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 110 bottles (8 per shelf with 6 stacked on the slotted floor)
37" long handle in a brushed stainless look offers the perfect finish to your wine cellar
Nine LED lights provide an attractive and energy-efficient illumination of your collection with a gentle white hue
Keyed lock secures both zones (2 keys included)
Upper zone: 41-54°F ideal for chilling white and sparkling wine; Lower zone: 54-65°F for holding reds at a warmer temperature
Allows for front ventilation in an elegant design
Helps to purify air for an odor-free interior
Audibly sounds if the interior rises or falls out of recommended range
Alerts if unit door is ajar for more than 5 minutes
Ensures a tight seal for energy savings and improved performance
Flush back allows for a better fit and easier cleanability
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 69.5" (177 cm) |
| Width | 23.63" (60 cm) |
| Depth | 26.5" (67 cm) |
| Depth with Handle | 28.25" (72 cm) |
| Depth with door at 90° | 48.75" (124 cm) |
| Bottles | 163 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 269.0 lbs. (122 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101066356 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Wire |
| Shelf Qty | 13 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.76 oz. |
| High Side PSI | 320.0 |
| Low Side PSI | 120.0 |
| Interior Height 1 | 31.0" (79 cm) |
| Interior Width 1 | 20.38" (52 cm) |
| Interior Depth 1 | 21.0" (53 cm) |
| Level Legs | 2 |
| Temperature Range | 41-54°F (upper zone); 54-65°F (lower zone) |
| Interior Height 2 | 29.75" (76 cm) |
| Interior Width 2 | 20.38" (52 cm) |
| Interior Depth 2 | 21.0" (53 cm) |
| Sound Level | 34 dB |
AVAILABLE UPGRADES

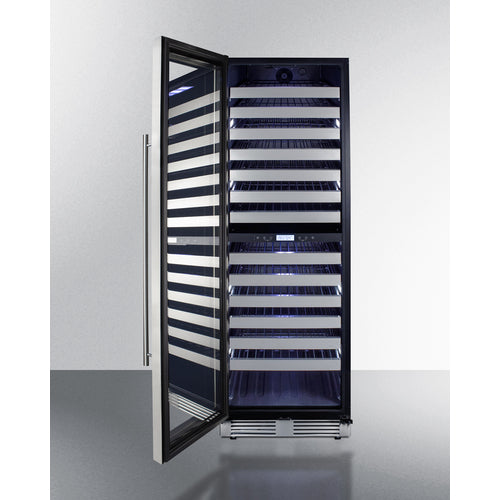

| Exterior | LHD - Left-hand door swing |
| Door |
| T3F Door Tint | T1SF Door Tint |
| T4F Door Tint | T2F Door Tint |
