The Summit Appliance SWC1966B offers a capacity for 162 standard 750ml Bordeaux bottles with the capability to adjust for wider Burgundy-style bottles. The interior includes 13 wooden shelves that slide out 50% for effortless loading and unloading, along with two white LED lights and a digital control panel for temperature management.
An internal fan and charcoal filtration system ensure proper cooling and odor control. The unit also features an open-door alarm and a high/low-temperature alarm for added security.
Achieve full-capacity wine storage with a modern presentation using the SWC1966B. This convenient and elegantly designed unit offers advanced features, making it the perfect addition to any home bar or kitchen.
FEATURES
The front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 70.75" H x 23.88" W x 28" D)
Provides a full display of the interior, with two levels of glass for added protection
Chill white wine in the upper zone while preserving your reds at a warmer temperature below
Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit
The upper and lower zones are evenly split for a symmetrical look

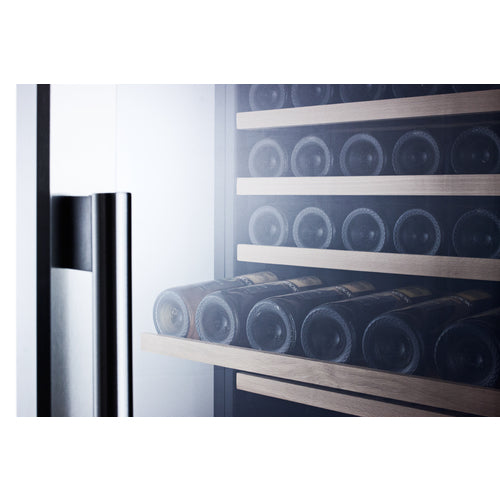

13 shelves slide out 50% for easier loading and optimum capacity

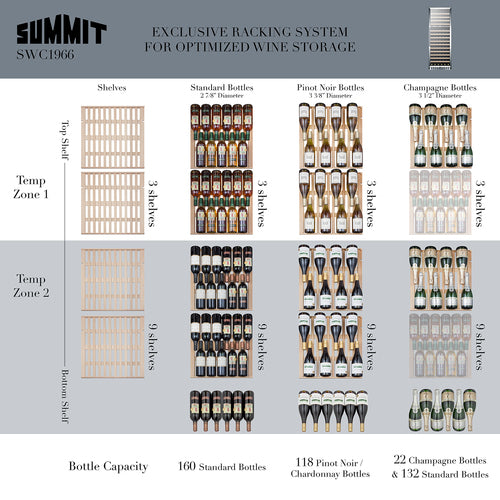

Interior can hold up to 162 standard 750ml Bordeaux style bottles (19 bottles stacked on the upper shelf, 11 bottles per middle 12 shelves, and 11 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 146 bottles (11 on the upper shelf, 8 on the top shelf of the lower zone, 11 on each of the other 11 shelves, and 6 on the slotted floor)
37" long handle in a brushed stainless look offers the perfect finish to your wine cellar
Two LED lights at the top of each zone provide an attractive and energy-efficient illumination of your collection with a gentle white hue
Keyed lock secures both zones (2 keys included)
Upper zone: 41-54°F ideal for chilling white and sparkling wine; Lower zone: 54-65°F for holding reds at a warmer temperature
Allows for front ventilation in an elegant design
Helps to purify the air for an odor-free interior
Audibly sounds if the interior rises or falls out of the recommended range
Alerts if the unit door is ajar for more than 5 minutes
Ensures a tight seal for energy savings and improved performance
The flush back allows for a better fit and easier cleanability
The design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 69.5" (177 cm) |
| Width | 23.63" (60 cm) |
| Depth | 26.5" (67 cm) |
| Depth with Handle | 28.25" (72 cm) |
| Depth with door at 90° | 48.75" (124 cm) |
| Bottles | 162 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 200.0 lbs. (91 kg) 230.0 lbs. (104 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101066349 761101079257 761101076317 761101079264 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Wood |
| Shelf Qty | 13 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.76 oz. |
| High Side PSI | 320.0 |
| Low Side PSI | 120.0 |
| Interior Height 1 | 31.0" (79 cm) |
| Interior Width 1 | 20.38" (52 cm) |
| Interior Depth 1 | 21.0" (53 cm) |
| Level Legs | 2 |
| Temperature Range | 41-54°F (upper zone); 54-65°F (lower zone) |
| Interior Height 2 | 29.75" (76 cm) |
| Interior Width 2 | 20.38" (52 cm) |
| Interior Depth 2 | 21.0" (53 cm) |
| Sound Level | 34.7 dB |
